IP Surveillance System

IP Camera

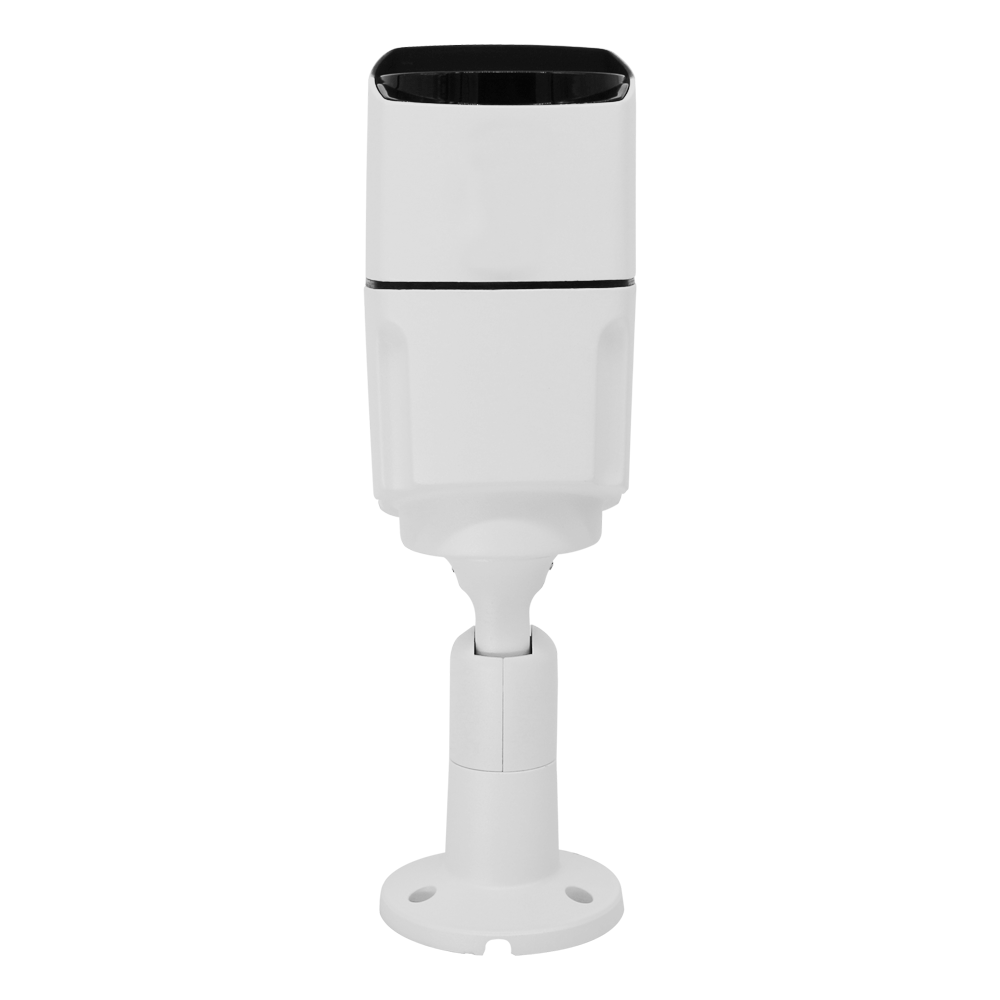

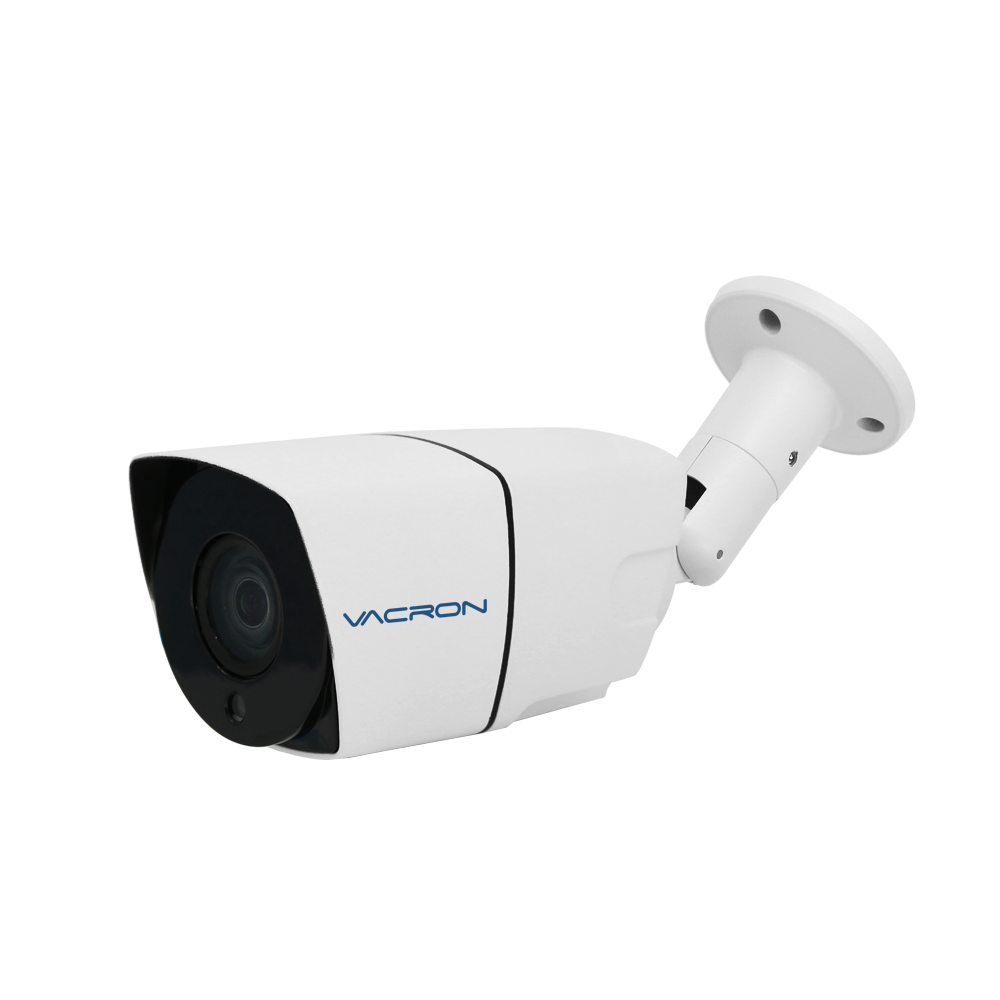

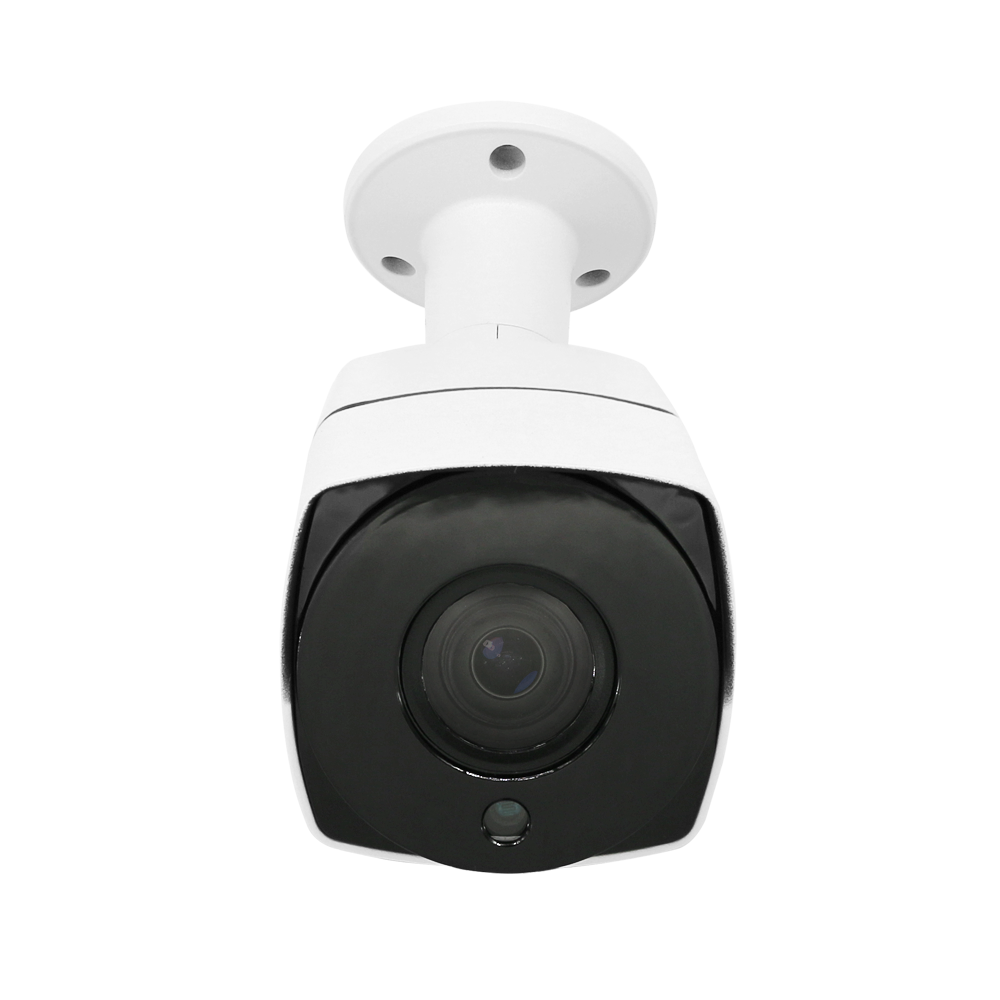

VIN-US760HTA-EA

1080P / Bullet / IR / H.265 / AI Humanoid Recognition

  • H.265

  • DC12V

  • 0 LUX

  • P.O.E

  • 8 LEDs

  • 1/2.8"CMOS

  • 0~45°C

  • Human

  • 電動對焦2.8-12MM

Download Catalog

Product Features

  • The camera has built-in AI algorithms that can accurately recognize human-shaped objects.
  • With a 2.8mm~12mm motorized motor lens, it is convenient for users to adjust the sharpness of
    the recognition area.
  • Starlight-grade Sony CMOS low-light color image with high resolution for enhanced night-time
    surveillance.
  • Real-time H.265/H.264 multi-mode engine compression technology (Dual Codec) supports
    multiple levels of video quality configuration.
  • This device supports a 256G SD card to store captured pictures and video data, and supports
    remote inquiry of event data.
  • The identification results are linked with the Vacron recording system to grasp the monitoring
    and alarm information in real-time
  • Support ONVIF international standard with best compatibility and integration, SDK can be attached
    for background system vendor's integrations.

Humanoid Recognition Function

Number of Humanoid Recognition

It can recognize 5 sets of humans on the monitor screen at the same time.

Recognizable Size of Human

The size of the human figure on the video screen needs to be 60*100 pixels or more.

Accuracy Settings Adjustments

The initial default value is O. According to the constraints of the installation environment, the strict level setting for recognition can be adjusted to avoid misjudgment or relaxation of recognition. Reduce the rate of
false positives for human recognition.

Alarm Zone Settings

Provide two groups of warning area settings and irregular frames can be set as the warning area setting.

Humanoid recognition in the warning zone can be set. When the humanoid object touches the warning frame, the humanoid object will be listed and tracked until the humanoid object leaves the warning zone.

It can be used with the alarm setting as a linkage setting.

Alarm Response Time

Configurable I/O alarm output time allows the manager to have a response time.

Can set I/O alarm output voltage level high/low (OV~3.3V) for a remote siren or gearing alert.

Humanoid recognition image storage

 Specific area recognition is possible. To delimit irregular-shape areas as specific recognition areas for face recognition when people enter the delimited specific recognition areas.
Alarm Response Time

You can set up video storage in the SD card of the device itself, or set up a FTP Server to transmit the humanoid recognition results to the server.
Face Recognition Video Storage You can set up video storage in the SD card of the device itself, or set up a FTP Server to transmit the face recognition results to the server.
Micro SD Card Storage in Device

It supports a 256 GB Micro SD card for humanoid recognition image storage in the device. It can carry out humanoid recognition image confirmation on the browser page.

(After the humanoid recognition system captures the SD card photo function is turned on, the built-in SD card will be formatted and forcibly turn off normal surveillance video)
Co-development

Please contact FUHO sales retailers to discuss the development and integration of multiple Al system functions.


SPECIFICATIONS

system Flash：256MB
RAM：512MB
Sensor SONY FullHD High Quality 1/2.8 CMOS Image Sensor
Lens Motorized / Automatic Zoom 2.8-12mm
IR-cut Built-in Magnetic Infrared Filter Switcher
Low Lux 0 Lux (IR ON)
IR LEDs With 8 IR LEDs

Image Performance		 H.265/H.264: 1920x1080 at 60 fps
H.265/H.264: 1280x720 at 60 fps
H.265/H.264: 640x480 at 60 fps
H.265, H.264 multi-mode engine compression technology (Dual Codec)
 Support simultaneous multiple streams
Video Adjustment Adjustable image size, quality, and bit rate
Time, date, or custom text can be displayed on the image,
and the display position can be set.
Configurable brightness, contrast, saturation, sharpness, white balance, and exposure
 Include AGC, AWB, AES, BLC, WDR functions
Electronic Shutter 1/2 ~ 1/100,000 Sec
Networking Interface 10 /100 Mbps Ethernet, RJ-45
Communication Protocol IPv4、TCP/IP、DHCP、HTTP、RTSP、SNTP、DNS
browser Microsoft Internet Explorer 6.0 or above
Safari, Chrome or Firefox
Alarm Notification 1. High/Low (0-3.3V) alarm signal can be connected to I/O OUT.
2. Human recognition results are captured and transmitted to FTP or the device's micro SD card for image storage.
Users Maximum 8 users online monitoring simultaneously
Maintenance Multi-level users access control with password protection
I/O Port Supports FOTARJ-45 network connection port, power input port DC12V, sound input and output (BNC-RS485 output), alarm output
Power VIN-US760HTA-EA:
DC12V
VIN-US760HTEA-EA:
DC12V or Ethernet PoE IEEE802.3af Class 0 (optional)
Power Consumption 3.6W(IR OFF) 、12W(IR ON)
Weight N.W. :1190g
Dimension 255mm x 75.3mm x 75mm
Operating Environments 0℃ ~ 45℃
Waterproof and Dustproof Level IP66
