Mobile Surveillance

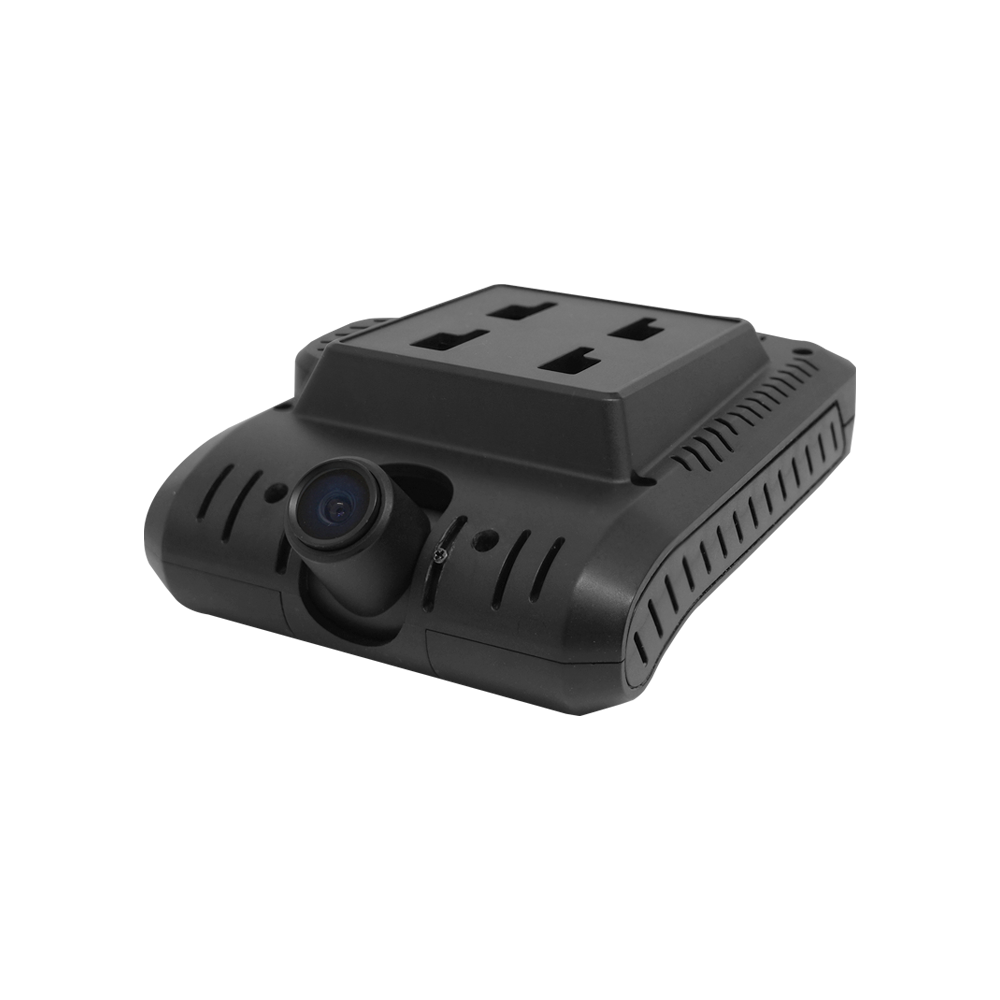

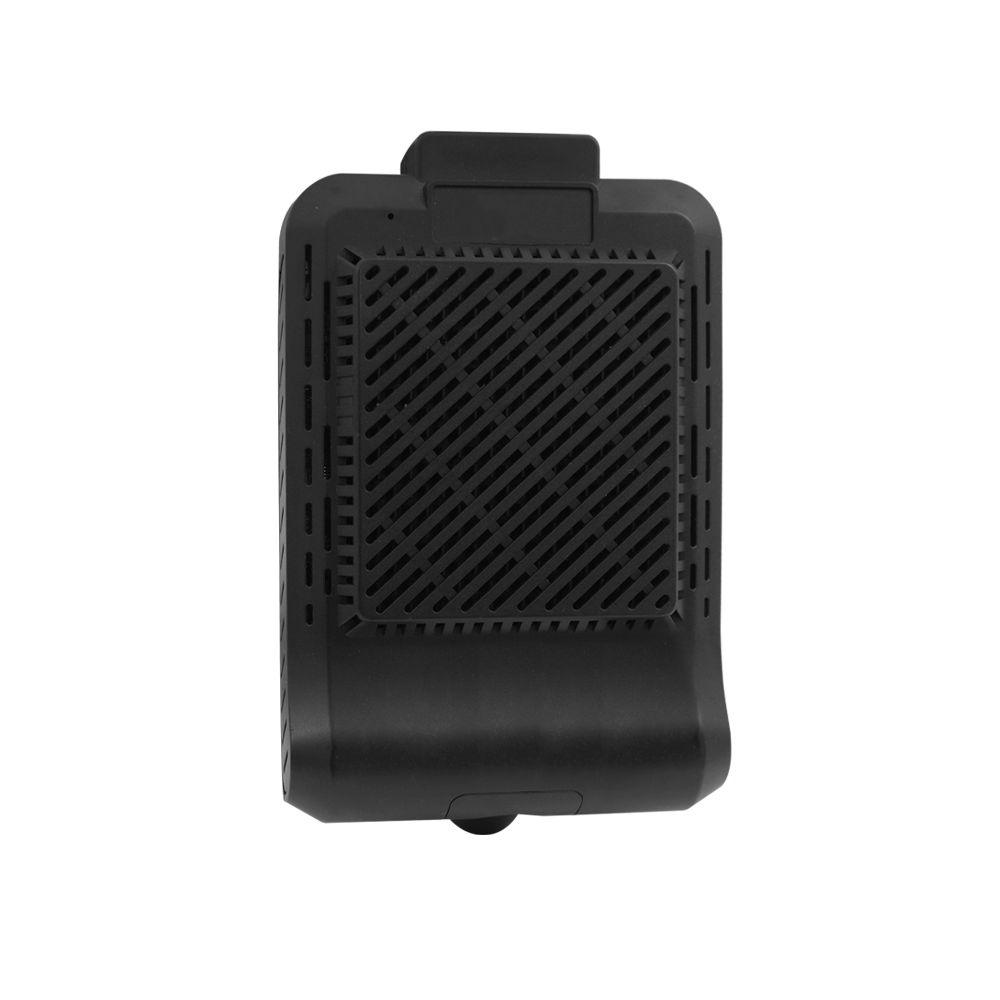

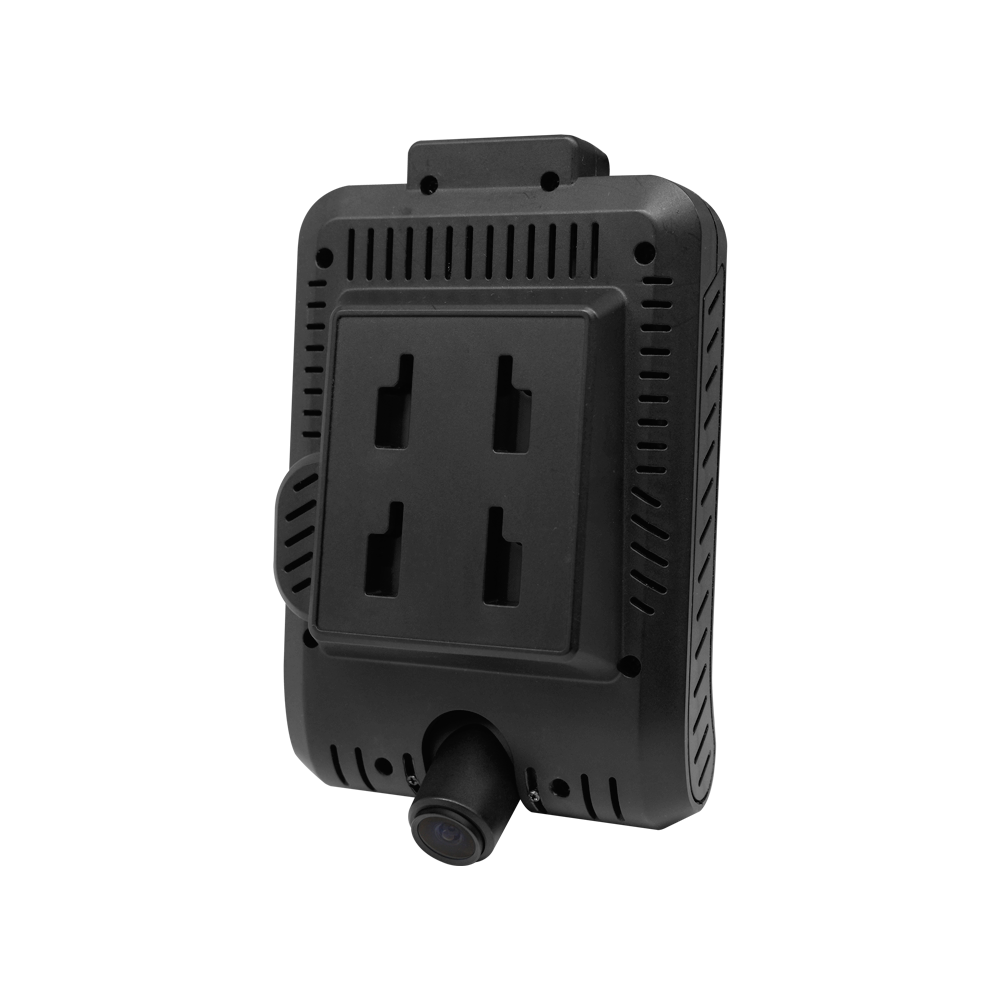

Dash Cam

VVN-CBE71

1CH / 1080P / 4G / WIFI / AI

  • H.265

  • MIC Built-in

  • G-Sensor

  • GPS

  • GUI

  • ADAS

  • DMS

  • BSD

  • 4G

  • WiFi

  • -10~70°C

  • Micro SD

Download Catalog

Product Features

  • H.265 & H.264 image compression is adopted to save storage space and transmit data.
  • SOC NT98321 solution, support 4CH 1080P 15FPS/2CH 1080P 30FPS, 4CH 720P, D1.
  • Built-in 1CH 1080P camera and external 3CH HD camera for easy installation.
  • Built-in 2CH AI intelligent algorithm, which can support ADAS, DMS, and BSD functions.(optional, 2 form 3 )
  • Built-in GPS+ BeiDou Navigation Satellite System.
  • Support one Micro SD card up to 256GB and super capacitor to ensure the integrity of video files.
  • Support 1 SIM card, 4G module can choose to support global frequency bands.
  • Support WIFI hotspot, support mobile phone preview image and parameter setting.
  • Support 3ch I/O alarm in, support 2ch of RS232.
  • Built-in speaker and microphone to support two-way voice intercom between equipment and
    fleet management platform; TTS voice broadcast. (not supported in some countries)
  • Support mobile APP, client, fleet management platform preview image and data settings.
  • Dedicated file system to improve disk read and write efficiency and more stable recording.
Operating system Linux
Operating surface Graphical menu operation interface (OSD menu), character overlay function
GUI Support remote control operation or data setting through mobile APP
CPU NT98321
ARM Cortex CA9 dual core processor @1.4GHz
Video input 4CH AHD
Supports camera quality: 1080P, 720P, D1
Video output 1CH CVBS, 1.0Vp-p, 75Ω
Support full screen and quad split screen
Video Standards PAL、NTSC
Video Compression Format H.264/H.265
Preview function Single screen, quad split screens
support manual/event trigger display function
Recording Resolution 1080P、720P、D1、AUTO(AI MODE)
Recording rate PAL: 100 frame/sec
NTSC: 120 frame/sec
Recording method Default automatic recording
support startup recording, event recording
Audio input 1 ch built-in MIC input
Audio output 1 ch built-in speaker
Compression format G.711A
Audio Record method Sound and image are recorded synchronously
Alarm in 2 switching ALARM IN
Alarm out None
Communication surface 2 ch of RS232 interface,
reserved for communication with peripherals
Wireless transmittion Built-in 4G wireless transmission function,
TDD-LTE, FDD-LTE
WIFI: 802.11b/g/n communication module
GPS Built-in GPS/BD module
G-SENSOR Support
Micro SD card 1 Micro SD card with a maximum capacity of 256GB
Upgrade method Micro SD card update, FTP remote upgrade
Storage method Dedicated file system
USB Reserved USB slot (not support yet)
SIM card slot one SD card slot
Users Two-level management of user password and
administrator password
Record search Video data can be searched by recording time,
recording method, etc.
AI Algorithm ADAS: Lane departure, collision warning,
　　　vehicle distance detection,
　　　pedestrian detection, etc.
DSM: Fatigue driving detection, smoking, calling,
　　　blocking, unsafe driving behavior detection
BSD: left blind spot, right blind spot, left,
　　　right and front blind spot detection
Language Mandarin/English
Power management Wide power input, with overload, insufficient,
short circuit, reverse connection protection function;
Support timer power on and off and delay shutdown
function.
Input voltage DC:+10V ~ +36V
Power consumption Normal working condition <6W
Temperature -10℃ ~ +70℃
Humidity 20% ~ 80%
External dimensions 95mm x 130mm x 45mm
Net weight 0.3kg

All specifications shown are typical unless otherwise stated and are subject to change without notice.
