IP Surveillance System

IP Camera

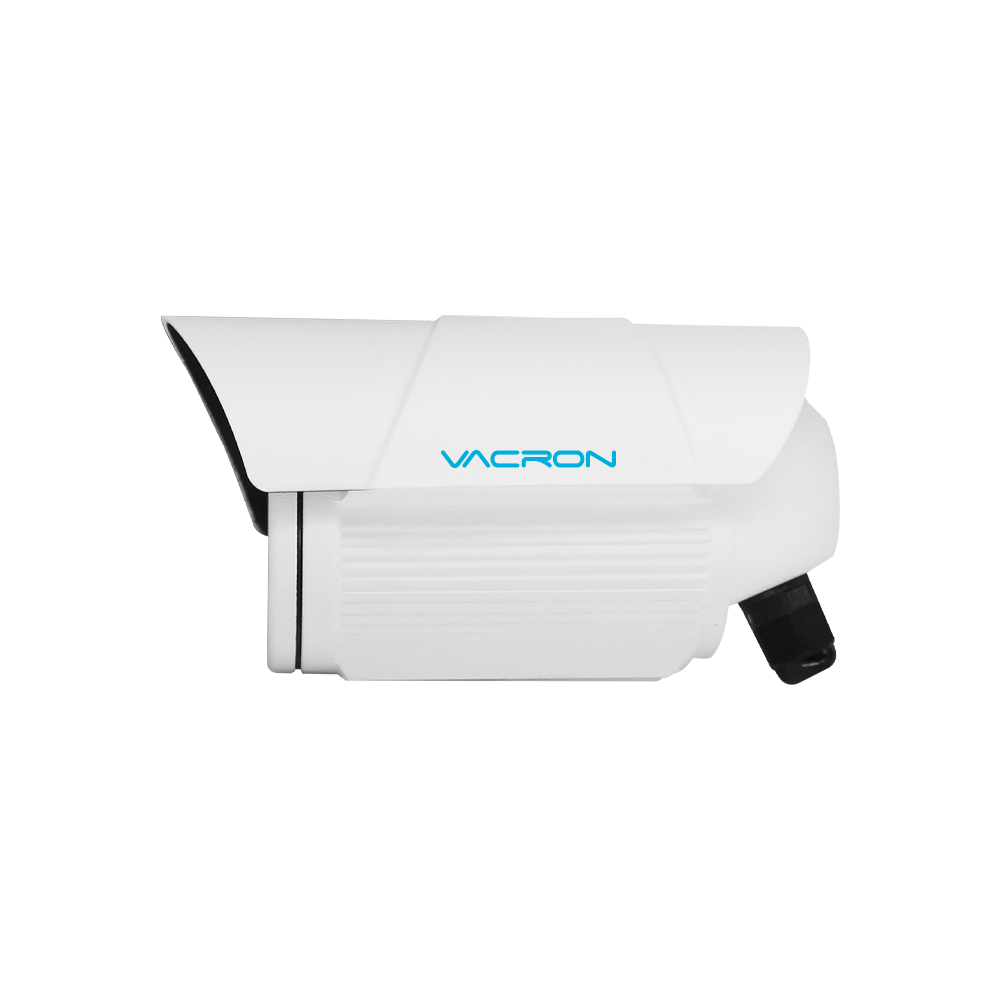

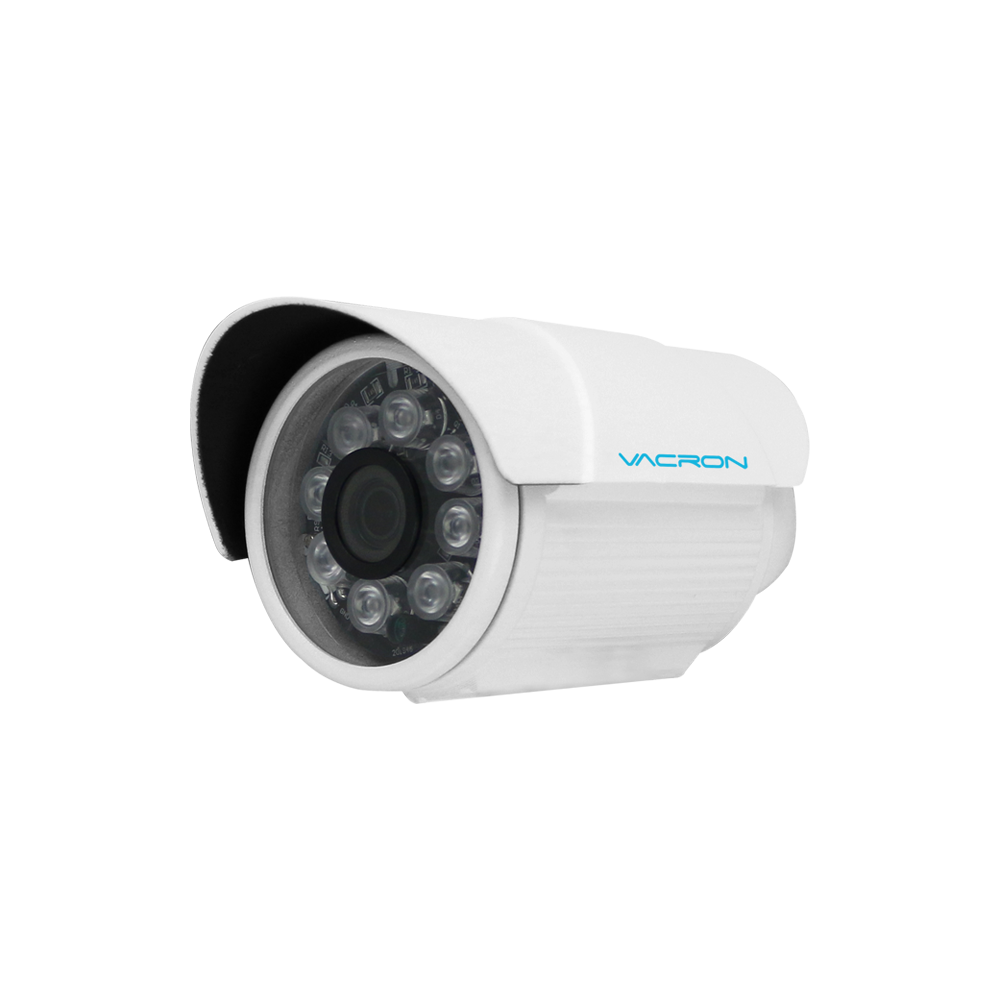

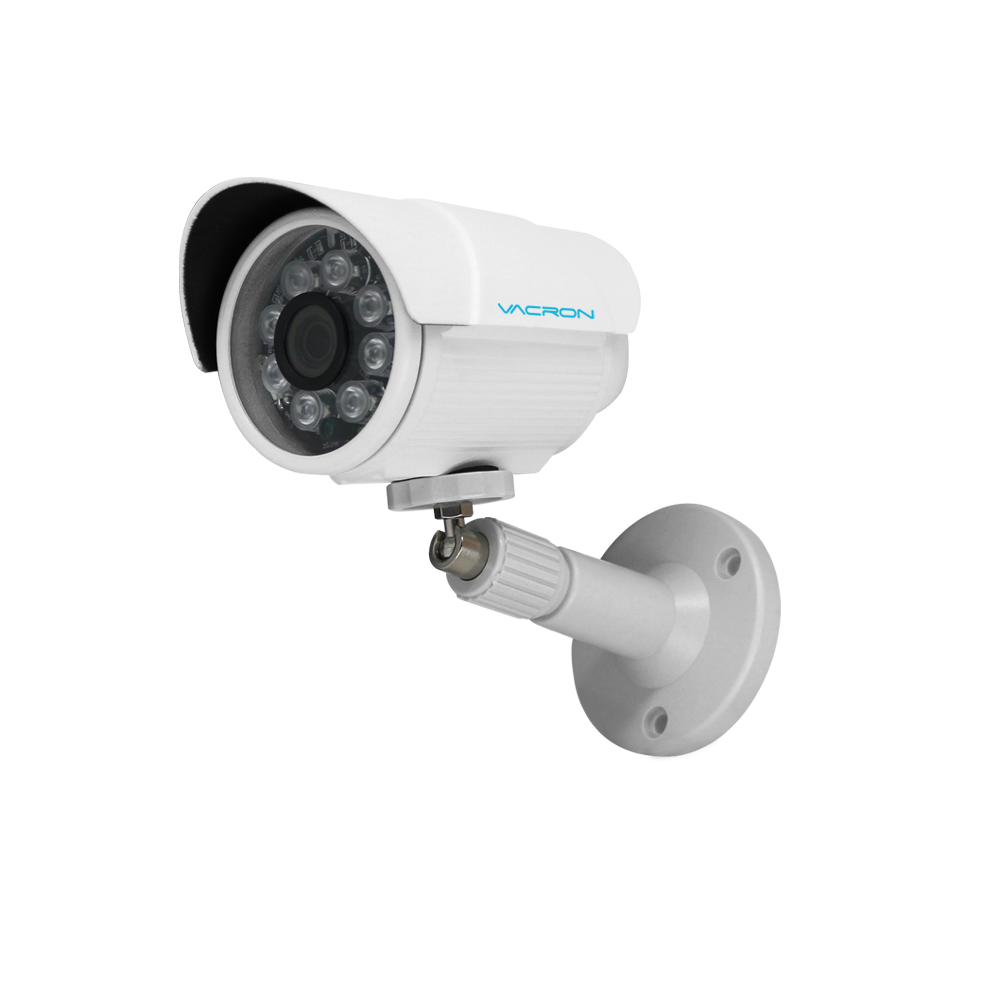

VIN-US768-E2

1080P / Bullet / IP66 / H.265 / IR

  • H.265

  • DC12V

  • LENS 3.6mm

  • 30M

  • 0 LUX

  • P.O.E

  • 8 LEDs

  • 1/2.8"CMOS

  • 0~45°C

Download Catalog

Product Features

  • SONY 2MP 1/2.8" CMOS image sensor with excellent image quality
  • Real-time H.265/H.264 compression (Dual Codec)
  • Resolution up to 1920x1080 at 60 fps
  • 8 IR LEDs, IR Range 30M
  • Support ONVIF international standard, best compatibility and integration
System Flash:256MB
RAM:512MB
Image Sensor FullHD High Quality 1/2.8” CMOS Image Sensor
Lens 3.6 mm
IR Cut  Built-in Magnetic Infrared Filter Switch
Lux 0 Lux(IR ON)
LED  8 IR LEDs
Image Quality H.265/H.264: 1920x1080 at 60 fps
H.265/H.264: 1280x720 at 60 fps
 H.265/H.264: 640x480 at 60 fps
H.265 & H.264 Multimode Engine Compression Technology
(Daul Codec)
Support Simultaneous multiple streams
Image Adjustment Adjustable image size, quality, and bit rate.
Time, date, or custom text can be displayed on the image, and the display position can be set.
Adjustable Brightness, Contrast, Saturation and Sharpness
Include AGC, AWB, AES, BLC, WDR functions
Electronic Shutter 1/2 ~ 1/100,000 Sec
Network Interface 10 /100 Mbps RJ-45
Protocol  IPv4, TCP/IP, DHCP, HTTP, RTSP, SNTP, DNS
Browser Microsoft Internet Explorer 6.0 or above
Safari, Chrome or Firefox
Alarm & Event notification Motion Detection
Event notification using SMTP or FTP
User Maximum 8 users online monitoring simultaneously
 Multi-level user access control with password protection
Maintenance Supports FOTA
I/O Port RJ-45 Ethernet x 1,DC 12V Jack x1
Power DC12V or PoE IEEE802.3af Class 0(Optional)
Max. Power Consumption 3.6W(IR OFF) 、10W(IR ON)
Weight N.W.:350g
Dimension 136mm x 78mm x83mm
Operating Environments 0 ~ 45 °C
IP Rating IP66



*If the above specifications are different, please refer to the latest date
