| Video Input |
36CH 5MP (RJ45 input) |
| Video Output |
VGA (Maximum 1920x1080)
HD OUT output (Max. 3840 x 2160) |
| Audio Compression |
G.711U |
| Digital Zoom in |
YES |
| Sequence |
YES |
| Video Compression |
H.264 / H.265 |
| Recording Frame |
VGA @30FPS/sec. up to 36CH Monitoring
1-channel real-time video monitoring in 5MP@10 FPS/sec |
| Recording Mode |
Continuous, Scheduled, Displacement |
| Motion Detection |
Zones: 192(16×12 grid) |
| Playback |
Video playback can reach up to 1 channel 5MP@10 FPS/sec.
or 1 channel 1080P@30 frame/second
or 36 channel VGA@30 FPS/sec. |
| Display Mode |
Single, Quad, 9-Split, 13-Spilt, 16-Split, 25-Spilt, 36-Split |
| Backup File Format |
MP4 / self-defined format. |
| Backup File Method |
USB / WEB |
| Network Services |
HTTP、 DHCP、 DDNS、 NTP、 SMTP、 FTP、 DNS、
UPNP、 PPPoE、 IP Authority |
| Network Connection |
Live View, Search/Playback, Backup, and Update |
| Browser |
IE / WEB-Client |
| HDD Storage Interface |
(1) SATA x 4
(2) SATA x8 |
| Max. Supported Capacity |
10TB per unit |
| Network Socket |
RJ-45*1, 10/100/1000 Base-T |
| USB |

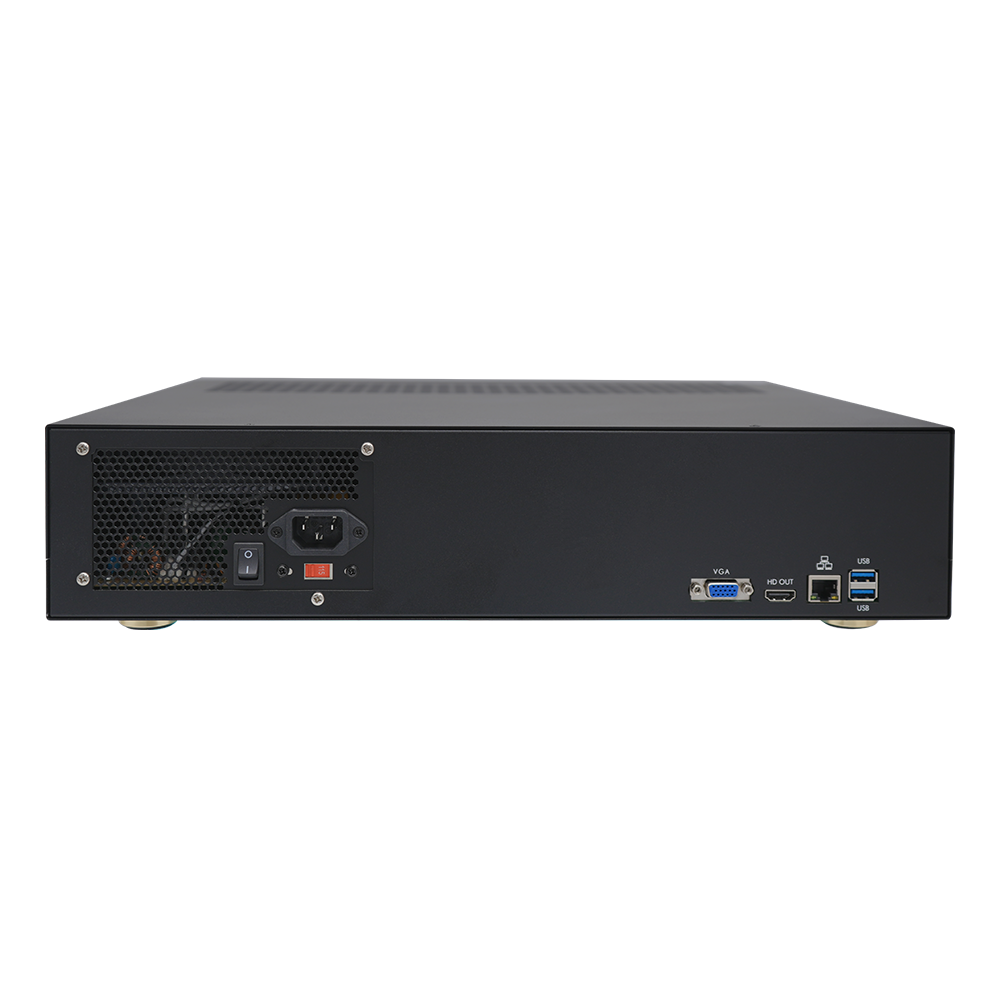

Front plate USB2.0x1 / Black plate USB2.0x1 + USB3.0x1 |
| File System |
Stable and Reliable Self-Developed File System |
| S. M. A. R. T. |
Hard Disk Error Check |
| Operation Menu |
GUI interface；VGA & HD out simultaneously |
| Input Method |
Mouse |
| Internal Buzzer |
Start-up Beep |
| Languages |
English, Simplified Chinese, Traditional Chinese, Japanese |
| Firmware Update |
USB update or Network Update(OTA) |
| APP Monitoring |
iPhone, Android, Mobile App supports Live view& audio,
playback and back-up. |
Central Monitoring Video
Management System (CMS) |
Support |
| Operating Environment |
Temperature 0~+46ºC, Humidity: 20~80% |
| Power Supply |
(1) DC 12V / 6A(AC100V~240V 50/60HZ)
(2) AC 115/230VAC, 8/4A, 50-60Hz, Output:400W |
| Net Weight |
About 4.2 kg (without HDD and Power Adapter) |
| Dimensions |
430mm x 370mm x 97mm (L×W×H) |
