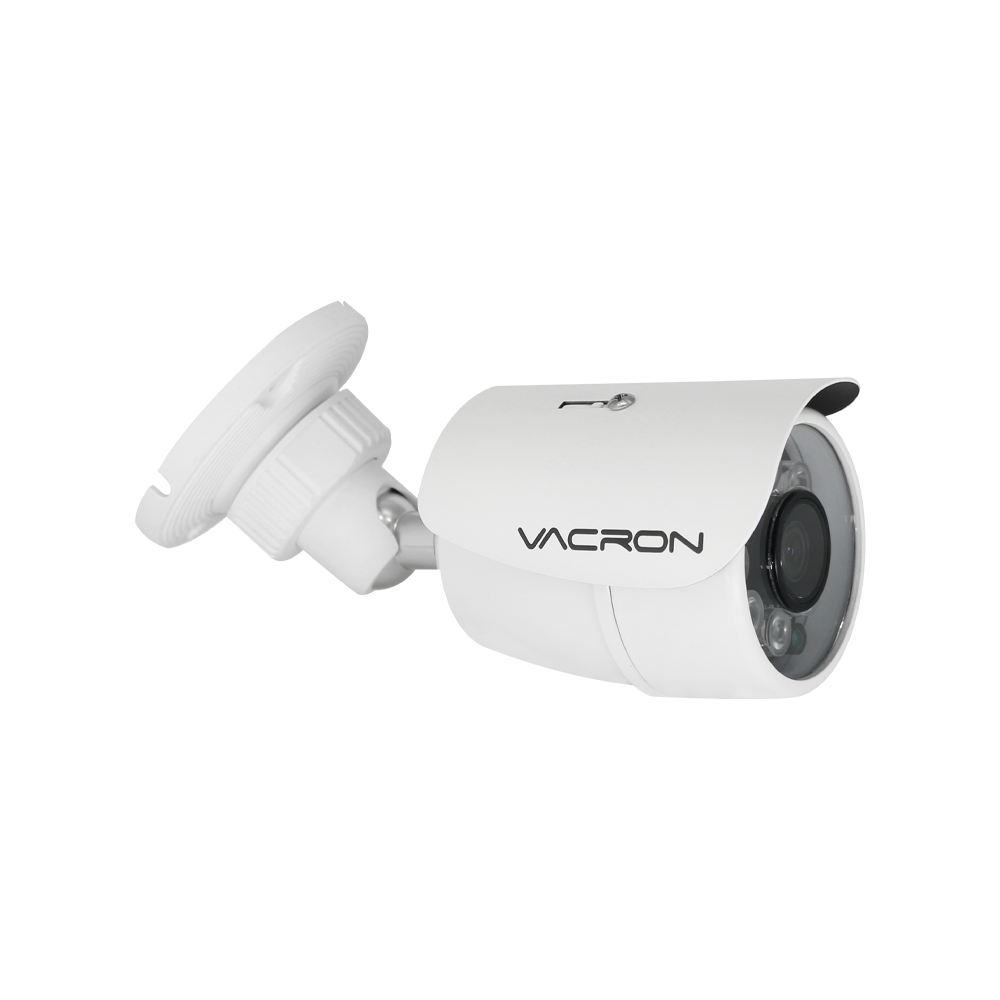

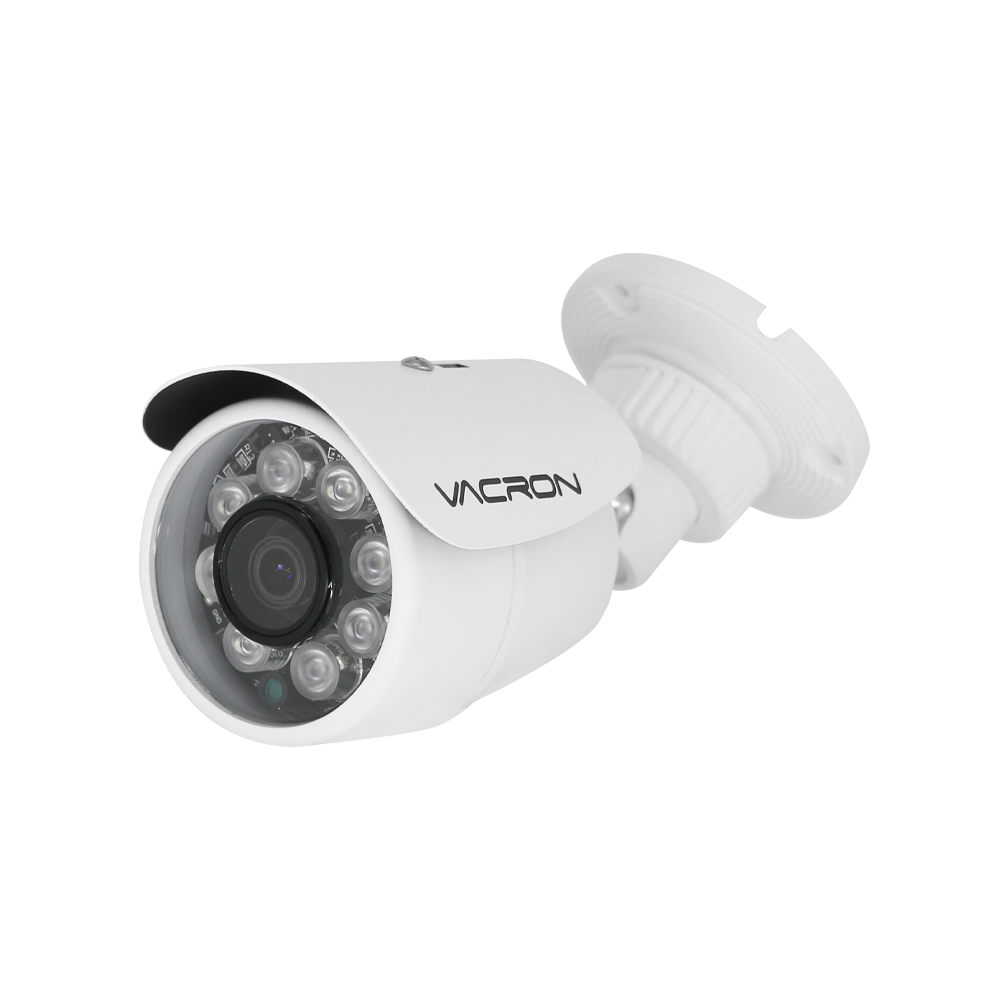

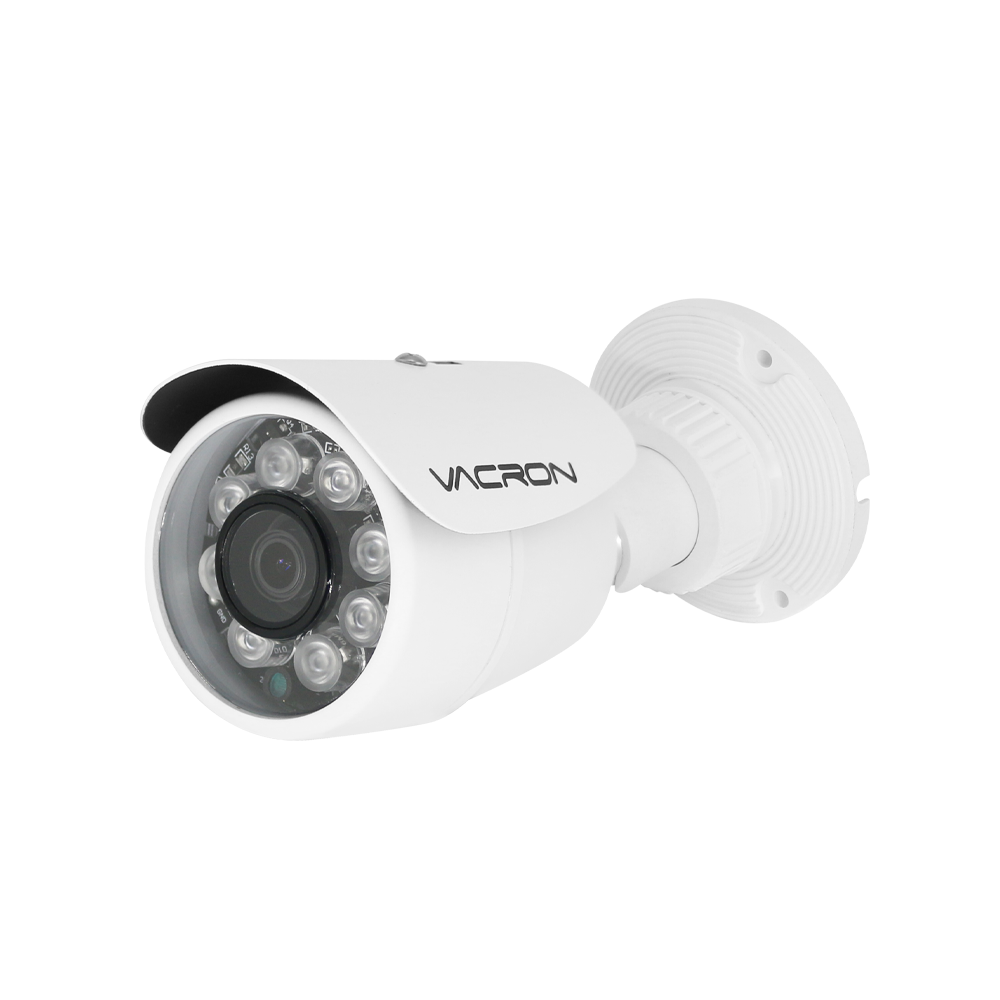

DTV Camera | VCM-69232

Product Features

1/2.8" CMOS Image Sensor, 1080p@30fps
3.6mm million pixel lens.

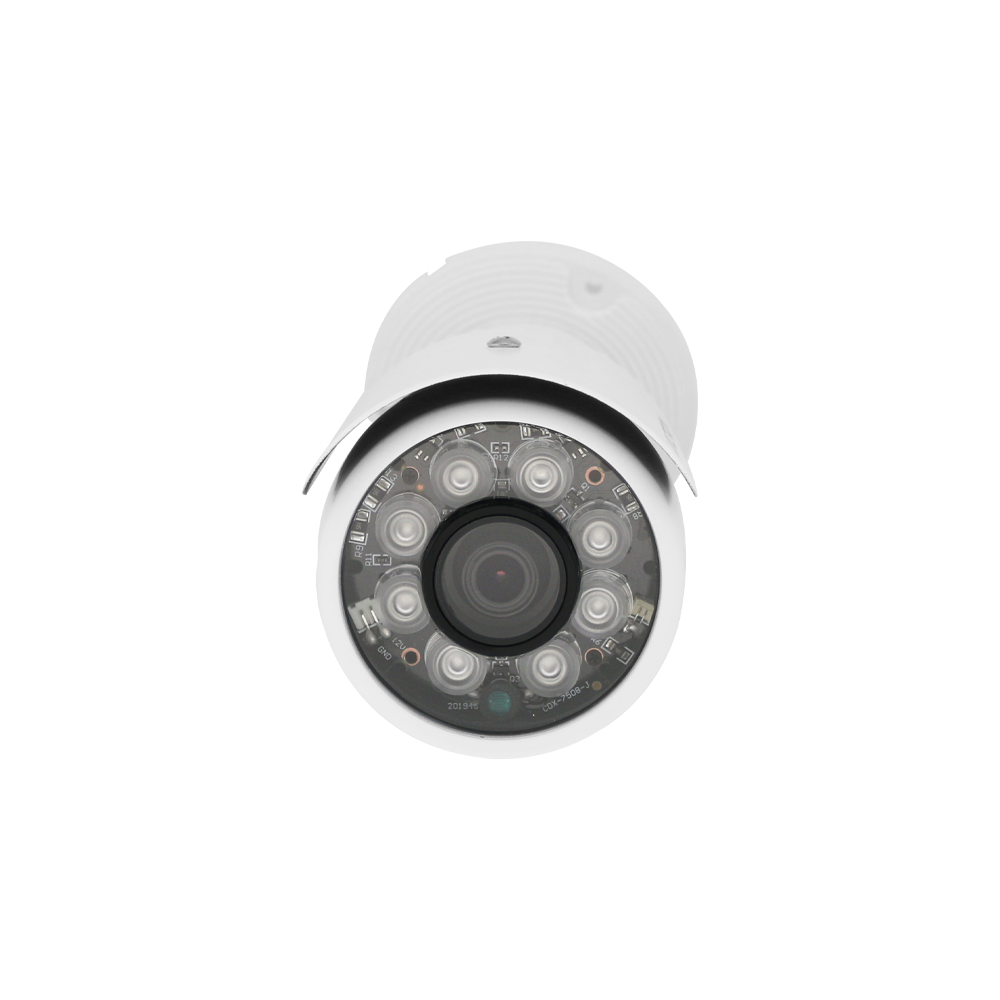

8 High Power IR LEDs, IR Range 35M
Removable IR-cut filter for day & night function, consistent focus in day and night.
WDR(Wide Dynamic Range) function, perfect display even in high contrast environment.
Supports DVB-T (ETSI EN 300 744) digital television transmission standard.
Transmission distance via coaxial cable, up to 1000 meters.
IP66

Image Sensor	1/2.8" CMOS Image Sensor
Video Compression	H.264, MPEG2-TS
Lens	3.6mm
Effective Pixel	1920 (Horizontal) x 1080 (Vertical)
Resolution	1080P@30fps
Power	DC 12 ± 1V
Power Consumption	500mA
Wattage	>6.0W
ICR	Support
Audio	Support
S/N Ratio	≧65dB
Minimum illumination	0.001 LUX / 0 LUX (IR ON)
Number of LED	High Power IR LEDs x8
IR Range	35M
IR Wavelength	850nm
Video Functions	WDR functions, AGC, AWB, AES, BLC, 2D/3D noise reduction, Slow Frame Rate
Remote Control	Brightness, Contrast, Saturation, Image quality, Recording Frame, Frequency, Time, NTSC/PAL, Motion
Bandwidth	Adjustable Frequency：5 MHz ~ 8MHz
Frequency Range	Frequency range 141~923MHz (Default: 177 MHz)
Image Output Specification	Comply with DVB-T (ETSI EN 300 744) digital television transmission standard
Operation Temperature	- 5℃ ~ +60℃
Dimensions(W x D x H)	80 x 74 x 180.6 mm
Weight	Approximately 512g
IP Rating	IP66
