DTV Surveillance System

DTV Storage Device

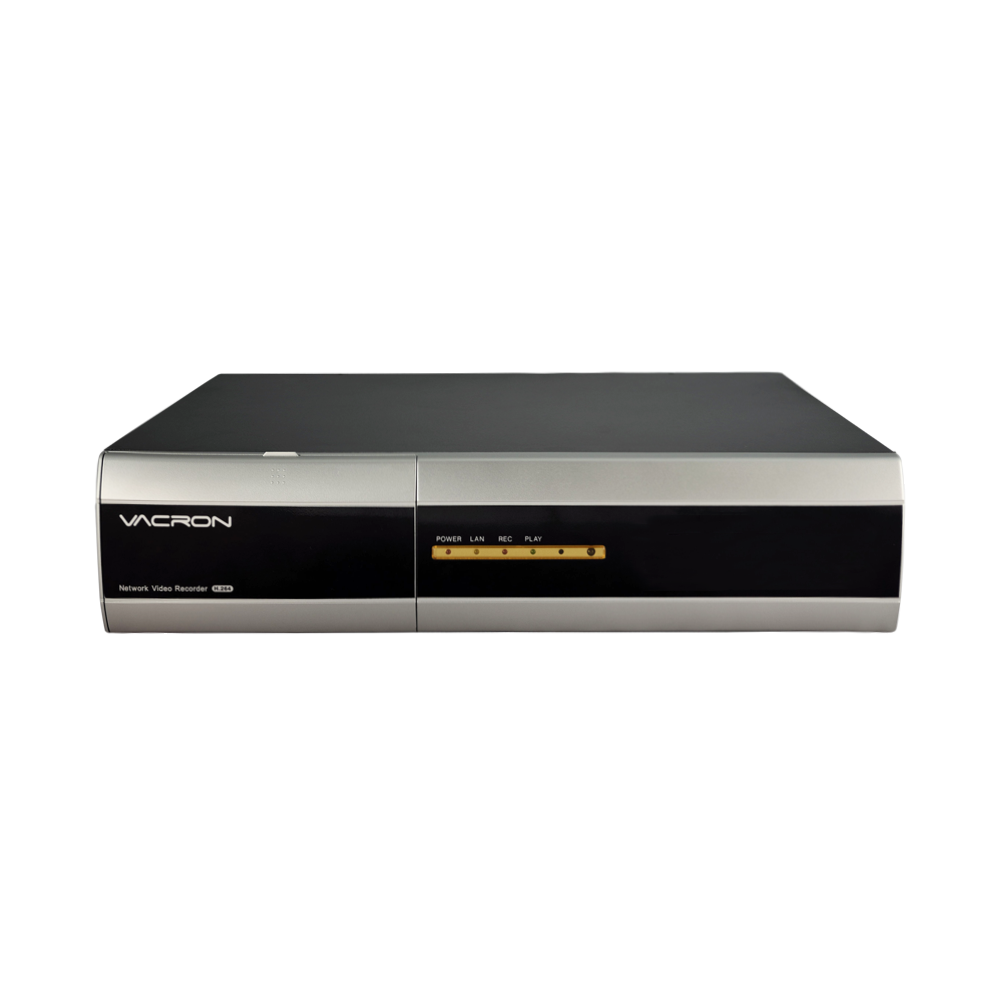

VDN-CK801

16CH / 5MP / H.265

  • H.265

  • Alarm

  • Motion

  • LAN

  • USB

  • CMS

  • GUI

  • Mouse

  • Users

  • Multi function

  • SATA

Download Catalog

Product Features

  • Supports Hybrid Video Input — Connect Both DTV and IP Cameras Simultaneously.
  • Supports up to 16 channels of DTV camera input (1080P) and 20 channels of IP camera input for simultaneous video surveillance.
  • Multitasking: which can Record / Playback / Remote Connection /Mobile phone watch and playback at the same time.
  • The maximum supporting capacity for a single hard disk is 10 TB.
  • Support HD ultra high definition output.
  • It supports remote IE browsing, monitor live footage, and playback simultaneously.
  • Provide HTTP, DHCP, DDNS, NTP, SMTP, FTP, DNS, UPNP, PPPoE, IP authority, IP search, and other network services.
  • It supports iPhone, and Android video monitoring and playback.
  • It supports CMS (Central Management System).
  • With the P2P function, scan the QR code through the APP for real-time monitoring and playback to increase information security.
  • Applicable for VACRON IP camera with no extra operation or settings other than plugging.
  • Applicable for ONVIF IP camarea.
  • Applicable for RTSP IP camera.
  • Supports VACRON recording devices.
  • Support automatic update.
Video input 16 CH of BNC input (DTV 1080P)
20CH 5MP IPCAM (RJ45 input)
Video output VGA output (Max.1920x1080)
HD OUT output (Max.3840x2160)
Audio Compression G.711U
Digital Zoom in YES
Sequence YES
Video Compression H.264 / H.265
Recording Fram

 VGA @30FPS/sec. up to 36CH Monitoring
4-channel real-time video monitoring in 1080P@30 FPS/sec.
4-channel real-time video monitoring in 5MP@10 FPS/sec.
Recording Mode Continuous, Scheduled, Displacement
Motion Detection Zones: 192(16×12 grid)
Playback

 Video playback up to 1 channel 5MP@10 FPS/sec, 1 channel 1080P@30 FPS/sec, or 36-channel VGA at 30 FPS per second
Display Mode

  Single / Quad / 9-Split / 13-Spilt / 16-Split / 25-Spilt / 36-Split
Backup File Format MP4 / Custom Format
Backup File Method USB / WEB
Network Services

 HTTP, DHCP, DDNS, NTP, SMTP, FTP, DNS,
UPNP, PPPoE, IP Authority, IP Search
Network Connection

 Live View Search, Playback, Backup, and Update
Browser IE / WEB-Client
HDD Storage Interface SATA x4
Maximum Supported Capacity 10TB per unit
Network Socket RJ-45 x1 (10/100/1000 Base-T)
USB front plate USB2.0x1 / black plate USB2.0x1 + USB3.0x1
File System Stable and reliable self-developed file system
S.M.A.R.T Hard Disk Error Check
Operation menu Graphical User Interface (GUI);
Supports simultaneous display on VGA and HD out
Input method Mouse
Internal Buzzer Start-up Beep
Languages English, Traditional Chinese, Simplified Chinese, Japanese
Firmware Update USB update or Network Update(OTA)
APP Monitoring iPhone, Android, Mobile App supports Live view& audio, playback and back-up
CMS (Central Management System) Support
Operating Environment 0-46℃, humidity 20 ~ 80%
Power Supply AC 115/230VAC, 8/4A, 50-60Hz, Output: 400W
Net weight About 5.5kg (excluding HDD and Power Adapter)
Dimensions 430 x 360 x 100mm (L×W×H)
