CCTV Surveillance System

DVR

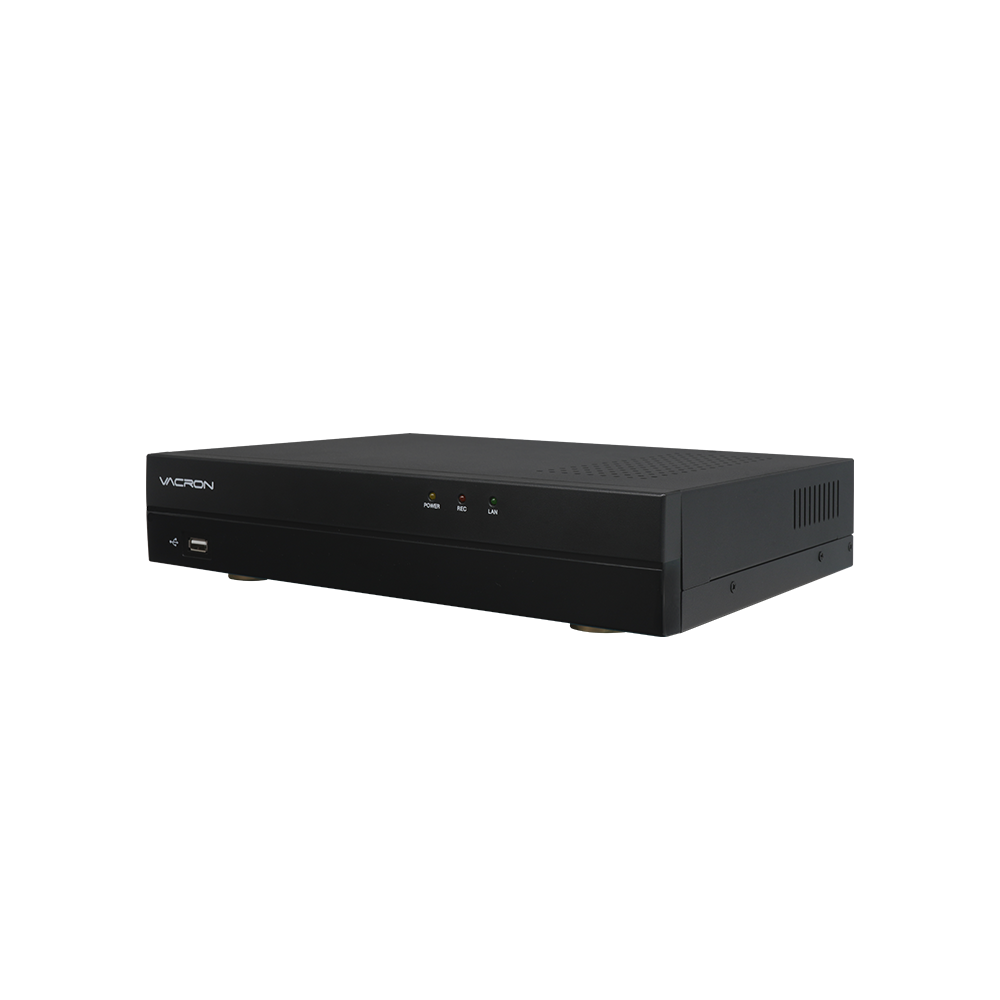

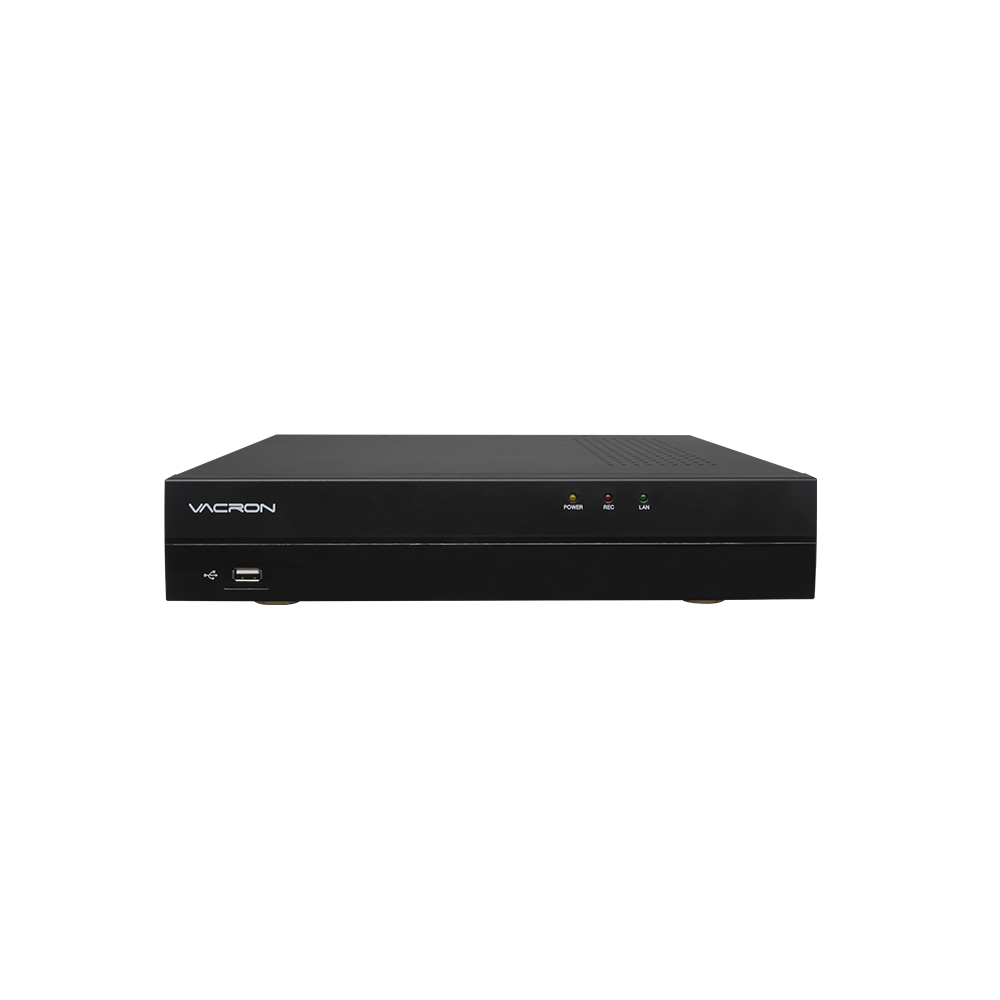

VDN-DKA608E

8CH / 5MP / H.265

  • H.265

  • Motion

  • LAN

  • USB

  • CMS

  • GUI

  • Mouse

  • Users

  • SATA

  • Multi Function

Download Catalog

Product Features

  • Multitasking: which can Record / Playback / Remote Connection / Mobile phone watch and playback at the same time.
  • The maximum capacity of a single hard drive is 10 TB
  • Support HD ultra high definition output.
  • It supports remote WEB-Client browsing for live monitoring and playback functions.
  • Provide HTTP, DHCP, DDNS, NTP, SMTP, FTP, DNS, UPNP, PPPoE, IP authority, IP search and other network services
  • It supports iPhone, and Android video monitoring and playback.
  • It supports CMS (Central Management System).
  • It can be set as a Hybrid function to connect traditional analog signals and digital IP signals at the same time and the IP channel can be set at will.
  • With the P2P function, scan the QR code through the APP for real-time monitoring and playback to increase information security.
  • Applicable for VACRON IP camera with no extra operation or settings other than plugging.
  •  Applicable for ONVIF IP camera.
  • Applicable for RTSP IP camera.
  • Supports VACRON recording devices.
  •  It supports AHD, TVI, CVI, CVBS, and IP signal inputs.
Video Input 8 CH of BNC input
Video Output VGA output (Max. 1920x1080)
HD OUT output (Max. 1920x1080)
Audio Input 4 CH RCA output
Audio Output 1 CH RCA output
Audio Compression G.711U
Digital Zoom in  YES
sequence
  YES
Image Compression H.264 / H.265 / H.265+
Recording Frame 8CH 5MP @6FPS/CH ;
8CH 1080P @15FPS/CH ;
Recording Mode Continuity, Scheduling, Motion
Motion Detection Grid setting, 192(16x12) detection zones can be set.
Playback Video playback up to 1 channel 5MP@6 FPS/sec,
or 1 channel 1080P@15 FPS/sec or 8 channel VGA
Display Mode Single screen / 4 splits / 9 splits / sequence
Backup file format MP4/self-defined format
Backup File Method USB/Network
Network Services HTTP、DHCP、DDNS、NTP、SMTP、FTP、DNS、 UPNP、PPPoE、IP Authority、IP Search
Network Connection Live View Search, Playback, Backup, and Update
Browser  IE / WEB-Client
HDD Storage Interface SATA x2
Maximum Supported Capacity 10TB per unit
Network Socket RJ-45 x1 (10/100 Base-T)
USB Front plate USB2.0x1 / Back plate USB2.0x1
File System Stable and reliable self-developed file system
S.M.A.R.T Hard Disk Error Check
Port RS-485 (Pelco-D/Pelco-P)
Operation menu Graphical interface; VGA & HD out & CVBS
can be displayed simultaneously
Input Method Mouse
Internal Buzzer Start-up Beep
Languages English, Traditional Chinese, Simplified Chinese, Japanese
Firmware Update USB, Network Remote Upgrade
APP monitoring iPhone, Android, Mobile App supports Live view& audio,
playback and backup
Central Management Software(CMS) Support
Hybrid(Digital & Analogue) Support
Operating Environment Celsius 0 ~ 46 degrees, humidity 20 ~ 80%
Power Source DC 12V / 4A(AC100V~240V 50/60HZ)
Net weight About 1.8kg (excluding HDD and Power Adapter)
Dimension 220mm × 288mm × 48mm (L×W×H)
*Version updating is not going to inform, please check the on-going updating information
