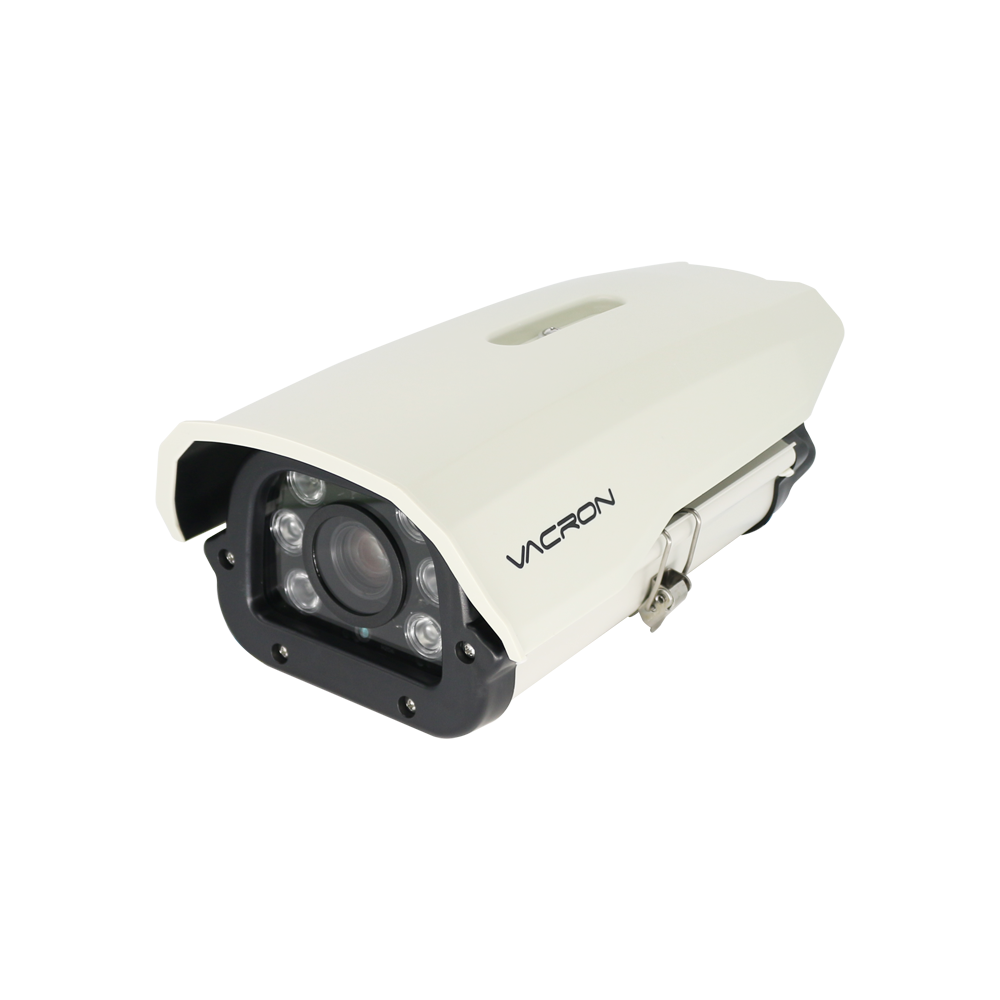

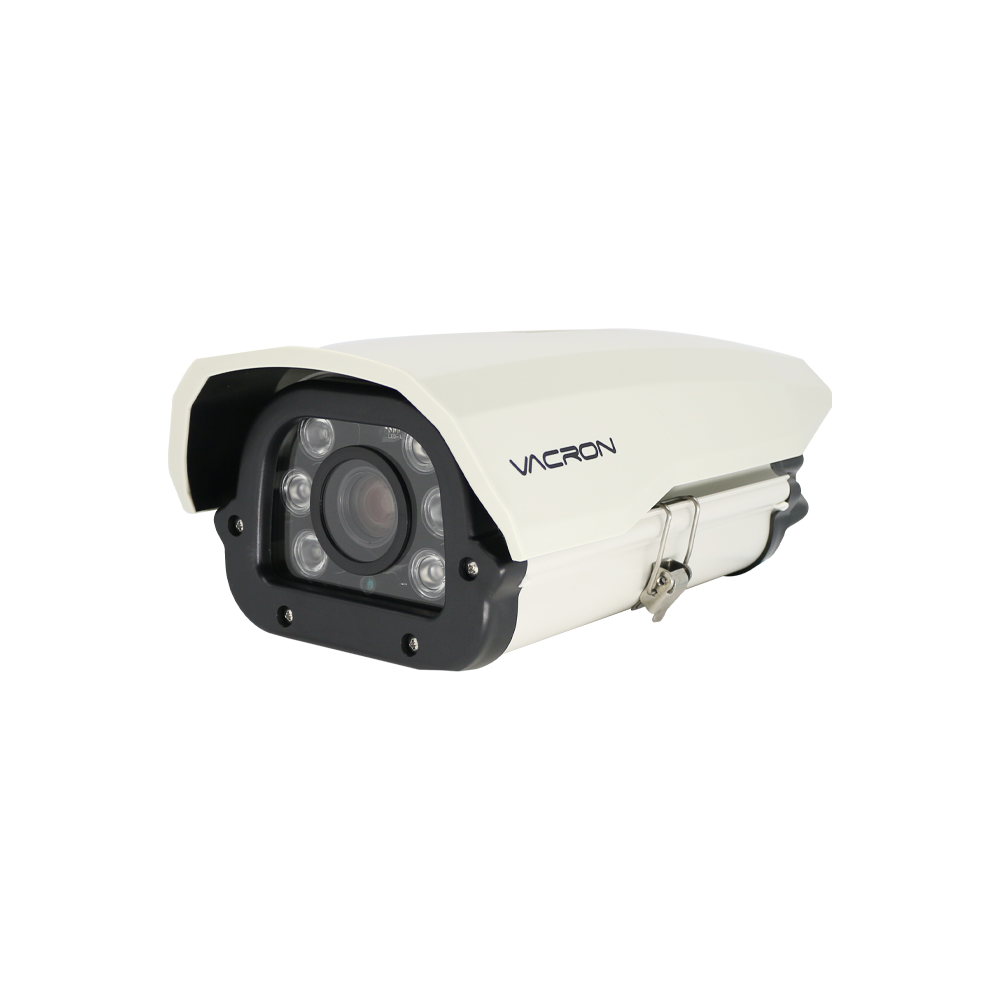

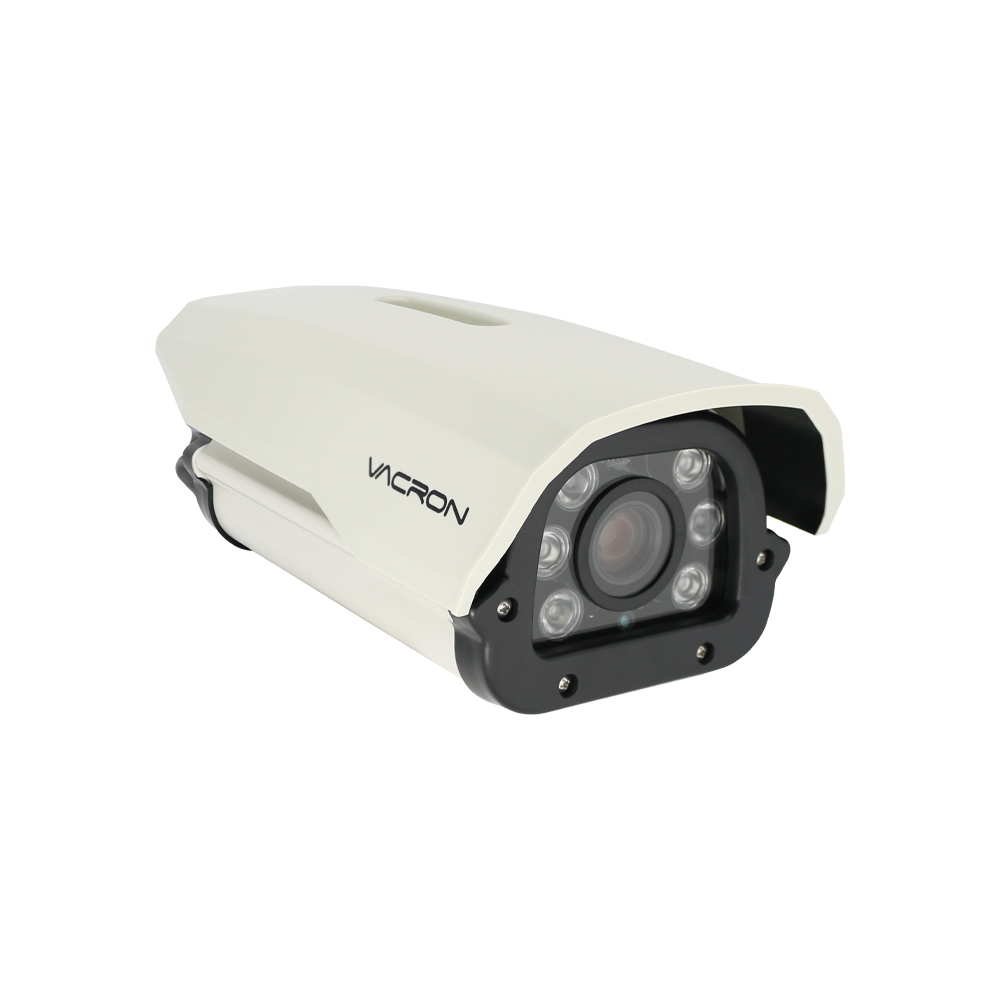

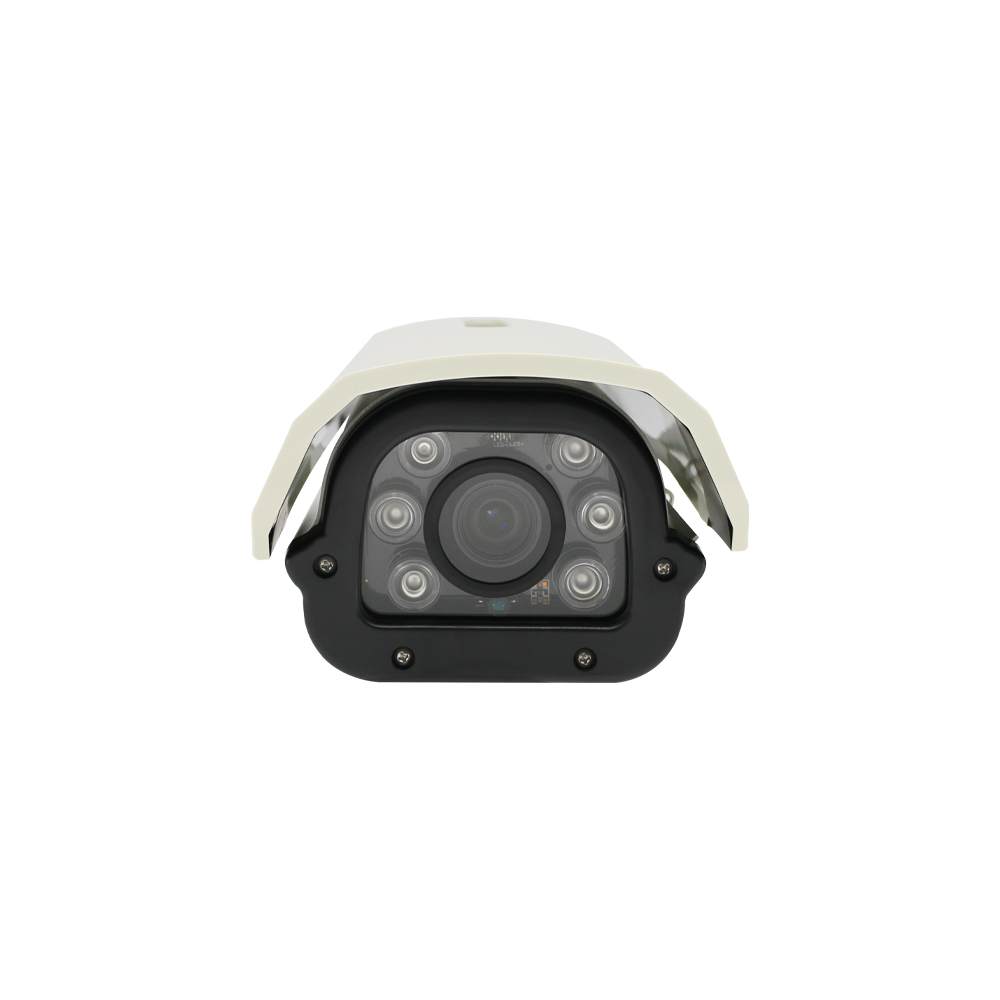

IP Camera

VIN-US763CTA-EA

1080P / Bullet / IP66 / IR / H.265 / LPR

  • H.265

  • DC12V

  • 6 LEDs

  • 0 LUX

  • P.O.E

  • 1/2.8"CMOS

  • 0~45°C

  • ANPR

  • 電動對焦2.8-12MM

Download Catalog

Product Features

  • Camera with built-in LPR algorithm to identify license plate vehicles moving not over 100 km/h..
  • With a 2.8 mm~12 mm motorized motor lens, it is convenient for users to adjust the sharpness of the recognition area.
  • Starlight Sony CMOS low illumination color image, high resolution night vision enhanced.
  • Real-time H.265/H.264 multi-mode engine compression technology and multi-level image quality deployment support.
  • This device supports 256 GB SD card to store captured pictures and video data, and supports remote inquiry of event data.
  • Recognition output carried by Vacron recording systems instantly captures vehicle entry and exit.
  • Support ONVIF international standard withthe  best compatibility and integration, the SDK can be attached for the back-end system vendor's integrations.


Licence plate recognition feature

License plate recognition quantity   5 license plate recognition on CCTV monitor at the same time.
License plate recognition size 120 x 80 pixel license plate image required.
License plate recognition mode Can setup on or off and white list setup for accessible vehicle or alert vehicle control.
Accuracy
configuration adjustment		 Default low according to installation environment limit recognition rigorous level adjustable for best accuracy.
License plate alert notification Connected with IO output high/low w(3.3V~0) alarm signal.
Recognition images uploaded to FTP or saved in micro SD card.
Alert response time IO alarm time adjustable for security forces time management.
Can setup IO alarm output voltage level high/low (3.3V~0) for remote
siren or gearing alert.
License plate
recognition image storage		 SD card storage and FTP upload are alternative.
30 seconds an image in condition of same license plate for saving storage and whole system stability.
Control list setup Up to 10,000 license plate data control
Micro SD card storage Micro SD card 256 GB support for license plate recognition images storage and verification on browser available. SD card will be formatted and normal recording off when license plate recognition system snapshot function activated.
Cooperative development Please contact sales for various AI powered system integration and cooperative development


SPECIFICATIONS

system Flash：256MB
RAM：512MB
Image Sensor SONY FullHD High Quality 1/2.8 CMOS Image Sensor
Lens Motorized / Automatic Zoom 2.8-12mm
ICR Built-in Magnetic Infrared Filter Switcher
Low Lux 0Lux (IR ON)
Number of LED High Power IR LEDs x6
Video H.265/H.264: 1920x1080 at 60 fps
H.265/H.264: 1280x720 at 60 fps
H.265/H.264: 640x480 at 60 fps
H.265、H.264 Multi-mode compression (Dual Codec)
Support Simultaneous multiple streams
Image Settings Adjustable image size, quality, and bit rate
Time/Date stamp and text caption overlay
Configurable brightness, contrast, saturation, sharpness, white balance and exposure
Have: AGC、AWB、AES、BLC、WDR Features
Electronic Shutter 1/2 ~ 1/100,000 Sec
Networking Interface 10 /100 Mbps,RJ-45
Protocol IPv4、TCP/IP、DHCP、HTTP、RTSP、SNTP、DNS
browser Microsoft Internet Explorer 6.0 or above
Safari, Chrome or Firefox
Users Up to 8 users can monitor online at the same time.
Hierarchical Management of User Rights
Maintenance Supports online firmware upgrade
I/O Port RJ-45 Ethernet port / Power input port 12VDC /
Audio input / output / BNC & RS-485 output /
Alarm output
Power DC12V
Max. Power Consumption 3.6W(IR OFF)、18W(IR ON)
Weight N.W. :1220g
Dimension 320mm x 160mm x 110mm
Operating Environments 0℃ ~ 45℃
IP Rating IP66
