IP Surveillance System

IP Camera

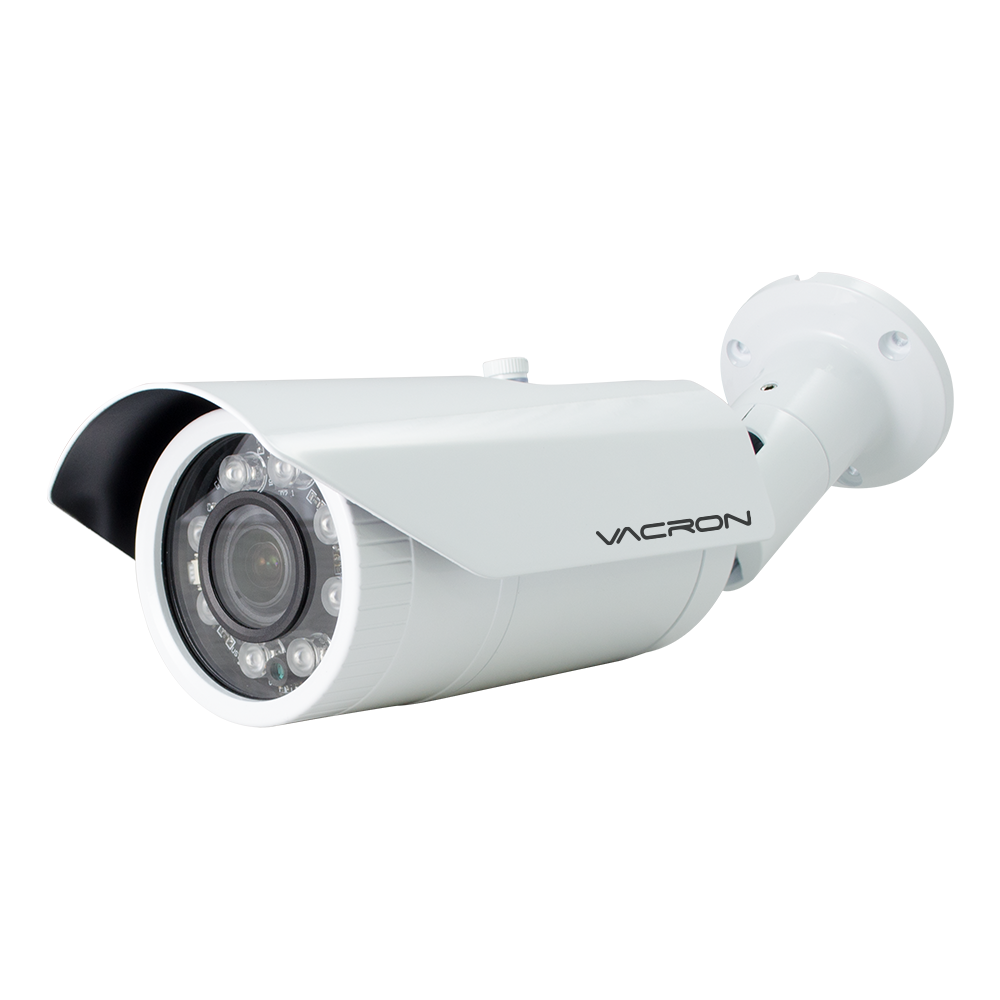

VIN-US731CVTA-EA

1080P / Bullet / IP67 / IR / H.265 / LPR

  • H.265

  • DC12V

  • 0 LUX

  • P.O.E

  • 8 LEDs

  • 1/2.8"CMOS

  • 0~45°C

  • ANPR

  • Motorized zoom 5~50mm

Download Catalog

Product Features

  • Camera with built-in LPR algorithm to identify license plate vehicles moving not over 100 km/h.
  • With a 5mm~50mm motorized motor lens, it is convenient for users to adjust the sharpness of the recognition area.
  • Starlight-grade Sony CMOS low-lux color image with high resolution to enhance night-time surveillance.
  • Real-time H.265/H.264 multi-mode engine compression technology (Dual Codec) supports multiple levels of video quality configuration.
  • This device supports 256GB SD card to store captured pictures and video data, and supports remote inquiry of event data.
  • Recognition output carried by Vacron recording systems instantly captures vehicle entry and exit.
  • Support ONVIF international standard with the best compatibility and integration, the SDK can be attached for the back-end system vendor's integrations.


Licence plate recognition feature


License plate recognition quantity   5 license plate recognition on CCTV monitor at the same time.
License plate recognition size 120 x 80 pixel license plate image required.
License plate recognition mode Can setup on or off and white list setup for accessible vehicle or alert vehicle control.
Accuracy
configuration adjustment
Default low according to installation environment limit recognition rigorous level adjustable for best accuracy.
License plate alert notification Connected with IO output high/low w(3.3V~0) alarm signal.
Recognition images uploaded to FTP or saved in micro SD card.
Alert response time IO alarm time adjustable for security forces time management.
Can setup IO alarm output voltage level high/low (3.3V~0) for remote
siren or gearing alert.
License plate
recognition image storage
SD card storage and FTP upload are alternative.
30 seconds an image in condition of same license plate for saving storage and whole system stability.
Control list setup Up to 10,000 license plate data control
Micro SD card storage Micro SD card 256 GB support for license plate recognition images storage and verification on browser available. SD card will be formatted and normal recording off when license plate recognition system snapshot function activated.
Cooperative development Please contact sales for various AI powered system integration and cooperative development


SPECIFICATIONS


system Flash:256MB
RAM:512MB
Image Sensor SONY FullHD High Quality 1/2.8 CMOS Image Sensor
Lens Motorized / Automatic Zoom 5~50mm
IR-cut Built-in Magnetic Infrared Filter Switch
Low Lux 0 Lux (IR ON)
Number of LED High Power IR LEDs x8
Image H.265/H.264: 1920x1080 at 60 fps
H.265/H.264: 1280x720 at 60 fps
H.265/H.264: 640x480 at 60 fps
H.265、H.264Multi-mode compression (Dual Codec)
Support Simultaneous multiple streams
Image Settings Adjustable image size,quality, and bit rate
Time/Date stamp and text caption overlay
Adjustable brightness, contrast, saturation, and sharpness
Support AGC、 AWB、 AES、 BLC、 WDR Features
Electronic Shutter 1/2 ~ 1/100,000 Sec
Networking Interface 10 /100 Mbps,RJ-45
Protocol IPv4、TCP/IP、DHCP、HTTP、RTSP、SNTP、DNS
browser Microsoft Internet Explorer 6.0 or above
Safari, Chrome or Firefox
Users  8 clients online monitoring simultaneously
Multi-level user access control with password protection
Maintenance Supports FOTA
I/O Port RJ-45 Ethernet port / Power input port 12VDC / Audio input / output / BNC & RS-485 output / Alarm output
Power DC12V or PoE IEEE802.3af Class 0 (optional)
Max. Power Consumption 3.6W(IR OFF)、12W(IR ON)
Weight Net weight: 870g
Dimension 315mm x 88mm x 87mm
Operating Environments 0℃ ~ 45℃
IP Rating IP67
