IP Surveillance System

NVR

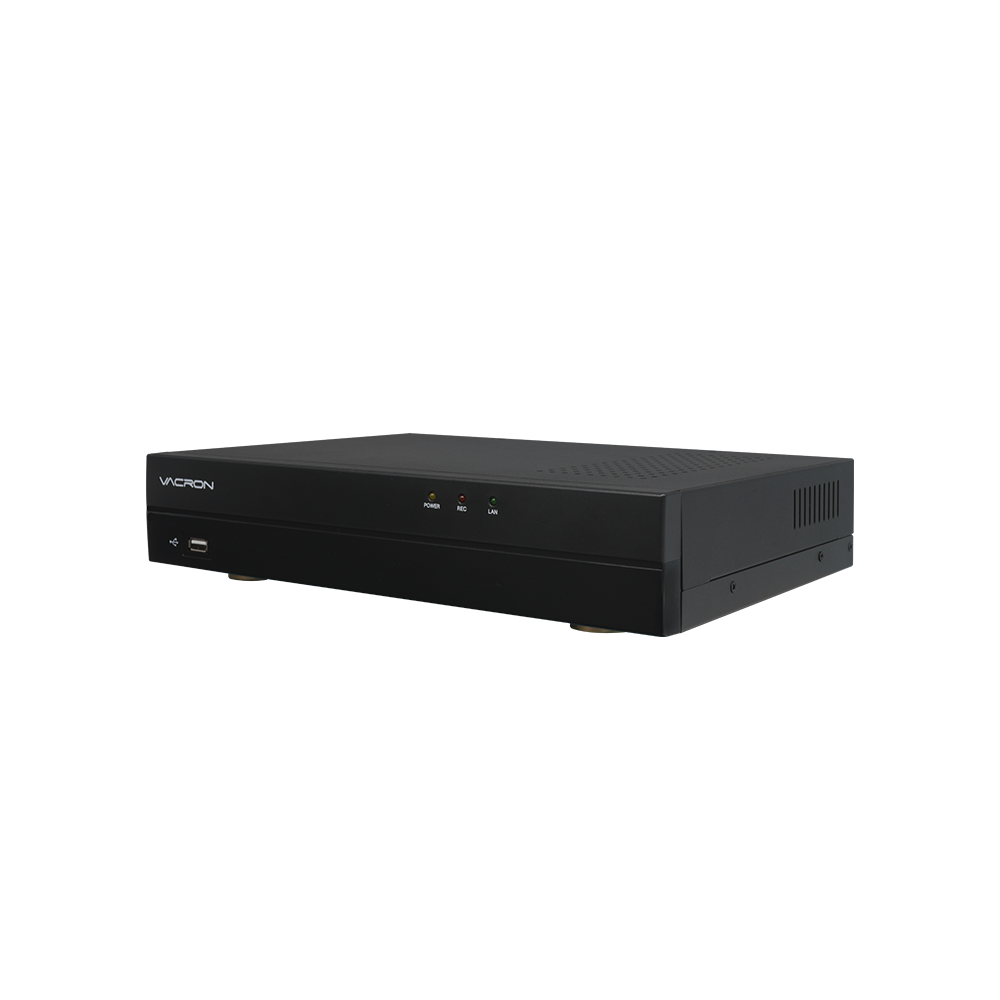

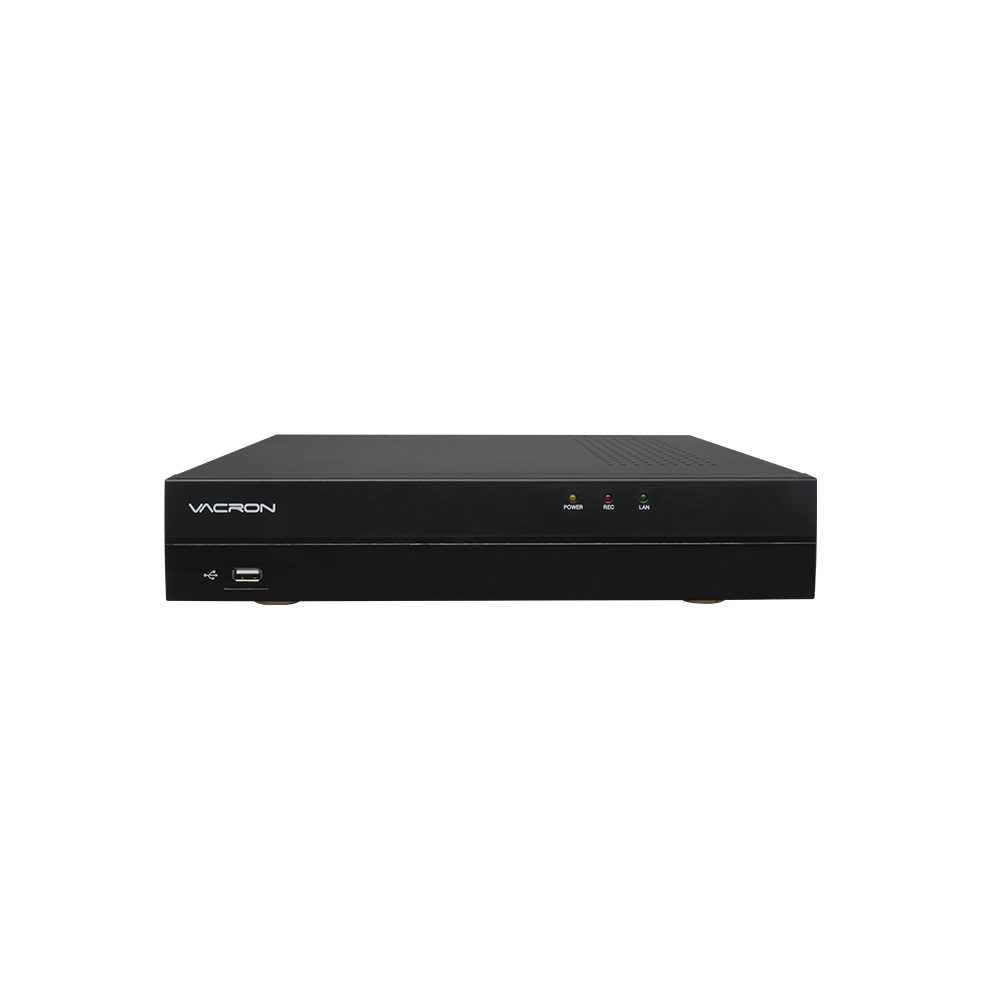

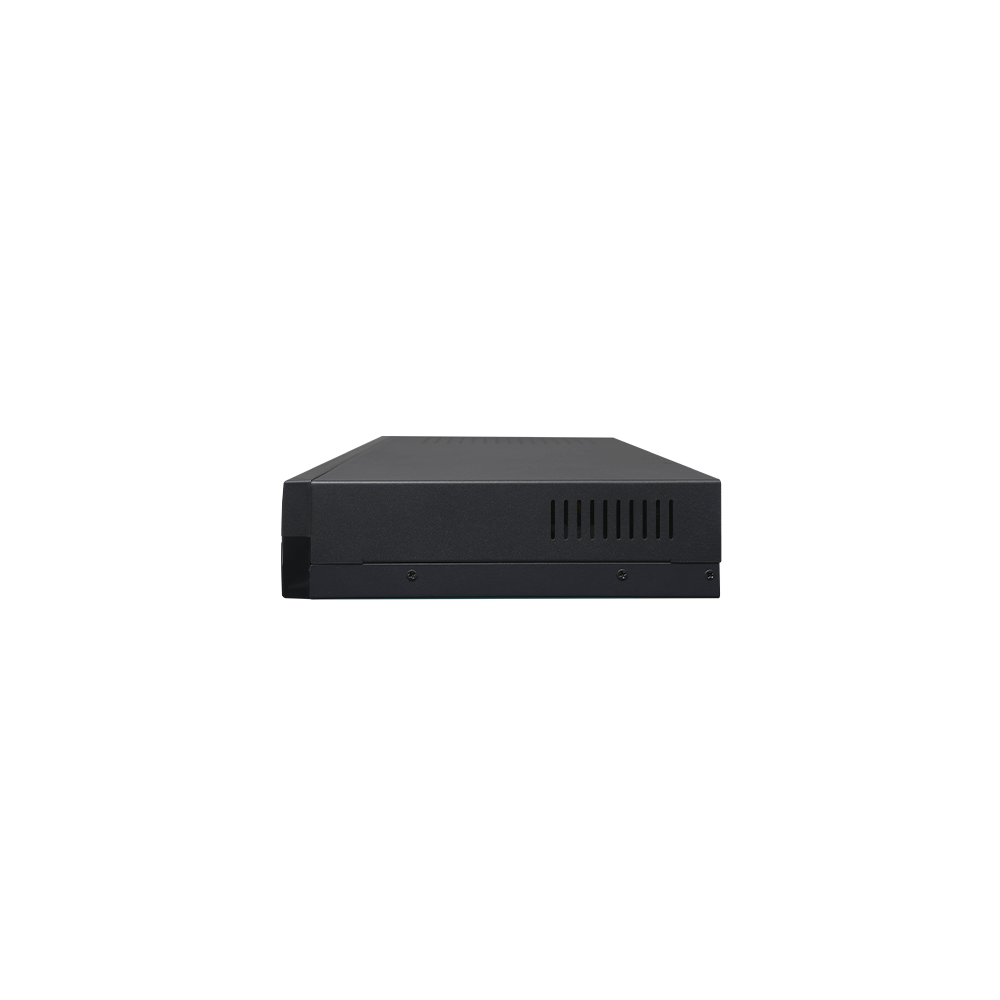

VDN-NKA808E

8CH / 5MP / H.265

  • H.265

  • Motion

  • LAN

  • USB

  • CMS

  • GUI

  • Mouse

  • Users

  • SATA

  • Multi Function

Download Catalog

Product Features

  • Multitasking: which can Record / Playback / Remote Connection / Mobile phone watchat the same time.
  • The maximum supporting capacity for a single hard disk is 10 TB.
  • It supports HD ultra high definition output.
  • It supports remote IE browsing, monitor live footage, and playback simultaneously.
  • Provide HTTP, DHCP, DDNS, NTP, SMTP, FTP, DNS, UPNP, PPPoE, IP authority, IP search, and other network services.
  • It support iPhone, Android video monitoring and playback.
  • It supports CMS (Central Management System).
  • With P2P function, scan QR-Code through APP for real-time monitoring and playback to increase information security.
  • Applicable for VACRON IP cam with no extra operation or settings than plugging.
  • Applicable for ONVIF IP cam
  • Applicable for RTSP IP cam
  • Supports VACRON recording device
  • Supports automatic update
Video Input 8CH 5MP (RJ45 input)
Video Output VGA (Max. 1920x1080)
HD OUT output(Max. 3840 x 2160)
Audio Compression G.711U
Digital Zoom YES
Auto Sequence Duration YES
Video Compression H.264 / H.265
Recording Frame VGA @30 FPS/sec. up to 8 CH Monitoring
1-channel real-time video monitoring in 5MP@15 FPS/sec.
Recording Mode Continuous / Schedule / Motion
Motion Detection Zones: 192(16×12 grid)
Playback Video playback can reach up to 1 channel 5MP@10FPS/sec.
or 1 channel 1080P@30 FPS/sec.
or 8 channel VGA@30 FPS/sec.
Display Mode Single, Quad, 9-Split, Sequence
Backup File Format  MP4/self-defined format
Backup File Method USB/ WEB
Network Services HTTP、 DHCP、 DDNS、 NTP、 SMTP、 FTP、 DNS、
UPNP、 PPPoE、 IP Authority
Network connection Live View, Search/Playback, Backup, and Update
Browser IE, WEB-Client
Hard Drive Interface SATA x2
Maximum support capacity 10TB per unit
Network Socket RJ-45*1 (10/100/1000 Base-T)
USB front plate USB2.0 x1 / back plate USB2.0 x1
File System Stable and Reliable Self-Developed File System
S.M.A.R.T Hard Disk Error Check
Operation Menu GUI interface；VGA & HD out simultaneously
Input method Mouse
Internal Buzzer Start-up Beep
Language English / Simple Chinese/ Traditional Chinese/ Japanese
Firmware Update USB update or Network Update(OTA)
APP Monitoring iPhone, Android, Mobile App supports Live view& audio,
playback and back-up
CMS (Central Management System) Support
Operating Environment  Temperature 0~+46ºC, Humidity: 20~80%
Power Supply DC 12V / 4A(AC100V~240V 50/60HZ)
Net weight About 1.6kg (without HDD & Power Adapter)
Dimensions  220mm x 288mm x 48mm (L×W×H)
*Version updating is not going to inform, please check the on-going updating information
