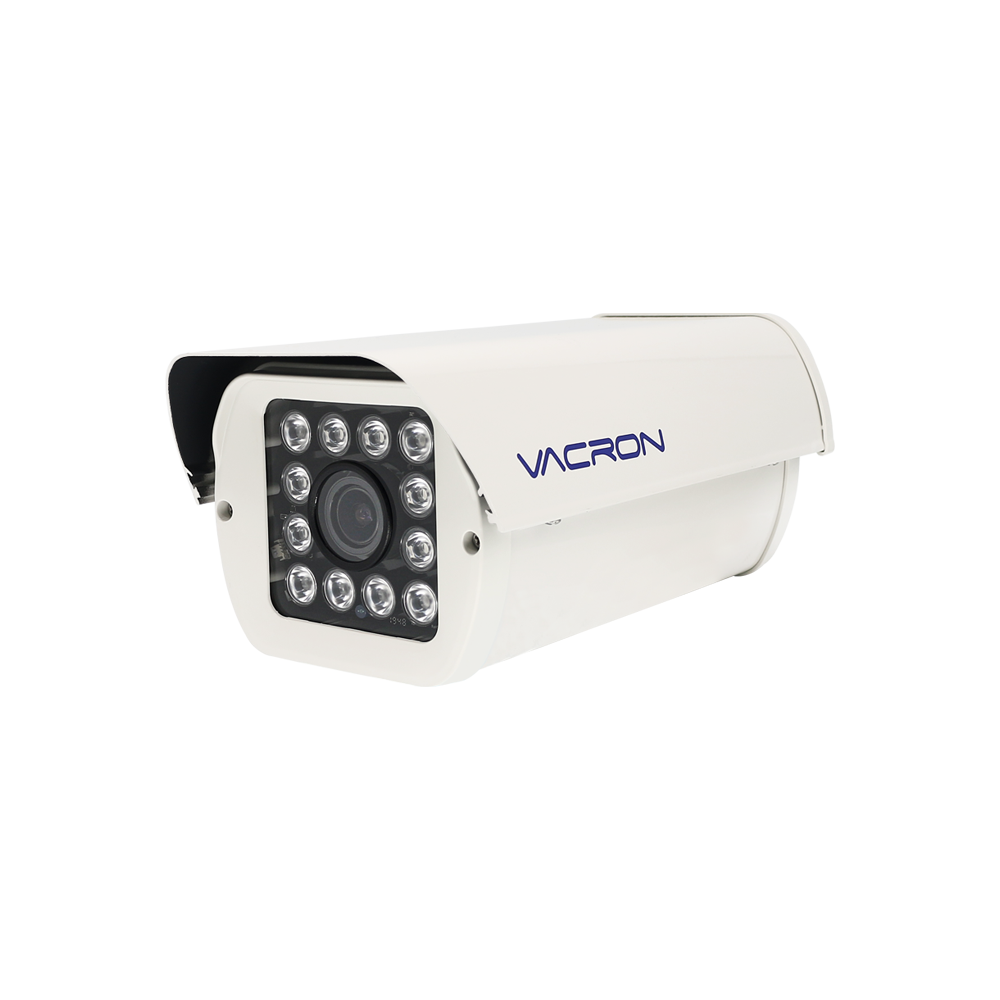

CCTV Camera

VCT-5702H

1080P / IP66 / IR

  • DC12V

  • 12 LEDs

  • 30m

  • 0 LUX

  • 50dB

  • 100M

  • 1/3CMOS

  • -20~50°C

  • AutoLENS 2.8-12mm

Download Catalog

Product Features

  • 1/3" CMOS sensor.
  • 1080P, quality up to 1920x1080.
  • View Angle: 2.8-12mm
  • AHD or CVBS or TVI or CVI output swit ch.
  • IP Rating: IP66.

Image Sensor

1/3" CMOS sensor

Signal Mode

NTSC / PAL

Image signal processing system

Digital Signal Processor

Lens

 2.8-12mm

Effective Pixel

1920(Horizontal) x 1080(Vertical)

Resolution

1080P@30fps

Power

DC 12 ± 1V

Power Consumption

120mA (IR Off)；330mA (IR On)

ICR

Support

TV Signal Format

25FPS / 30FPS / PAL / NT

Audio

TVI Coaxial Audio Transmission Support

S/N Ratio

≧58dB

White Balance

Auto

Auto Gain

Auto

Gamma correction

Auto

Day Night Auto Switch

Support

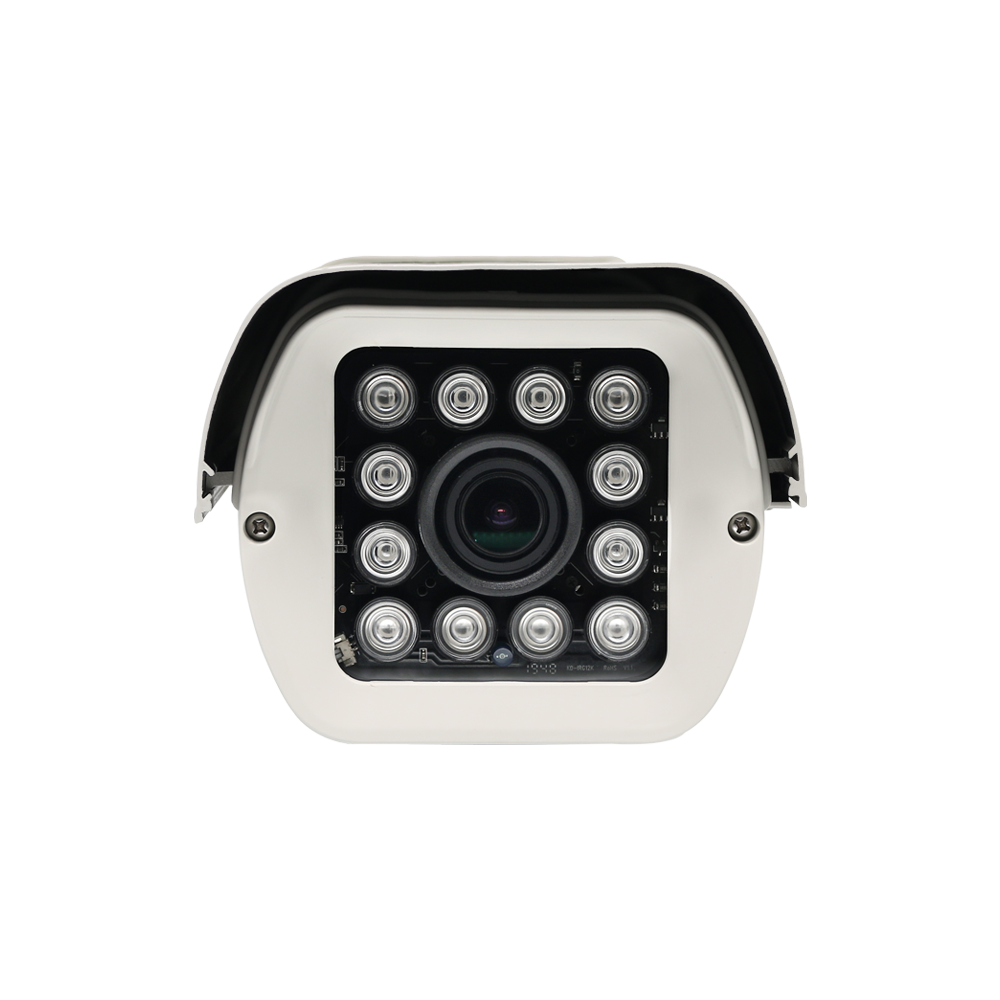

LEDs

High Power IR LEDs x12

IR Range

100 M

IR Wavelength

850nm

Minimum Illumination

0 Lux

OUTPUT

AHD or CVBS or TVI or CVI (Default setting: TVI Mode)

Language

English / Simplified Chinese / Traditional Chinese

IP Rating

IP66

Operating Temperature

-20℃~50℃

Dimensions (H×W×D)

149mm x 115mm x 303mm

Weight

Apx. 1000 g
