CCTV Surveillance System

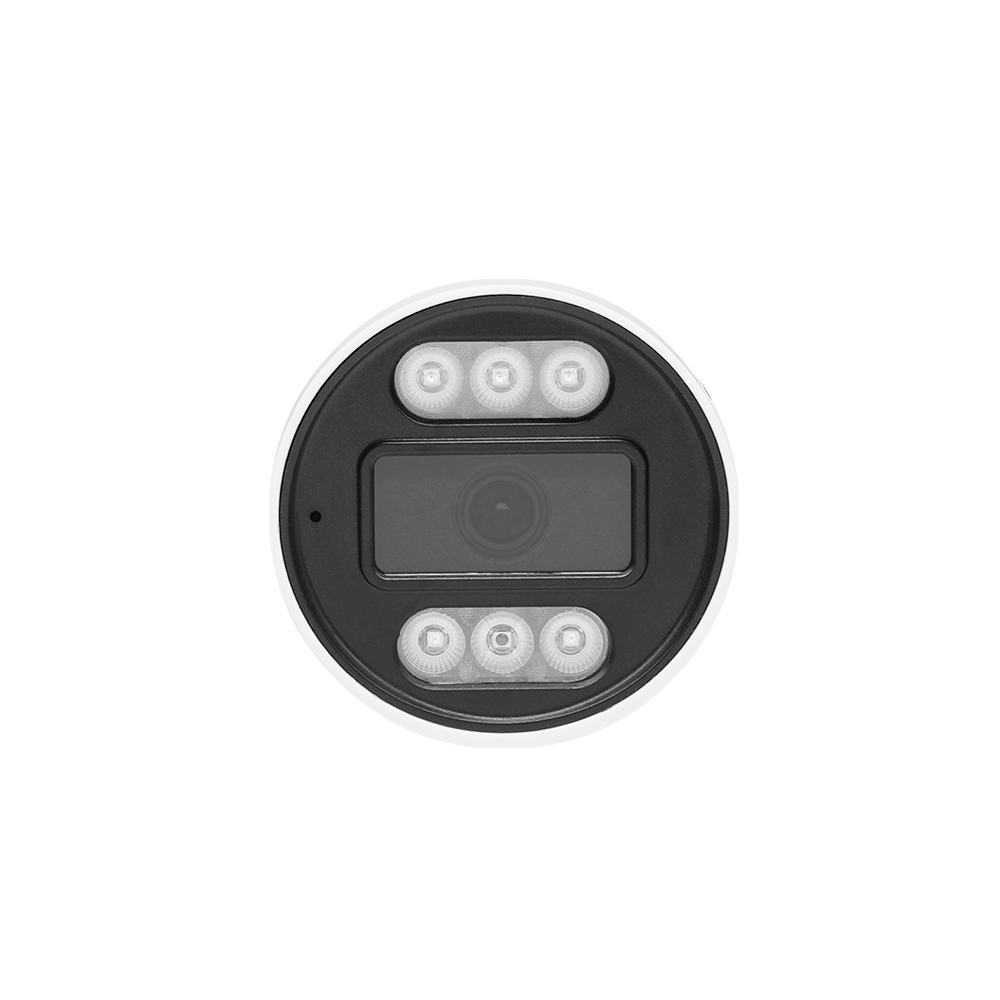

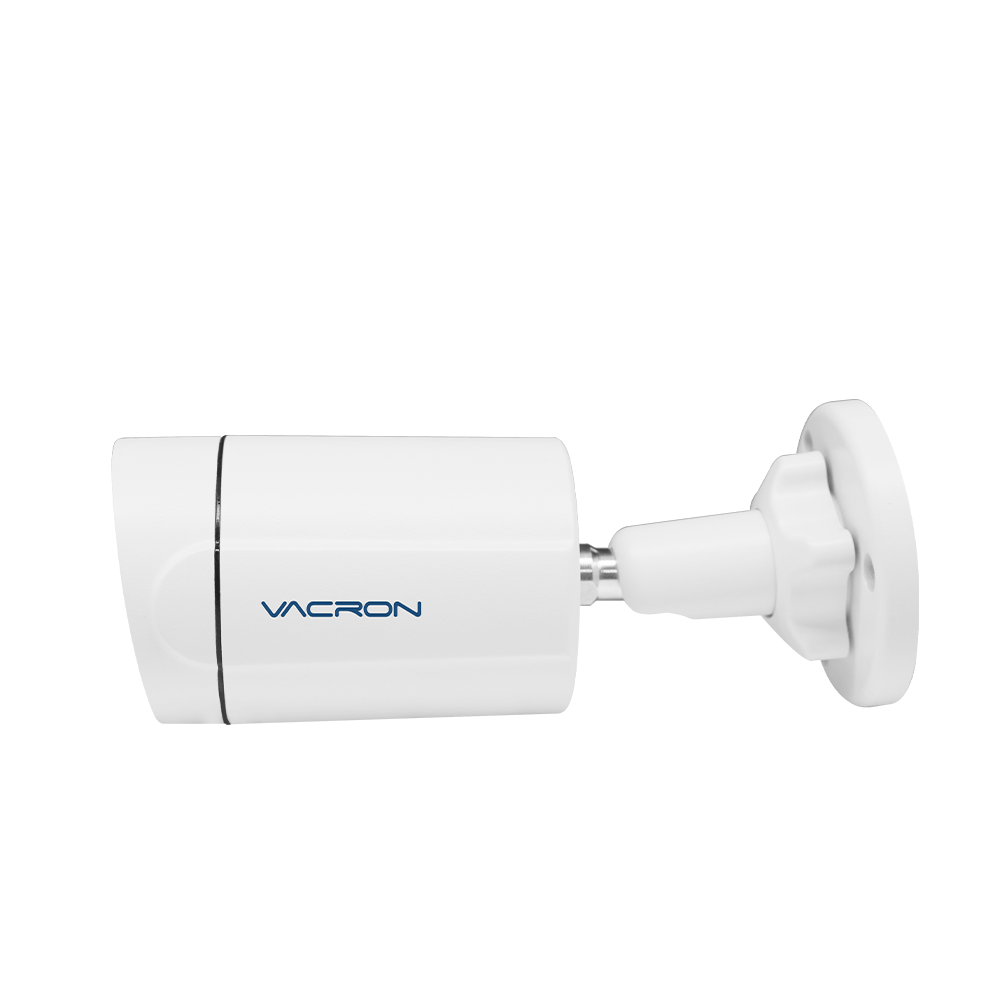

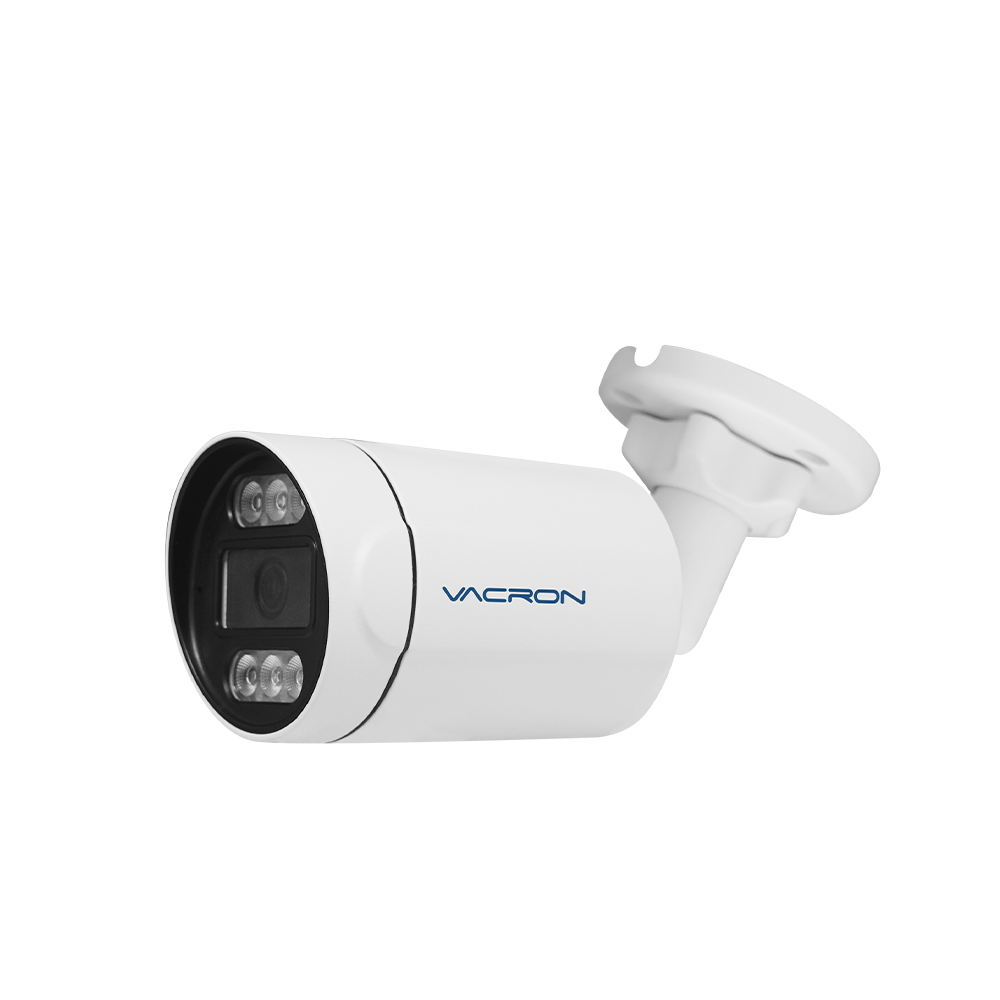

CCTV Camera

VCF-5799H

1080P / IP66 / Bullet / IR

  • DC12V

  • LENS 3.6mm

  • 30m

  • 0 LUX

  • 50dB

  • 1/3CMOS

  • 4 LEDs

  • -20~50°C

Download Catalog

Product Features

  • 1/3" CMOS Image Sensor
  • AHD 1080P, quality up to 1920x1080
  • View Angle: 3.6mm
  • AHD or CVBS or TVI or CVI output switch
Image Sensor 1/3" CMOS sensor
Signal Mode NTSC/PAL
Image Signal Process Image signal processing system
Lens 3.6mm
Effective Pixel 1920 (Horizontal) x 1080(Vertical)
Resolution 1080P@30fps
Power Input DC 12 ± 1V
Power Consumption 120mA(IR Off)；240mA(IR On)
ICR Support
Electronic Shutter Auto
White Balance Auto
Auto Gain Control Auto
S/N Ratio ≥50dB
Day and Night Conversion Support
LEDs 4 High Power IR LEDS
IR Range 30M
IR Wavelength 850nm
Low Lux  0 LUX (IR ON)
Output AHD or CVBS or TVI or CVI (Factory Preset: AHD)
Language English, Simplified Chinese, Traditional Chinese,
Spanish, French, Polish, Italian, Portuguese,
Japanese, Korean, Greek
IP Rating IP66
Operating Temperature -20℃~+50℃
Dimensions Ø:67.9mm x 174 mm
 Weight Apx. 310 g
