Mobile Surveillance

Dash Cam

VVG-CBE07DA

Dual Lens / 1080P / SD card / Wi-Fi / 3G / 4G

  • H.264

  • -15~65°C

  • 120º (F)

  • 130º (B)

  • Low LUX

  • G-Sensor

  • GPS

  • MAP

  • SD

  • 3G/4G

  • WiFi

Download Catalog

Product Features

  • Apply for service and private image transport needs, such as taxis, cement trucks, cargo container trucks, road tankers, school buses, police cars, armored cars, ambulances, fire trucks, SUVs, RVs...etc.
  • Sony IMX 307 low-lux high-resolution CMOS Image Sensor
  • Built-in 1.5F gold capacitor to preserve the images while encountering accidental collisions.
  • The recording starts when the memory card is inserted and the power is on; no additional operation is required.
  • Simultaneous record interior and exterior driving images.
  • With complete time and date records, they can be direactly displayed on the screen.
  • Record driving route, footage, audio, G-Sensor and GPS data.
  • Forward facing view angle approx. 120 degrees, and cabin view angle approx. 130 degrees.
  • Route recorded, Displayed on playback compatable with Google Map
  • Micro SD Card applied, Class 10 or above is recommended.
  • The G-sensor sensitivity can be adjusted according to vehicle and road situations.
    The system will start emergency recording and keep the files from being overwritten when strong impacts
    are detected
  • Professional file format. Without built-in lithium batteries, excluding the possibility of explosion of heat.
  • 3G/4G dongle equipped allow remote monitoring and managements.
  • WIFI on board for live streaming, video download and backup instantly

Sensor

Front:1080P CMOS Sensor
Interrior:720P CMOS Sensor

Camera view angle (Diagonal)

Front facing camera view angle approx.120°

Interrior camera view angle approx.130°

Voltage

(a) Start at 5V±5%；1A, The machine needs 4.7v to start.
(b)Built-in 1.5F Gold Capacitor for video filling.

Operating Temperatur

-15ºC~65ºC

Storage

It is recommended to use micro-SDHC card class 10 and above (8G and above).

Recording Method

Front 1920x1080
Max. Recording Frame
NTSC : 25fps、PAL：25fps
Interrior 1280x720
Max.Recording Frame
NTSC : 25fps、PAL：25fps
Auto record when power up system; In car camera
can be closed software.

Record Content

Image, date and time, sound, G-sensor, GPS

Storage Format

(a) Specific format for specific software player
(b) H.264 compression

Microphone

Built-in high sensitive microphone

Time Setting

Time calibration by GPS, the built in calendar clock takes over when there is no GPS signal.

G-Sensor

Internal 3D G-Sensor Accelerometer

GPS

Built-in GPS, could apply with external G-MOUSE for better GPS reception.
Satellite fix to record the driving route.

Wi-Fi

Built-in USB WIFI Dongle(2.4G HZ)

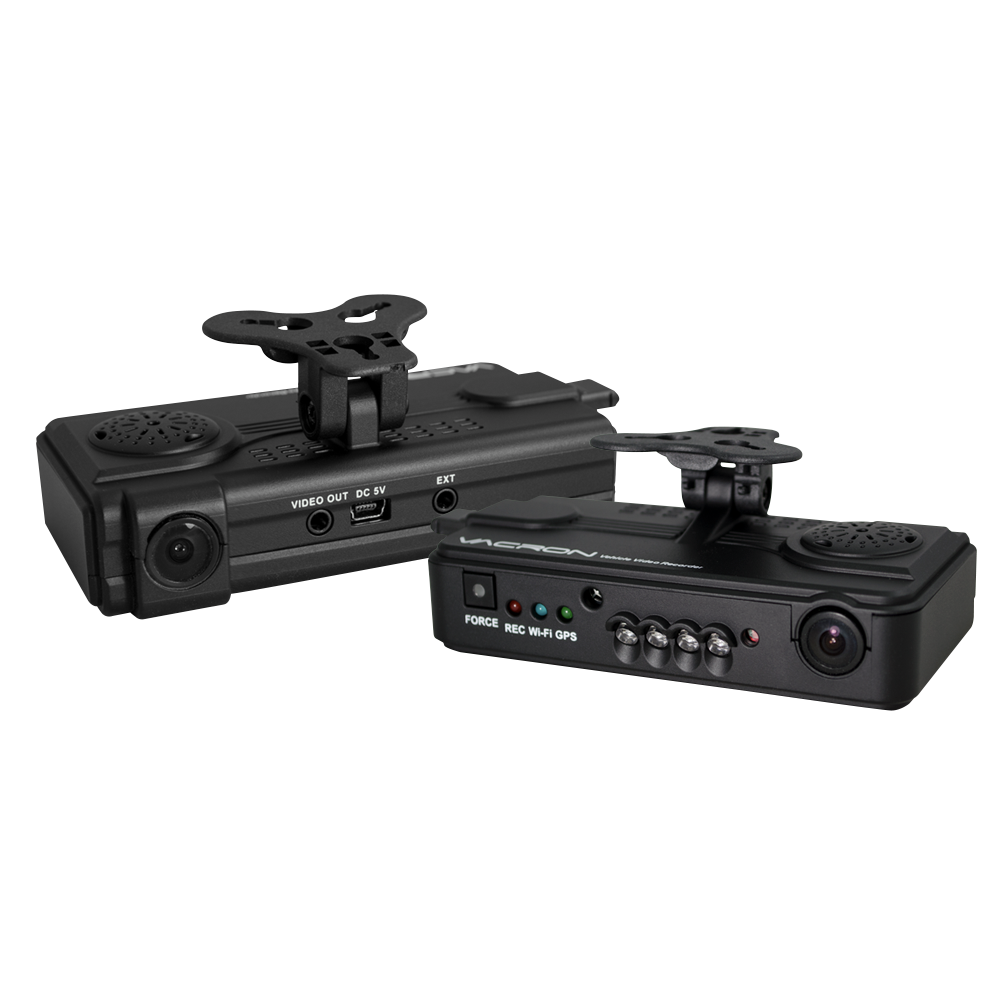

Output/Input device

(a) VIDEO OUT：TV-Out (1 Vp-p composite video output, 75 ohms)
Video Output format: NTSC / PAL alternative.

(b) FORCE : For emergency recording. (Trigger Flash LED)

(c) Red Light: Recording light (The flashing rate will be higher when force recording.)

(d) Green Light: GPS connecting indicator (Flashomg LED means 3D positioning is not ready, lights on means 3D positioning)

(e) Blue Lights: Wi-Fi indicator (flashing for failed WiFi connection, constantly lit for successful connection.)

(f) EXT:Extension external hole for GPS Mouse
Note: When in night mode, the IR activates and the LED indicator lights will dim.
