CCTV Surveillance System

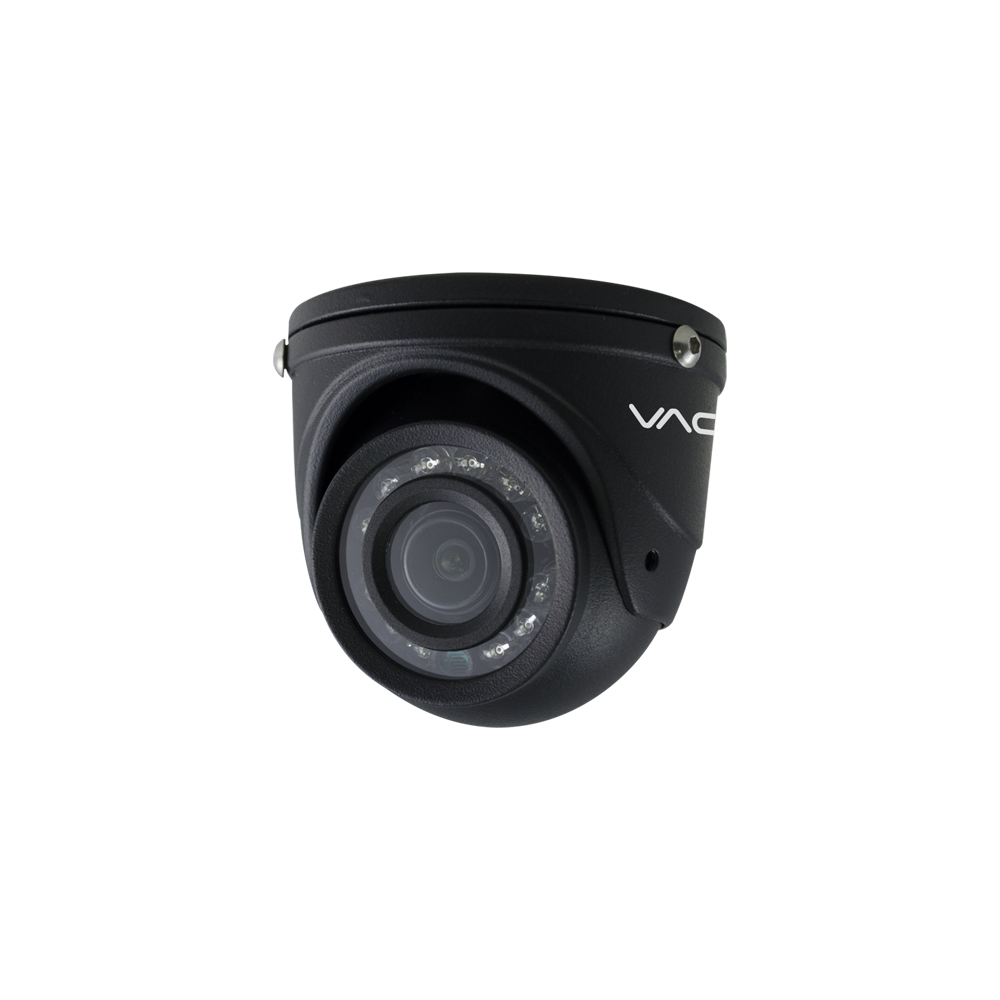

CCTV Camera

VCT-5726HD5

1080P / Dome / IR

  • DC12V

  • LENS 2.8mm

  • LENS 3.6mm

  • 12 LEDs

  • 3~5M

  • 0 LUX

  • 58dB

  • 1/3CMOS

  • -20~50°C

Download Catalog

Product Features

  • 1/3" CMOS sensor
  • 1080P, quality up to 1920x1080.
  • 2.8mm / 3.6mm lens.
  • AHD or CVBS or T VI or CVI output switch

Pick Up Element

1/3" CMOS sensor

Video System

NTSC / PAL

Image Signal Process

Digital Signal Processor

Lens

2.8mm / 3.6mm

Number Of Pixel

1920(Horizontal) x 1080(Vertical)

Horizontal Resolution

1080P@30fps

Power Supply

DC 12 ± 1V

Power Consumption

120mA (IR Off)；300mA (IR On)

ICR

Support

Format

25FPS / 30FPS / PAL / NT

S/N Ratio

≧58dB

White Balance

AUTO

Gain Control

Auto

Gamma correction

Auto

Day Night Auto Switch

Support

LEDs

12 PCS

IR Range

3~5 m

IR Wavelength

850nm

Minimum Illumination

0 Lux(IR ON)

OUTPUT

AHD or CVBS or TVI or CVI

(Default setting: TVI Mode)

Language

English / Traditional Chinese

Operating Temperature

-20℃~50℃

Dimensions (H×W×D)

Ø:60.5mm x 58mm

Weight

About 300g



Simliar Product


Update Date 2021/12/07 VCF-5526HD5 VCN-S5926HD5
Resolution 1080P
Pick Up Element 1/3" CMOS 1/2.8" CMOS
LENS/td> 3.6mm 2.8mm / 3.6mm
LEDS 12 PCS
IR ✓
IR Wavelength 850nm
IR Range 3~5M
Sensitivity 0.1Lux 0.01Lux
Starlight Color •
OUTPUT AHD、TVI、CVI、CVBS
Waterproof IP68 IP66

*If the above specifications are different, please refer to the latest date
