CCTV Surveillance System

CCTV Camera

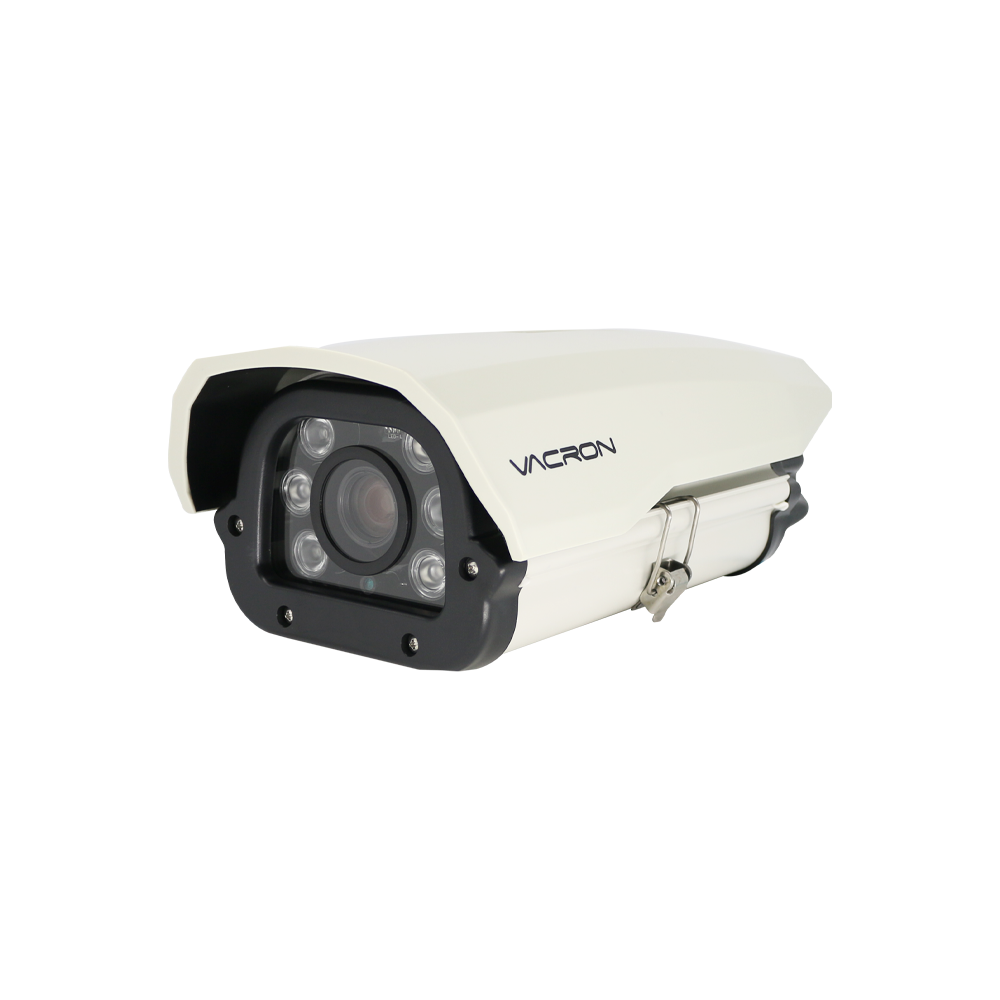

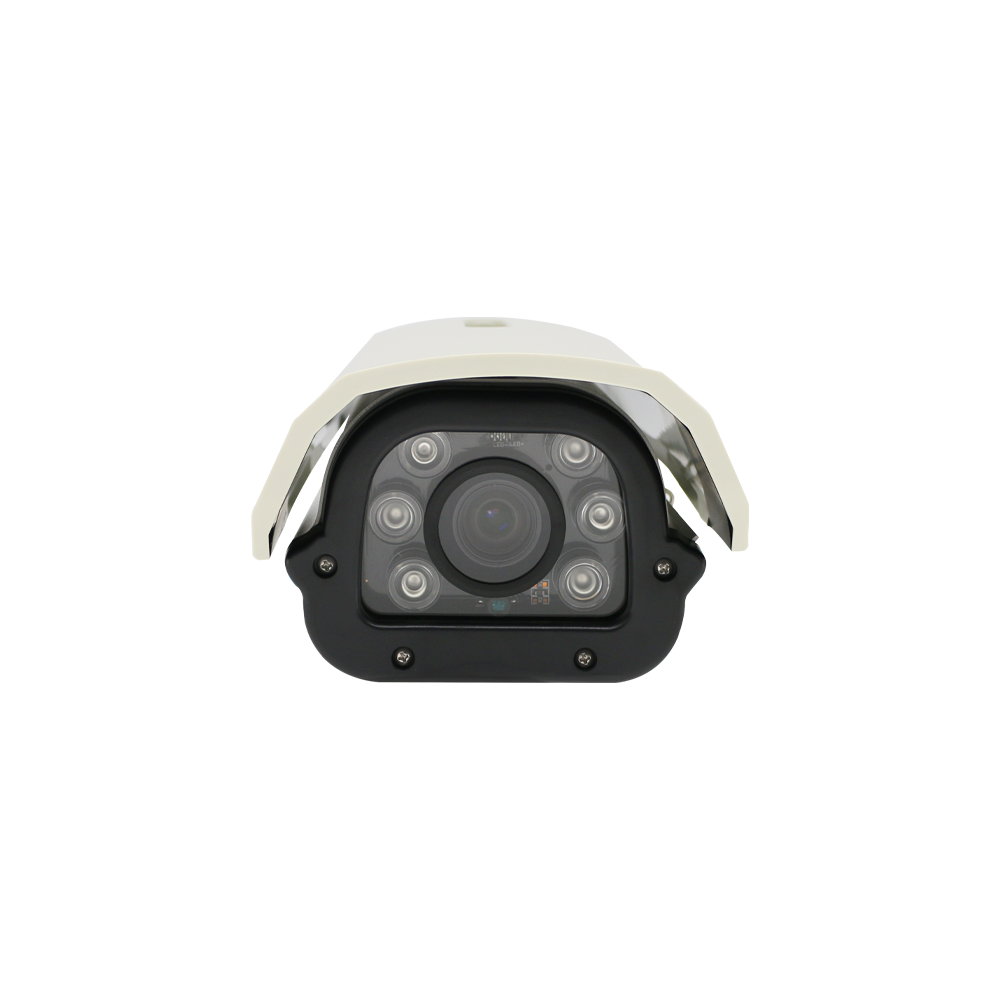

VCT-5763H

1080P / Bullet / IR

  • DC12V

  • 6 LEDs

  • 0 LUX

  • 60M

  • LENS2.8~12MM

  • 58dB

  • 1/3CMOS

  • -20~50°C

Download Catalog

Product Features

  • 1/3" CMOS sensor
  • 1080P, quality up to 1920x1080
  • 2.8-12 mm lens
  • AHD or CVBS or TVI or CVI output switch
Pick Up Element 1/3" CMOS sensor
Video System NTSC/PAL
Image Signal Process Digital Signal Processor
Lens 2.8-12mm
Number Of Pixel 1920 (Horizontal) x 1080(Vertical)
Horizontal Resolution 1080P@30fps
Power Supply DC 12 ± 1V
Power Consumption 120mA(IR Off)；800mA(IR On)
ICR Support
Format 25FPS / 30FPS / PAL / NT
S/N Ratio ≧58dB
White Balance Auto
Gain Control Auto
Gamma correction Auto
Day Night Auto Switch Support
LEDs High Power IR LEDs x6
IR Range 60 m
IR Wavelength 850nm
Minimum Illumination 0 Lux(IR ON)
OUTPUT AHD or CVBS or TVI or CVI
(Default setting: TVI Mode)
Language English / Traditional Chinese
Operating Temperature -20℃~+50℃
Dimensions (H×W×D) 320mm x 160mm x 110mm
 Weight About 1000g

Version updating is not going to inform, please check the on-going updating information
