CCTV Surveillance System

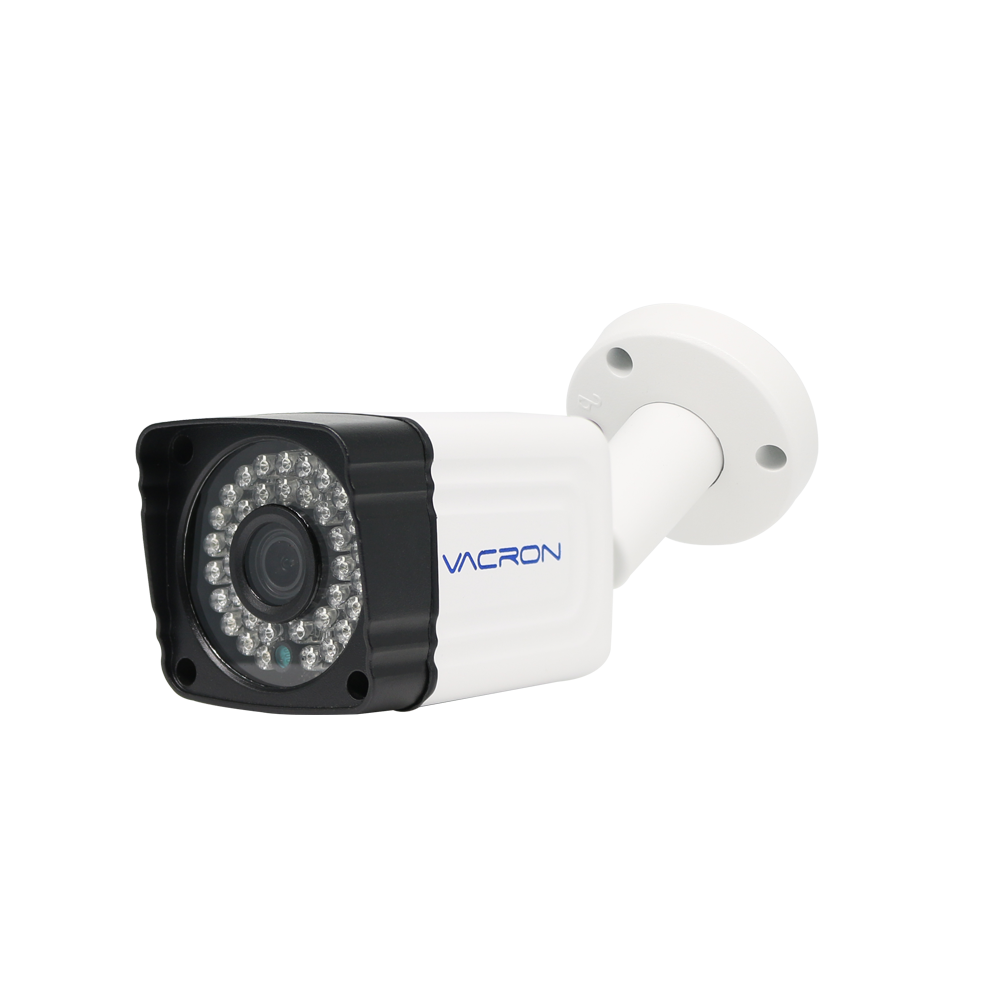

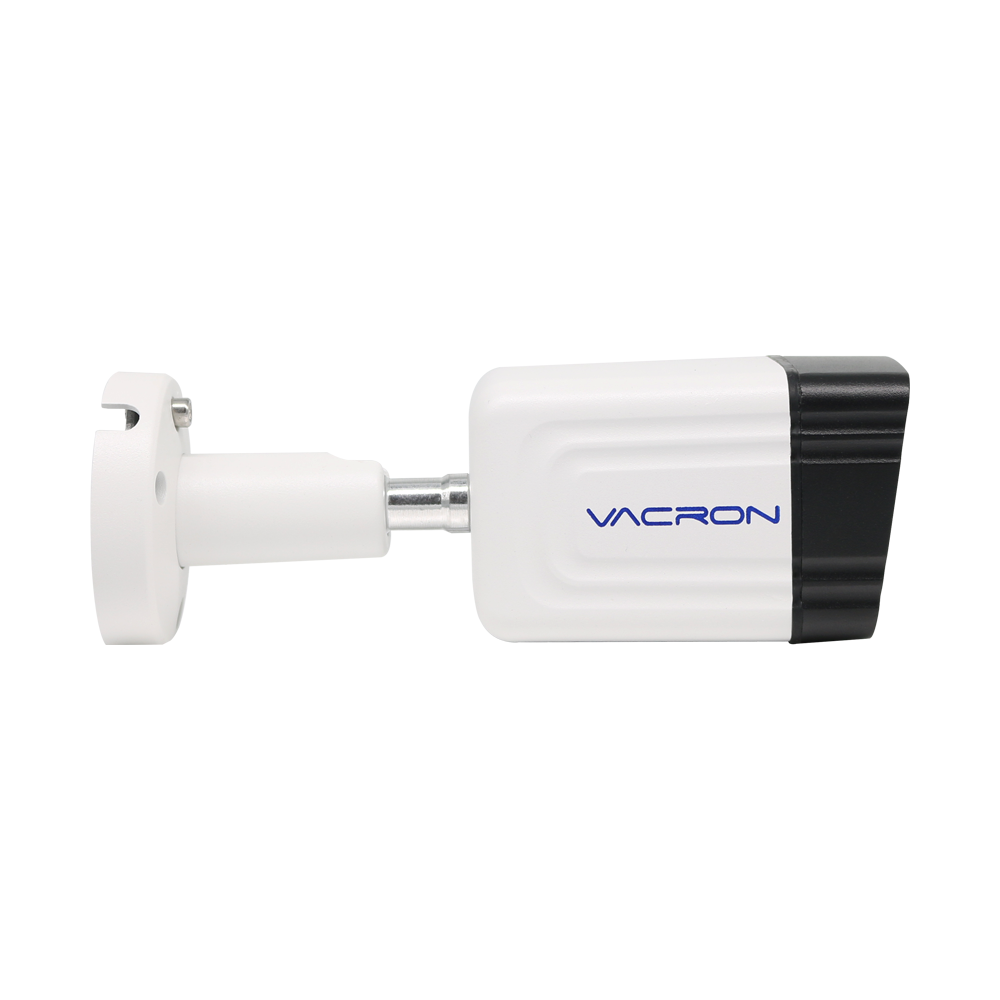

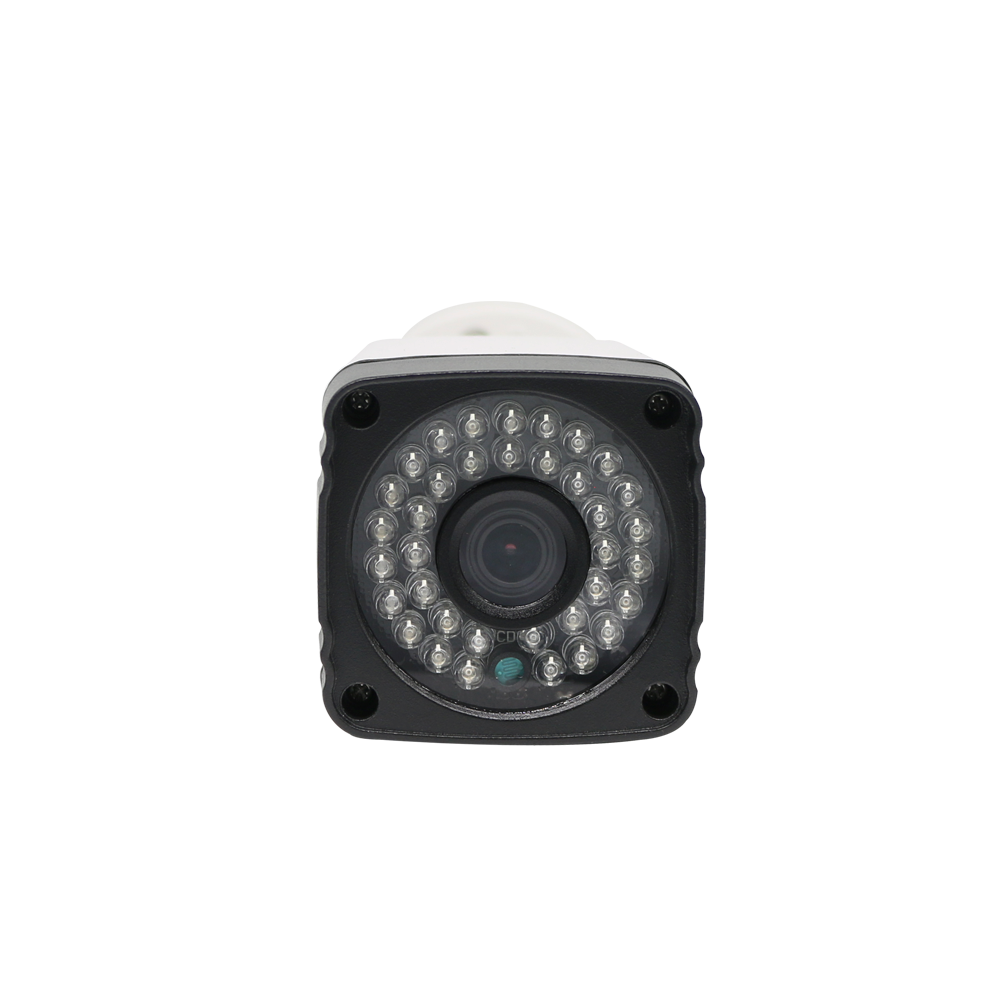

CCTV Camera

VCT-5760Q

1080P / Bullet / IR

  • DC12V

  • LENS 3.6mm

  • 0 LUX

  • 35M

  • 58dB

  • 1/3CMOS

  • 36 LEDs

  • -20~50°C

Download Catalog

Product Features

  • 1/3" CMOS sensor.
  • 1080P, quality up to 1920x1080
  • 3.6 mm lens.
  • AHD or CVBS or TVI or CVI output switch.
Pick Up Element 1/3" CMOS sensor
Video System NTSC / PAL
Image Signal Process Digital Signal Processor
Lens 3.6mm
Number Of Pixel 1920 (Horizontal) x 1080(Vertical)
Horizontal Resolution 1080P@30fps
Power Supply DC 12 ± 1V
Power Consumption 120mA(IR Off)；340mA(IR On)
ICR Support
Format 25FPS / 30FPS / PAL / NT
S/N Ratio ≧58dB
White Balance Auto
Gain Control Auto
Gamma correction Auto
Day Night Auto Switch Support
LEDs 36 PCS
IR Range 35 m
IR Wavelength 850nm
Minimum Illumination 0 Lux(IR ON)
OUTPUT AHD or CVBS or TVI or CVI (Default setting: TVI Mode)
Language English / Traditional Chinese
Operating Temperature -20℃~50℃
Dimensions (H×W×D) 200mm x 63mm x 63mm
Weight About 310g
