CCTV Surveillance System

DVR

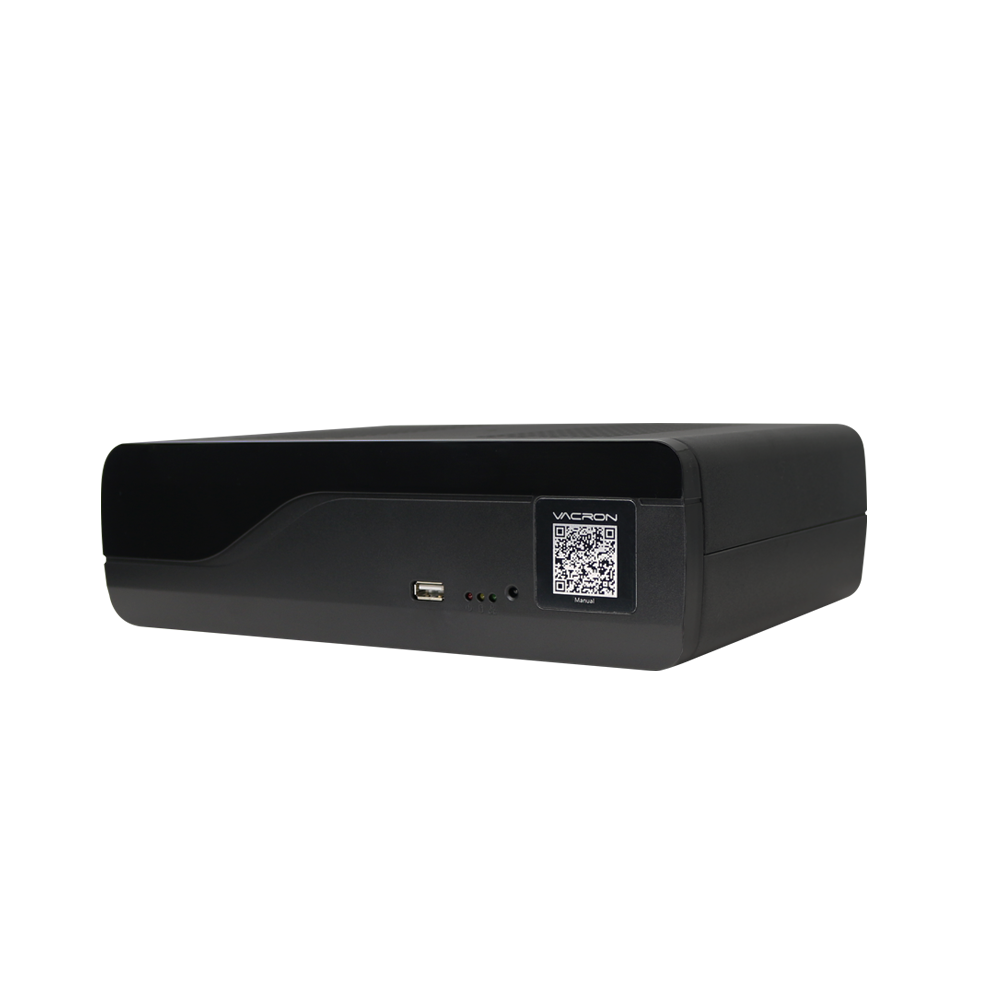

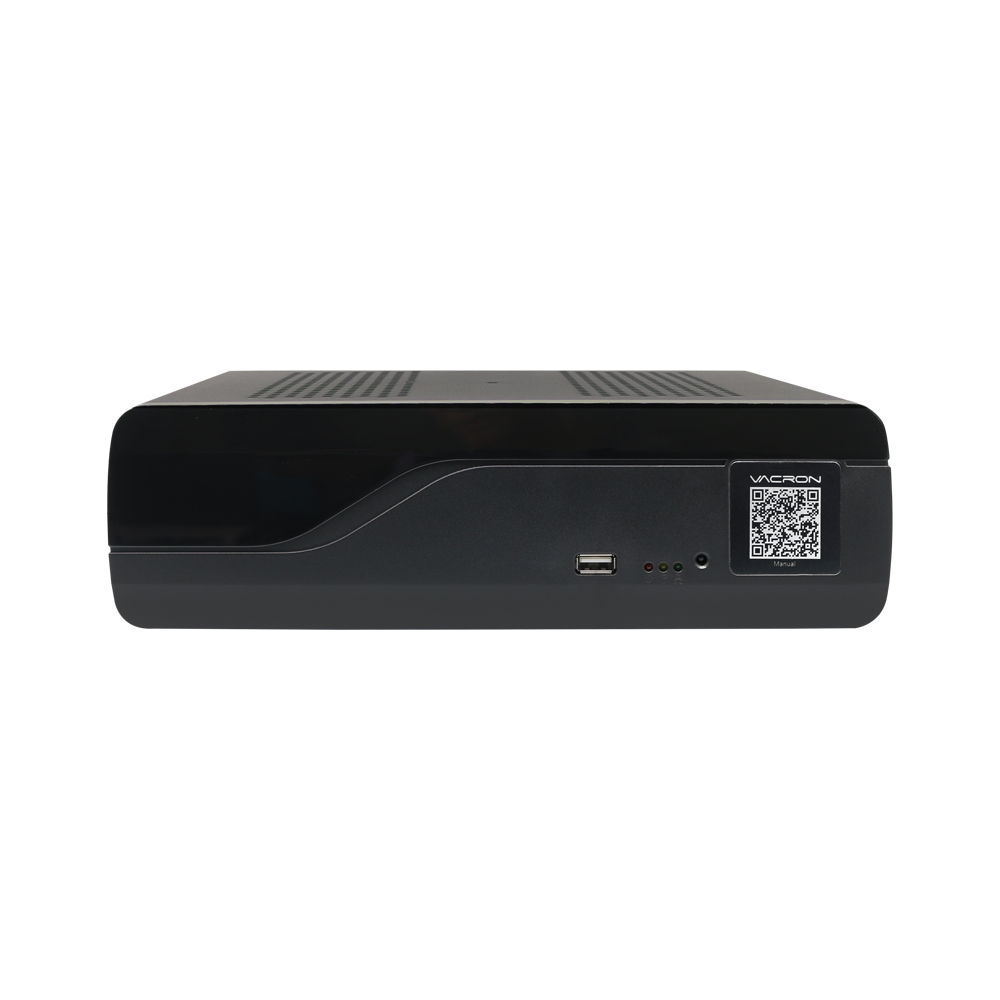

VDN-DKN604D

4CH / 5MP / H.265

  • H.265

  • Motion

  • LAN

  • CMS

  • GUI

  • Mouse

  • Users

Download Catalog

Product Features

  • Multitasking: which can Record / Playback / Remote Connection / Mobile phone watch and playback at the same time.
  • The maximum supporting capacity for a single hard disk is 8 TB.
  • Support HD output.
  • Remote Access through Internet Explorer (IE) browsing with video monitoring and playback.
  • Provide HTTP, DHCP, DDNS, NTP, SMTP, FTP, DNS, UPNP, PPPoE, and IP authority services.
  • Support iPhone and Android video & audio monitoring and playback.
  • Supports CMS (Central Management System).
  • The Hybrid function can be configured to connect traditional analog signals and digital IP signals at the same time, as well as to free set channel for IP.
  • With P2P function, scan QR-Code through APP for real-time monitoring and playback to increase information security.
  • Set the host device for IP-CAM mode. Plug and start using FUHO IP-CAM
  • Support automatic update.
  • It supports AHD, TVI, CVI, CVBS, and IP signal inputs.
Video Input 4 BNCs
Video Output VGA output (Max. 1920x1080)
HD (Max. 1920×1080)
CVBS
I/O Interface RJ-45*1, 10 / 100 Base-T
USB2.0*2
Audio Input 1CH RCA input
Audio Output 1CH RCA output
Audio Compression G.711U
Display Resolution 1080P
Digital Zoom in Drag and drop to enlarge
Sequencing YES
Video Compression H.264 / H.265
Frame 4CH 5MP @6FPS/CH ;
4CH 1080P @15FPS/CH ;
Recording Mode Continuous, Scheduled, Displacement
Motion Detection Grid setting, 192(16x12) detection zones can be set.
Playback Video playback up to 1 channel 5MP@6 FPS/sec,
or 1 channel 1080P@15 FPS/sec
or 4 channel VGA
Single Screen / 4 Split / 9 Split / sequence
Backup File Format MP4/self-defined format
Backup File Method USB/ Network
Remote Playback YES
Network Services HTTP, DHCP, DDNS, NTP, SMTP, FTP, DNS,
UPNP, PPPoE, IP authority
Browser nternet Explorer (IE)
Network Connection
 Live View, Search/Playback, Backup, and Update
HDD Storage Interface SATA
Maximum Supported Capacity Maximum 8TB per unit
Number of Internal Hard Disk Drives 1 unit
File System Stable and Reliable Self-Developed File System
S.M.A.R.T Hard Disk Error Check
Operation menu Graphic Interface
VGA, HD out & CVBS can be displayed
at the same time
Input Method Mouse
Internal Buzzer Start-up Beep
Languages English, Simplified Chinese, Traditional Chinese,
Japanese
Firmware Update USB update or Network Update(OTA)
APP Monitoring
 iPhone & Android
support monitoring (with audio) and playback.
Central Management Software (CMS) Supports
Hybrid(Digital & Analogue) Supports
Operating Environment Temperature 0~46ºC, Humidity: 20~80%
Power DC 12V / 3A(AC100V~240V 50/60HZ)
Net Weight About 1kg ( without HDD and Power Adapter)
Dimension 270mm×200mm×80mm (L×W×H)
