Crowd Calculation
| Real-Time Crowd Counting |
The system can display real-time people flow counts directly on the screen, allowing administrators to easily monitor on-site occupancy. |
|
Accuracy Adjustment
|
The default value is set to O, and the recognition sensitivity can be adjusted according to the installation environment and requirements to reduce false detections caused by environmental factors.
|
| Crowd Access Counting |
The counting line can be freely configured on the device, enabling flexible planning of people flow statistics areas based on camera angle and site conditions.
|
| Occupancy Alert |
When exceeding the preset threshold, the system will trigger alarm signals via I/O output, notifying the administrators.
|
| Alarm Output Configuration |
The I/O output duration is adjustable, providing administrators with sufficient reaction time to respond.
Can set up I/O alarm output voltage level high/low (0V~3.3V) for remote siren or gearing alert.
|
| People Flow Statistics Storage |
Supports saving results to a local Micro SD card or uploading to an FTP server for centralized management.
|
| Micro SD Card Storage in Device |
Supports up to 256GB Micro SD card for storing snapshots of people entering and exiting, which can be viewed via a web browser.
(Note: When the Crowd Flow Snapshot is enabled, the system will format the SD card and disable regular video recording.)
|
| Customise and System Integration |
For integration of multiple AI system functions, please contact sales representatives.
|
| System Accuracy Description |
The IP-CAM crowd counting system performs recognition and statistics based on surveillance video; its accuracy may be affected by factors such as large entrances/exits, multiple people accessing simultaneously, overlapping, or occlusion, which could result in missed or duplicate counts.
Under optimal conditions, the system can achieve up to 95% accuracy, making it a reliable auxiliary tool for crowd flow statistics.
|

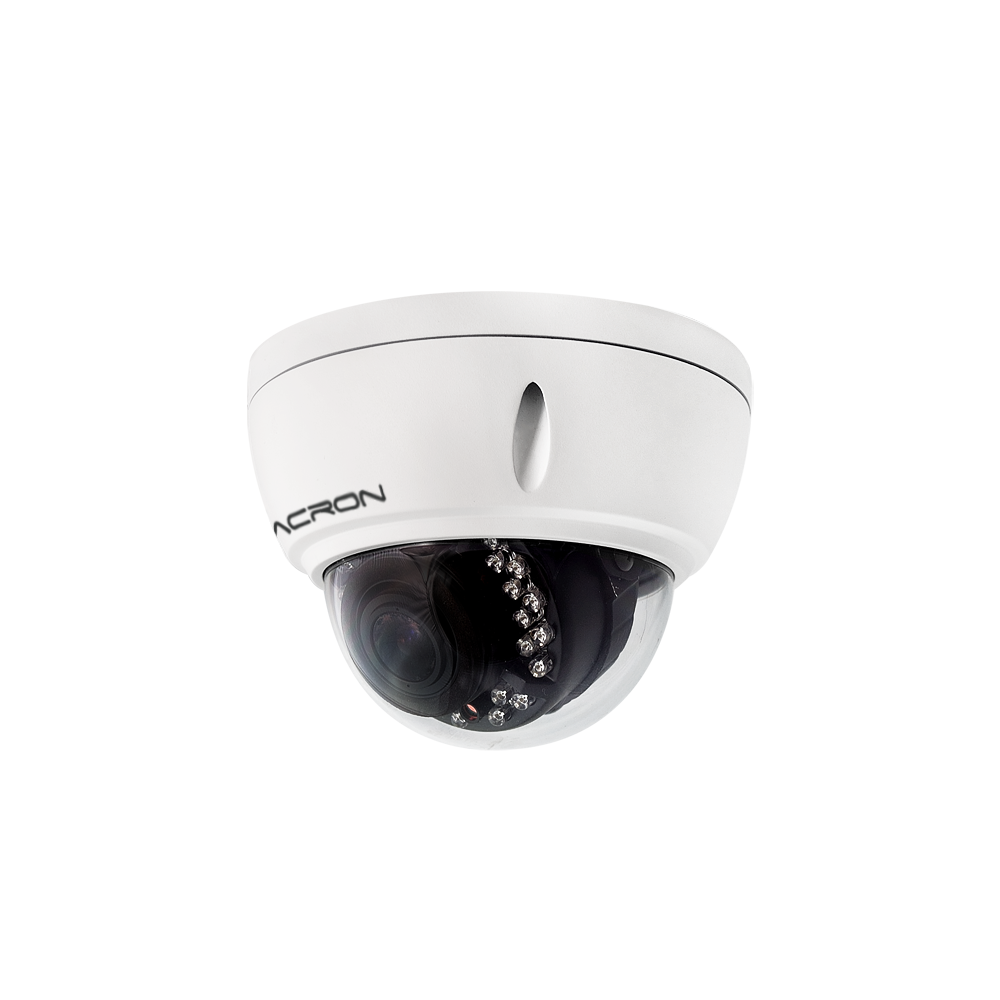

SPECIFICATIONS
| system |
Flash：256MB |
| RAM：512MB |
| Image Sensor |
SONY FullHD High Quality 1/2.8” CMOS Image Sensor |
| Lens |
3.6 mm |
|
| ICR |
Built-in Magnetic Infrared Filter Switch |
|
| Low Lux |
0 Lux(IR ON) |
| Number of LED |
Infrared X 24 |
Image |
H.265/H.264: 1920x1080 at 60 fps |
| H.265/H.264: 1280x720 at 60 fps |
| H.265/H.264: 640x480 at 60 fps |
| H.265, H.264 multi-mode engine compression technology (Dual Codec) |
| Support Simultaneous multiple streams |
| Image Adjustment |
Adjustable Image Size, Quality and Transmission Speed. |
| Time, date, or custom text can be displayed on the image, and the display position can be set. |
| Adjustable brightness, contrast, saturation and sharpness. |
| Support AGC、AWB、AES、BLC、WDR Features |
| Electronic Shutter |
1/2 ~ 1/100,000 Sec |
| Networking Interface |
10/100 Mbps Ethernet, RJ-45 |
| Communication Protocol |
IPv4、TCP/IP、DHCP、HTTP、RTSP、SNTP、DNS |
| Browser |
Microsoft Internet Explorer 6.0 or above
Safari, Chrome or Firefox |
| Alarm and Event Management |
High/Low (0-3.3V) alarm signal can be connected to I/O OUT. |
| Crowd flow entry/exit data can be stored on the SD card, and the stored data can be used to generate daily, weekly, monthly, and yearly statistics of counts. |
| Users |
Up to 8 users can view online simultaneously.
Multi-level user access control with password protection.
|
|
| Maintenance |
Supports FOTA |
| I/O |
RJ-45 network port, power input port DC12V
Audio input and output (BNC-RS485 output), alarm output |
| Power |
DC12V or Ethernet PoE IEEE802.3af Class 0 (optional) |
| Max. Power Consumption |
3.6W(IR OFF) 、10W(IR ON) |
| Weight |
Net Weight: 690g |
| Dimension |
W:Φ135mm H:110mm |
| Operating Environments |
0℃ ~ 45℃ |
*Version updating is not going to inform, please check the on-going updating information
