IP Camera

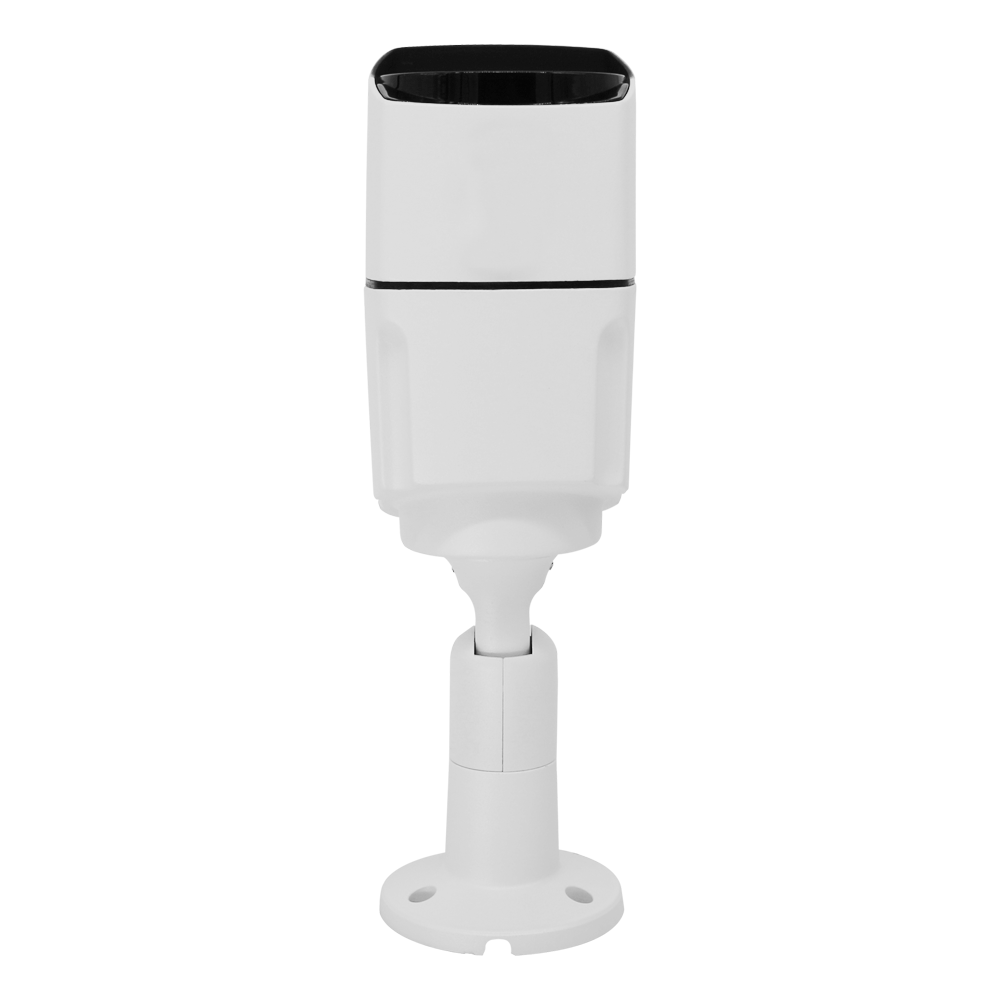

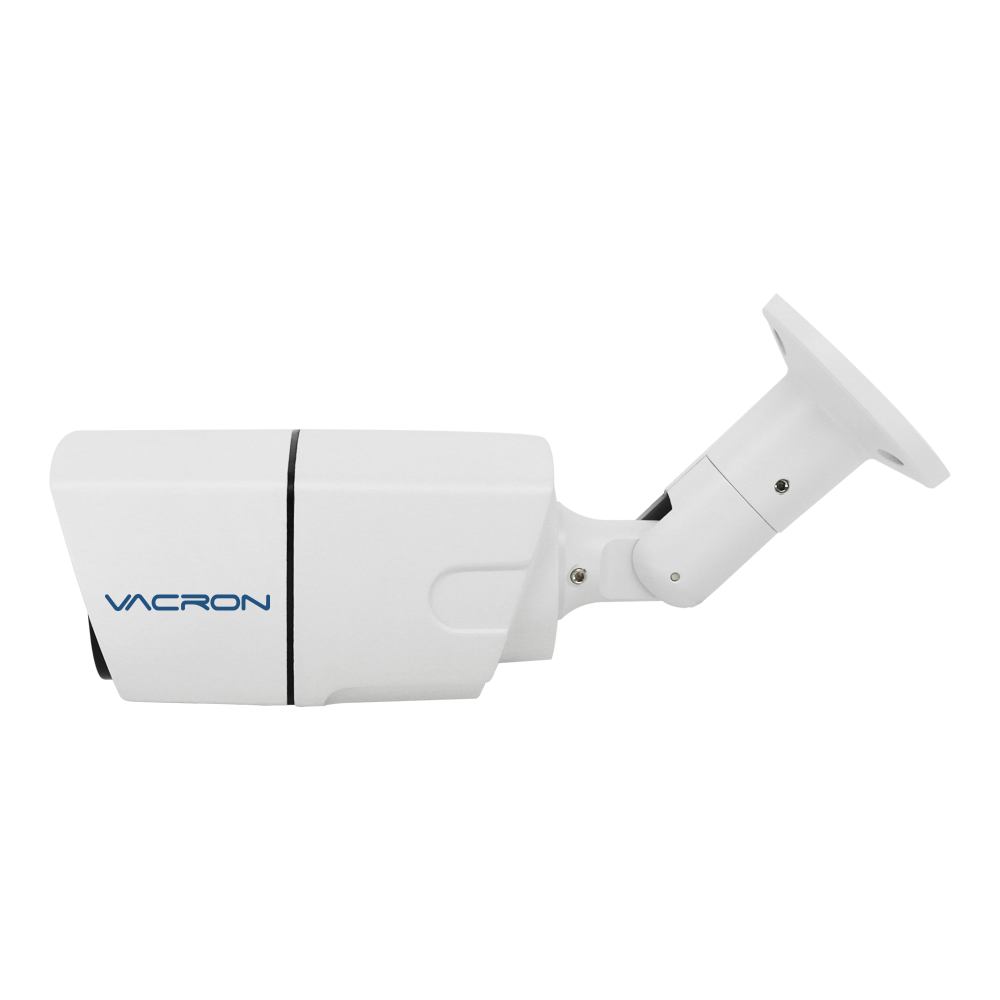

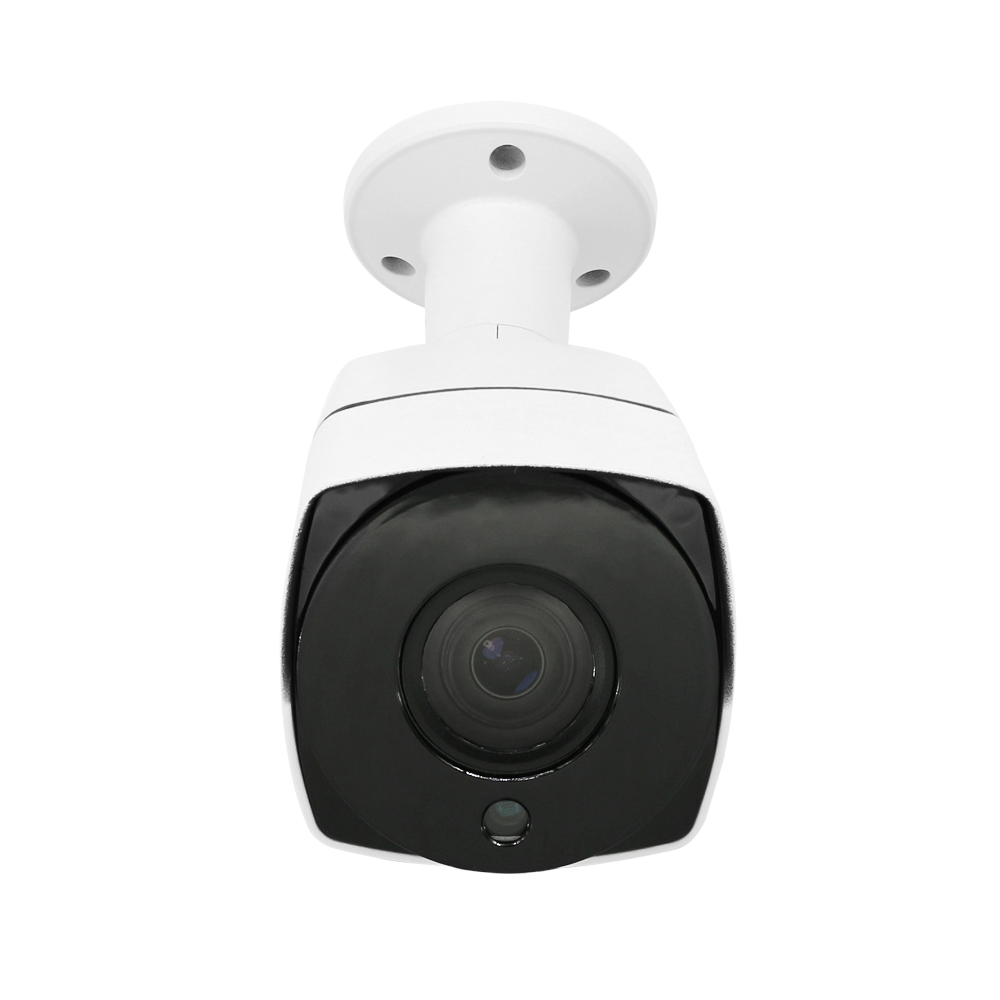

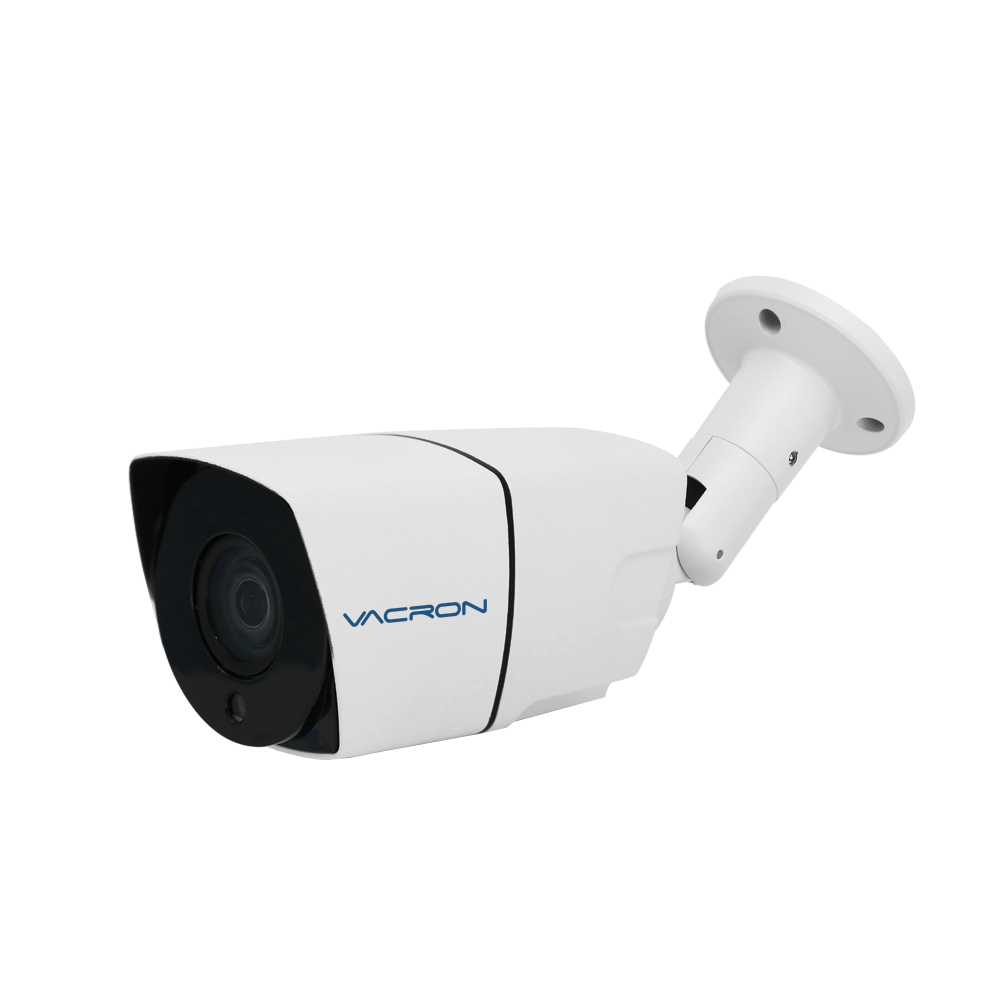

VIN-US760H1TA-EA

1080P / Bullet / IR / H.265 / AI Crowd Calculation

  • H.265

  • DC12V

  • 0 LUX

  • P.O.E

  • 8 LEDs

  • 1/2.8"CMOS

  • 0~45°C

  • Human

  • 電動對焦2.8-12MM

Download Catalog

Product Features

  • The camera is equipped with built-in AI algorithms capable of crowd calculation.
  • 8 High Power IR LEDS, IR Range 30 M.
  • With a 2.8mm~12mm motorized motor lens, it is convenient for users to adjust the sharpness of
    the recognition area.
  • Starlight-grade Sony CMOS low-light color image with high resolution for enhanced night-time
    surveillance.
  • Real-time H.265/H.264 multi-mode engine compression technology (Dual Codec) supports
    multiple levels of video quality configuration.
  • This device supports a 256G SD card to store captured pictures and video data, and supports
    remote inquiry of event data.
  • The identification results are linked with the Vacron recording system to grasp the monitoring
    and alarm information in real-time
  • Support ONVIF international standard with best compatibility and integration, SDK can be attached
    for background system vendor's integrations.

Crowd Calculation

Real-Time Crowd Counting

The system can display real-time people flow counts directly on the screen, allowing administrators to easily monitor on-site occupancy.

Accuracy Adjustment

The default value is set to O, and the recognition sensitivity can be adjusted according to the installation environment and requirements to reduce false detections caused by environmental factors.

Crowd Access Counting

The counting line can be freely configured on the device, enabling flexible planning of people flow statistics areas based on camera angle and site conditions.

Occupancy Alert

When exceeding the preset threshold, the system will trigger alarm signals via I/O output, notifying the administrators.

Alarm Output Configuration

The I/O output duration is adjustable, providing administrators with sufficient reaction time to respond.

Can set up I/O alarm output voltage level high/low (0V~3.3V) for remote siren or gearing alert.

People Flow Statistics Storage

 Supports saving results to a local Micro SD card or uploading to an FTP server for centralized management.
Micro SD Card Storage in Device

Supports up to 256GB Micro SD card for storing snapshots of people entering and exiting, which can be viewed via a web browser.

(Note: When the Crowd Flow Snapshot is enabled, the system will format the SD card and disable regular video recording.)
Customise and System Integration For integration of multiple AI system functions, please contact sales representatives.
System Accuracy Description

The IP-CAM crowd counting system performs recognition and statistics based on surveillance video; its accuracy may be affected by factors such as large entrances/exits, multiple people accessing simultaneously, overlapping, or occlusion, which could result in missed or duplicate counts.

Under optimal conditions, the system can achieve up to 95% accuracy, making it a reliable auxiliary tool for crowd flow statistics.


SPECIFICATIONS

system Flash：256MB
RAM：512MB
Sensor SONY FullHD High Quality 1/2.8 CMOS Image Sensor
Lens Motorized / Automatic Zoom 2.8-12mm
IR-cut Built-in Magnetic Infrared Filter Switcher
Low Lux 0 Lux (IR ON)
IR LEDs High Power IR LEDs X 8

Image Performance		 H.265/H.264: 1920x1080 at 60 fps
H.265/H.264: 1280x720 at 60 fps
H.265/H.264: 640x480 at 60 fps
H.265, H.264 multi-mode engine compression technology (Dual Codec)
Support simultaneous multiple streams
Video Adjustment Adjustable Image Size, Quality and Transmission Speed.
Time, date, or custom text can be displayed on the image,
and the display position can be set.
Adjustable brightness, contrast, saturation and sharpness
Support AGC、AWB、AES、BLC、WDR Features
Electronic Shutter 1/2 ~ 1/100,000 Sec
Networking Interface 10 /100 Mbps Ethernet, RJ-45
Communication Protocol IPv4、TCP/IP、DHCP、HTTP、RTSP、SNTP、DNS
browser Microsoft Internet Explorer 6.0 or above
Safari, Chrome or Firefox
Alarm Notification 1. High/Low (0-3.3V) alarm signal can be connected to I/O OUT.
2. Human recognition results are captured and transmitted to FTP or the device's micro SD card for image storage.
Users Maximum 8 users online monitoring simultaneously
Maintenance Multi-level users access control with password protection
I/O Port Supports FOTARJ-45 network connection port, power input port DC12V, sound input and output (BNC-RS485 output), alarm output
Power VIN-US760HTA-EA:
DC12V
VIN-US760HTEA-EA:
DC12V or Ethernet PoE IEEE802.3af Class 0 (optional)
Power Consumption 3.6W(IR OFF) 、12W(IR ON)
Weight N.W. :1190g
Dimension 255mm x 75.3mm x 75mm
Operating Environments 0℃ ~ 45℃
Waterproof and Dustproof Level IP66
