CM-128

Product Features

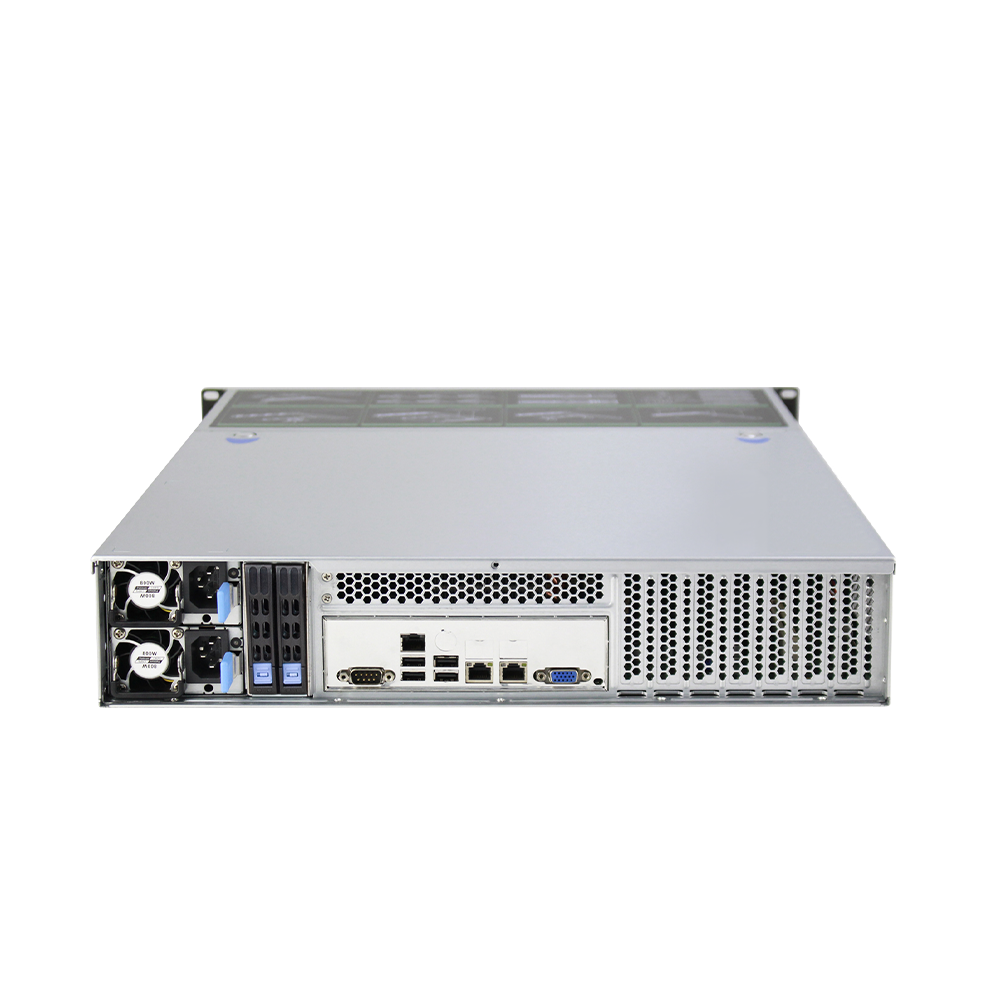

Features a 19-inch 2U chassis with a 500W 80+ Bronze high-efficiency power supply, designed for seamless integration into professional environments.
Supports Intel® Core™ 14th and 13th processors with up to 20 cores and 28 threads, delivering exceptional performance.
Equipped with 4 DIMM slots supporting up to 128GB of DDR4 4800MHz high-speed RAM, ensuring lag-free multi-channel surveillance.
Supports SATA3 and SAS interfaces, compatible with 24TB+ high-capacity drives, 10K RPM high-speed HDDs, and SSDs to meet demanding storage requirements.
Features built-in Intel Software RAID (0, 1, 5, 10) with optional Hardware SAS RAID (0, 1, 5, 6, 10, 50). Supports Non-Volatile (NV) Cache protection modules to avoid data loss.
Supports email notifications for drive failures. The system enables automatic array rebuilding after replacement, ensuring uninterrupted recording.
Equipped with three 4-pin high-speed fans featuring smart temperature-controlled variable speeds and a failure buzzer alarm to maintain system stability.
Powered by an NVIDIA GeForce 2GB DDR4 discrete graphics card with DisplayPort and
HDMI outputs, providing crisp, stable high-definition monitoring.

CPU	Supports Intel® Core™ 14th and 13th processors with 20 cores and 28 threads,
Memory	Equipped with 4 DIMM slots supporting up to 128GB of DDR4 4800MHz high-speed RAM
HDD	12 SAS 12Gb/s Hot Swap Individual LED indicators for HDD power, access, and status/error
Network	Intel® 10/100/1000Base-T Auto-switching Ethernet RJ45 Port x 1
Rear I/O	DisplayPort x1 HDMI x2 USB 2.0 x4 USB 3.0 x2 PS/2 Keyboard/Mouse Combo Port x 1 Audio Jacks x3
Certified Safety and EMC Standards	BSMI、CE
Video Output	NVIDIA GeForce 2GB DDR4 Graphics Card
Power Supply	500W Power Supply (80 Plus Bronze)
Dimensions	437.5 (W) x 650 (D) x 88 (H) mm

*Version updating is not going to inform, please check the on-going updating information
