CCTV Surveillance System

DVR

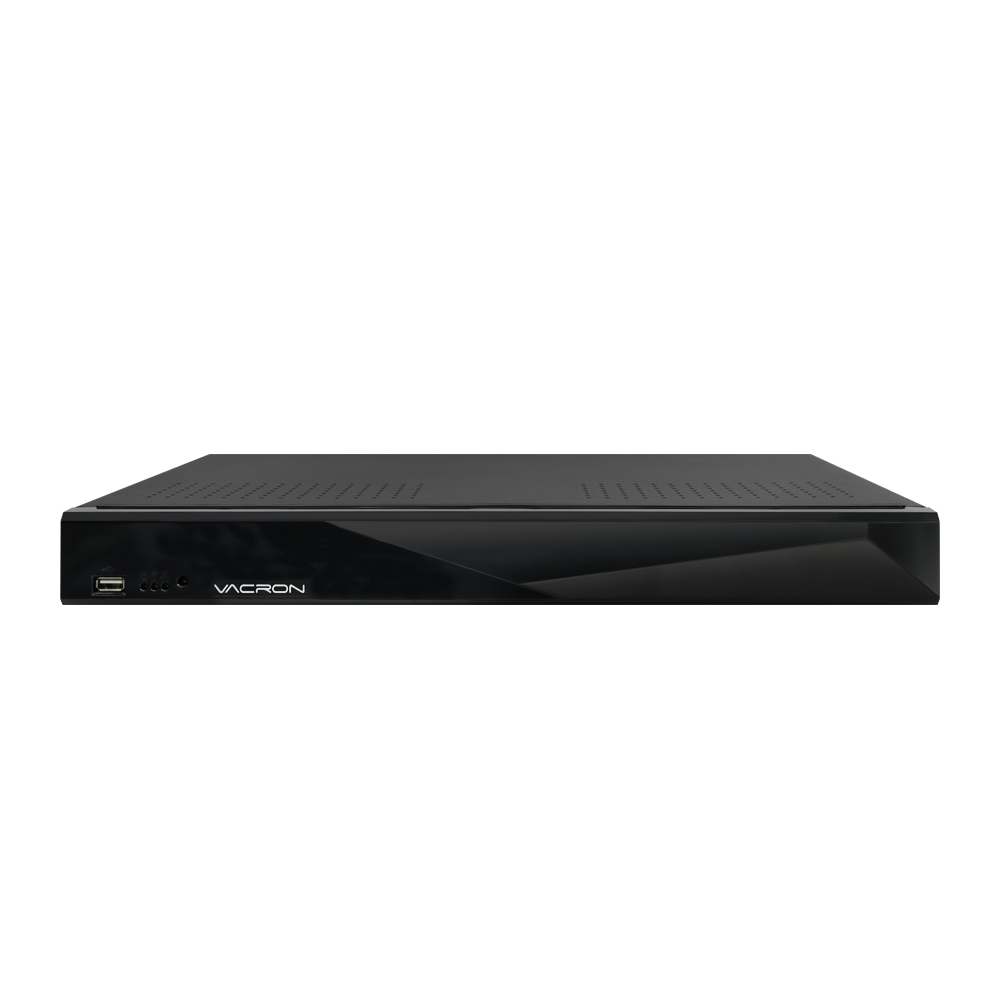

VDN-DKF616D-AI

16CH / 5MP / H.265 / HDD

  • H.265

  • Motion

  • LAN

  • USB

  • CMS

  • GUI

  • Mouse

  • Users

  • PTZ

  • Multi function

  • SATA

  • 4G

Download Catalog

Product Features

  • Pentaplex Operation: which can Record / Playback / Remote Connection / mobile phone watch
  • Single hard drive can be up to 10TB.
  • Support HD output
  • Support IE. On-line recording/playback and user management are available.
  • Support HTTP、DHCP、DDNS、NTP、SMTP、FTP、DNS、UPNP、PPPoE、IP search ..etc network protocol
  • Support iPhone, Android, including live video monitoring, playback.
  • CMS support for Effectively integrate device management operations
  • It can be set as a hybrid system, allowing simultaneous connections for both traditional analog signals and digital IP signals. It allows flexible configuration of IP channels.
  • It has P2P functionality, and the APP allows real-time monitoring and playback by scanning a QR-Code, enhancing information security.
  • Back-end AI Human Identification
  • 4G Network
  • Automatic update
  • Supports AHD, TVI, CVI, CVBS, and IP signal inputs.
Video input 16 CH of BNC input
Video Output

VGA (Max. 1920 x 1080)
HD(Max. 3840x2160)

Audio Input 4 channels input
Audio Output 1 channel output
Audio Compression G.711U
Sensor Input 4 inputs, normally open/normally closed (optional)
Alarm Output 1 alarm output(optional)
Display Resolution 1080P
Digital Zoom in Drag and drop to enlarge
Sequence Yes
Video Compression H.265
Recording Frame 16CH 5MP @6FPS/CH
16CH 1080P @15FPS/CH
Recording Mode Continuous / Schedule / Motion
Motion Detection Zones: 192(16×12 grid)
Pre-Recording 1-30 second
Post-Recording 10-300 second
Display Mode Single Screen / 4-Division / 8-Division /
9-Division / 16-Division / Sequencing
File Format MP4
Media Interface USB/Network.
Playback Yes
Network Services HTTP, DHCP, DDNS, NTP, SMTP, FTP, DNS, UPNP, PPPoE, IP authority
Browser Internet Explorer (IE)
Hard Drive Interface SATA
Maximum Supported Capacity Maximum 10TB per unit
Number of internal hard drives 2 pcs
File System Stable and reliable self-developed file system
S.M.A.R.T Hard Disk Error Check.
Operation menu GUI interface;VGA & HD out can be
displayed simultaneously
Input method Mouse
PTZ & Control Keyboard Pelco-D / Pelco-P (RS-485)
Network Ethernet RJ-45 x1
Web Monitoring Live View, Search/Playback, Backup, Update, and PTZ
Internal Buzzer Start-up Beep
Languages English / Traditional Chinese/ Japanese
Firmware Update USB update or Network Update(OTA)
APP Monitoring iPhone, Android, Mobile App supports Live view& audio,
playback and back-up
CMS (Central Management System) Supports
Hybrid(Digital & Analogue) Supports
Operating Environment Celsius 0 ~ 46 degrees
Humidity 20 ~ 80%
Power Supply DC 12V / 4.17A(AC100V~240V 50/60HZ)
Net weight About 3kg (without HDD and Power Adapter)
Dimension 430mm x 314mm x 53mm (L×W×H)
