CCTV Surveillance System

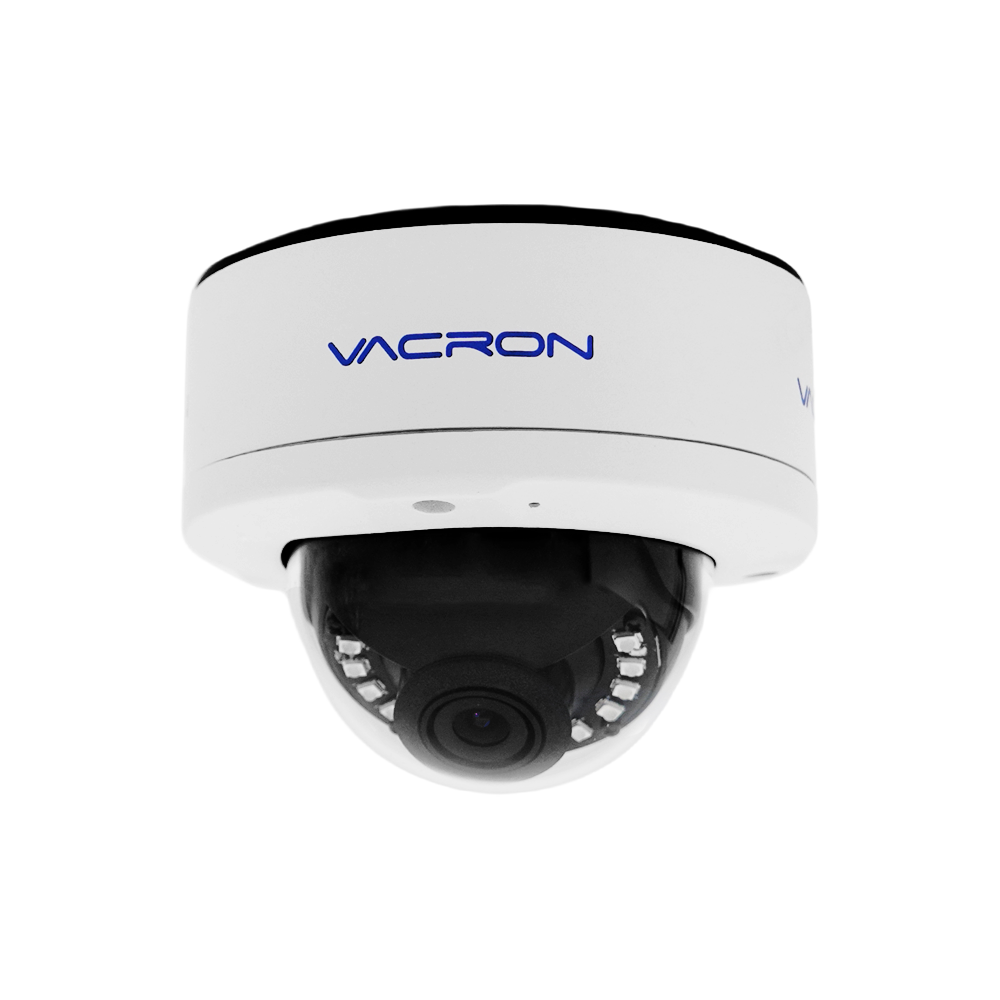

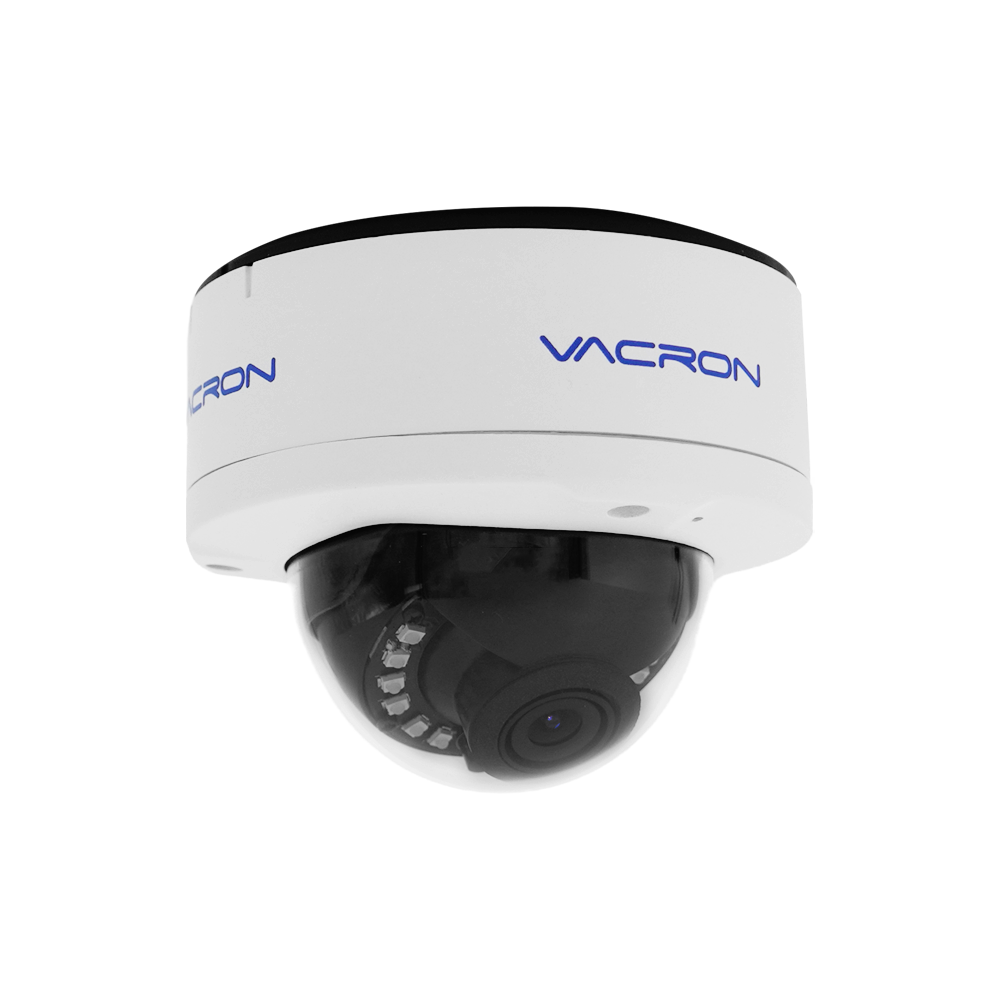

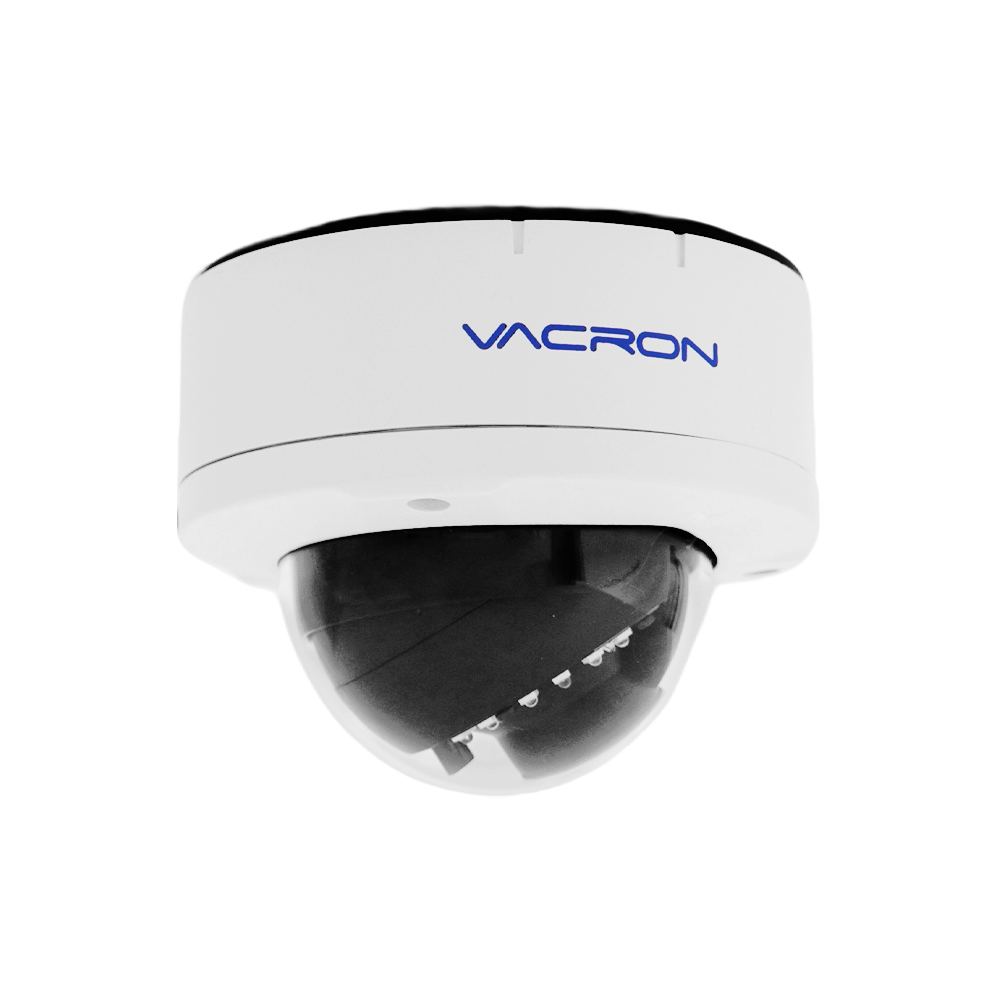

CCTV Camera

VCT-5720HD-A

1080P / IR

  • DC12V

  • LENS 2.8mm

  • LENS 3.6mm

  • 12 LEDs

  • 15m

  • 0 LUX

  • 1/3CMOS

  • -20~50°C

  • 58dB_2

Download Catalog

Product Features

  • 1/3" CMOS sensor.
  • 1080P, quality up to 1920x108
  • 2.8mm/3.6 mm lens.
  • TVI supports coaxial audio transmission
  • AHD or CVBS or TVI or CVI output switch.

Pick Up Element

1/3" CMOS sensor

Video System

NTSC / PAL

Image Signal Process

Digital Signal Processor

Lens

2.8mm / 3.6mm

Number Of Pixel

1920(Horizontal) x 1080(Vertical)

Horizontal Resolution

1080P@30fps

Power Supply

DC 12 ± 1V

Power Consumption

120mA (IR Off)；200mA (IR On)

ICR

Support

Format

25FPS / 30FPS / PAL / NT

Audio

TVI support

S/N Ratio

≧58dB

White Balance

Auto

Gain Control

Auto

Gamma correction

Auto

Day Night Auto Switch

Support

LEDs

12 PCS

IR Range

15m

IR Wavelength

850nm

Minimum Illumination

0 Lux(IR ON)

OUTPUT

AHD or CVBS or TVI or CVI (Default setting: TVI Mode)

Language

English / Traditional Chinese

Operating Temperature

-20℃~50℃

Dimensions (H×W×D)

Φ100mm x 86mm

Weight

About 351g
