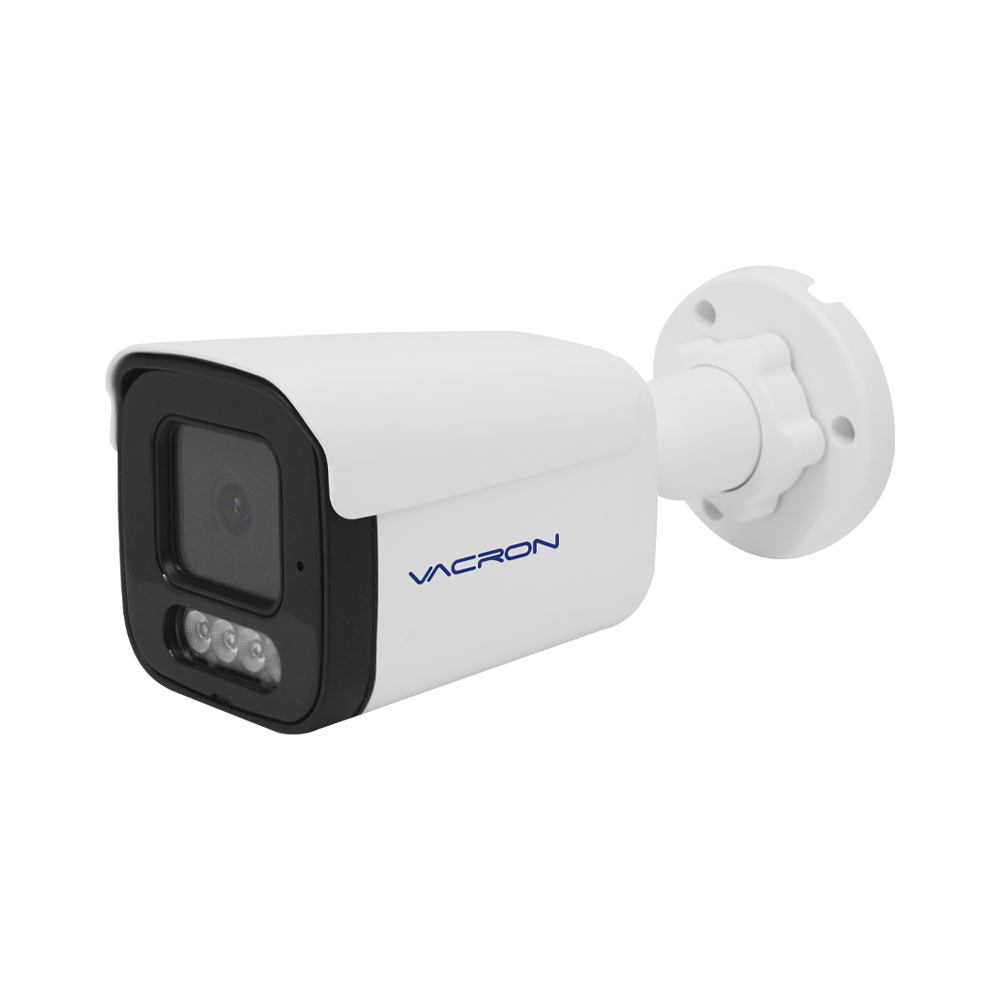

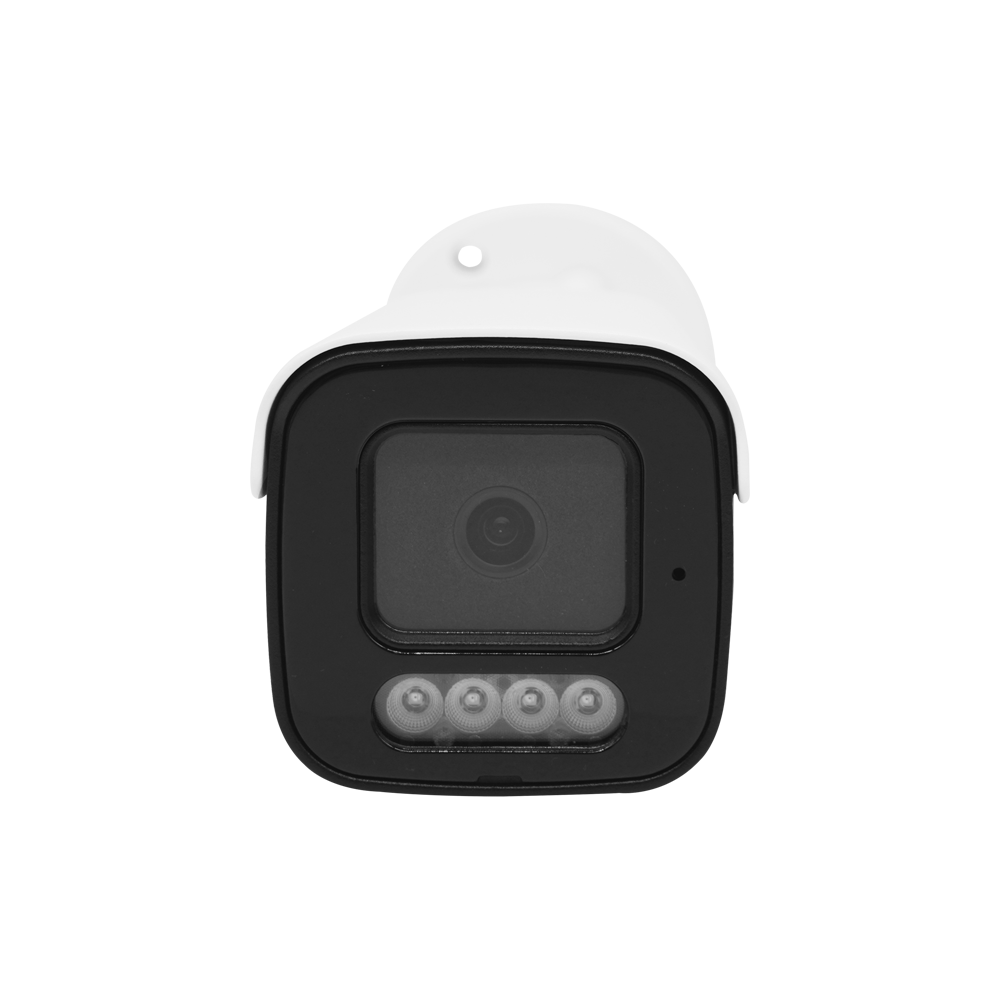

CCTV camera | VCF-5G09H-A

Product Features

Pick Up Element	1/3" CMOS sensor
Video System	NTSC / PAL
Image Signal Process	Digital Signal Processor
Lens	2.8mm
Number Of Pixel	2560 (Horizontal) x 1944(Vertical)
Horizontal Resolution	5MP@20fp/12.5fp 2MP@25fp/30fp
Power Supply	DC 8~28V
Power Consumption	120mA(IR Off)；330mA(IR On)
ICR	Support
Format	25FPS / 30FPS / PAL / NT
Audio	TVI support
S/N Ratio	≧55dB
White Balance	Auto
Gain Control	Auto
Gamma correction	Auto
Day Night Auto Switch	Support
LEDs	High Power IR LEDs x4
IR Range	30M
IR Wavelength	850nm
Minimum Illumination	0 Lux(IR ON)
OUTPUT	AHD/TVI/CVI/CVBS (Default setting: TVI Mode)
Language	ENGLISH//CHINESE /TRADITONAL CHINESE
Operating Temperature	-20℃~50℃
Dimensions (H×W×D)	71mm x 70mm x 161mm
Weight	About 502g

*If the above specifications are different, please refer to the latest date
