CCTV Surveillance System

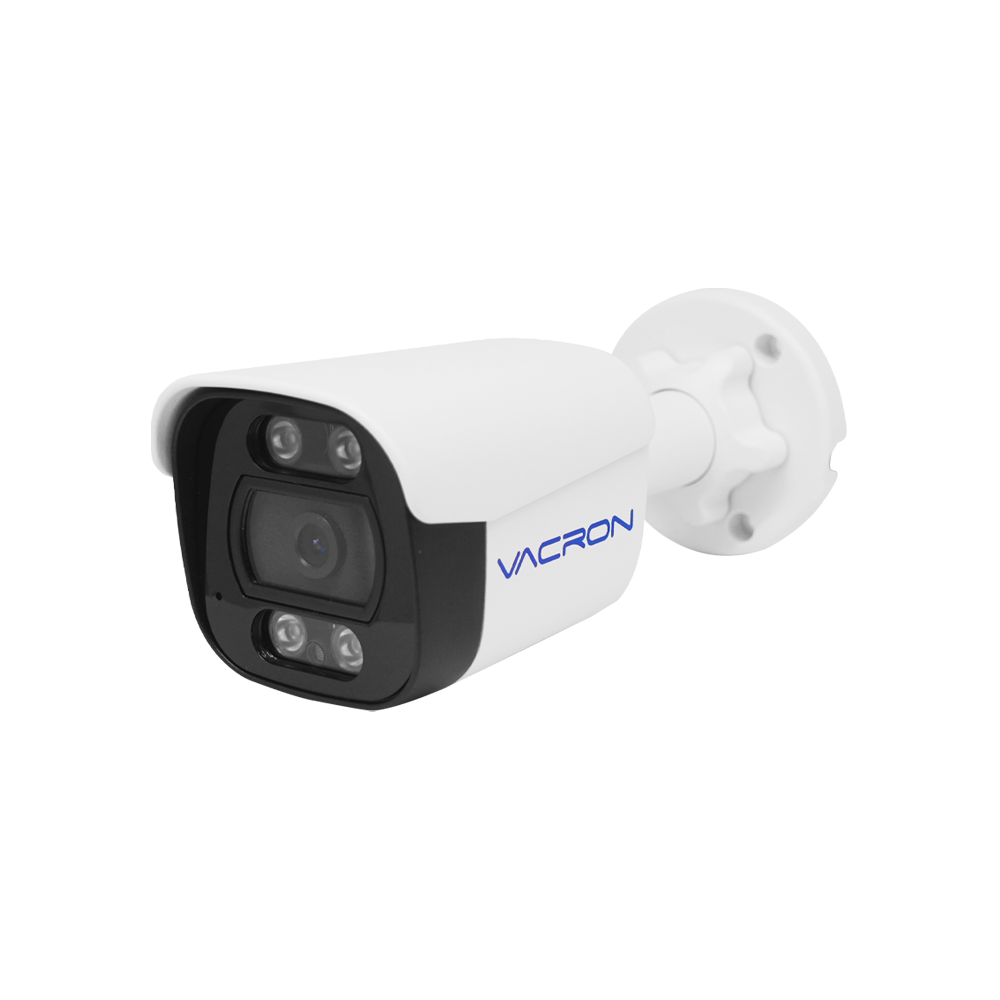

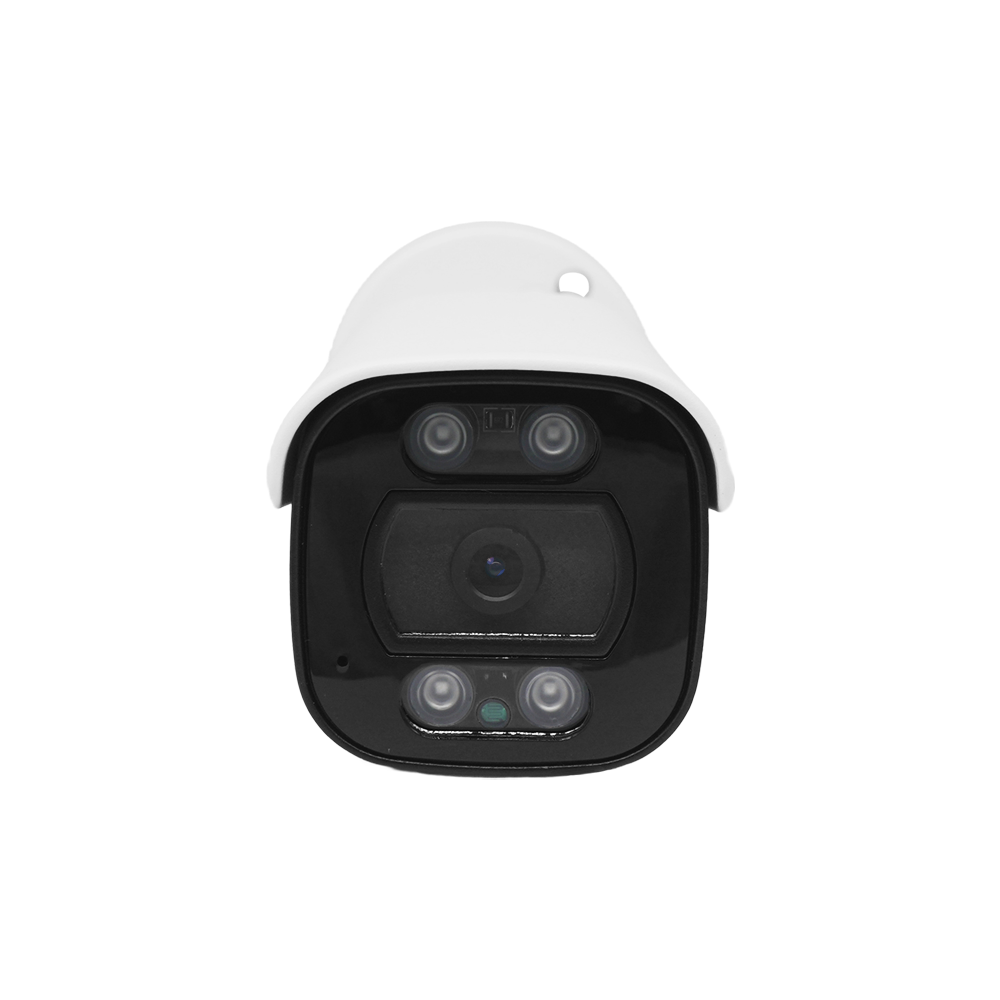

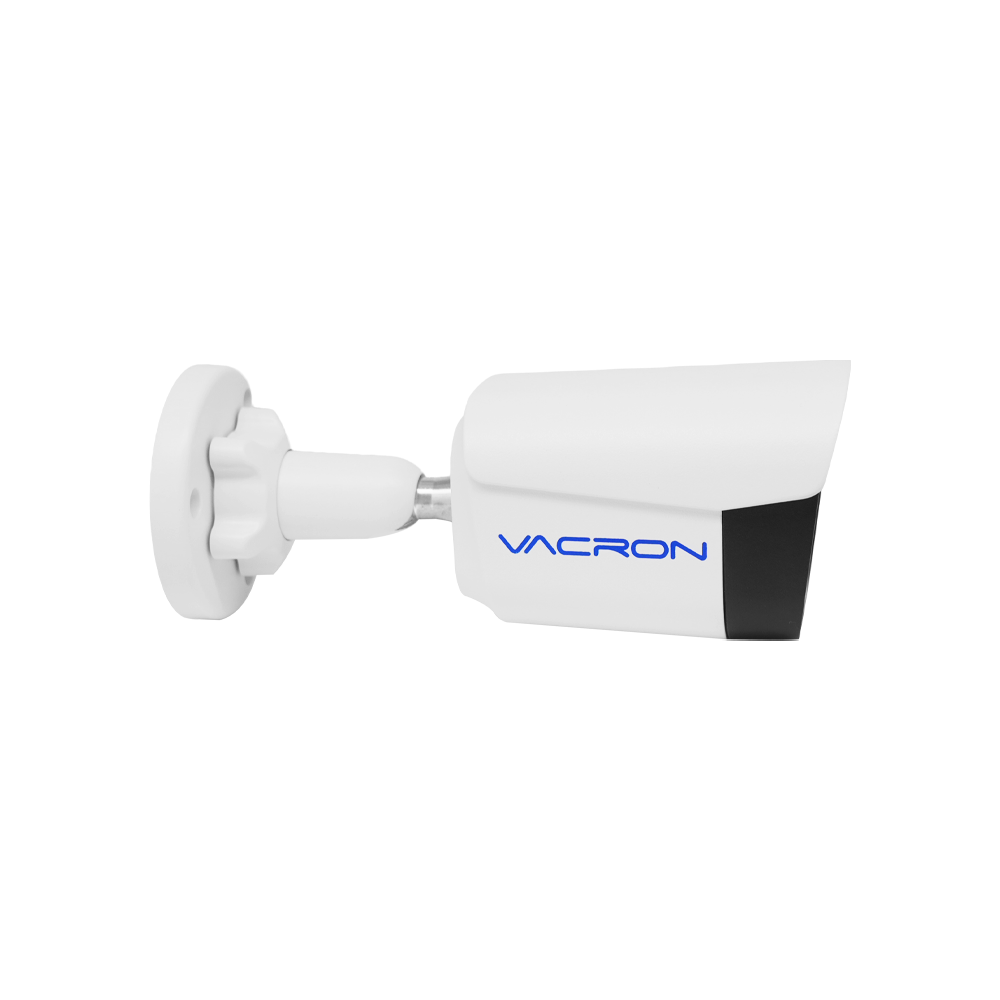

CCTV Camera

VCT-5719H-A

1080P / Bullet / IR

  • DC12V

  • LENS 2.8mm

  • LENS 3.6mm

  • 30m

  • 0 LUX

  • 1/3CMOS

  • 4 LEDs

  • -20~50°C

  • 58dB_2

Download Catalog

Product Features

  • 1/3" CMOS Image Sensor
  • AHD 1080P, quality up to 1920x1080
  • TVI Coaxial Audio Transmission Support
  • AHD, CVBS, TVI, or CVI output switch

Image Sensor

1/3" CMOS Image Sensor

Signal Mode

NTSC / PAL

Image signal processing system

Image signal processing system

Lens

2.8/3.6mm

Number Of Pixel

1920(Horizontal) x 1080(Vertical)

Resolution

1080P@30fps

Power

DC 12 ± 1V

Current Consumption

120mA (IR Off)；330mA (IR On)

ICR

Support

System

25FPS / 30FPS / PAL / NT

Audio

TVI Coaxial Audio Transmission Support

S/N Ratio

≧58dB

White Balance

Auto

Auto Gain

Auto

ADAS Calibration

Auto

Day and Night Conversion

Support

LEDs

High luminous LED x4

IR Range

30 m

IR Wavelength

850nm

Low Lux

0 Lux(IR ON)

Output

AHD, CVBS, TVI, or CVI output switch
(Factory Preset: TVI)

Language

English / Traditional Chinese

Operating Temperature

-20℃~50℃

Dimensions (H×W×D)

69mm x 71 mm x 180mm

Weight

Apx. 324 g
