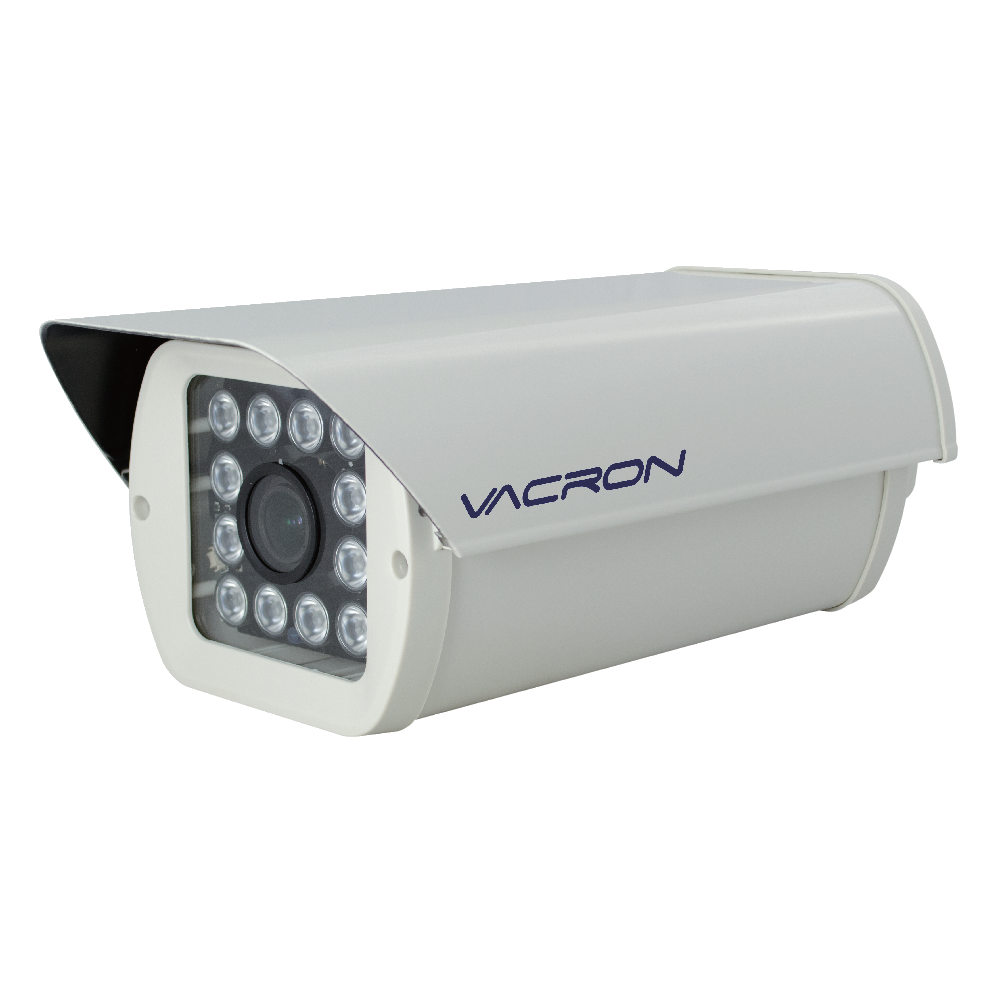

DTV Camera
Product Features
Model |
VCM-6602 (720P) |
VCM-6902 (1080P) |
Pick Up Element |
H.264, MPEG2-TS |
|
Image Signal Process |
HD Digital Signal Processor |
|
Lens |
2.8~12 mm / 5~50mm optical vari‐focal length megapixel LENS. |
|
Number Of Pixels |
1280(H) × 720(V) |
1920(H) × 1080(V) |
Horizontal Resolution |
720P / 30fps |
1080P / 30fps |
Power Supply |
DC12V |
|
Power Consumption |
850 mA |
900 mA |
Consumption |
>10.2W |
>11W |
Imaging |
WDR, AGC, AWB, AES, BLC, 2D / 3D, Slow Frame Rate |
|
Camera Synchronization |
Brightness, contrast, saturation, image quality, FPS, video frequency, time calibration, NTSC/PAL, Motion Detection |
|
Mechanical IR Cut Filter(ICR) |
5V IR-Cut |
|
LED |
24MIL 12PCS |
|
IR Range |
100M |
|
IR Wavelength |
850nm |
|
Minimum Illumination |
Max. 65dB |
|
Sensitivity |
0.001 Lux ; 0 Lux ( IR On ) |
|
Frequency |
Adjustable:5 MHz ~ 8MHz |
|
Frequency Range |
141~923Mhz Default : 177 MHz |
|
Video Signal Output |
Compatible with DVB-T (ETSI EN 300 744) |
|
Audio |
Support |
|
Operation Temperature |
- 5°C ~ +60°C |
|
Dimensions(W x D x H) |
318.5 x 147 x 116 mm |
|
Weight |
Approximately 1000g |
Download support
Download Manual
Product Model | Download | Explanation |
DTV Camera | User Manual V3.0 |
