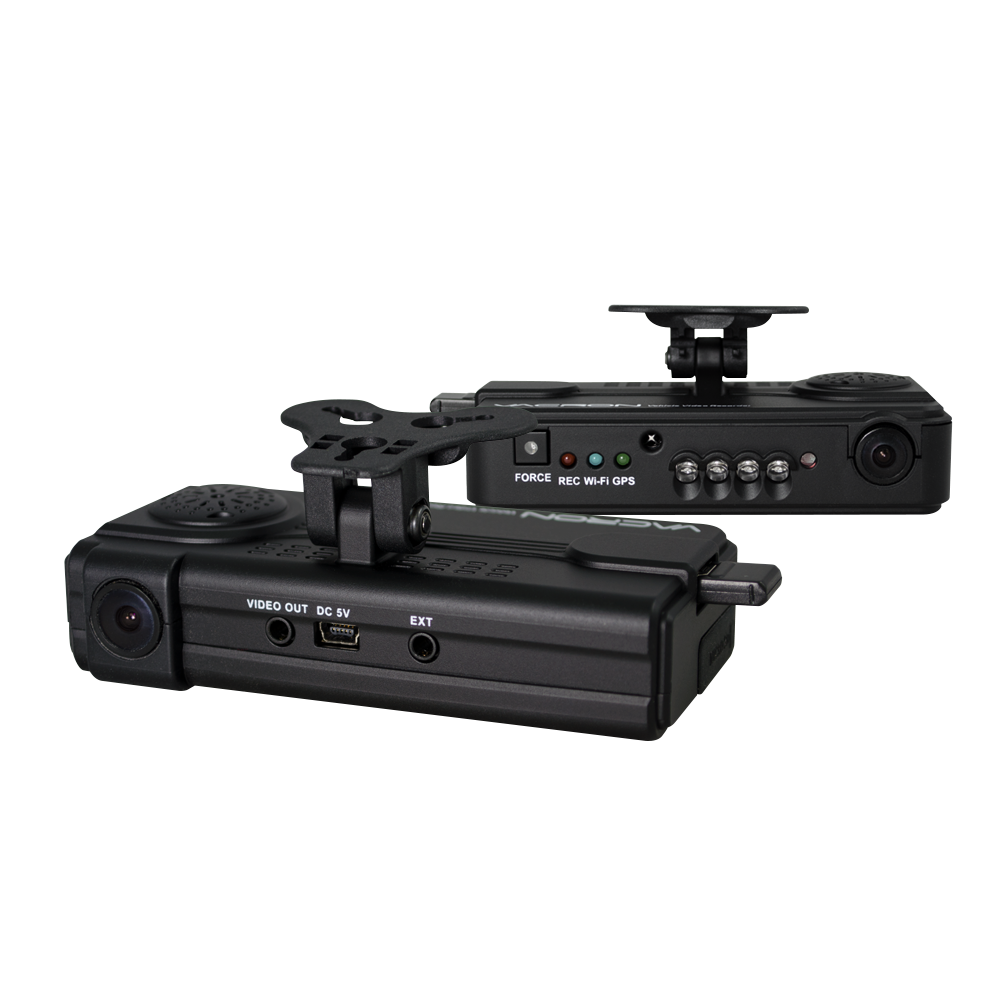

Dash Cam | VG07

Product Features

Forward facing lens: 1080P CMOS Sensor, Front view angle approx. 120 degrees. Backward facing lens: 720P CMOS Sensor, Back view angle approx. 130 degrees.
Built-in supercapacitor offers extensional power supply and ensures video is well stored of critical moment and compact.
Recording driving condition, sound, G-Sensor and GPS data.
Recording track of driving routes which can be shown on Google Map when we play the video.
G-sensor sensitivity can be adjusted according to road situations. When detect a strong shock, system will start emergency recording and keep the files without being overwritten.
Professional file formats, without built-in lithium battery, no needs to afraid of heat and bursting concerns, it is the real black box.
Wi-Fi playback and live view video via smart phone. (optional)
Driving data and video are under control via 3G/4G internet connection. (optional)
Made in Taiwan

Sensor	Front 1080P CMOS Sensor
Sensor	Rear 720P CMOS Sensor
Camera view angle	Front camera view angle approx.120°
Camera view angle	Rear camera view angle approx. 130°
Voltage	(a) Require 5V±5%, 1A Cigarette lighter adapter. Start voltage as 4.7v above.
Voltage	(b) Built-in1.5Fsupercapacity as backup power for file storage.
Operating Temp	-15℃~+65℃
Storage device	Recommend using Class 10 above micro-SDHC Card (8G above) max to 128GB.
Recording Frame	Front 1920x1080 Max. Fps as 30/25fps (NTSC/PAL)
	Rear 1280x720 Max. Fps as 30/25fps (NTSC/PAL)
	Auto record when power up system; backward facing lens can be closed by setting of software.
Recording contents	Date, time, image, sound, G-sensor data, GPS data.
Storage format	(a) Specific format for software player.
Storage format	(b) H.264 compression
Microphone	Build-in high sensitivity of single microphone for automatic voice adjustment
Time setting	GPS auto adjustment, use built in calendar clock if no GPS signal.
G-Sensor	Internal 3D G-Sensor
GPS	Built-in GPS, capable connect with G-MOUSE.
GPS	GPS position, drive route tracking record.
WiFi / 3G+4G	Optional USB WIFI Dongle or USB 3G/4G Dongle

Download support

Software Support

Player

Product Model	Software Version	Download	Explanation
VG07(3G&4G)		V2.2.6.352	Google Map display correction
VG07(WiFi)		V2.2.6.352	Google Map display correction
