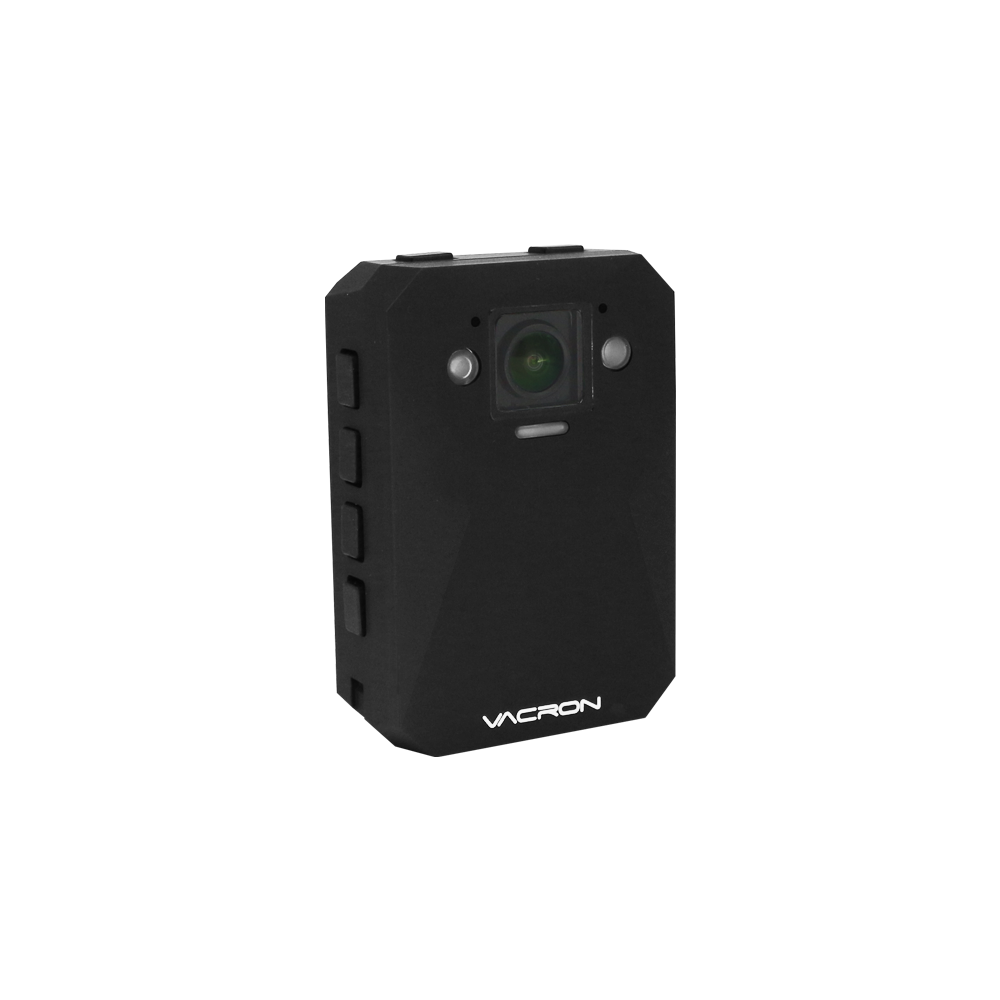

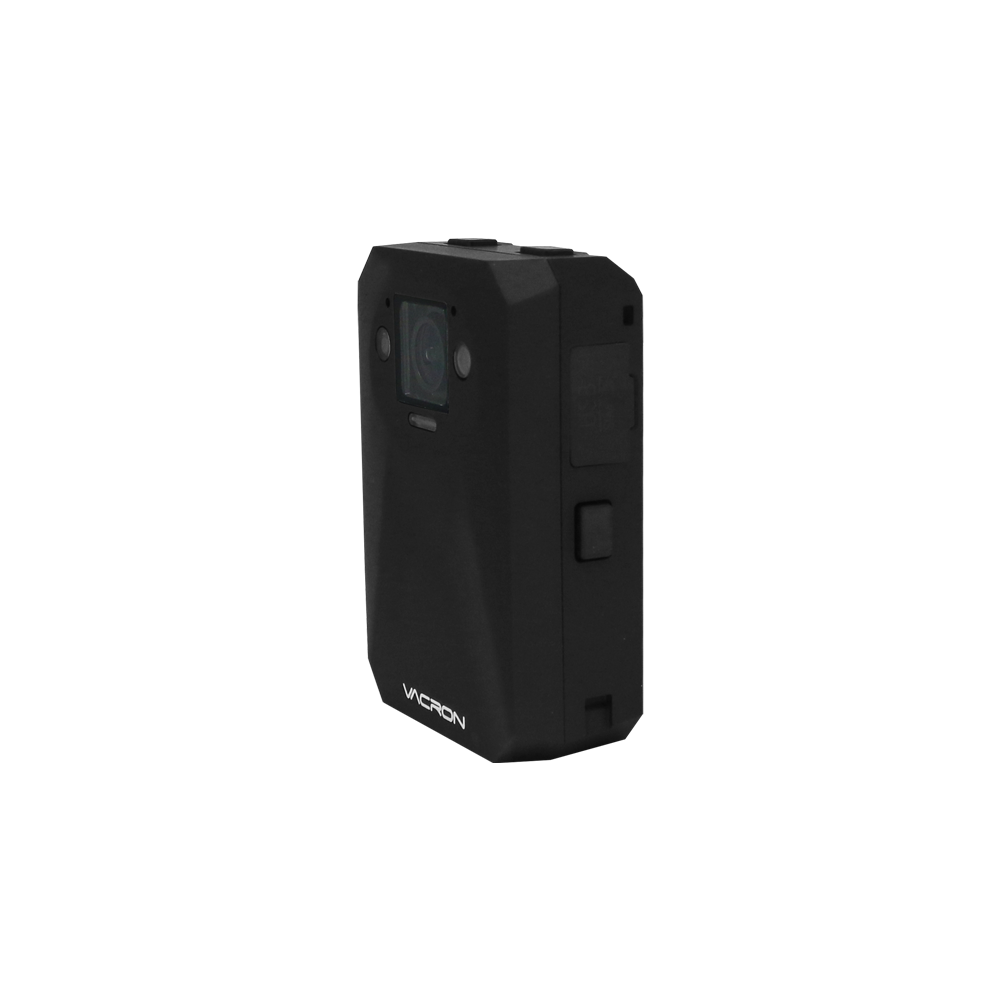

VVA-MDE68

1CH / 1080P / 4G / WIFI / IPX5 / H.264 / SD card / GPS

  • H.264

  • 120º

  • MIC Built-in

  • GPS

  • SD

  • -10~50°C

  • GMS

  • 4G

  • WiFi

Download Catalog

Product Features

  • Build-in Ambarella CV28 AI Vision processor that supports advanced image processing/
    encoding and AI vision computing.
  • Build-in LTE & WiFi modules and antennas to enable live video streaming via.
    Vacron Cloud Protocal(VCP).
  • H.264 Video Streaming Encoding, build-in 64GB storage.
  • Support the SOS button to trigger the emergency event recording and sync to GMS cloud.
  • Support 120-degree Horizontal FOV video recording with the dual Mic for field audio/
    video recording.
  • Module-lized and adjust-able Chest/Shoulder Clip for easy wearing option
  • Support Vacron GMS Cloud with connected event/device/media API(on http) for user a
    pplication platform integration
  • Suggested applications: where high-quality video evidence recording and streaming in
    the field are required.
System SOC Ａmbarella CV28 Intelligent Vision Processor
Memory 256MB NAND/ 1GB LPDDR4 SDRAM
Storage build-in 64GB Micro SD card
Video Encoding Format H.264
CMOS Sony Starvis IMX335 CMOS
Camera FOV FOV(D/H/V):152°/120°/72°
Video Recording support 1080P/720P/VGA resolution, 25/20/15/8 FPS
Video Streaming support 1080P/720P/VGA resolution, 25/20/15/8 FPS
Recorded Data Support Pre-recording & Post-recording buffer;
local-tone HDR, low-light enhancement, EIS
Video Function Build-in MEMs Mic x2, Nano SIM card socket x1,
mini USB x1, dock pogo-pin x5 for charging/connection
I/O Mounting socket x1
4G&GPS build-in 4G & GPS module and antenna
WiFi (1) build-in 2.4GHz WiFi 5 module and antenna
(2) support smartphone/PC connection via.
Fixed IP WebGUI
(3) Support video/audio setting, firmware OTA,
manually download
Buttons Power x1, Video Record x1, Audio Record x1, SOS x1,
Snapshot x 1, Light x 1, Menu x 1
Indication LED Top: Power LEDx1, Record LEDx1
Front: LEDx1
Audio Prompt Build-in speaker, support audio indication
Software Compliance (1) Vacron GMS cloud platform: Support customer
     system integration with events, devices, media
     API (on http) and live video streaming service
(2) Vacron Cloud Protocol (VCP) can quickly connect
     the dashcam to the Vacron GMS cloud with live
     video streaming functions
(3) SDK for Android/iOS smartphone application
     development
(4) Android/iOS mobile APP: VacronLink
Power (1) Build-In Lithium battery ~3000mAh@3.7V
(2) Battery Life: ~8 hours
*could vary for different settings and wireless
connections.
(3) support LANDock(EB350) or mini-USB charging,
comply with USB charger(>10W)
Environment Working Temp: -10°C~50°C / Storage Temp: -40°C~80°C
Humidity: 40%~80%
Drop-proof Drop-proof 1.5m
Water-proof Water-proof comply with IEC IPX5
Dimension 90mm x 61mm x 27.7mm
Weight ~160g(not include accessory and clip)
Accessories Chest Clipx1, mini-USB cable x1
Electric version Quick Start guide and operation
manual(download from Vacron website)
Option: Shoulder Clip x1, LANDock x1

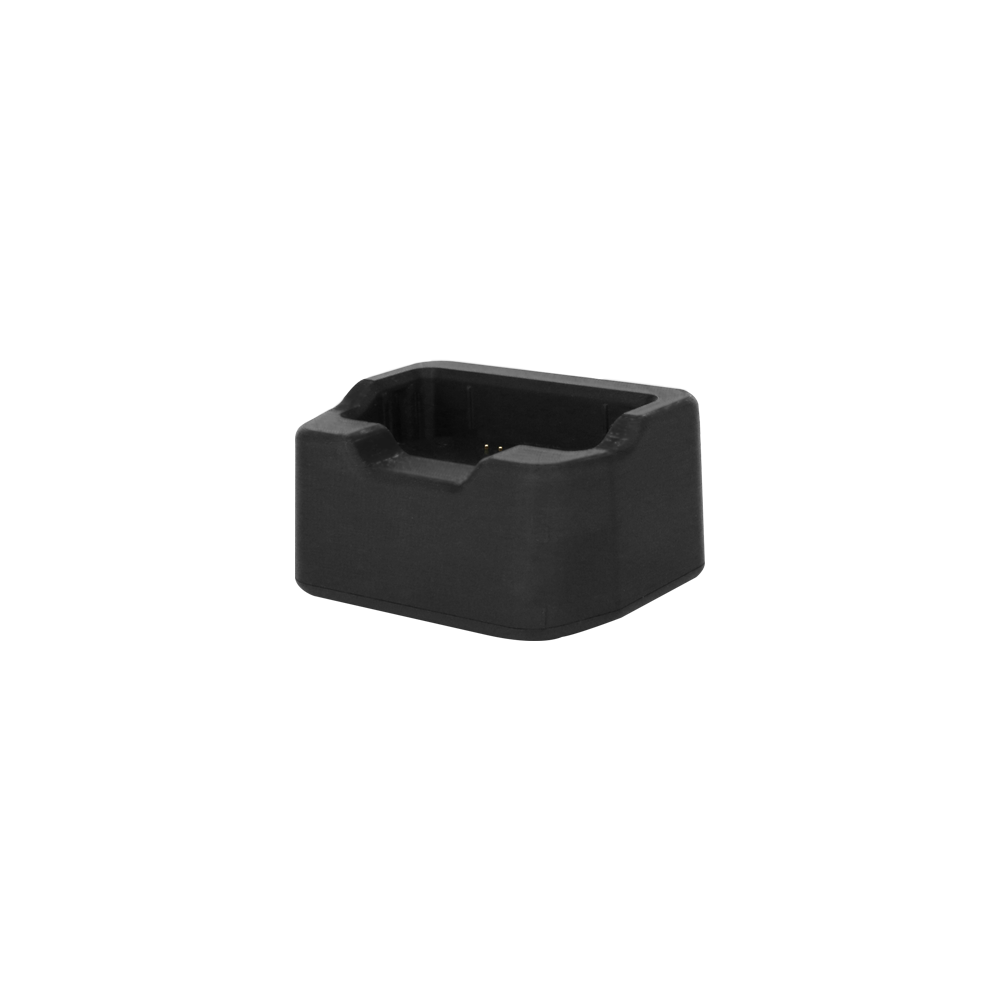

LANDOCK SPECIFICATION （OPTIONALL）
Form 1 piece and compact footprint, can fit on a desk
without replacing other items, can also be carried in
a bag or briefcase
Dimension 99 x 59.5 x 42mm
Weight 70g
I/O Ports 10/100 Mb Ethernet RJ-45 x 1 for data upload/download
mini-USB x 1 for 5V DC-in
Indication LED x1, Green=DC-in,
Orange=MDE68 & RJ-45 & DC are all connected
Power Comply with the common USB adapter
DC=5V, Max. output >2A
Operation /
Storage condition		 Working Temp: 0°C~40°C(32°F~04°F)
Humidity: 40-80% RH(non-condensing)
Storage Temp:-40°C~65°C(-40°F~149°F)
Humidity 40-80% RH(non-condensing)
