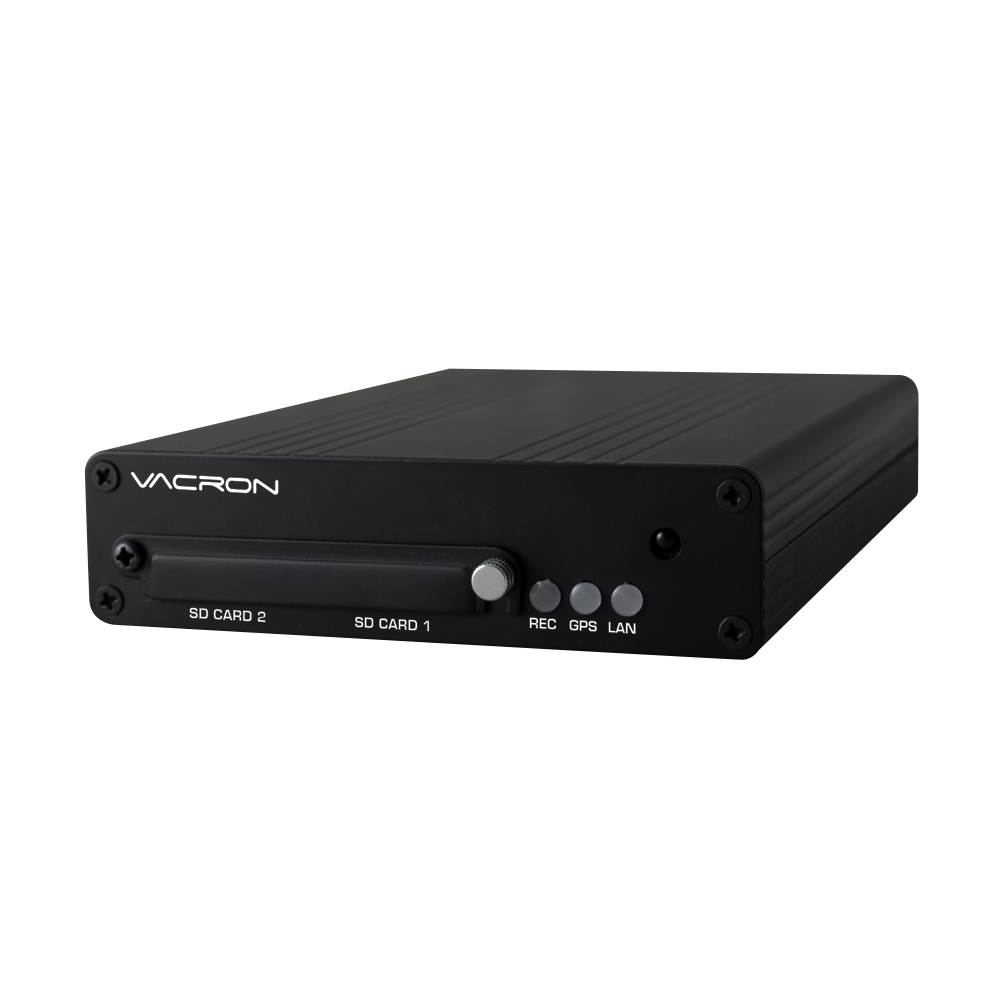

Mobile DVR | VVH-MDE304(1080P)

Product Features

The firmware integrates intelligent AI algorithms. (Option)
With ADAS camera, it can detect/alert/notify the dangerous road conditions in front of the
vehicle in real time.
With DSM camera, it can detect/alert/notify drivers of fatigue or distracted driving behaviors
With a wireless network (LTE or WiFi) module and Fuho's GMS fleet, you can monitor and control
your car's driving status at any time remotely.
A reliable list makes it easier to search for video records.
Hidden file format with particular player for files security and provide AVI, MP4 conversion
function, so that users can directly play in the general environment"
With G-Mouse, recording of driving footage and speed.
Integrated G-sensor function detects shocks and triggers mandatory recording so that important
event videos are not lost.
Integrated power management funtion supports parking surveillance after ignition off.

Model		VVH-MDE304
Video Format		NTSC/PAL
OS		Embedded Linux
Video Input		x4 Cameras
Camera Power Output		x4 Power 12V / 750mA
Video Output		x1 Video Output
Audio Input		x1 Audio Input
Audio Output		x1 Audio Output
Alarm I/O		x6 Alarm Input/ x2 Alarm Output
Operation Interface		GUI
Language		English/Traditional Chinese/Simplified Chinese
Recording Frame		1080@CH/30fps
		720P@CH/30fps
Display Mode		Full Screen / Quad
Duplex Mode		Video Record / Playback
Resolution		1920x1080
		1280x720
Backup		SD Card x2
Search Mode		Time/Date Event Record
Full Screen		Yes
Indicator		3LED (REC、GPS、LAN)
Video Loss Alert		Yes
Buzzard		Yes
RS232-		Yes (Optional)
G-SENSOR		Yes
GPS		Yes (Optional G-mouse)
3G/4G		Yes (Optional)
WiFi		Yes (Optional)
IR Remoter		Yes
MOUSE Control		Control the AI interface
IR Control		Control the general interface
Watch Dog		Auto Reboot after Power Cut
Supercapacitor		Built-in 5F supercapacitor to backup power.
Power Input		(1) DC 8V~32V
		(2) ACC delay shutdown (by setting)
		(3) DC12V OUT
Size		18511530 mm

DESCRIPTION

Advanced Driver Assistance Systems, ADAS		Pedestrian Collision Warning, (PCW), Forward collision warning(FCW), Headway Monitoring & Warning (HMW), Lane Departure warning (LDWS)
Driver Status Monitor, DSM		Distraction warning (head up/down/looking left/right), talking on the phone, smoking, fatigue driving (eyes closed/yawning), abnormal (driver leaving seat/blocking camera), not wearing a mask, etc.

Download support

Player

Product Model	Software Version	Download	Explanation
VVH-MDE304		PLAYER-V3-V2.2.6.369

Download Manual

Product Model	Software Version	Download	Explanation
VVH-MDE304 / VVH-MDE308 (1080P)		V2.0	QUICK MANUAL V1.0
