IP Surveillance System

NVR

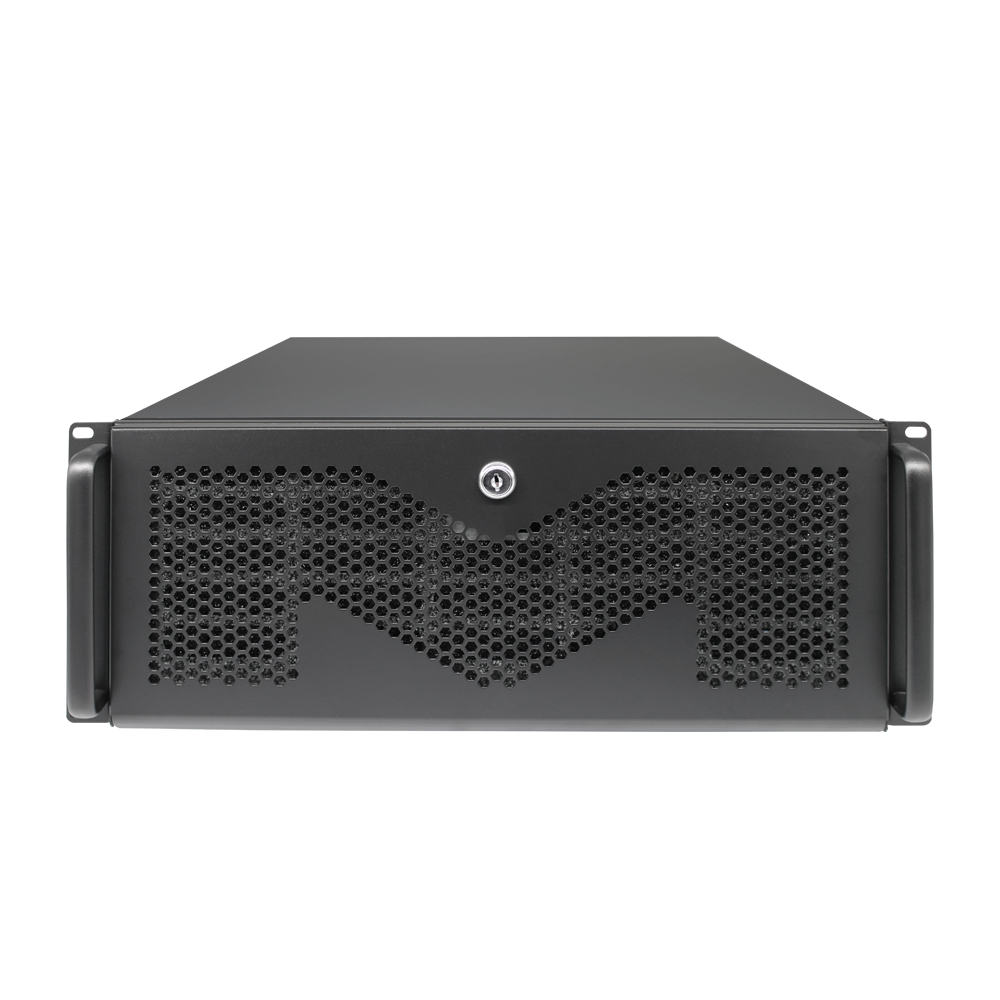

VIA-PC200

16CH / 36CH / 64CH / H.264 / HDD

  • H.264

  • Alarm

  • LAN

  • Users

  • PTZ

  • Linux系統

Download Catalog

Product Features

  • Adopt a the generation Core i7 7600 Quad-core CPU to provide the best image processing efficiency.
  • Support 5 units of 3.5 in. 3T HDD inbox, can support up to 9 units of 3.5
    in. HDD with extension card.
  • New H.264 compression technology to effectively save storage space.
  • Embedded Linux system to prevent malicious Trojans or viruses.
  • Support up to 16/36/64 IP cameras and PTZ features.
  • Support HD OUT & USB 2.0.
  • Smart multi-stream display technology to improve the system efficiency and display quality.
    (sub-stream while in split-screen display and mainstream while in single/quad screen display).
HARDWARE SPECIFICATION
PROCESSOR Intel® Core™ CPU Core i7 13700
MEMORY DDR4 3200 16GB
HDD CAPACITY  Support 5 units of 3.5 in 3T HDD in box
Hard Disk Could be applied according to the stat slot built into
the mainboard, or by adding PCIE expansion cards
to increase the number of hard disks. Supports a
maximum reading of up to 16TB, each.
LAN PORT Gigabit RJ-45 port
LED INDICATORS Power button
USB 2x USB 3.0
4x USB 2.0
BUTTONS Power button
ALARM BUZZER System warning
POWER SUPPLY Input: 100-240V AC,50/60Hz
Output: 520W
VIDEO OUTPUT 1 x HD OUT, 1 x VGA D-Sub, 1 x DVI-D
SUPPORT CHANNEL 16CH / 36CH / 64CH
WEIGHT / DIMENSION  14Kg / 430x178x610mm
OPERATING ENVIRONMENTS Temperature: 0 ~ 40 °C, Humidity: 90%
SOFTWARE SPECIFICATION
Supported Camera Models Support VIT/ VIH/ VIN/ VIG series IP cameras and VDH-412VS.
Number of Channels
Supported(Recording)
Up to 64
Recording Mode Continuous/ manual/ schedule recording
Alarm recording/ multiple alarm recording schedules

Buffer Storage for Alarm Images (before and after events)

Pre-recording: Up to 300 sec

Post-recording: Up to 300 sec

Recording Performance Up to 30 fps at 720P or 23fps at 1080P for each channel
* Real performance may vary in different environments
Display Mode Split-screen display model for 1, 4, 9, 16, 25,36 or 64 channels, auto channel touring.
Local Monitoring Enhancement Full-screen display, event notification, PTZ control, digital zoom
Local Playback Max 9 split playback from multiple NVR servers simultaneously.
Search Mode for Local Playback By date & time
Playback Control Play, pause, stop, reverse play, next/ previous video file, different, speed control
Export Convert multiple recording files to the external USB device instantly.
Display Mode Split-screen display model for 1, 4, 9, 16, 25, 36, 49 or 64 channels.
Video Setting Resolution, Quality, Frame Rate
Playback Channel Max 4-view playback from multiple NVR servers simultaneously on IE
Search Mode By date & time
Playback Mode Play, pause, stop, reverse play, next/ previous frame, next/ previous video file, different speed control.
Playback Enhancement Full-screen display, video snapshot, digital zoom
Export H.264/AVI
Download Download recordings via the web
Events Motion detection and alarm features must be equipped with VDH-412S
Actions Video recording, email alert, buzzer, PTZ camera control, alarm output, and user-defined action
Authority Management
Auto Logoff
Different user groups and rights can be assigned to different users.
Automatic user logoff from idling configuration pages.
Event Logs Detailed event logs
On-line Users List Record of the users currently logged on and
previously logged.
Network Services Support HTTP, TCP/IP, SMTP, DHCP, Static IP, DNS, DDNS, FTP, NTP, UPnP
Language Support English/Simplified Chinese/Traditional Chinese/Russian

Download support

Download Manual


Product Model DownloadExplanation
VIA-PC200 User Manual V3.0
