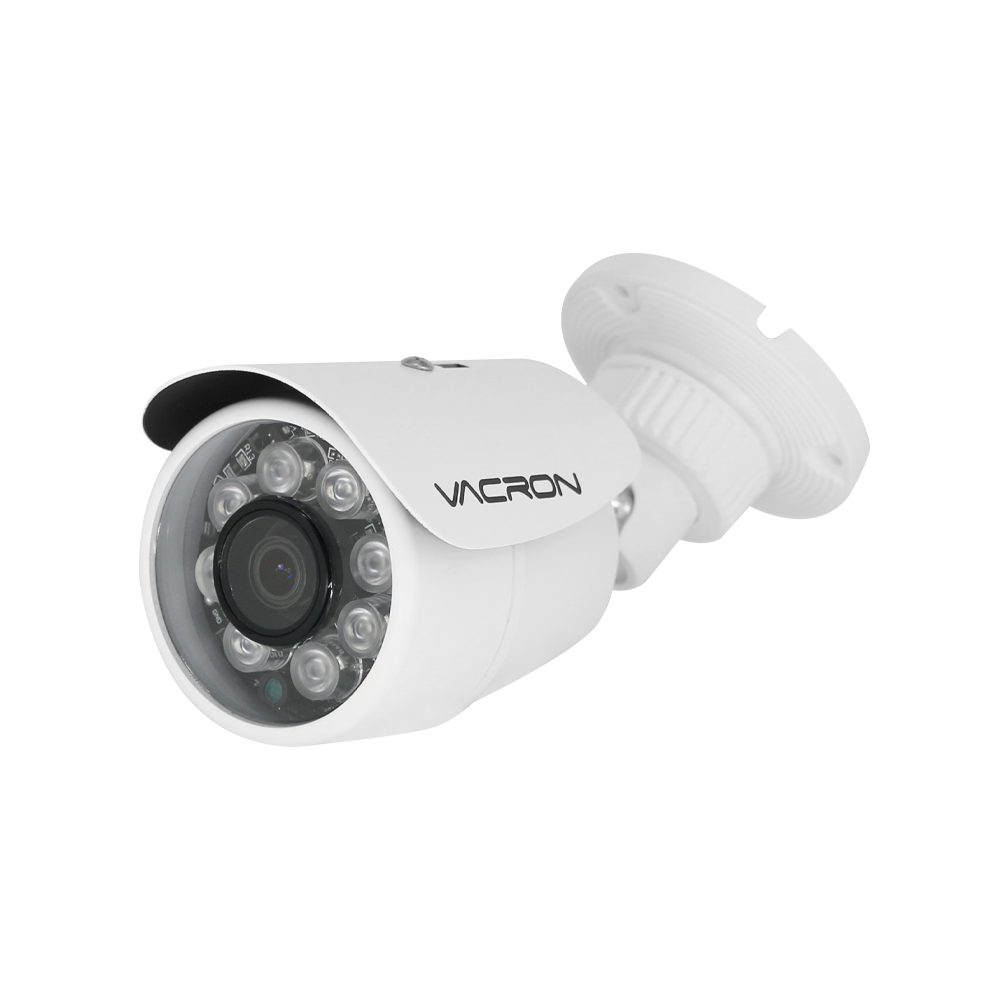

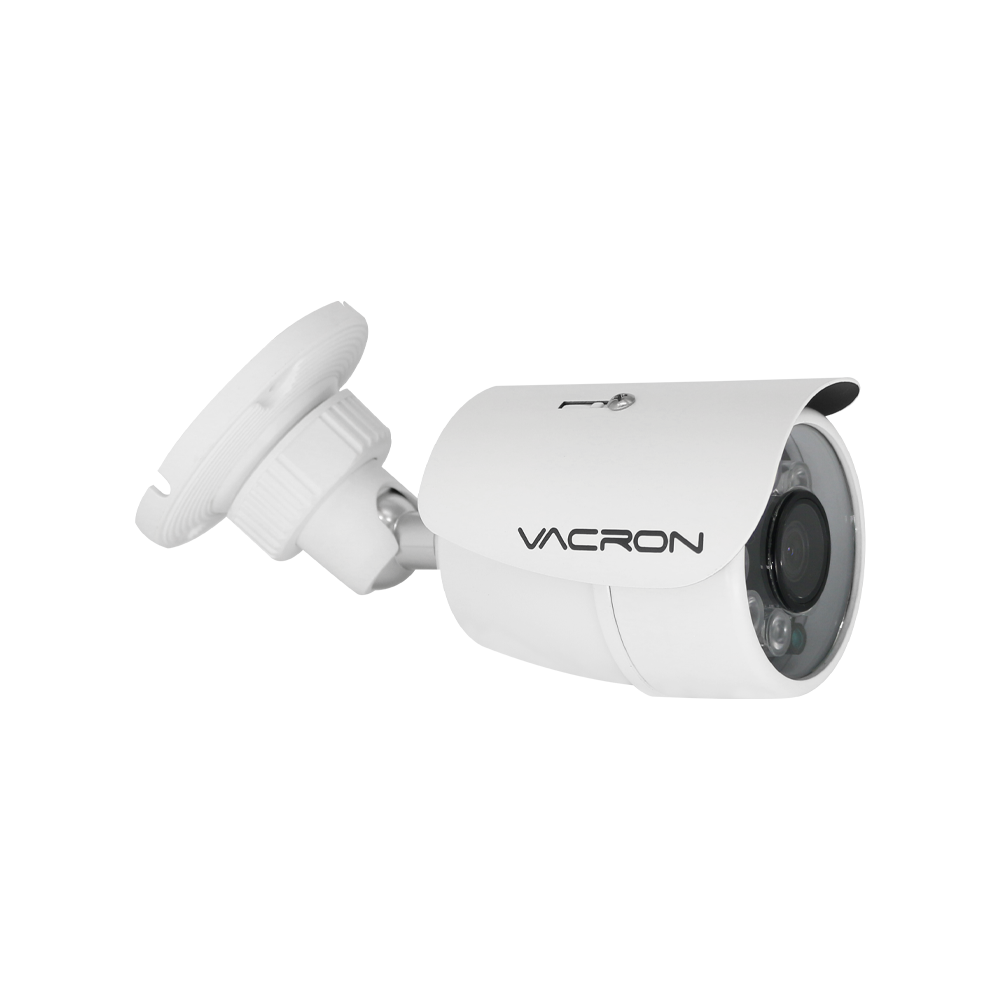

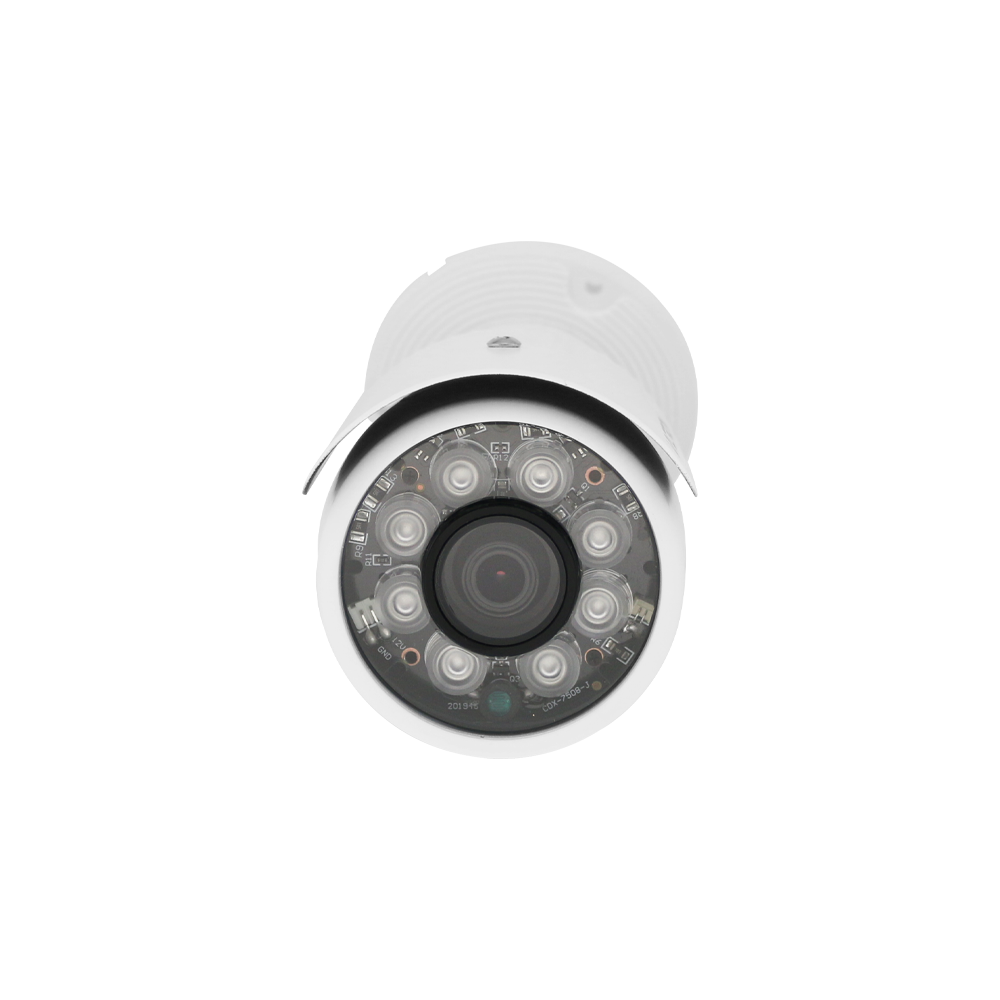

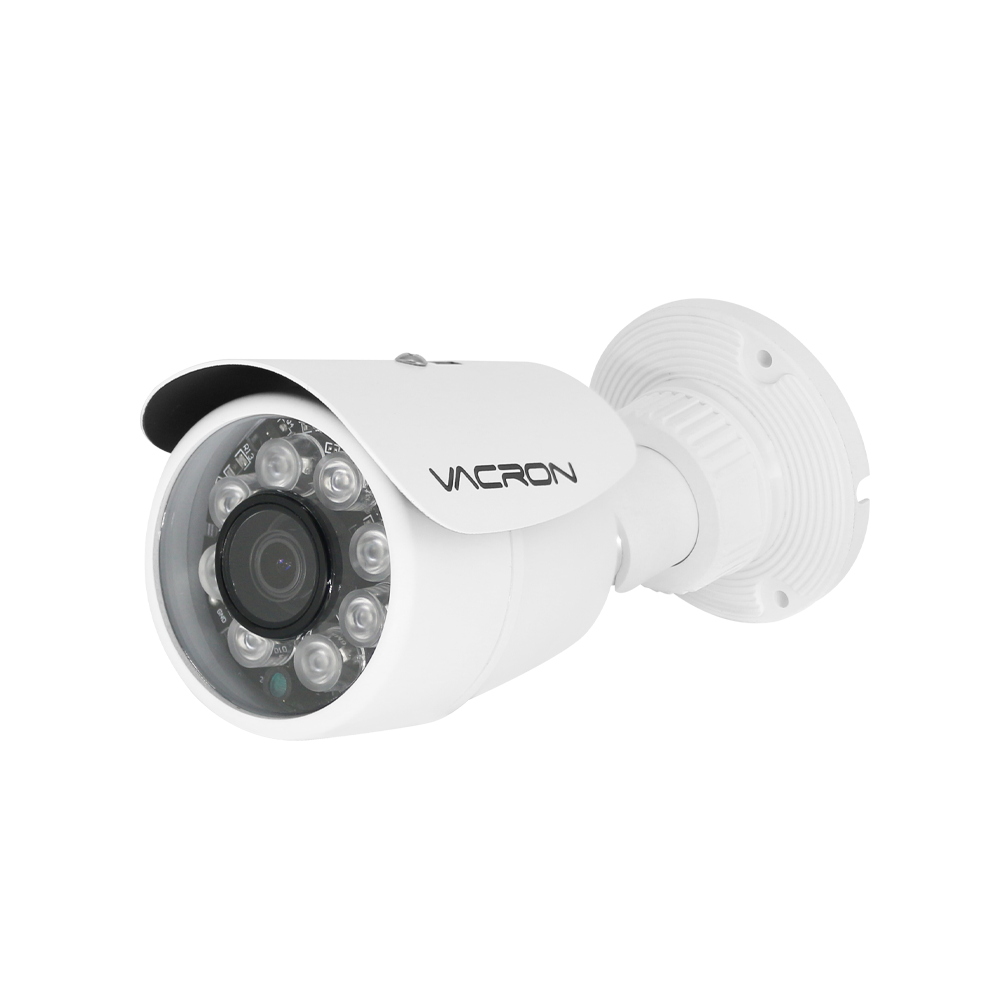

Model

VCM-66232(720P)

VCM-69232(1080P)

Pick Up Element

H.264, MPEG2-TS

Image Signal Process

HD Digital Signal Processor

Lens

3.6mm megapixel Lens

Number Of Pixels

1280(H) × 720(V)

1920(H) × 1080(V)

Horizontal Resolution

720P / 30fps

1080P / 30fps

Power Supply

DC12V

Power Consumption

450 mA

500 mA

Consumption

>5.4W

>6.0W

Imaging

WDR, AGC, AWB, AES, BLC, 2D / 3D, Slow Frame Rate

Camera Synchronization

Brightness, contrast, saturation, image quality, FPS, video frequency, time calibration, NTSC/PAL, Motion Detection

Mechanical IR Cut Filter(ICR)

5V IR-Cut

LED

8 pcs high power IR LEDs

IR Range

35M

IR Wavelength

850nm

Minimum Illumination

Max. 65dB

Sensitivity

0.001 Lux ; 0  Lux ( IR On )

Frequency

Adjustable：5 MHz ~ 8MHz

Frequency Range

141~923Mhz Default : 177 MHz

Video Signal Output

Compatible with DVB-T (ETSI EN 300 744)

Audio

Support

Operation Temperature

- 5℃ ~ +60℃

Dimensions(W x D x H)

80 x 74 x 180.6 mm

Weight

Approximately 512g
