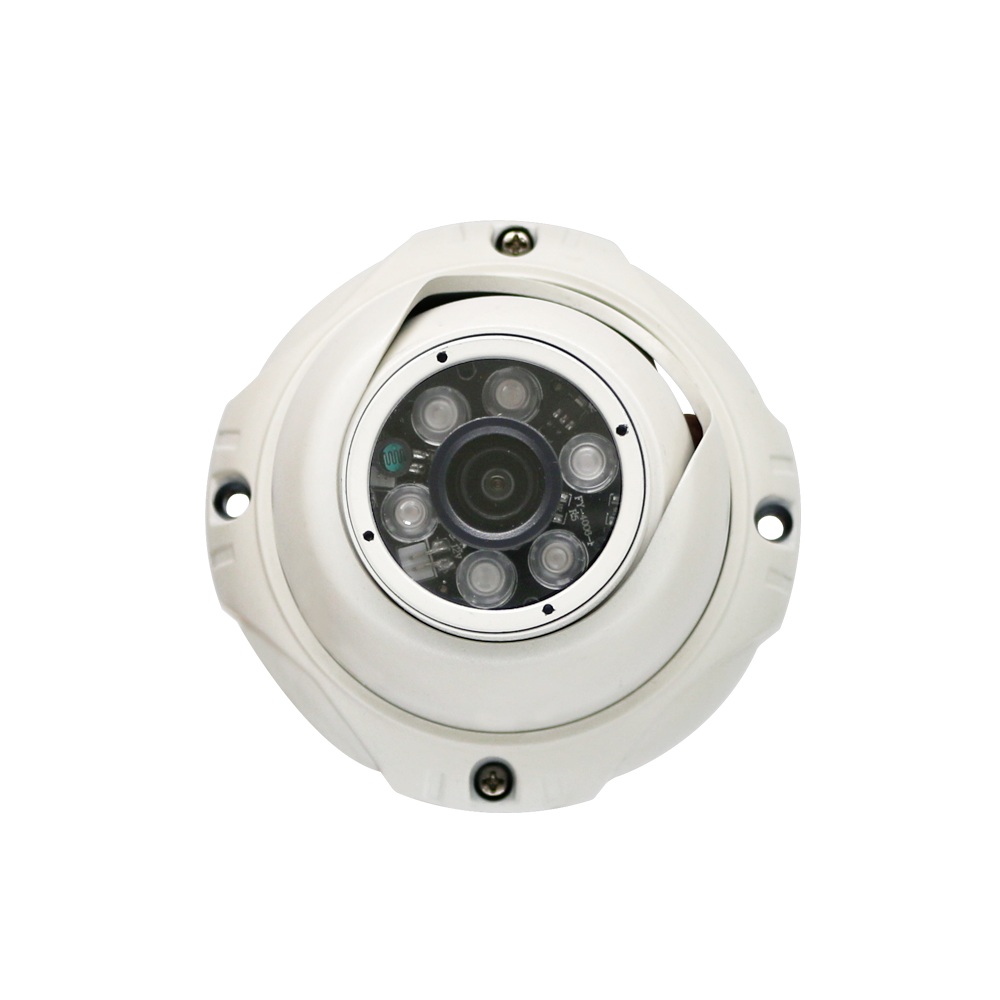

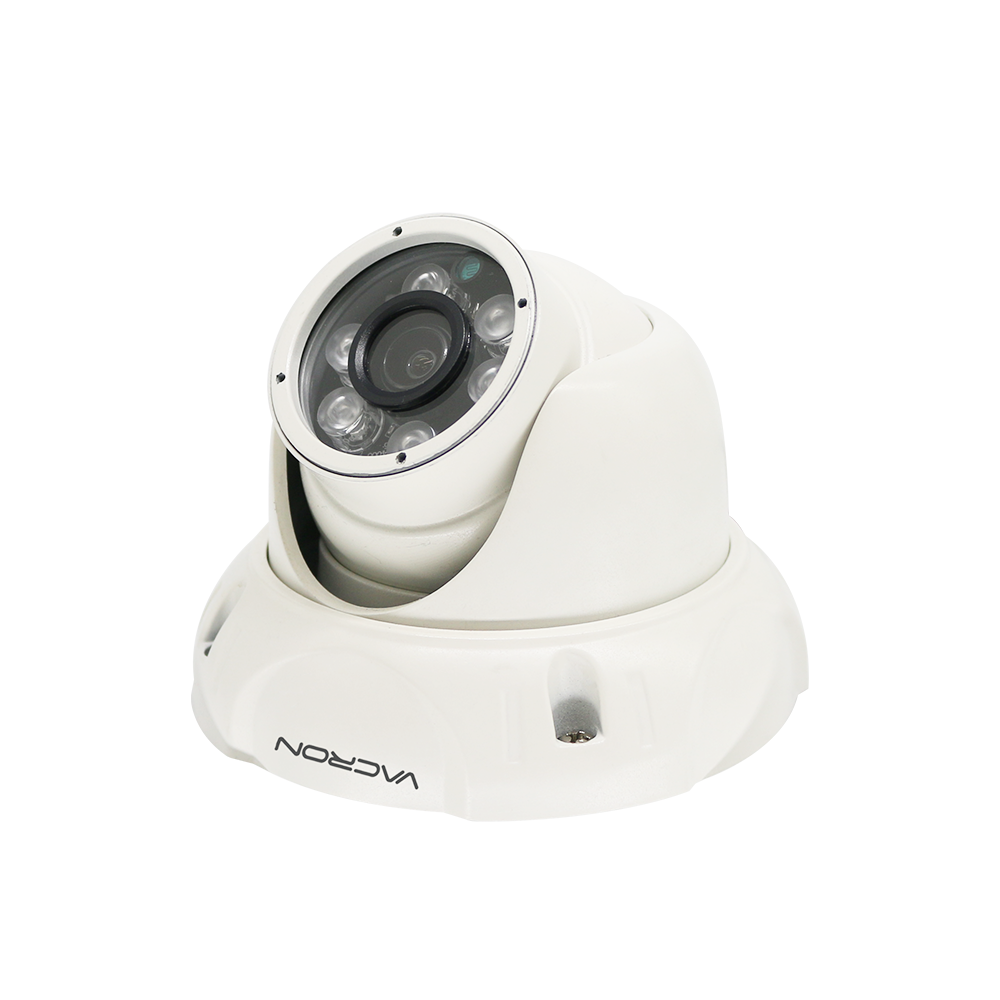

DTV Camera | VCM-6925D

Product Features

1/2.8" CMOS Image Sensor, 1080p@30fps.
2.8/3.6mm million pixel lens.
6 IR LEDs, IR Range 20M.
Removable IR-cut filter for day & night function, consistent focus in day and night.
WDR(Wide Dynamic Range) function, perfect display even with high contrast environment.
Supports DVB-T (ETSI EN 300 744) digital television transmission standard.
Transmission distance via coaxial cable, up to 1000 meters

Image Sensor	1/2.8" CMOS Image Sensor
Video Compression	H.264, MPEG2-TS
Lens	2.8/3.6mm
Effective Pixel	1920 (Horizontal) x 1080 (Vertical)
Resolution	1080P@30fps
Power	DC 12 ± 1V
Power Consumption	390mA
Wattage	390 mA
Consumption	>4.7W
ICR	Support
Audio	Support
S/N Ratio	≧65dB
Minimum illumination	0.001 LUX / 0 LUX (IR ON)
Number of LED	Infrared x6
IR Range	20M
IR Wavelength	850nm
Video Functions	WDR functions, AGC, AWB, AES, BLC, 2D/3D noise reduction, Slow Frame Rate
Remote Control	Brightness, Contrast, Saturation, Image quality, Recording Frame, Frequency, Time, NTSC/PAL, Motion
Bandwidth	Adjustable Frequency：5 MHz ~ 8MHz
Frequency Range	Frequency range 141~923MHz (Default: 177 MHz)
Image Output Specification	Comply with DVB-T (ETSI EN 300 744) digital television transmission standard
Operating Temperature	-5℃~60℃
Dimensions (H×W×D)	Ø110 x 81 mm
Weight	Apx. 370 g

Version updating is not going to inform, please check the on-going updating information

Download support

Download Manual

Product Model	Software Version	Download	Explanation
DTV Camera		User Manual V3.0
