DTV Camera

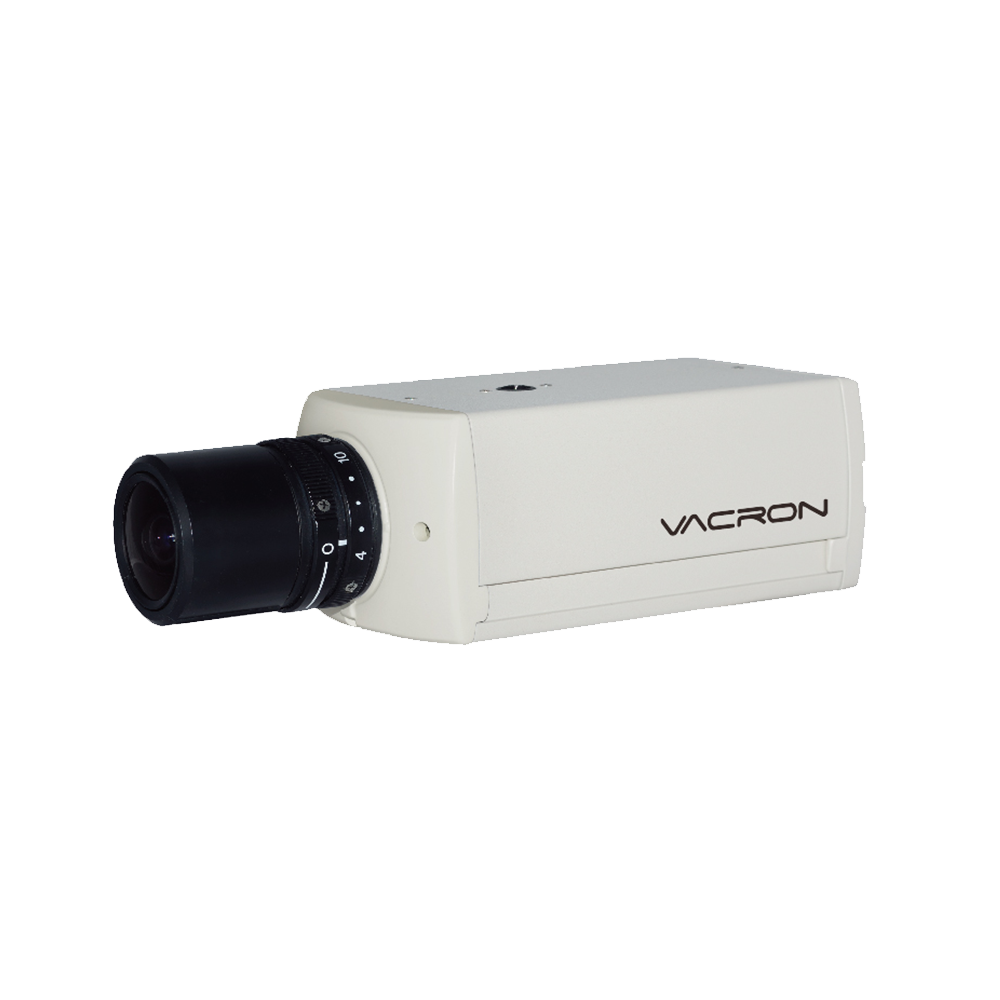

VCM-6982

1080P / H.264 / C-Mount Box

  • H.264

  • DC12V

  • CS mount

  • Motion

  • 0.001LUX

  • 65dB

  • Megapixel LENS

  • -5~60°C

Download Catalog

Product Features

  • 1/2.8" CMOS Image Sensor, 1080p@30fps.
  • Supports manual Iris C/CS mount Lens.
  • WDR(Wide Dynamic Range) function, perfect display even with high contrast environment.
  • Transmission distance up to 1000 meters without repeaters.
  • Supports DVB-T (ETSI EN 300 744) digital television transmission standard.
  • Transmission distance via coaxial cable, up to 1000 meters.

Image Sensor

1/2.8" CMOS Image Sensor

Video Compression

H.264, MPEG2-TS

Lens

Supports manual Iris C/CS mount lenses (The lens is sold separately)
Effective Pixel

1920 (Horizontal) x 1080 (Vertical)
Resolution

1080P@30fps

Power Supply

DC12V

Power Consumption

210mA

Wattage

>3W

ICR

Support

Audio

Support

S/N Ratio

 ≧65dB

Minimum illumination

0.001 LUX / 0 LUX (IR ON)

Video Functions

WDR functions, AGC, AWB, AES, BLC, 2D/3D noise reduction, Slow Frame Rate

Remote Control

Brightness, Contrast, Saturation, Image quality, Recording Frame, Frequency, Time, NTSC/PAL, Motion

Bandwidth

Adjustable Frequency：5 MHz ~ 8MHz

Frequency Range

 Frequency range 141~923MHz (Default: 177 MHz)

Image Output Specification

Comply with DVB-T (ETSI EN 300 744) digital television
transmission standard

Operation Temperature

- 5°C ~ + 60°C

Dimensions(W x D x H)

114 x 66 x 54mm

Weight

Approximately 300g
