DTV Surveillance System

DTV Camera

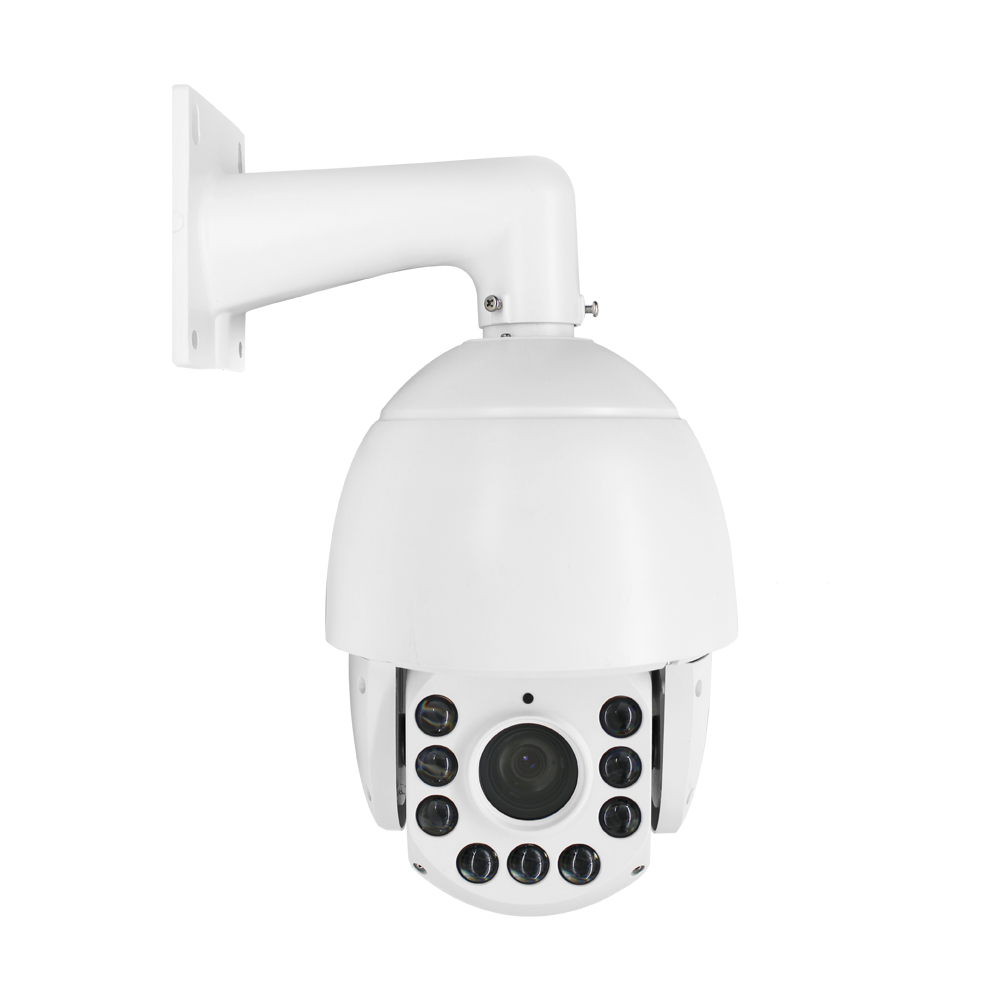

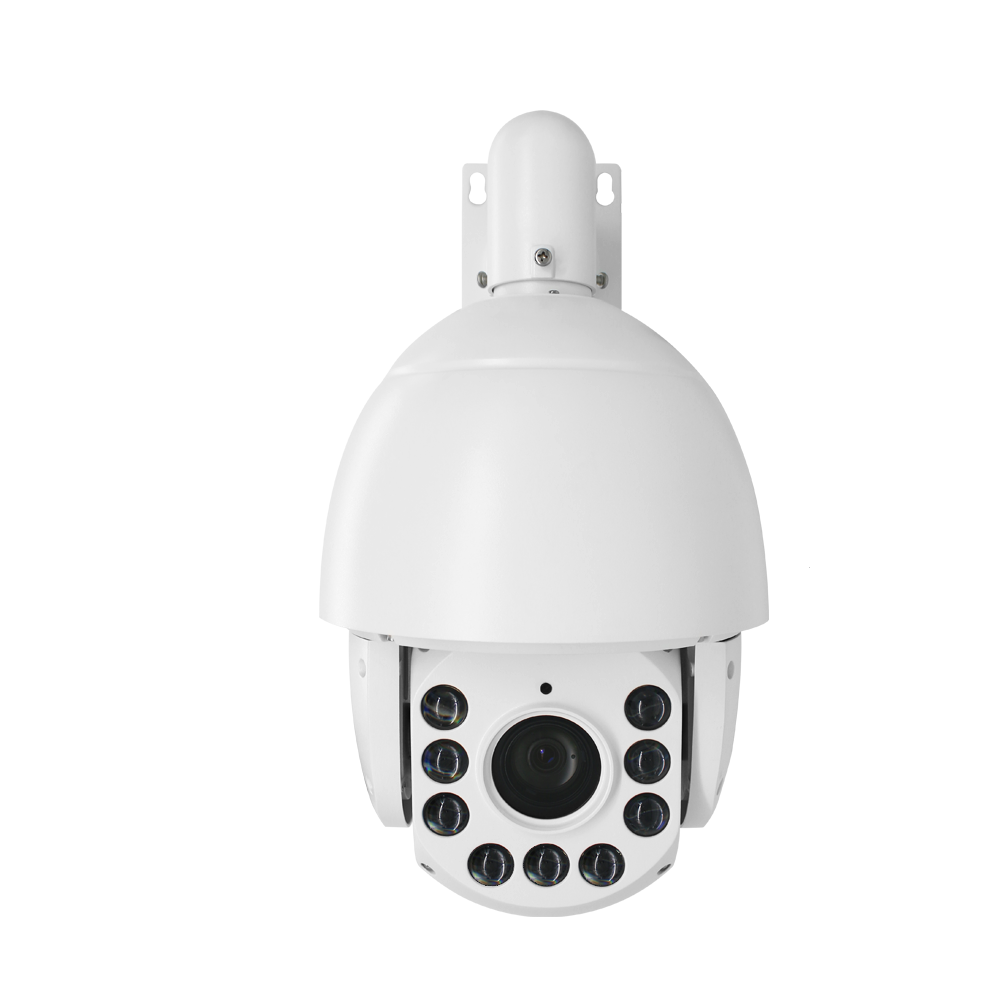

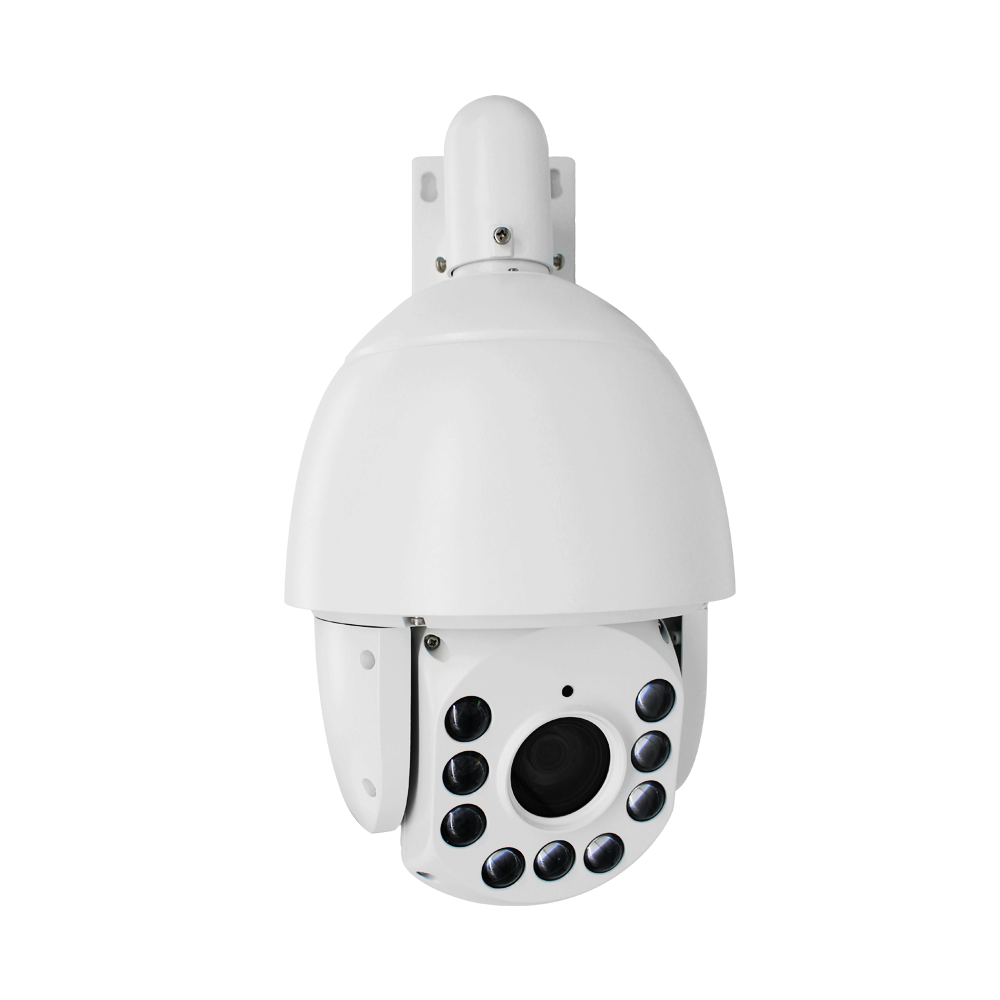

VFH-8335H

1080P / Speed Dome / H.264 / IR

  • 30x

  • Motion

  • Mirror

  • PTZ

  • 100M

  • 2MP LENS

  • 9 LEDs

Download Catalog

Product Features

  • Transmit video over digitalized TV channeling; the video footage is able to be monitored on any channel of the DTV RF signal spectrum.
  • 1080P (1920 x 1080) high definition video recording.
  • Maximum 30 times optical zoom with auto focus.
  • Supports Single Cable Distribution, allows bi-directional control
  • Automatic IR LED distances re-adjust.
  • Build-in video processing features such as DIS、WDR、Defog、Freeze、Privacy、Motion、Slow Shutter…etc…
LENS SPECS
(ZOOM LENS)		 OPTICAL ZOOM 30X
FOCUS 4.5MM ~ 148.5MM  (AUTO FOCUS)
LEAST FOCUS DISTANCE 1.5 METER (BY DISTANCE SETTING)
APERTURE (F) F1.6(WIDE) – F5(TELE)
APERTURE RANGE F1.6 ~ F32, CLOSE
VIEWING ANGLE WIDE ANGLE 62.87゜(HORIZONTAL)  /  37.0゜(VERTICAL)
SMALL ANGLE  2.08゜(HORIZONTAL)  /  1.18゜(VERTICAL)
SENSOR SPECS COLOR MODE COLOR(DAY) / B&W(NIGHT) AUTOMATIC SWITCHING
SCANNING SYSTEM PANASONIC 1/3” PROGRESSIVE CMOS SENSOR
EFFECTIVE PIXEL (H×V) 2M PIXELS (1920 X 1080)
RESOLUTION
LUX		 1080P30 ( NTSC ) / 1080P25 ( PAL ) OUTPUT
0.07LUX
IMAGINE PROCESSING FEATURES DIGITAL ZOOM 1X ~ 25X(ZOOM SET), 25X~62X(MENU SET)
SHUTTER / SYNC METHOD AUTO、FLK、1/60 ~ 1/50,000  /  INTERNAL SYNC
AGC X0 ~ X15
SENSITIVE GAIN X2 ~ X30
LUX X1 ~ X100
WHITE BALANCE AUTO、AWB、ATW、AWC、INDOOR、OUTDOOR
DE-NOISE 2D、3D
MIRROR HORIZONTAL, VERTICAL & FLIP
SHAPNESS 0 ~ 15
HIGH LIGHT COMPENSATION WDR、BLC、HSBLC (HIGH LIGHT MASK)
SPECIAL FEATURES

De-fog、DIS、MOTION、Blemish Compensation、FREEZE、Day/Night
PRIVACY、Slow-Shutter、Corner Remove
TRANSMISSION SPECS COMPRESSION FORMAT

H.264 (1920 x 1080) @max. 30fps , MPEG2-TS
VIDEO SIGNAL OUTPUT

Conforming to DVB-T digital TV transmission standard (ETSI EN 300 744).
VIDEO OUTPUT INTERFACE

BNC
CONTROL METHOD

RF Signal Bi-directional Control (Supports Unicable )

CONTROL SPECS

 RF SIGNAL CONTROL

Speed Dome / OSD MENU Full Control (The same as Keyboard : KB-100)
PT SPEED (FULL CYCLE) OVER 1 SECOND
HORIZONTAL / VERTICAL SPEED 240°/S    /  180°/S
HORIZONTAL ROTATION RANGE 360° CONTINUOUS
VERTICAL ROTATION RANGE 0°—90°
CAMERA ID (PRE-SET POINT) 256 POINTS (MAX.)
PRE-SET POINT VARIANCE ±0.01°
ALARM 1 CHANNEL INPUT & 1 CHANNEL OUTPUT
IR LED  DISTANCE 9PCS HIGH POWER IR LED OVER 100 M (MAX.)
BUILD-IN FAN TEMPERATURE CONTROLLED
POWER SUPPLY AC24V@3A / 40W (MAX.)
OPERATION TEMPERATURE / HUMIDITY -20 ℃ ~ +50 ℃ /  0 ~90% RH
ENVIRONMENT PROTECTION LEVEL IP66, ALL WEATHER 3RD PARTY ENCLOSURE, BUILD-IN FAN, ALL DAY RECORDING, 3000V LIGHTING PROTECTION, SERGE PROTECTION.
