CCTV Surveillance System

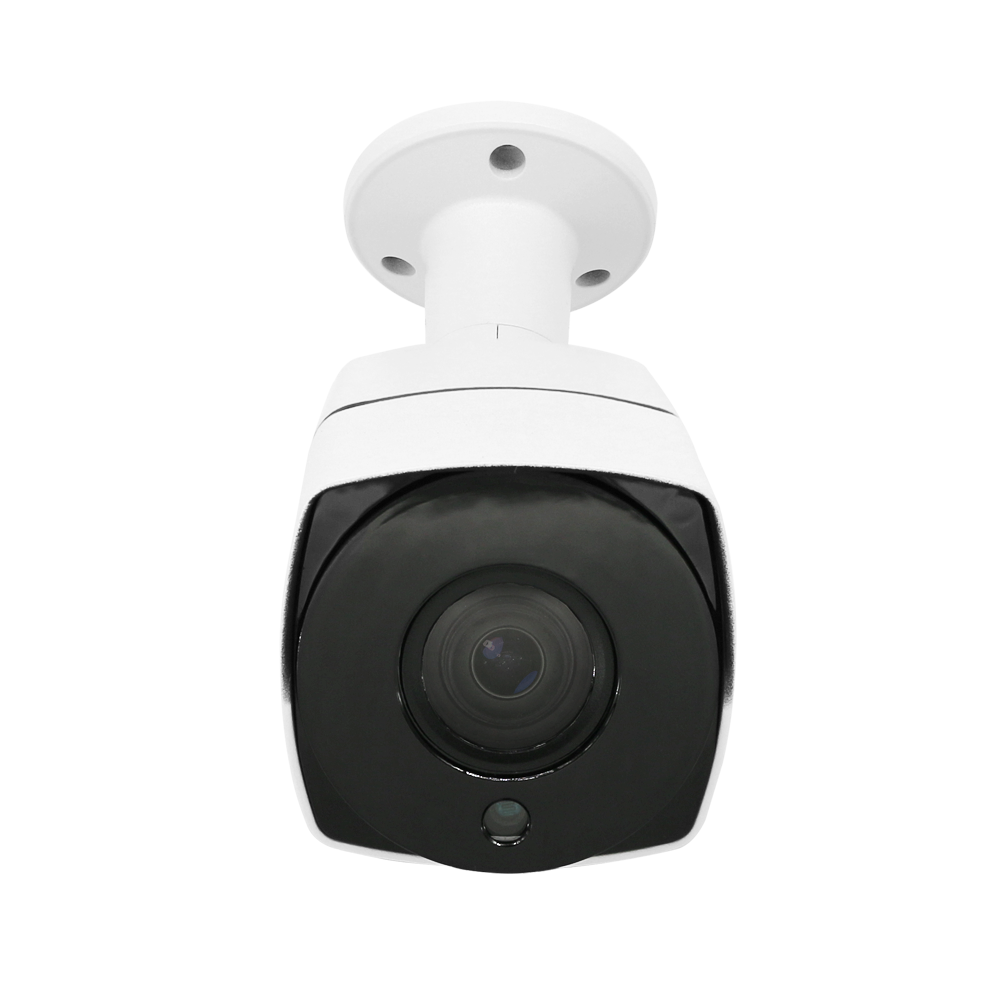

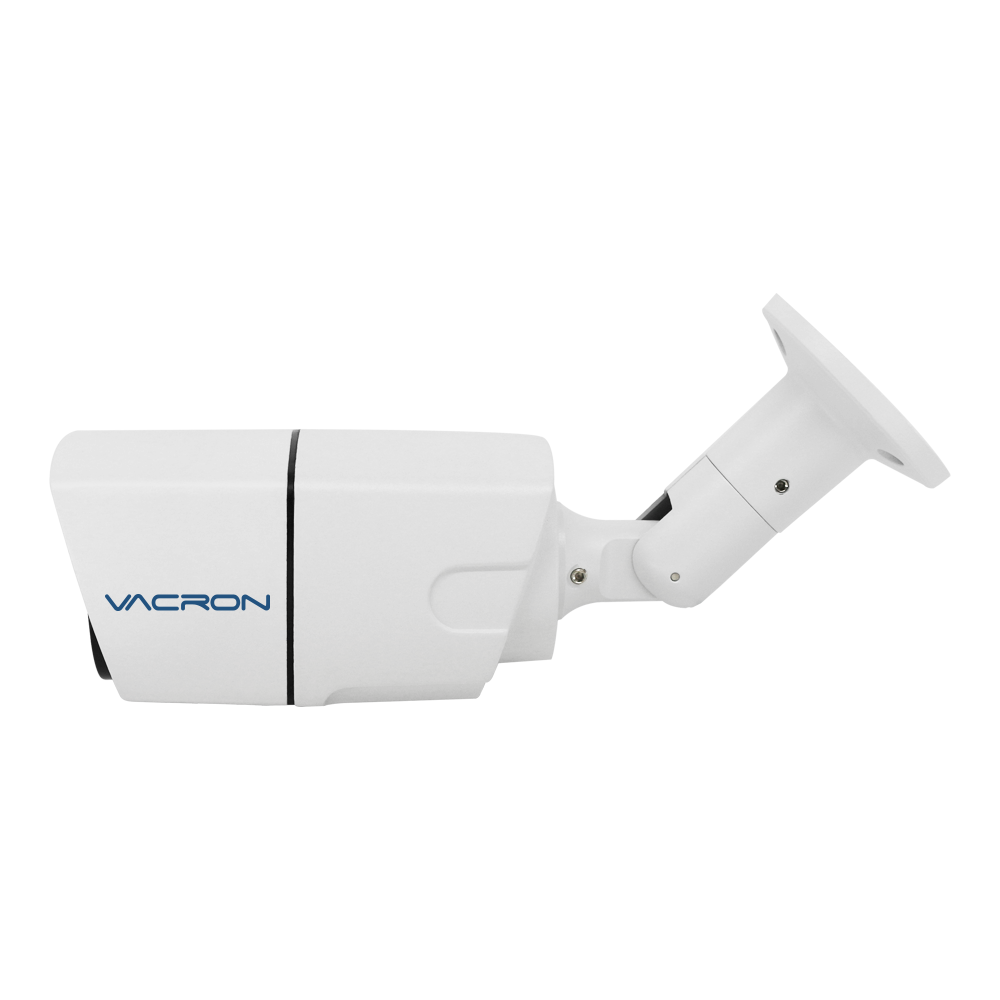

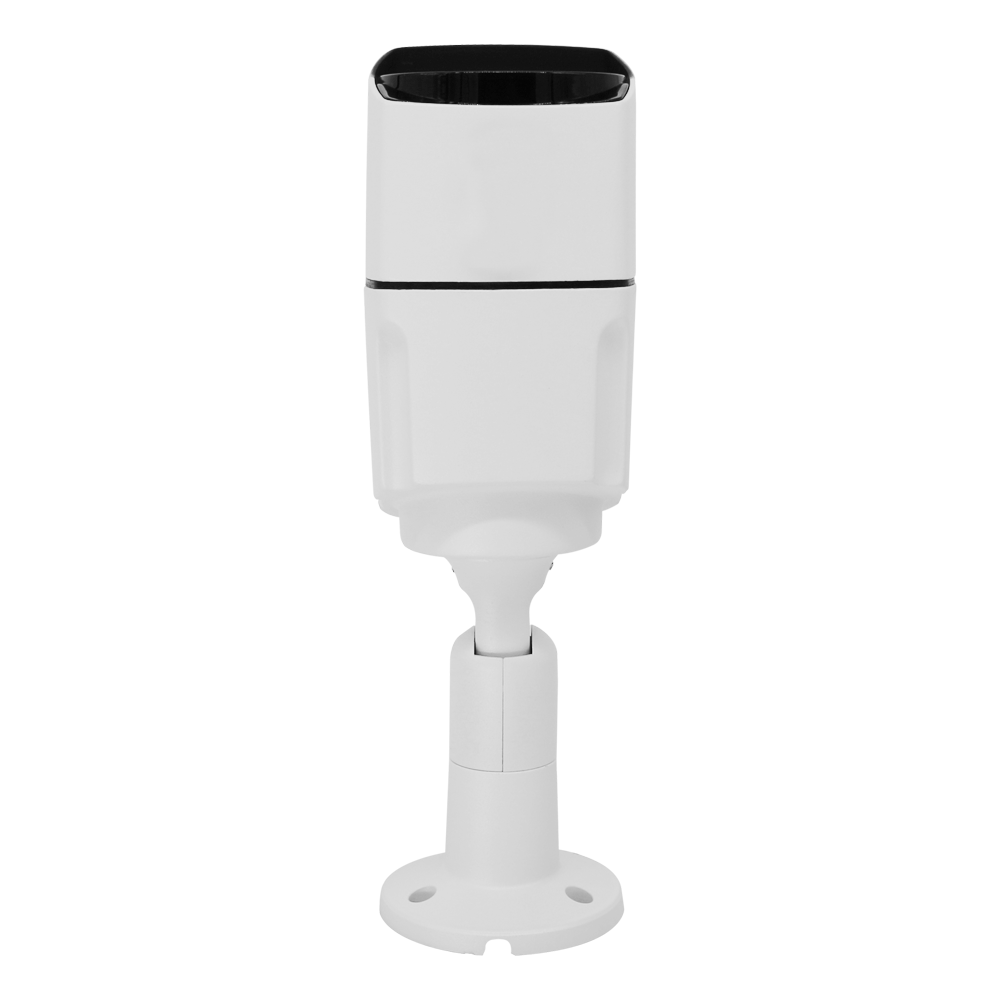

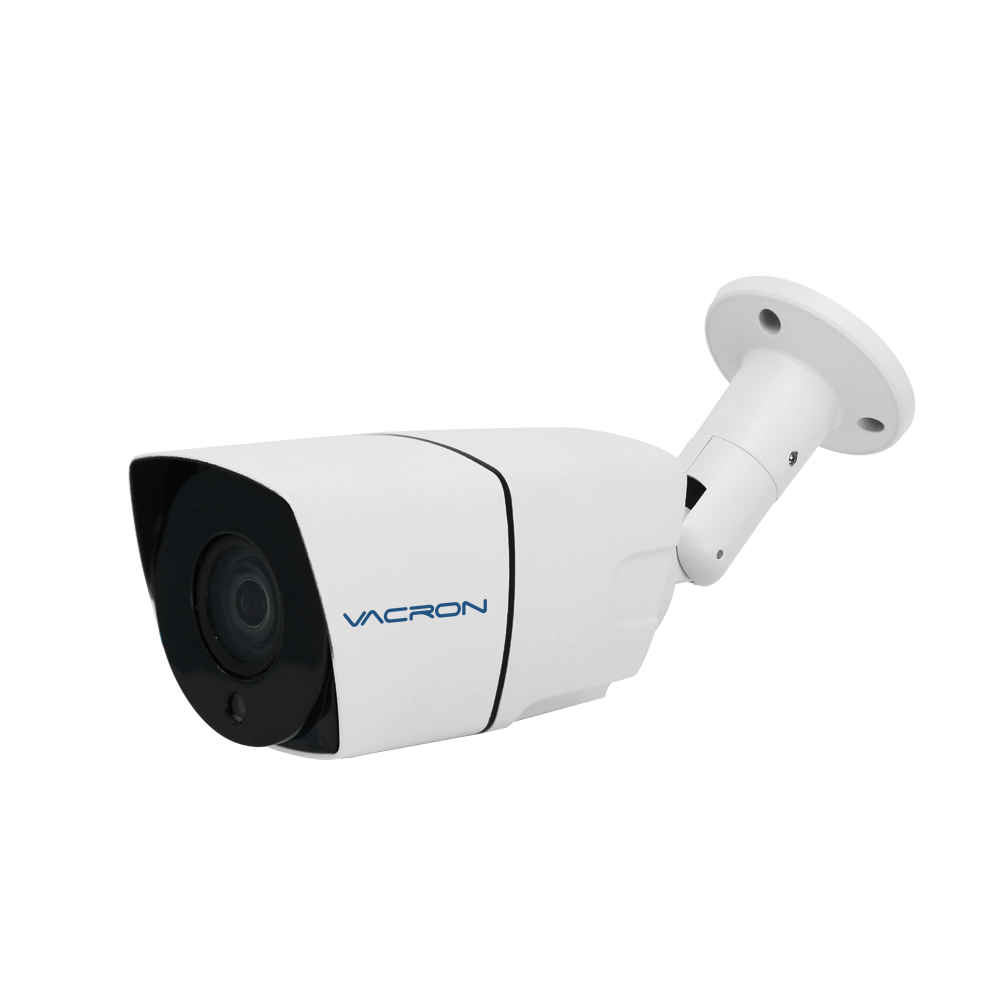

CCTV Camera

FUM-S5975H

1080P / Bullet / IP66 / IR / Starlight Color

  • DC12V

  • LENS 3.6mm

  • 0.01 LUX

  • 50dB

  • 1/2.8"CMOS

  • -20~50°C

Download Catalog

Product Features

  • 1/2.8" CMOS sensor.
  • 3.6 mm lens
  • AHD or CVBS or T VI or CVI output swit ch.
  • IP Rating: IP66.

Pick Up Element

1/2.8" CMOS sensor

Video System

NTSC / PAL

Image Signal Process

Digital Signal Processor

Lens

3.6mm

Number Of Pixel

1920(Horizontal) x 1080(Vertical)

Horizontal Resolution

2M@30fps

Power Supply

DC 12 ± 1V

Power Consumption

120mA

Electronic Shutter

AUTO/1/50(1/60)sec ~ 1/50,000sec

White Balance

Auto

Gain Control

Auto

S/N Ratio

≥50dB

Minimum Illumination

0.01Lux

Output

AHD、TVI、CVI、CVBS

Language

English / Simplified Chinese / Traditional Chinese / German / French / Italian / Spanish /Polish / Russian / Portuguese / Dutch / Turkish

IP Rating

IP66

Operating Temperature

-20℃~50℃

Dimensions (H×W×D)

255mm x 75.3mm x75mm

Weight

About 600g



Simliar Product



Update Date 2021/12/07 VCN-SH5975H-AF FUM-S5975H
Resolution 1080P 1080P
Pick Up Element 1/2.8" CMOS 1/2.8" CMOS
LENS 2.8-12mm(AF) 3.6mm
LEDS 8 PCS
IR
IR Wavelength 850nm
IR Range 30m
Sensitivity 0.01Lux
Starlight Color
AF
OUTPUT AHD、TVI、CVI、CVBS
Waterproof IP66

*If the above specifications are different, please refer to the latest date
