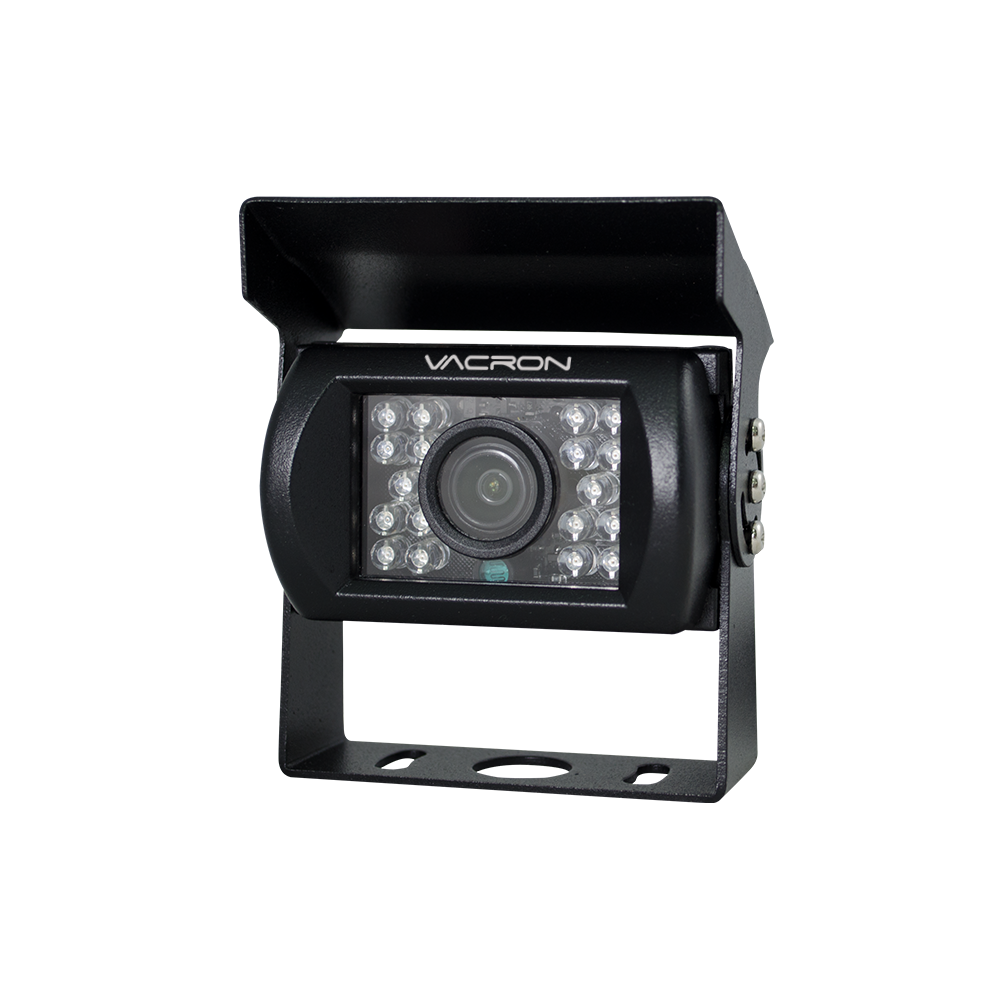

Car Cameras
Product Features
|
Pick Up Element |
1/2.8" CMOS sensor |
|
Video System |
NTSC / PAL |
|
Image Signal Process |
Digital Signal Processor |
|
Lens |
3.6mm |
|
Number Of Pixel |
1920 (Horizontal) x 1080(Vertical) |
|
Horizontal Resolution |
1080P@30fps |
|
View Angle |
H:85° |
|
Power Supply |
DC 12 ± 1V |
|
Power Consumption |
120mA(IR Off)；320mA(IR On) |
|
ICR |
Support |
|
Electronic Shutter |
AUTO/1/50(1/60)sec ~ 1/50,000sec |
|
White Balance |
Auto |
|
Gain Control |
Auto |
|
S/N Ratio |
≥50dB |
|
Day Night Auto Switch |
Support |
|
LEDs |
18 PCS |
|
IR Range |
5M |
|
IR Wavelength |
850nm |
|
Minimum Illumination |
0.01 LUX |
|
OUTPUT |
AHD or CVBS (Default setting: AHD Mode) |
|
Language |
English / Simplified Chinese / Traditional Chinese / German / French / Italian / Spanish /Polish / Russian / Portuguese / Dutch / Turkish |
|
IP Rating |
IP66 |
|
Operating Temperature |
-20℃~50℃ |
|
Dimensions (H×W×D) |
77mm x 54mm x 94mm |
|
Weight |
About 350g |
| Update Date 2022/01/25 | AVM-A268C | AVM-S368C | AVM-A168C |
| Resolution | 1080P | ||
| Pick Up Element | 1/3" CMOS | 1/2.8" SONY CMOS | 1/2.9" Sony Exmor CMOS |
| Lens | 2.8mm | 3.6mm | 2.8mm/3.6mm |
| LEDs | 18 pcs | ||
| IR | ✓ | ||
| IR Range | 5M | ||
| Sensitivity | 0.1 lux | 0.01 lux | 0.01 LUX / F1.2 (IR ON) |
| View Angle | H:95° | H:85° | H95°/H85° |
| Waterproof | IP66 | ||
*If the above specifications are different, please refer to the latest date
