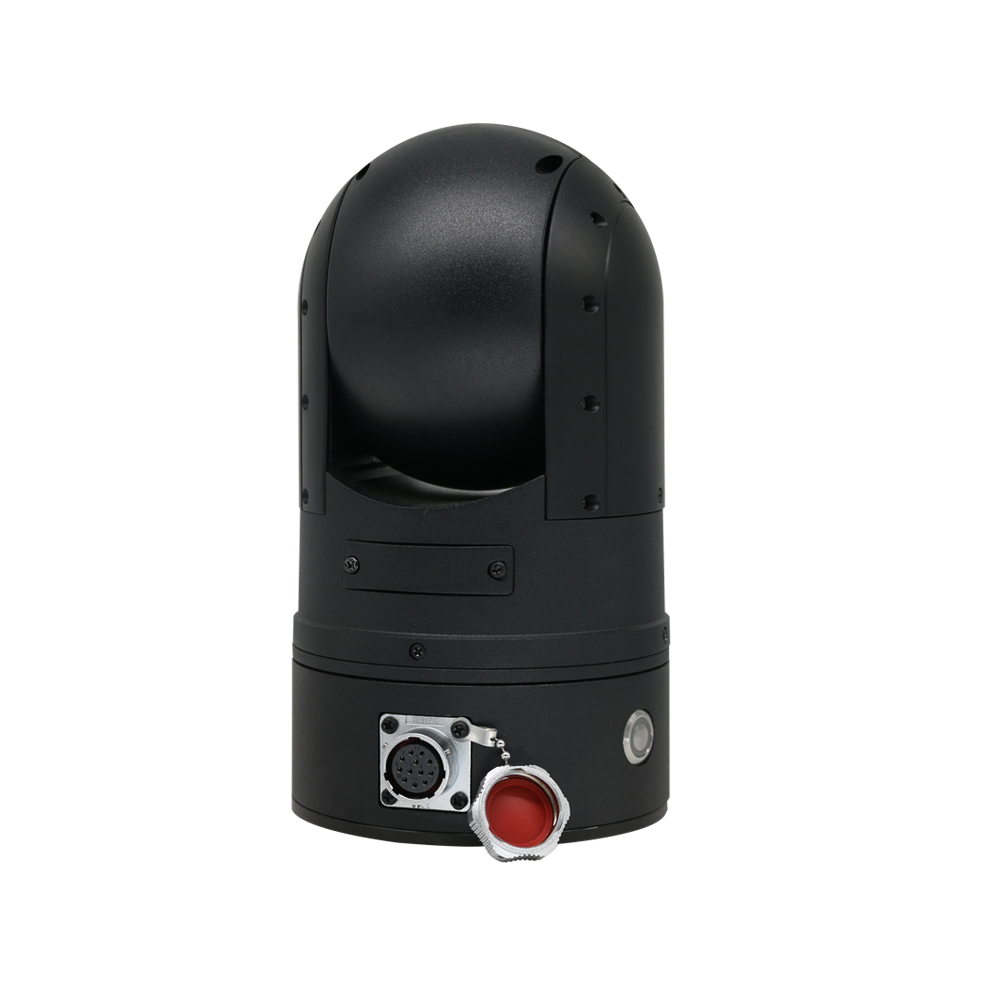

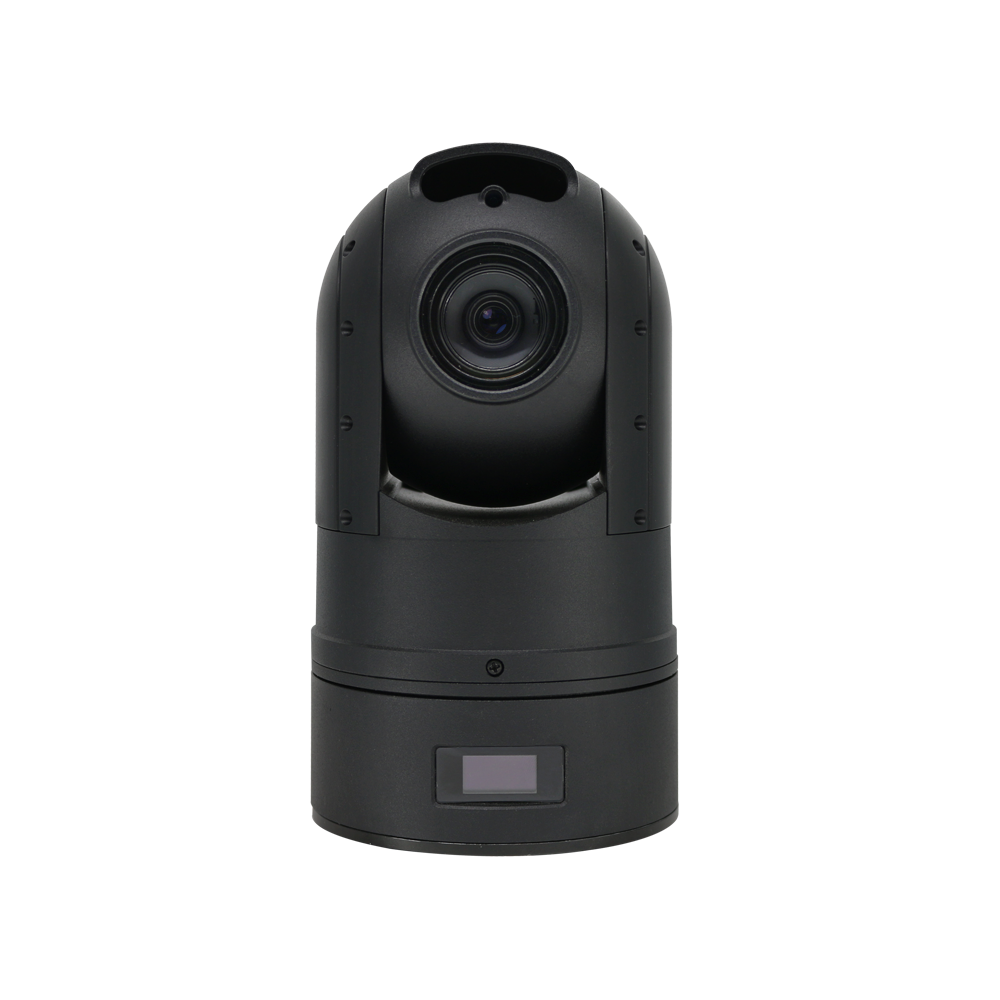

VVI-933D5

1080P / IP66 / Speed Dome / IR / Explosion proof / H.265

  • 0.01 LUX

  • LENS 4.6~152mm

  • DC10.8V-18V

Download Catalog

Product Features

  • Support PTZ self-locking, high wind resistance level
  • Support -40℃ cold start, can be used in severe cold areas
  • The main aluminum alloy structure design of the gimbal, waterproof grade
  • Strong anti-electromagnetic interference ability, suitable for complex
    environments such as power industry
  • Video encoding, H265, high compression ratio, good image quality
  • 1080P,1920(H)X1080(V) 30fps ; Image resolution, maximum support 1080P,
    1920(H)X1080(V) 30fps
  • Support ONVIF protocol
  • degree continuous rotation horizontally, vertical -15° ~+90°
  • The maximum horizontal manual speed is 120° /S
  • Up and down manual speed is up to 90° /S
  • Preset positions: 255
  • Real-time video and recording can be played through the browser
sensor type 1/2.8" Progressive Scan CMOS
focal length 4.6-152mm
Minimum illumination 0.01Lux @(F1.2,AGC ON)color
0.005Lux @(F1.2,AGC ON)black/white
Lens magnification times optical zoom, 16 times digital zoom
Field of view Horizontal 50.2-2.9 degrees (wide angle-telephoto)
Vertical 37.9-2.1 degrees
IR LED Distance 4pcs High power IR LED over 80 M (Max.)
Automatic IR LED distances re-adjust
Day and night conversion mode Dual filter switching synchronous image,
automatic, color, black and white, timing,
threshold control, flip
Close-up 10mm-1500mm (wide angle-telephoto)
Focus mode Auto/Manual/One-time focus
Exposure mode Auto Exposure/Aperture Priority/Shutter Priority
/Manual Exposure
Electronic shutter 1/25~1/100000
White balance Auto 1/Auto 2/Indoor/Outdoor/Manual/
Sodium lamp/Fluorescent lamp
Wide dynamic Super wide dynamic, automatic wide dynamic,
0-100 digital adjustment
Horizontal range 360°
Horizontal speed 0～150°/S
Vertical range -15°～+90°
Vertical speed 0～90°/S
Number of preset positions 255 preset positions
Cruise 8 patrol tracks
Scanning 8 lines
self-study 8 lines
3D positioning support
Plan support
Watch over support
Power failure recovery support
Telephoto speed limit support
Dual stream 1080P/720P+D1/CIF
H.265/H.264
Compression format 50HZ:25fps(1920x1080) 60HZ:30fps(1920x1080)
50HZ:25fps(1280x720) 60HZ:30fps(1280x720)
Network protocol TCP/IP、HTTP、DHCP、DNS、DDNS、RTP、RTSP
、PPPoE、SMTP，NTP、UPnP、SNMP、FTP、
802.1x、QoS、HTTPS、(IPv6 Optional)
General function Password protection, heartbeat,
multi-user access control
Access protocol ONVIF2.4
Smart function Motion detection, video blocking,
network disconnection, hard disk error,
IP conflict, disk full
Storage Support MicroSD storage 128G
(recommended to use class10)
Audio compression standard G.711a
RS485 control interface Support PELCO-P and
PELCO-D (additional) protocol
Analog video 1.0V[p-p] / 75Ω，PAL or NTSC，BNC interface
 internet 10/100M network adaptive, RJ45 adapter
temperature -35 - 65℃
humidity 0～90% (no condensation)
Protection level IP66
weight 3KG
size 220 (high) × 129 (diameter)
power supply DC10.8V-DC18V 2A
power 25W
