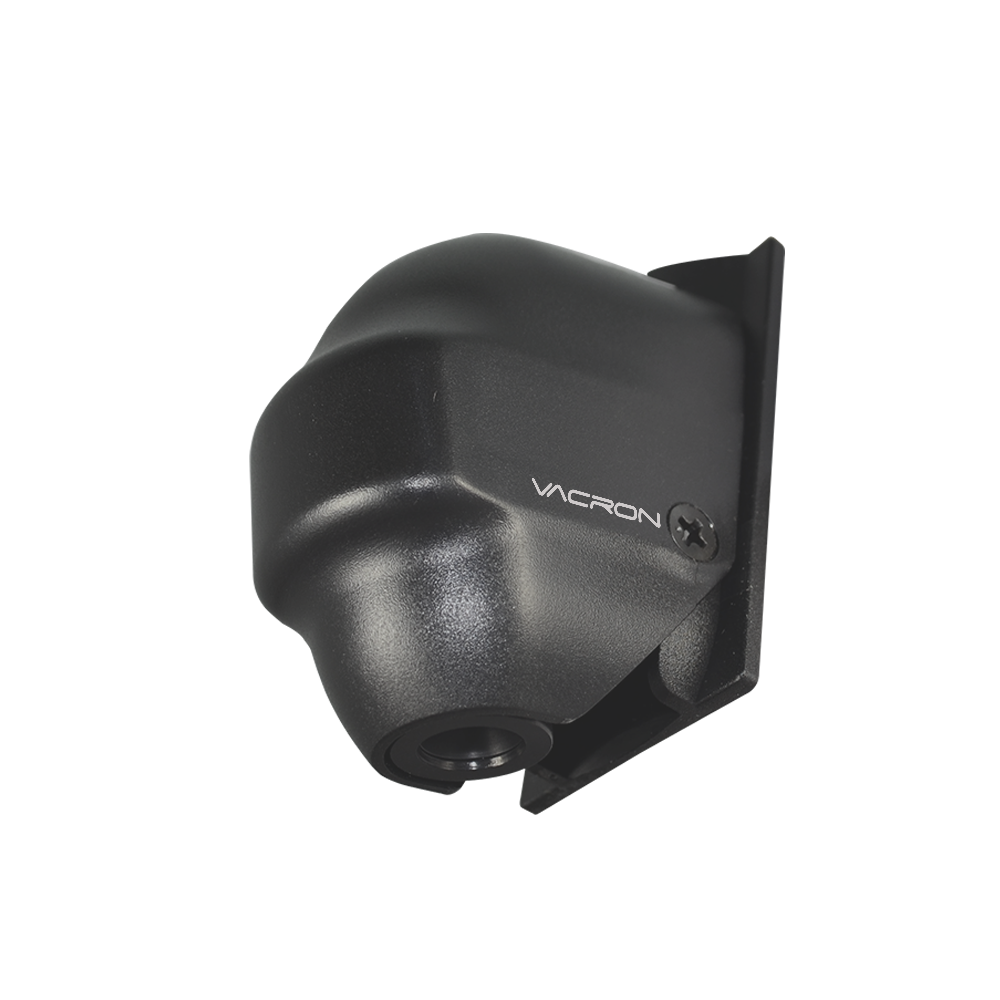

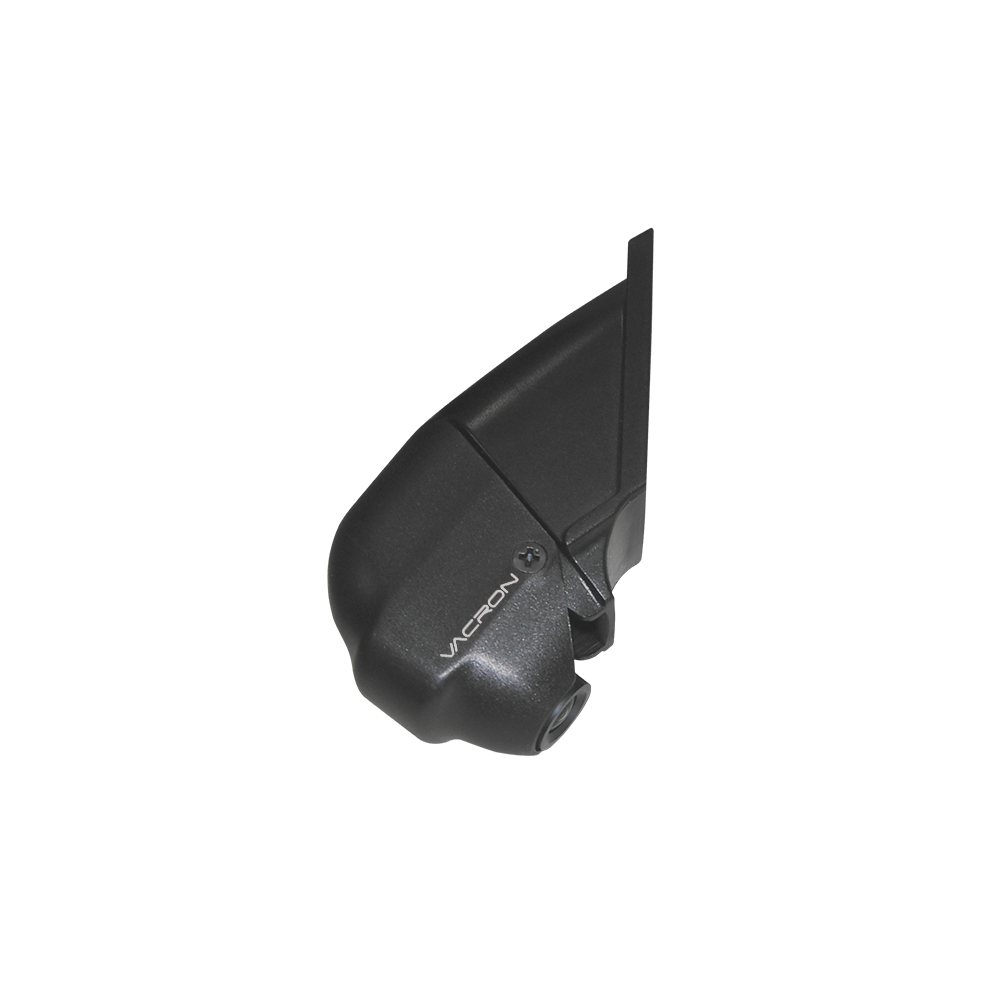

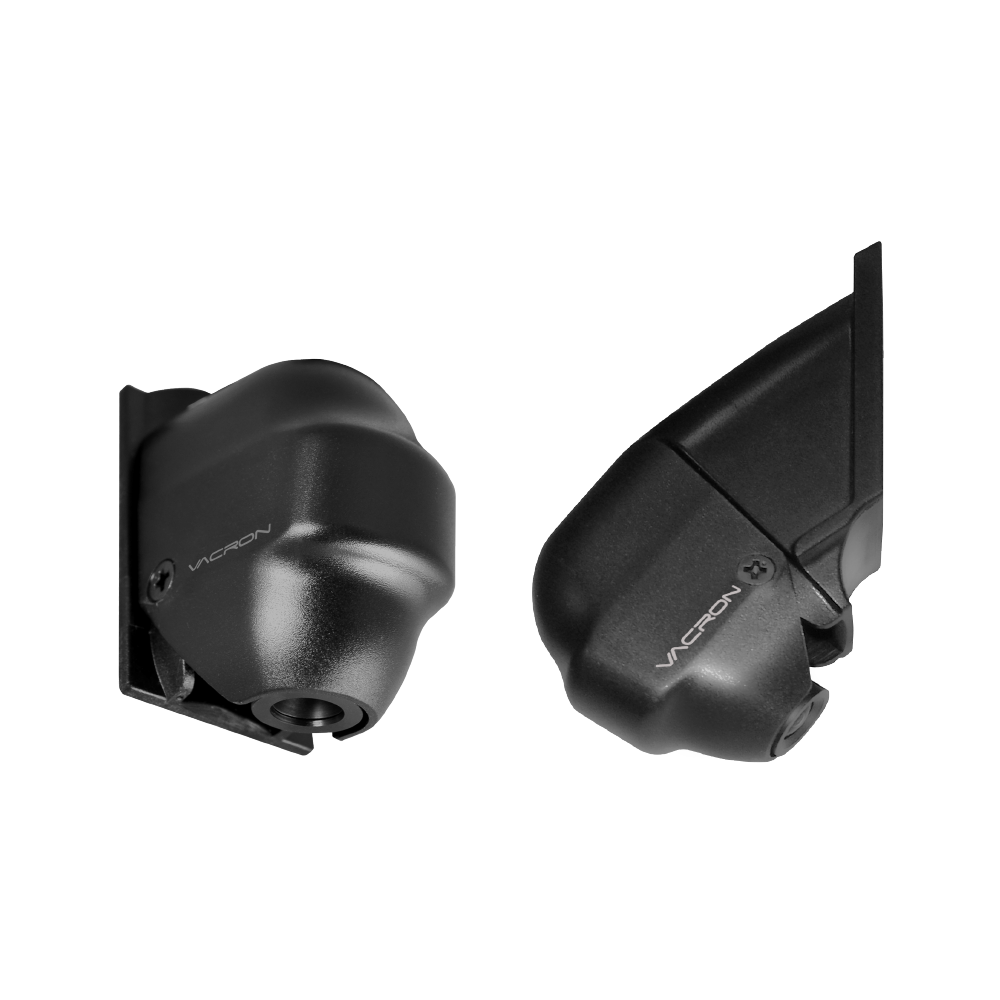

AVM-S350C(ADAS)

1080P

  • DC12V

  • DC5V

  • -10~60°C

  • 0.01 LUX

  • 50dB

  • Mirror

  • 1/2.8"CMOS

  • LENS 6.0mm

  • 55º

Download Catalog

Product Features

  • 1/2.8"  CMOS Sensor
  • 6.0mm Lens
  • Suitable for trucks and buses monitoring
  • Suitable installed on windshield without waterproof
  • Video adjustable for mirroring if in need (Optional)

Video System

NTSC PAL

Pick Up

1/2.8" SONY CMOS Sensor

Number of Pixel

1920(H)×1080(V)

Effective Pixels

2.0 Mega Pixel

Resolution

1080P

Sync System

Internal

Scanning system

2 : 1 Interlace

Sensitivity

0.01 LUX

S/N Ratio

Max 50dB

Auto Gain Control

Auto

Mirroring

Optional(BV)

White Balance

Auto

Electronical Shutter

Auto: 1/30NTSC(1/25 PAL)S TO 1/50,000S

Video Output

1 Vp-p Composite Video Output, 75 Ohms

Power Supply

DC 12.0V/DC5.0V

Power Consumption

80mA/200mA

Lens

6.0mm

View Angle

H:55°

Operating Temperature

- 10° C ~ +60°C

Dimensions (H x W x D)

32 × 52 × 59 mm / 32 x 100.2 x 54.8mm





Simliar Product


Update Date 2022/01/25 AVM-S250C AVM-S350C AVM-H250A AVM-S250B AVM-H250B
Resolution 1080P 960H 720P
Pick Up Element 1/2.9" SONY CMOS 1/2.8 CMOS 1/4" CMOS 1/2.9" SONY CMOS 1/4" CMOS
Lens 3.6 mm 2.8 mm 2.6 mm
Sensitivity 0.1 LUX 0.01 LUX 0.1 LUX
View Angle H 90° H 120° H 90°

*If the above specifications are different, please refer to the latest date
