Mobile Surveillance

Car Cameras

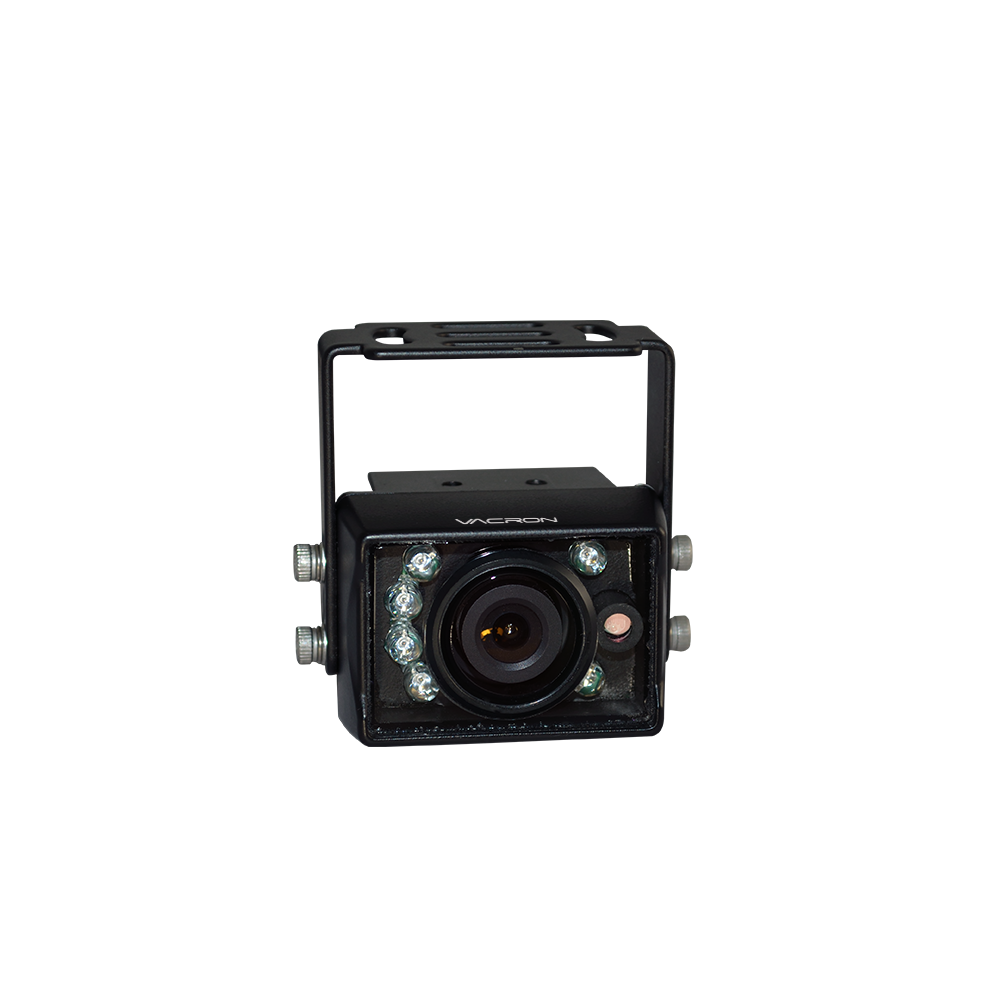

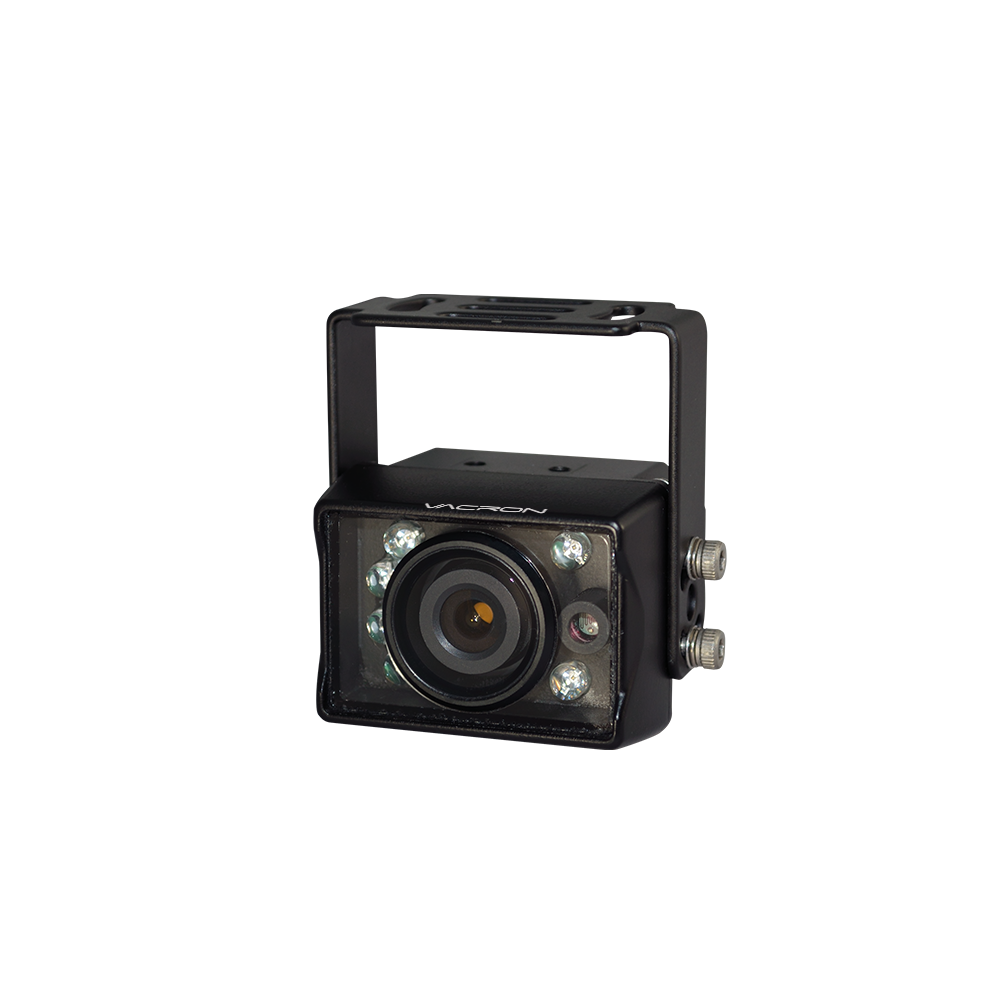

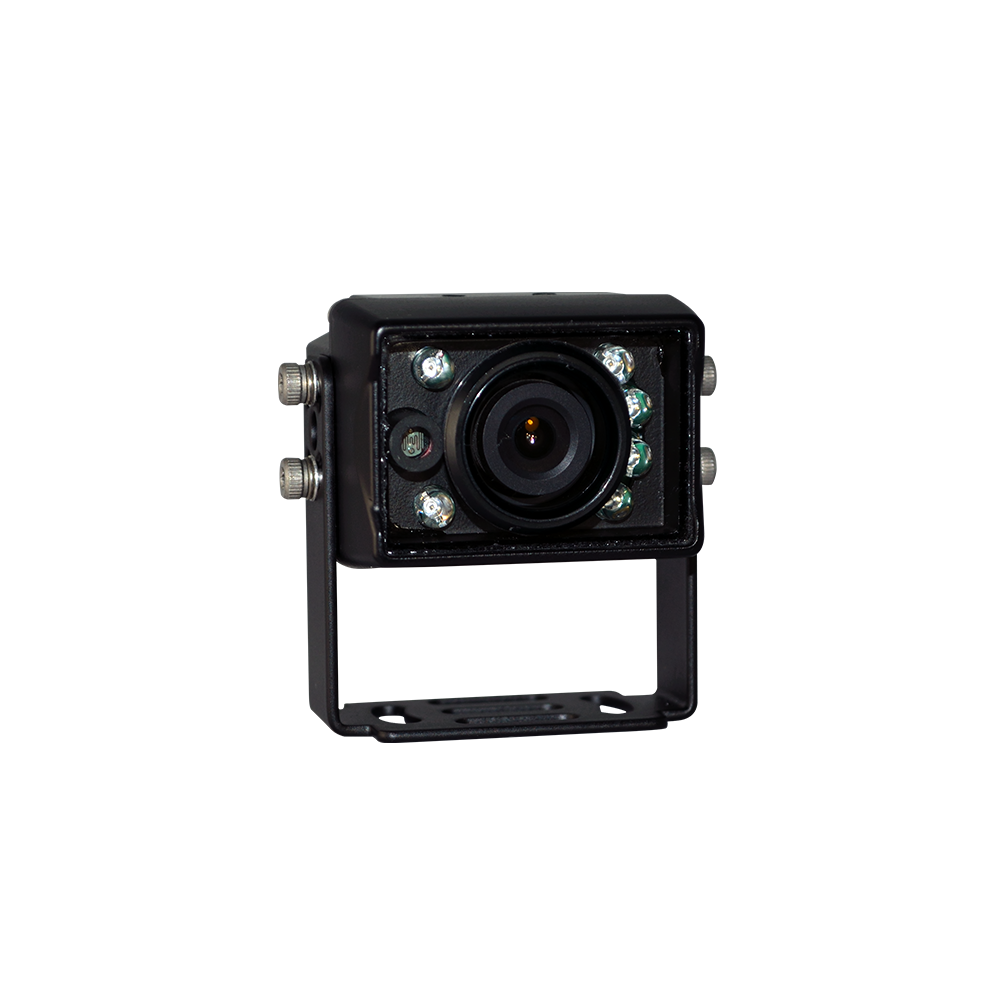

AVM-S331C

1080P / IP68

  • DC12V

  • -10~60°C

  • 90º

  • LENS 2.8mm

  • 6 LEDs

  • 3M

  • 0.01 LUX

  • 50dB

  • Mirror

  • 1/2.8"CMOS

Download Catalog

Product Features

  • 1/2.8”SONY CMOS Sensor
  • 2.8mm Lens
  • Suitable for trucks and buses monitoring
  • Waterproof IP68, suitable to install at any places
  • Video adjustable for mirroring if in need (Optional)

Model No.

AVM-S231C

Video System

NTSC PAL

Pick Up

1/2.8" SONY CMOS Sensor

Number of Pixel

1920(H)×1080(V)

Effective Pixels

2.0 Mega Pixel

Resolution

1080P

Sync System

Internal

Scanning system

2 : 1 Interlace

Sensitivity

0.01 LUX

S/N Ratio

≥50dB

Auto Gain Control

Auto

Mirroring

Optional(BV)

White Balance

Auto

Electronical Shutter

Auto: 1/30NTSC(1/25 PAL)s TO 1/50,000s

Video Output

1 Vp-p Composite Video Output, 75 Ohms

Power Supply

DC 12.0V

Power Consumption

80 mA (IR OFF) / 150mA (IR ON)

Lens

2.8mm

View Angle

H: 90°

Operating Temperature

- 10° C ~ + 60°C

Dimensions (H x W x D)

57.6 × 52.4. × 55.5 mm

LEDs

6PCS

IR Range

3M

IR Wavelength

850 nm

Waterproof

IP68





Simliar Product


Update Date 2022/01/25 AVM-S231C-12V AVM-S231C-5V AVM-S231B AVM-S331C AVM-H231A AVM-H231B
Resolution 1080P 1080P 720P 1080P 960H 720P
Pick Up Element 1/2.9" SONY CMOS 1/2.9" SONY CMOS 1/2.9" SONY CMOS 1/2.8" SONY CMOS 1/4”CMOS 1/4”CMOS
Lens 2.8mm 2.8mm 2.6mm 2.8mm 2.6mm 2.6mm
LEDs 6 pcs
IR
IR Range 3M
Sensitivity 0.1 lux 0.01 lux 0.1 lux 0.1 lux
View Angle H: 90° H: 80° H: 90°
Waterproof IP68

*If the above specifications are different, please refer to the latest date
