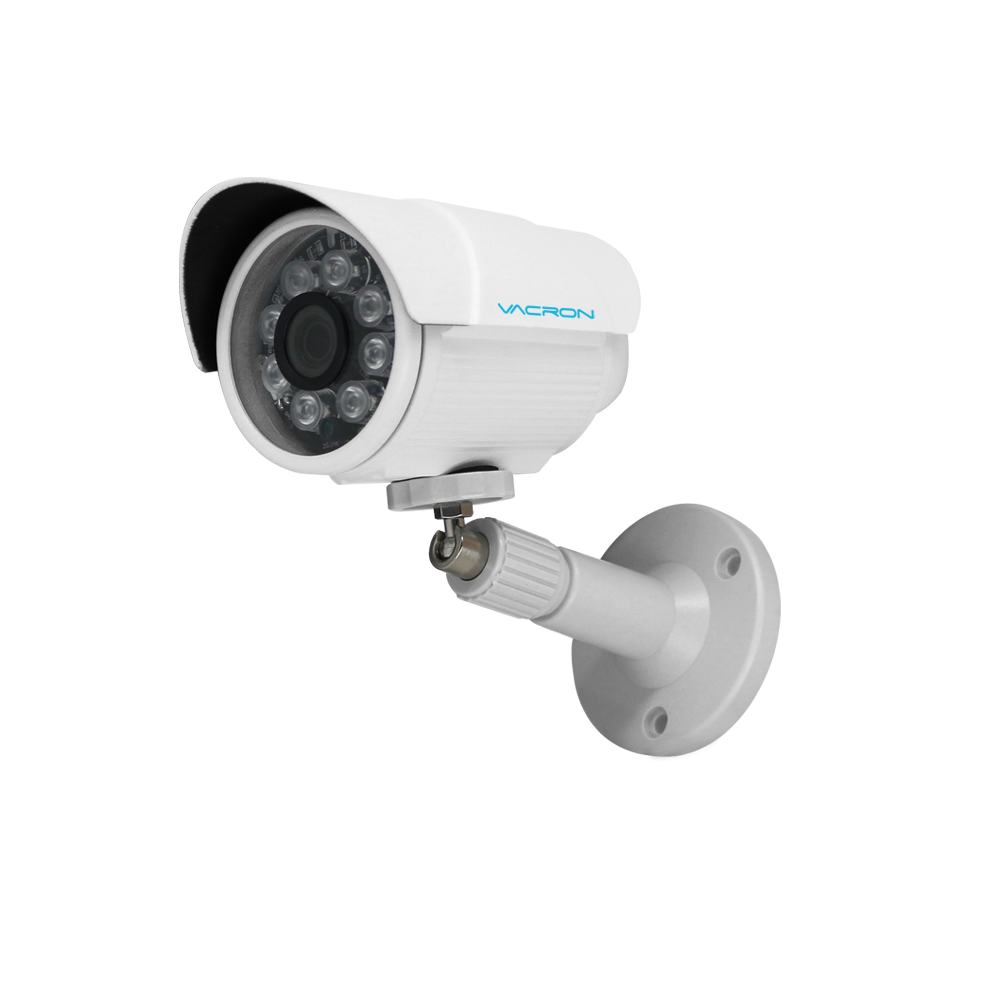

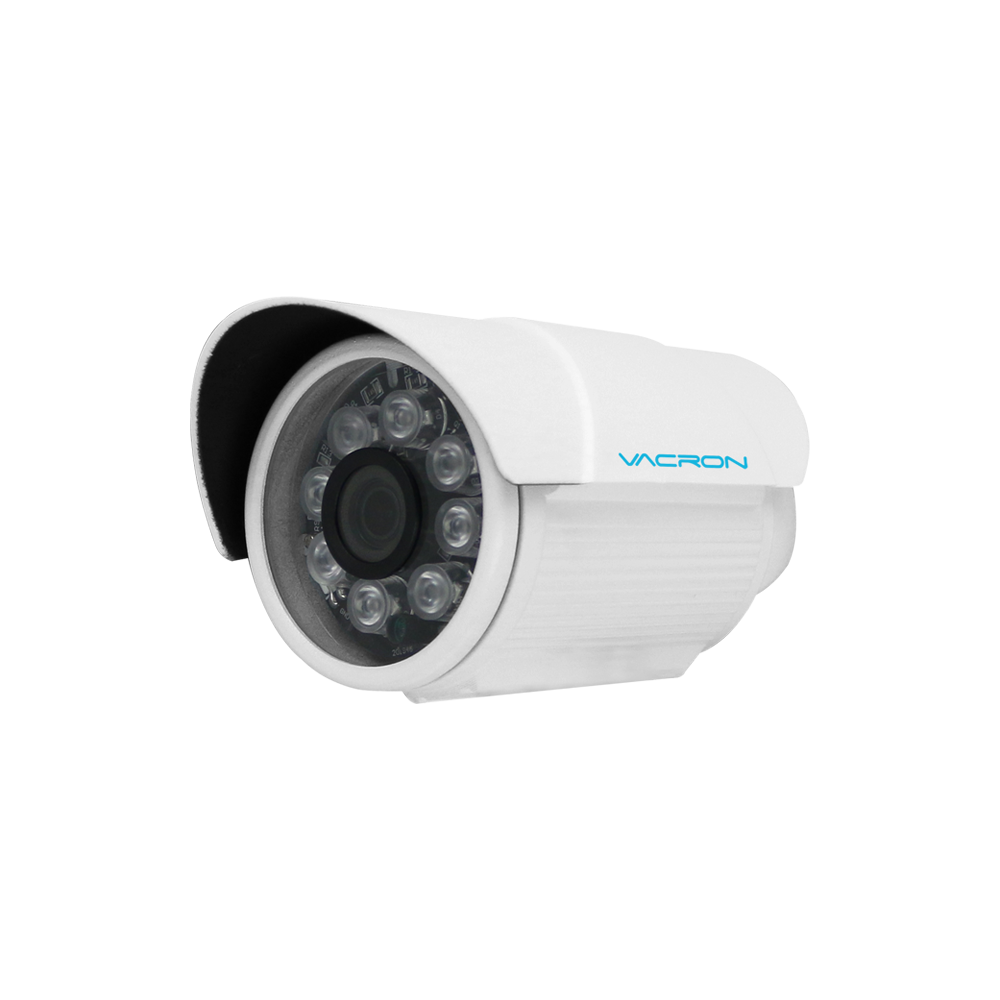

CCTV Camera
5MP / IP66 / Bullet / IR
DC12V
LENS 3.6mm
50dB
8 LEDs
35M
0.2 LUX
-20~85°C
CMOS 1/2.5"
Product Features
Pick Up Element | 1/2.5" CMOS sensor |
Video System | NTSC/PAL |
Image Signal Process | Digital Signal Processor |
Lens | 3.6mm |
Number Of Pixel | 2608 (Horizontal) x 1952(Vertical) |
Horizontal Resolution | 5MP@20fp |
Power Supply | DC 12 ± 1V |
Power Consumption | 120mA(IR Off);340mA(IR On) |
ICR | Support |
Electronic Shutter | Auto |
White Balance | Auto |
Gain Control | Auto |
S/N Ratio | ≥50dB |
Day Night Auto Switch | Support |
LEDs | 8 PCS |
IR Range | 35M |
IR Wavelength | 850nm |
Minimum Illumination | 0.2 LUX |
OUTPUT | AHD or CVBS or TVI or CVI (Default setting: AHD Mode) |
Language | English / Simplified Chinese / Traditional Chinese / Russian / Spanish / French / Polish / Italian / Portuguese / Japanese / Korean / Greek |
IP Rating | IP66 |
Operating Temperature | -20℃~85℃ |
Dimensions (H×W×D) | 78mm x 83mm x 136.5mm |
Weight | About 310g |
Simliar Product
Update Date 2022/09/07 | VCF-5768H | VCF-5K68H |
Resolution | 1080P | 5MP |
Pick Up Element | 1/3" CMOS | 1/2.8" CMOS |
LENS | 3.6mm | |
LEDS | 8 | |
IR | ✓ | |
IR Range | 35M | |
IR Wavelength | 850nm | |
Sensitivity | 0.1 LUX | 0.2 LUX |
OUTPUT | AHD or CVBS or TVI or CVI (Default setting: AHD Mode) | |
IP Rating | IP66 |
*If the above specifications are different, please refer to the latest date
Download support
Download Manual
Product Model | Download | Explanation |
VCF-5K68H | V.01 |
