CCTV Surveillance System

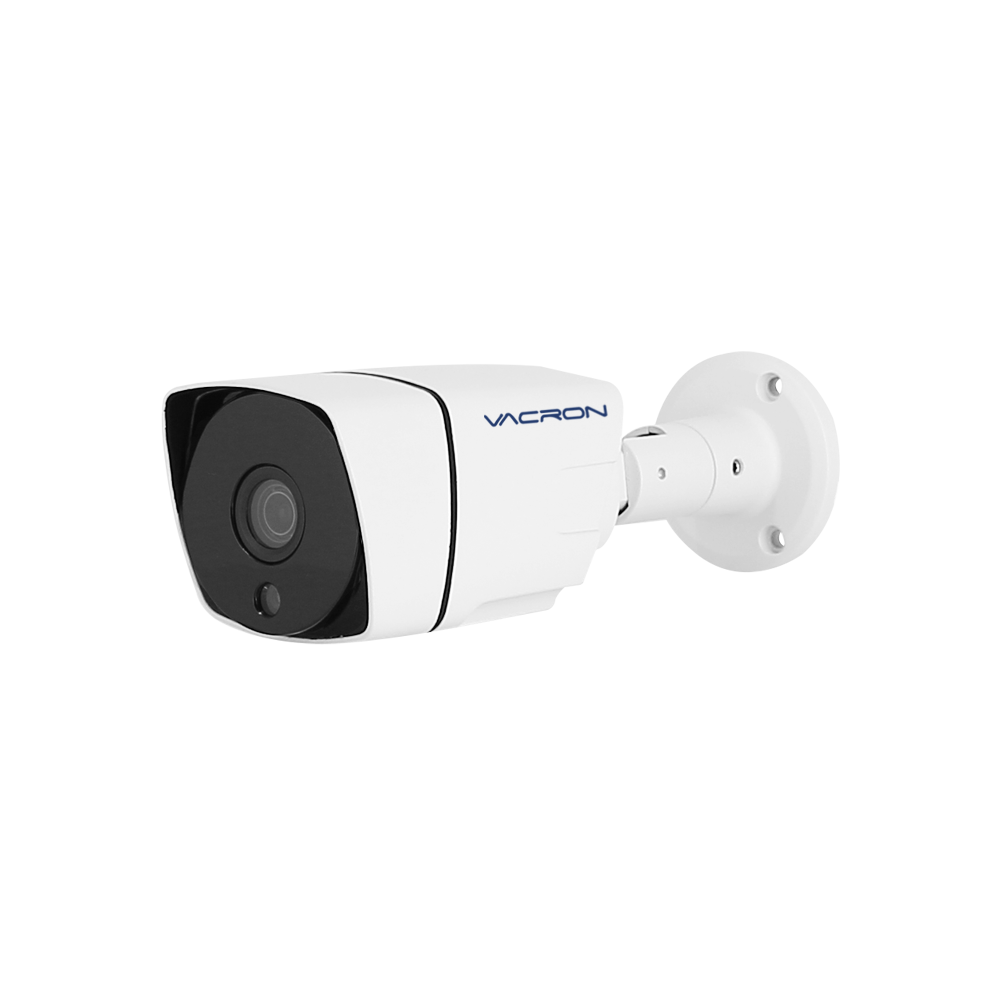

CCTV Camera

VCF-5M60H

5MP / Bullet / IP66 / IR

  • DC12V

  • LENS 3.6mm

  • 0.1 LUX

  • 50dB

  • 35 m

  • 1/2.8"CMOS

  • 36 LEDs

  • -20~50°C

Download Catalog

Product Features

  • 1/2.8" CMOS sensor.
  • AHD 5MP high video quality transmission, up to 2592 × 1944 pixels.
  • AHD or CVBS or T VI or CVI output switch.
  • IP Rating: IP66.

Pick Up Element

1/2.8" CMOS sensor

Video System

NTSC / PAL

Image Signal Process

Digital Signal Processor

Lens

3.6mm

Number Of Pixel

2592 (Horizontal) x 1944(Vertical)

Horizontal Resolution

5M@20fps

Power Supply

DC 12 ± 1V

Power Consumption

120mA (IR Off);340mA (IR On)

ICR

Support

Electronic Shutter

AUTO/1/50(1/60)sec ~ 1/50,000sec

White Balance

Auto

Gain Control

Auto

S/N Ratio

≥50dB

Day Night Auto Switch

Support

LEDs

36 PCS

IR Range

35M

IR Wavelength

850nm

Minimum Illumination

0.1Lux

Output

AHD、TVI、CVI、CVBS

Language

English / Simplified Chinese / Traditional Chinese / German / French / Italian / Spanish /Polish / Russian / Portuguese / Dutch / Turkish / Japanese

IP Rating

IP66

Operating Temperature

-20℃~50℃

Dimensions (H×W×D)

200mm x 63mm x 63mm

Weight

About 310g




Simliar Product



Update Date 2021/12/07 VCF-5M60H VCF-5560H VCN-SH5960H VCF-5760H FUM-S5960H
Resolution 5MP 1080P
Pick Up Element 1/2.8" CMOS 1/3" CMOS 1/2.8" CMOS 1/3" CMOS 1/2.8" CMOS
LENS 3.6mm 4mm
LEDS 36 PCS
IR ✓
IR Wavelength 850nm
IR Range 35M
Sensitivity 0.1 Lux 0.1 Lux 0.01 Lux 0.1 Lux 0.01 Lux
Starlight Color • •
OUTPUT AHD、TVI、CVI、CVBS
Waterproof IP66

*If the above specifications are different, please refer to the latest date

Download support

Download Manual


Product Model DownloadExplanation
VCF-5M60H V.01
