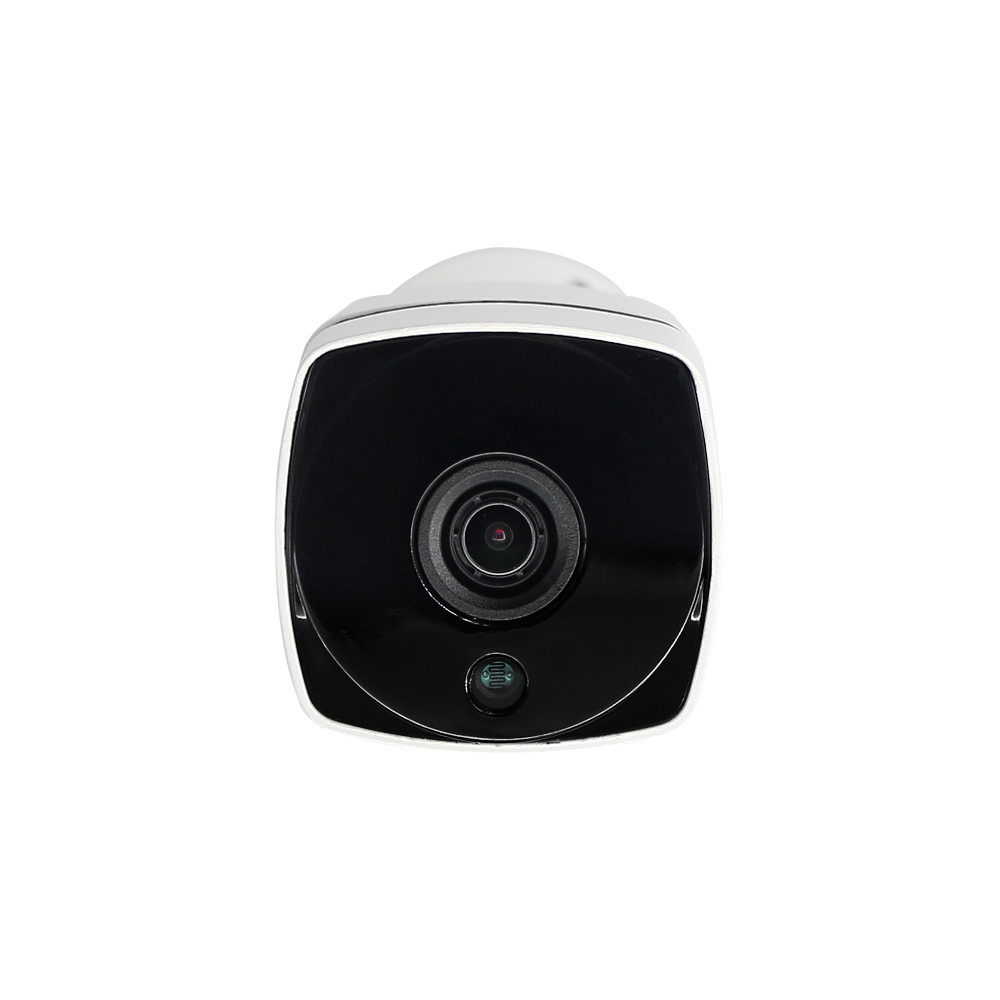

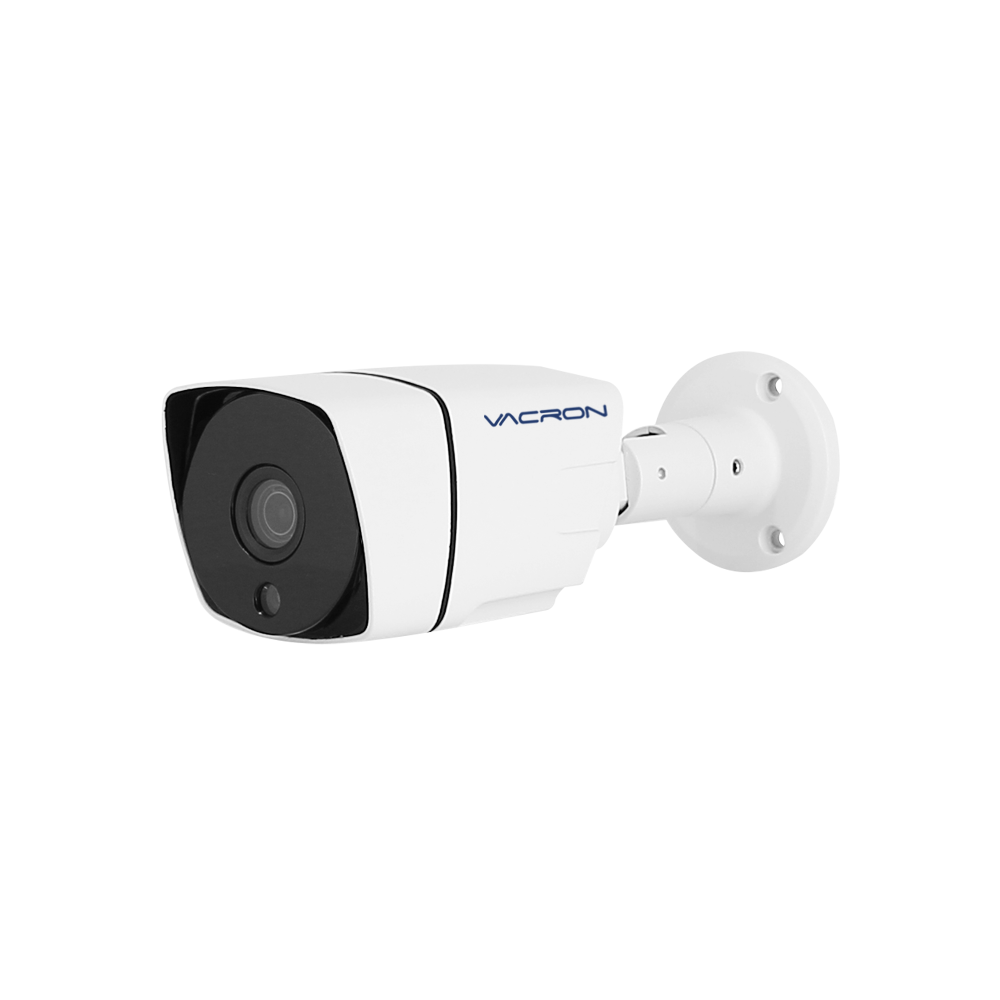

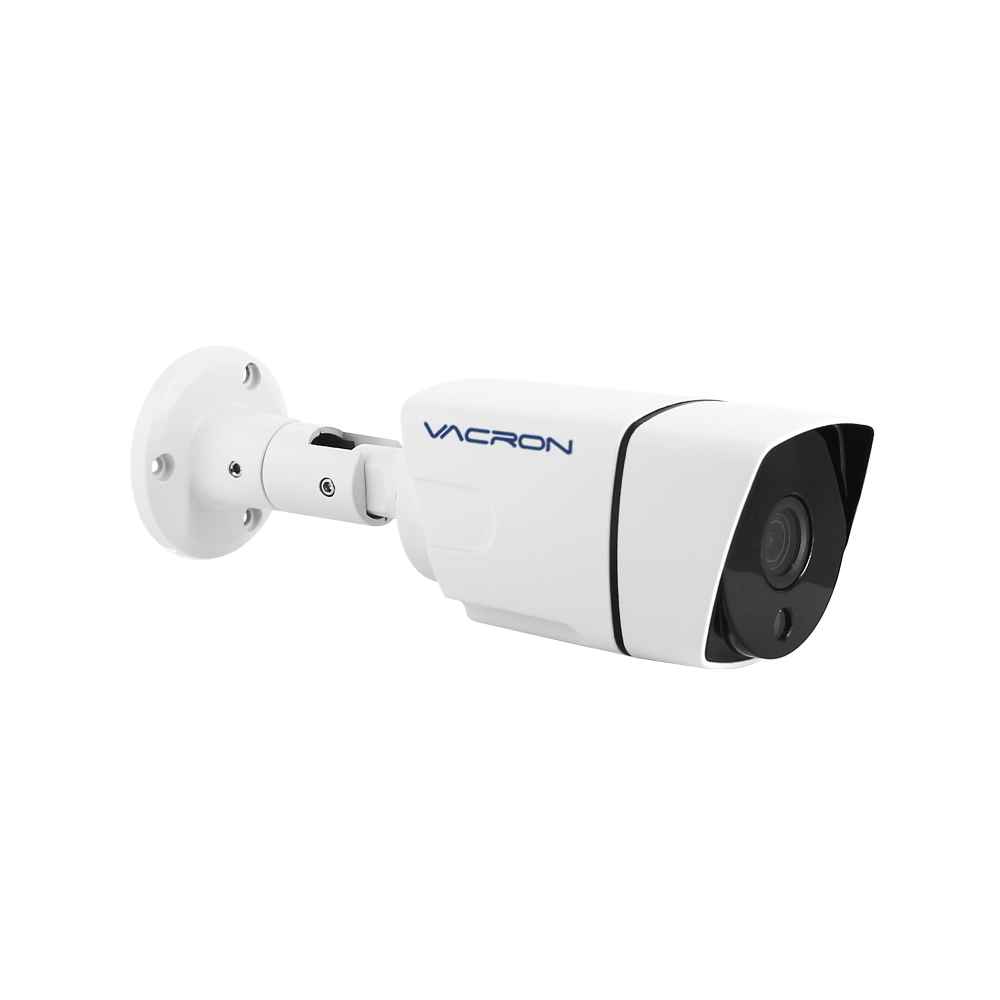

CCTV Camera
1080P / Bullet / IP66 / Starlight Color
DC12V
0.01 LUX
50dB
1/2.8"CMOS
-20~50°C
LENS 4.0mm
Product Features
| Pick Up Element | 1/2.8" CMOS sensor |
| Video System | NTSC/PAL |
| Image Signal Process | Digital Signal Processor |
| Lens | 4.0mm |
| Number Of Pixel | 1920 (Horizontal) x 1080(Vertical) |
| Horizontal Resolution | 2M@30fps |
| Power Supply | DC 12 ± 1V |
| Power Consumption | 120mA |
| Electronic Shutter | AUTO/1/50(1/60)sec ~ 1/50,000sec |
| White Balance | Auto |
| Gain Control | Auto |
| S/N Ratio | ≥50dB |
| Minimum Illumination | 0.01Lux |
| OUTPUT | AHD / TVI / CVI / CVBS |
| Language | English / Simplified Chinese / Traditional Chinese /German / French / Italian / Spanish /Polish / Russian/ Portuguese / Dutch / Turkish |
| IP Rating | IP66 |
| Operating Temperature | -20℃~+50℃ |
| Dimensions (H×W×D) | 200mm x 63mm x 63mm |
| Weight | About 310g |
Simliar Product
| Update Date 2021/12/07 | VCF-5M60H | VCF-5560H | VCN-SH5960H | VCF-5760H | FUM-S5960H |
| Resolution | 5MP | 1080P | |||
| Pick Up Element | 1/2.8" CMOS | 1/3" CMOS | 1/2.8" CMOS | 1/3" CMOS | 1/2.8" CMOS |
| LENS | 3.6mm | 4mm | |||
| LEDS | 36 PCS | ||||
| IR | ✓ | ||||
| IR Wavelength | 850nm | ||||
| IR Range | 35M | ||||
| Sensitivity | 0.1 Lux | 0.1 Lux | 0.01 Lux | 0.1 Lux | 0.01 Lux |
| Starlight Color | • | • | |||
| OUTPUT | AHD、TVI、CVI、CVBS | ||||
| Waterproof | IP66 | ||||
*If the above specifications are different, please refer to the latest date
