FUM-T06-A

Product Features

Traditional and High Speed Rolling Doors are Compatible of and Installation at Ease
SD Card Recording & Cloud Server Recording
P2P Remote Aceess Support for Cyber Security
2MP Full HD Security Camera Support Safety Double up
Open and Close Garage Doors from Smart Phone or PC in Visibility
x4 Relay Controller Appliable for Light, Lock and Electrical Applinace
USB Type A Built in for WiFi Dongle and USB Communications
RS485, RS232 and Alarm in are Available
Compatible with Garage Door Sensors
Intercom Support

Power Input	DC 12V / 1A
Voltage Proof of the the Relay Contact Point	7A@250VAC / 7A@30VDC
Remote Access	Smart Phone App / IE Browser
Network Interface	10/100 Mbps Ethernet / RJ45 Connector
Protocol	IPv4,TCP/IP, DHCP, HTTP, FTP, SMTP, RTSP,
Protocol	SNTP,DNS
Browser	Microsoft Internet Explorer 11
Video Configuration via IE	DHCP Default Setting
Video Input	Video : Brightness、 Contrast、Saturation、 Baud Rate
	Audio : ON/OFF & Volume
	Video Input AHD 1080P
Live View	1080/30fps
Recording	VGA/10fps
Audio	x1 Audio Input / x1 Audio Output
Storage	SD Memory Card
Storage	(SDHC Card 16GB Class 10 above)
USB Connection	x1 USB Type A / USB WiFi Dongle
Garage Door Control	Up/Down/Stop
Crush Injury Protection	x2 Alarm Input Support
LED Indicator	Red - Record / Green - Power / Blue - Lan

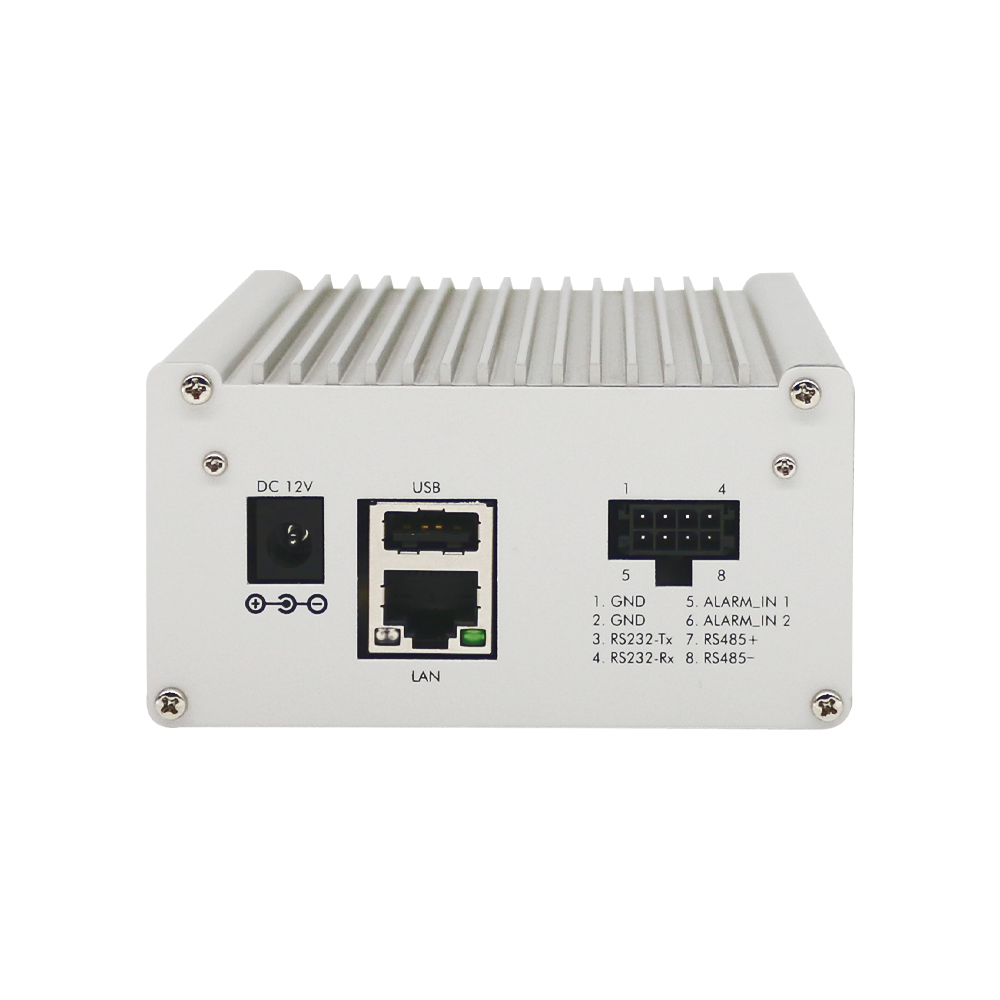

Control I/O	x1 RS485 & x1 RS232

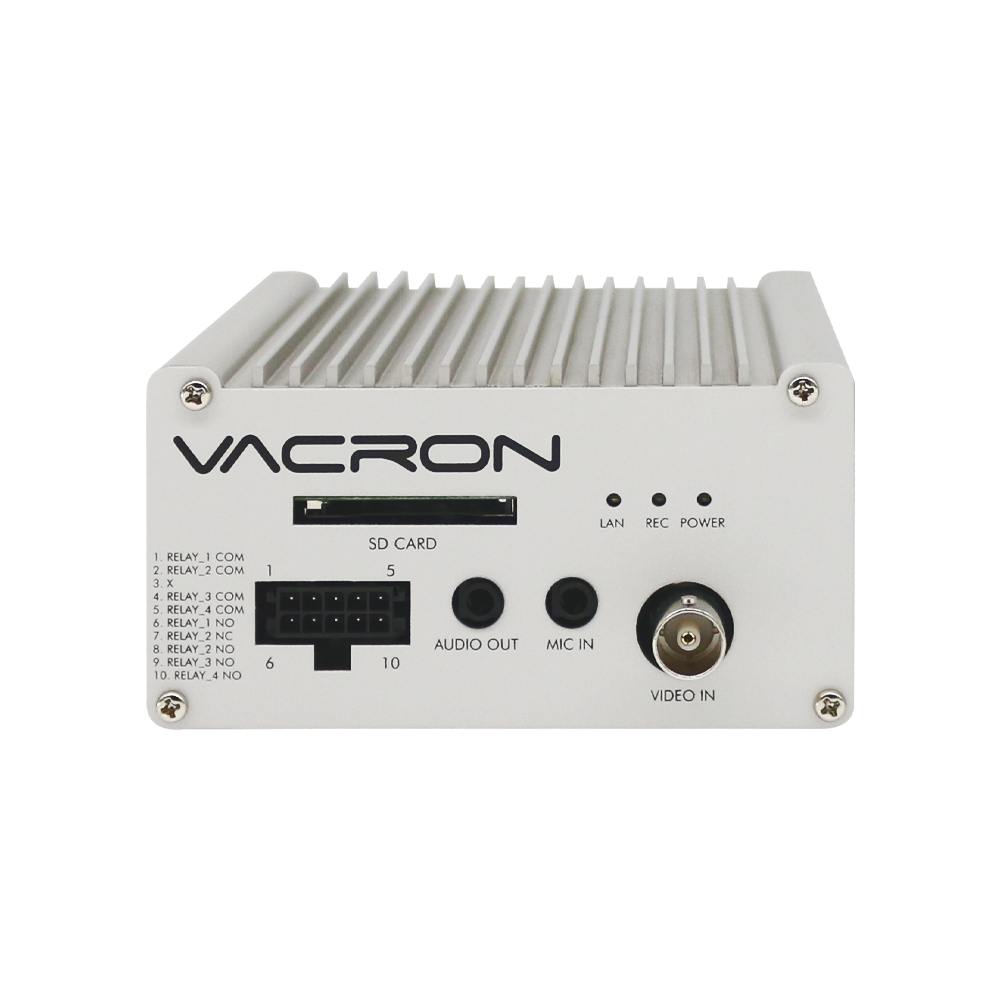

	x4 Relay Contact Points(x3 Always Open x1 Always Open & Always Close)
	x2 Alarm Input
Ambiant Temperature	-10°C ~ 50°C
Measurements	113.5 x 95 x 50mm
