IP Surveillance System

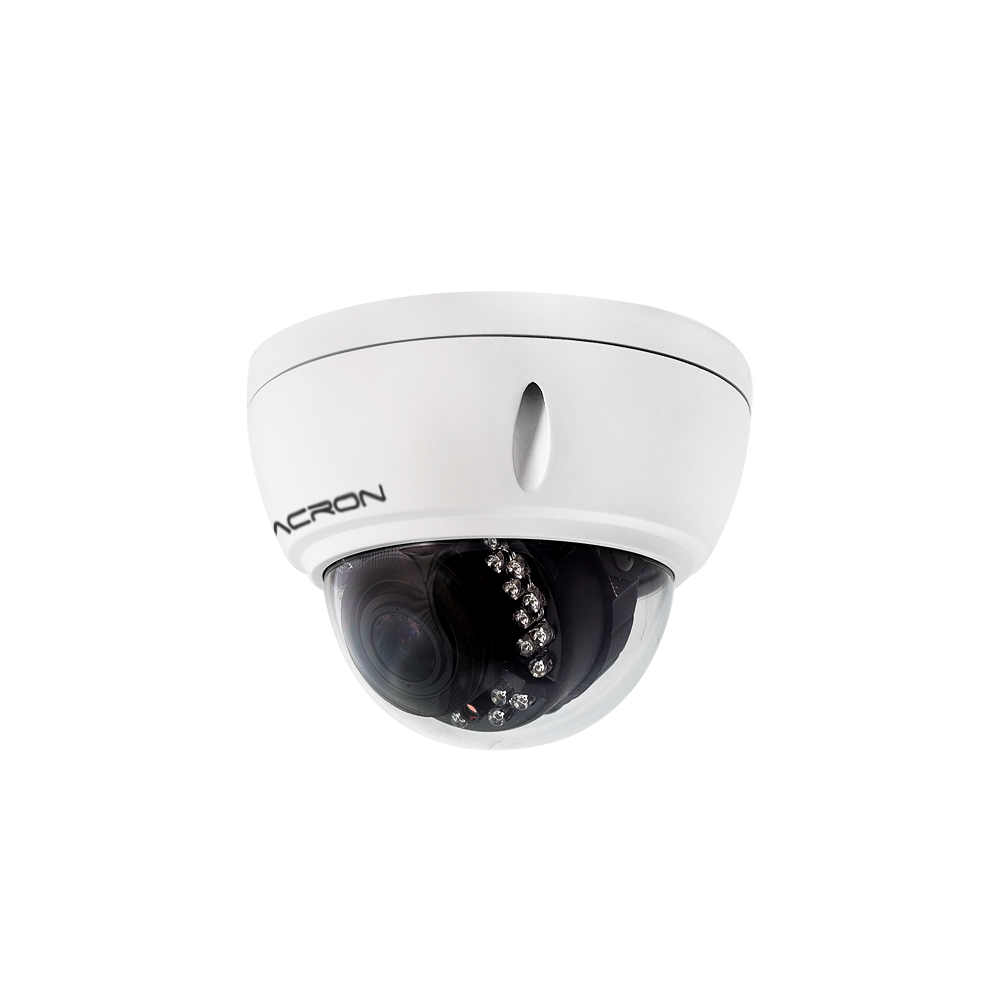

IP Camera


5MP / Dome / IR / H.265

  • DC12V

  • LENS 3.6mm

  • 15M

  • 0 LUX

  • P.O.E

  • 1/2.8"CMOS

  • 24 LEDs

Download Catalog

Product Features

  • SONY 5M Pixels 1/2.8" CMOS Sensor with excellent image quality.
  • Real time H.265/H.264 Multi-Mode compression (Dual Codec).
  • Resolution 2592*1944 @ 30fps/s.
  • 24pcs IR LED, IR Distance 15M.
  • Support ONVIF international standard, best compatibility and integration.


system Flash:256MB
Sensor SONY FullHD High Quality 1/2.8 CMOS Image Sensor
Lens Board Lens 3.6 mm
IR-cut Removable IR Cut filter
Lux 0 Lux(IR ON)
LED 24pcs IR LED
Compression H.265/H.264: 2592x1944 at 30 fps
H.265/H.264: 2560x1440 at 60 fps
H.265/H.264: 2048x1536 at 60 fps
H.265/H2.64: 1920x1080 at 60 fps
H.265、H.264Multi-mode compression (Dual Codec)
Multi-mode compression streaming
Video Adjustment Resolution、Quality and bit rate
Time、Date or custom text and it’s position
Brightness, Contrast, Saturation and Sharpness
Electronic Shutter 1/2 ~ 1/100,000 Sec
Networking Interface 10 /100 Mbps,RJ-45
browser Microsoft Internet Explorer 6.0 or above
Safari, Chrome or Firefox
Alarm & Event notification Motion Detection
E-mail notification or upload file to FTP
User Max. 8 users for live view simultaneously
User Authorization
OTA OTA for Firmware upgrade
I/O Port RJ-45, DC12V
Power DC12V or PoE IEEE802.3af Class 0 (optional)
Power Consumption 3.6W(IR OFF) 、10W(IR ON)
Weight N.W. :1050g
Dimension W:Φ135mm H:110mm
Operating Environments 0℃ ~ 45℃
