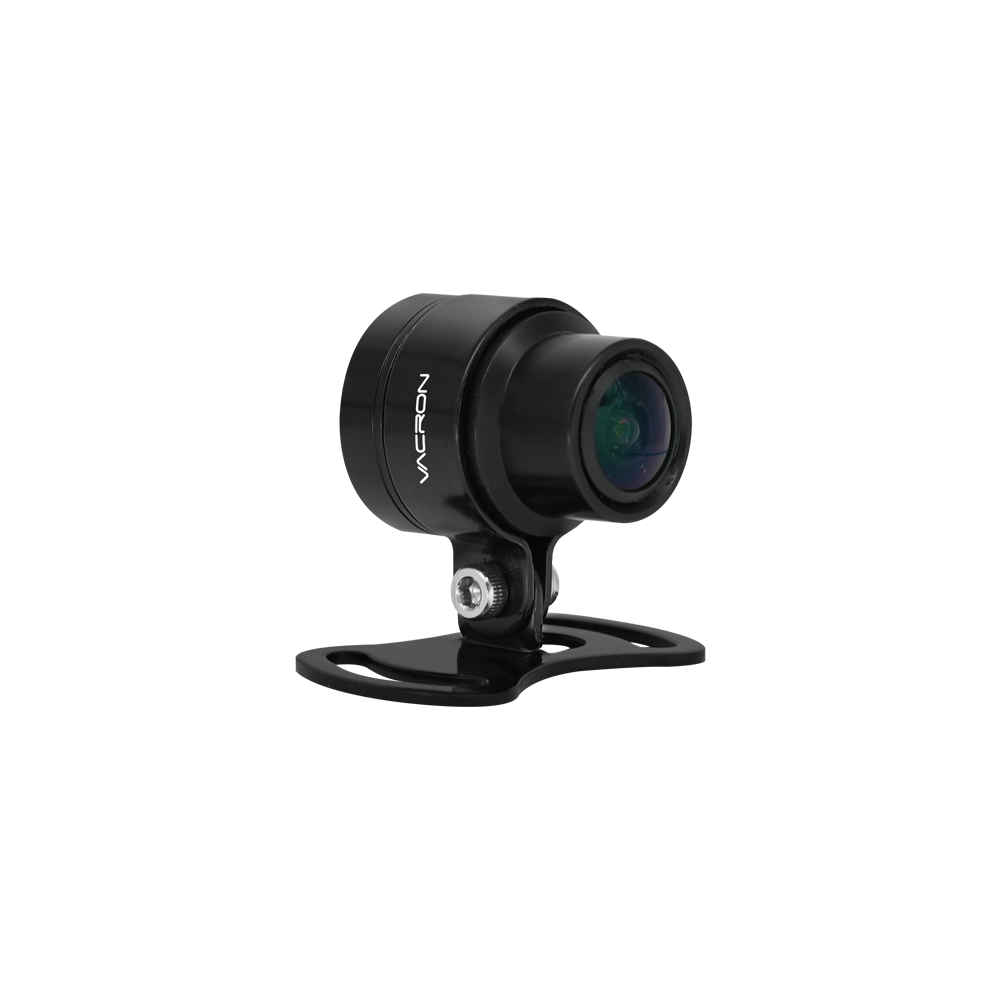

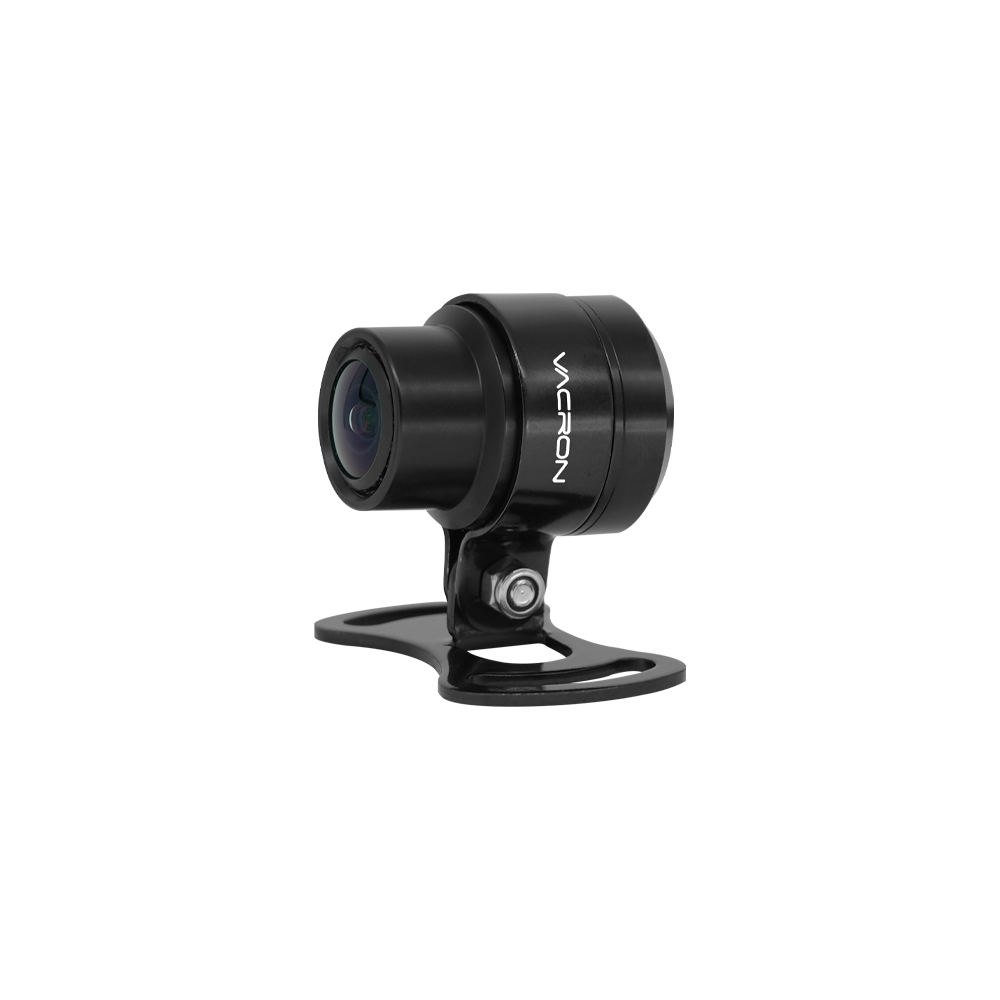

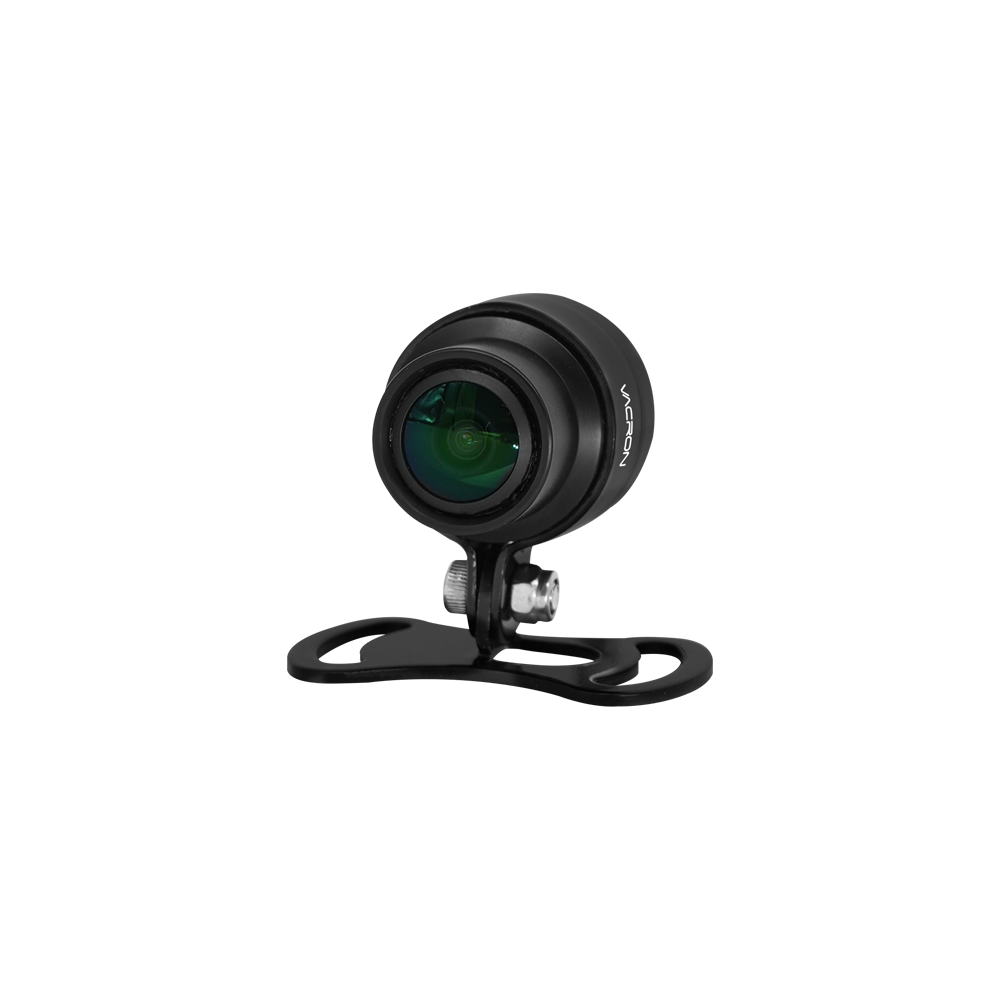

Car Cameras
1080P / IP68
DC12V
0.1 LUX
50dB
Mirror
1/3CMOS
115º/150º
LENS 2.3/1.98 mm
Product Features
|
Video System |
NTSC / PAL |
|
Pick Up Element |
1/3”CMOS Sensor |
|
Number Of Pixel |
1920 (Horizontal) x 1080(Vertical) |
|
Effective Pixels |
2.0 Mega Pixel |
|
Resolution |
1080P |
|
Sync System |
Internal |
|
Scanning system |
2 : 1 Interlace |
|
Sensitivity |
0.1Lux |
|
S/N Ratio |
≥50dB |
|
Auto Gain Control |
AUTO |
|
Mirroring |
Optional(BV) |
|
White Balance |
Auto |
|
Electronical Shutter |
Auto |
|
Video Output |
1 Vp-p Composite Video Output, 75 Ohms |
|
Power Supply |
DC 5.0-12.0V |
|
Power Consumption |
120mA |
|
Lens |
2.3mm / 1.98mm |
|
View Angle |
H115 °、V62° / H:150°、V:81° |
|
Operating Temperature |
- 10° C ~ + 60°C |
|
Dimensions (H x W x D) |
Ø:18mm x 32mm |
| Waterproof |
IP68 |
