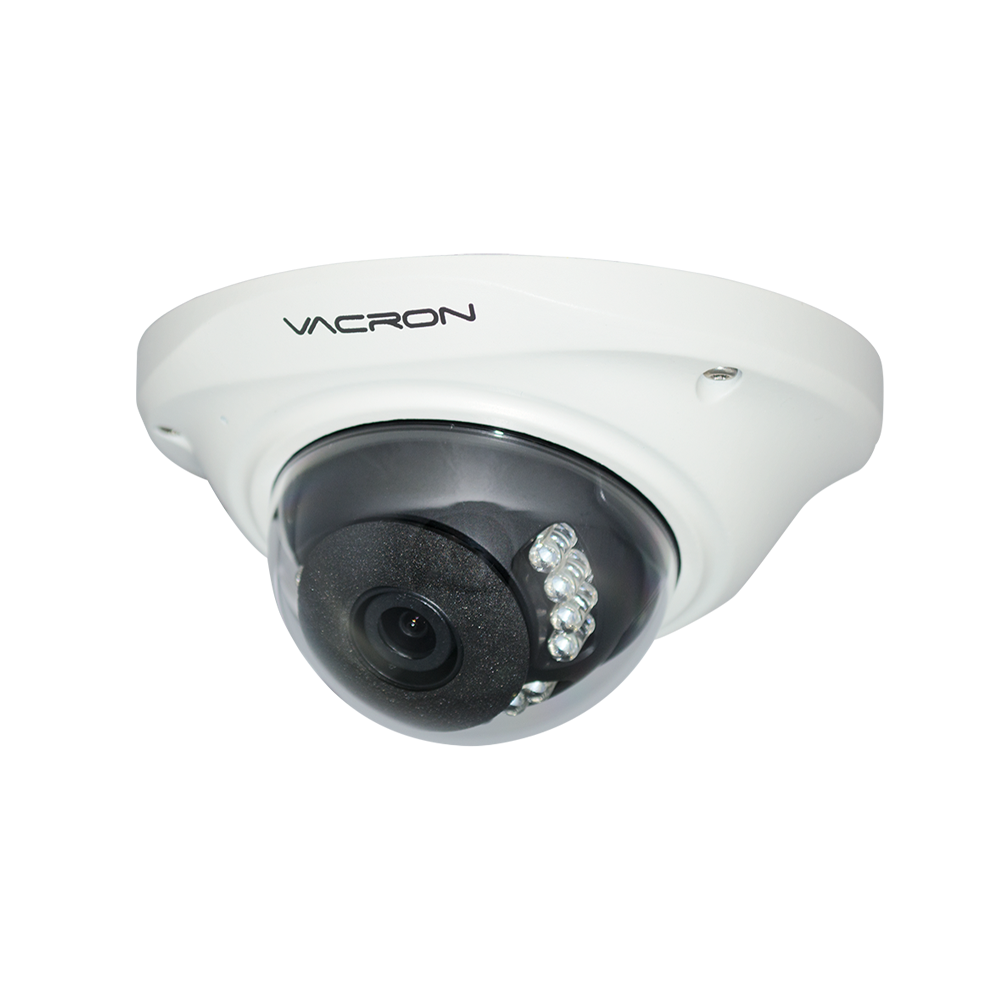

IP Camera
5MP / Dome / IR / H.265+
DC12V
LENS 3.6mm
12 LEDs
15m
P.O.E
CMOS 1/2.5"
Product Features
| Video System | Flash：16MB |
| RAM：128MB | |
| Sensor | FullHD High Quality 1/2.5” CMOS Image Sensor |
| Lens | Board Lens 3.6 mm |
| IR cut | Removable IR Cut filter |
| Lux | 0 Lux(IR ON) |
| IR LED | IR LED 12pcs |
| Compression | H.265+: 2560x1920 at 15fps |
| H.265+: 2048x1536 at 20 fps | |
| H.265+: 1920x1080 at 30fp | |
| H.265+、H.264、JPEG Multi-mode compression (Dual Codec) | |
| Multi-mode compression streaming | |
| Video Adjustment | 1.Resolution、Quality and bit rate |
| 2.Time、Date or custom text and it’s position | |
| 3.Brightness, Contrast, Saturation and Sharpness | |
| 4.Have: AGC、AWB、AES、BLC、WDR Features | |
| Electronic Shutter |
1/2 ~ 1/100,000 Sec |
| Networking Interface | 10 /100 Mbps RJ-45 |
| Protocol | IPv4, TCP/IP, DHCP, HTTP, RTSP, SNTP, DNS |
| Browser | Microsoft Internet Explorer 6.0 or above |
| Safari, Chrome or Firefox | |
| Alarm and Event Management | Motion Detection |
| E-mail notification or upload file to FTP | |
| Users | Max. 8 users for live view simultaneously |
| User Authorization | |
| OTA | OTA for Firmware upgrade |
| I/O Port | RJ-45 , DC12V |
| Power | DC12V or PoE IEEE802.3af Class 0 (optional) |
| Power Consumption | 3.6W(IR OFF)、7W(IR ON) |
| Weight | 450g |
| Dimensions | Φ 120 x 60 mm |
| Operating Temperature | 0 ~ 45 °C |
