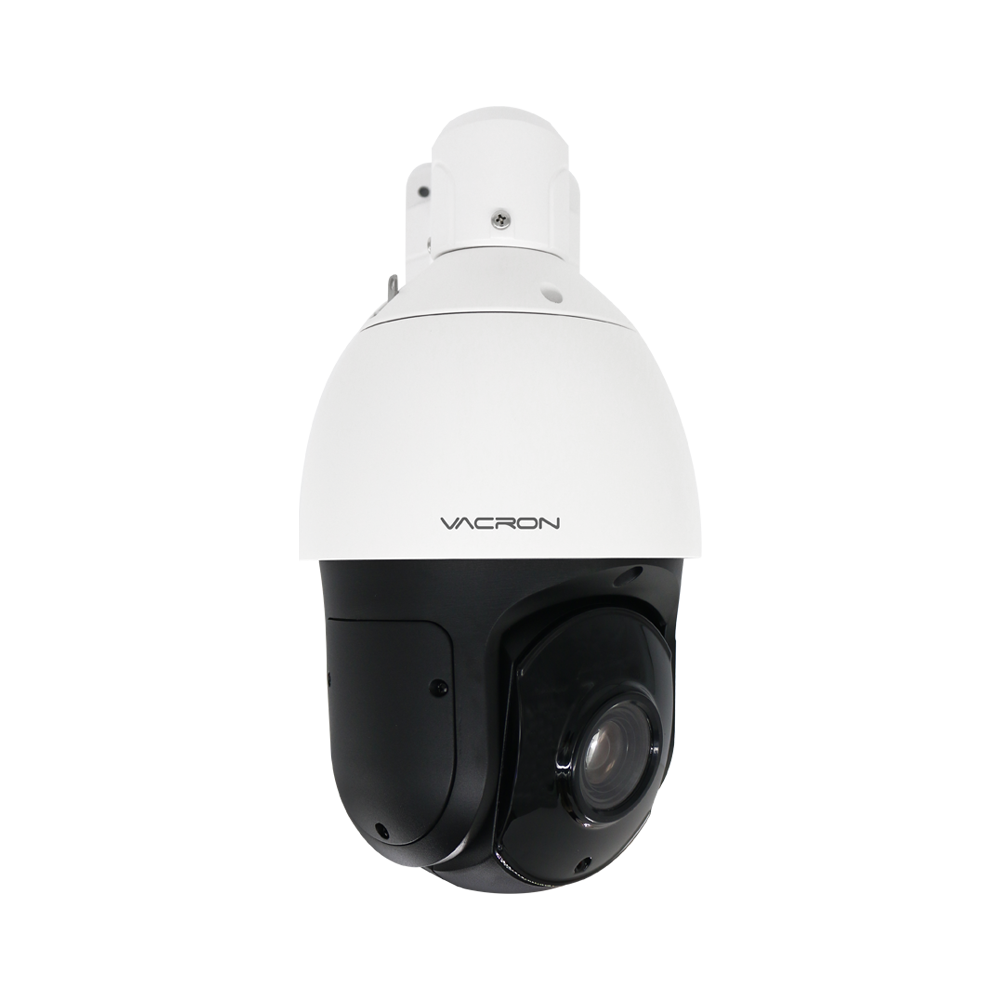

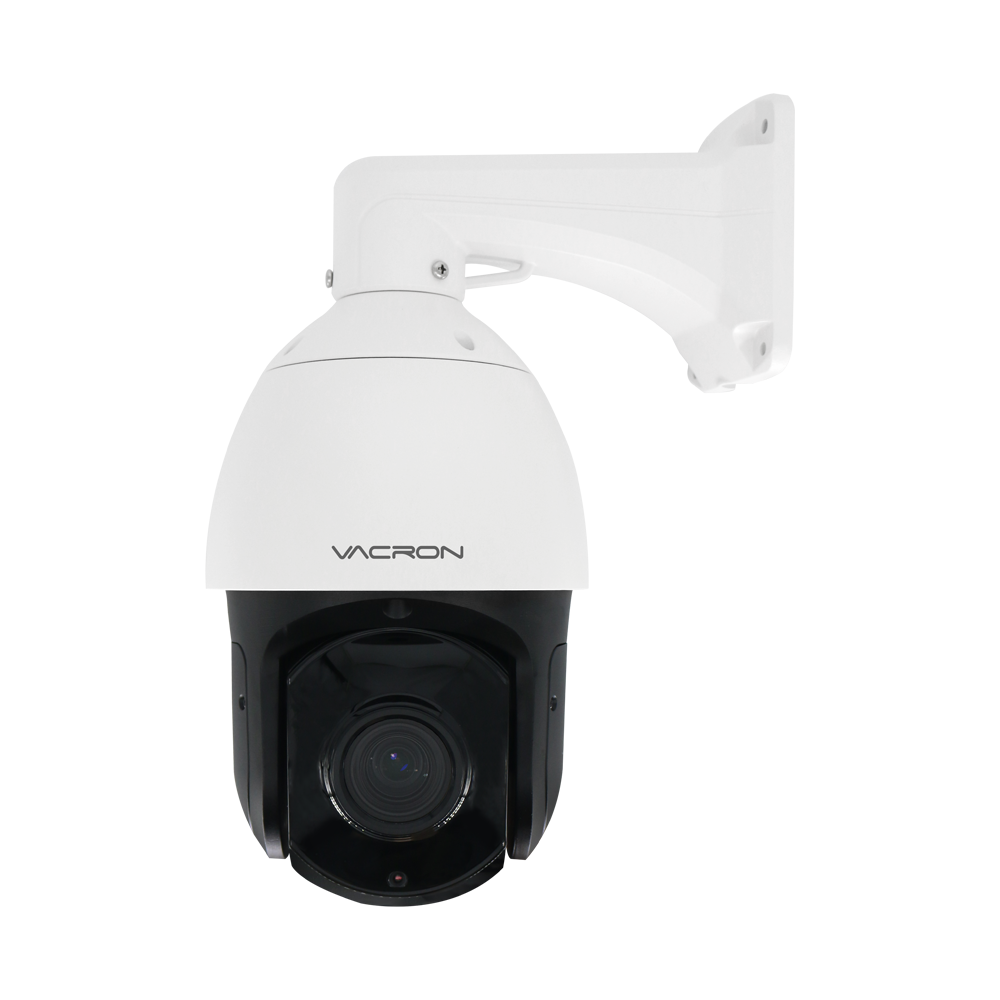

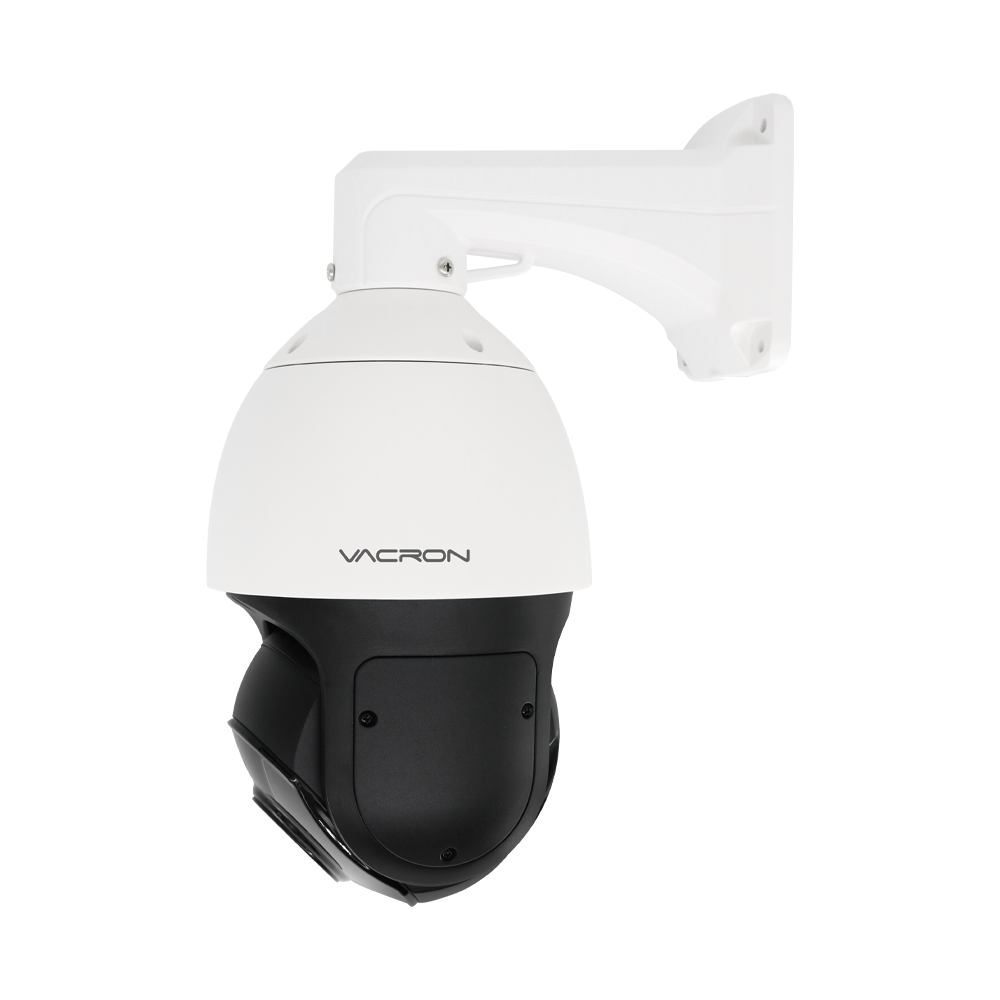

DTV Camera
1080P / Speed Dome / H.264 / IP66
0.01 LUX
50dB
8 LEDs
1/2.8"CMOS
20x
120M
Product Features
| Scanning System | 1/2.8” 2.0M piexls Sony cmos sensor |
| Effective Number of Pixels (H×V)- | 1920x1080 |
| Illumination | Color: 0.01 Lux Black and White: 0.005 Lux |
| White Balance | Auto、 Indoor、Outdoor Sodium-Lamp Mode、Manual |
| Gain Control | Automatic / Manual |
| SNR (Signal-to-Noise Ratio) | more than 50dB (AGC OFF ; Weight ON) |
| BLC | ON / OFF |
| WDR | support |
| Electronic Shutter | 1/2 ~ 1/20,000s support slow shutter |
| Day and Night Mode | IR-CUT Color-to-Black |
| Aperture | F1.6～F2.8 |
| Focus Mode / Focus Control | Automatic / Manual |
| Optical Zoom | 20x Optical Zoom f = 4.7 ~ 94mm |
| Minimum Focal Length | 100mm ~ 1000mm (Near Focus to Far Focus) |
| Horizontal Viewing Angle | 68.5 ~ 4.2 degrees (wide angle - telephoto) |
| Close-up Distance | 10 ~ 1000mm (wide angle - telephoto) |
| Projection Distance | 120m |
| Infrared Angle | Three Adjustable Angles with All-in-One Device Zooming |
| Horizontal Speed Range | 360° continuous rotation speed 0.6-200 degrees/second |
| Vertical Speed Range | 0°-90° speed 120°/sec. |
| Auto-Reversing | 180° Automatic Reversal |
| Proportional Zoom | The rotation speed can be automatically adjusted according to the zoom magnification. |
| Preset Position | 254 |
| Patrol | 4 strips can be set, and 32 presets can be added to each group. |
| Tracks | 4 strips can be set, and 32 presets can be added to each group. |
| Two-Point Line Sweep | support |
| Output | AHD BNC |
| Frame Rate | 50Hz: 25 fps 1920×1080 |
| 60Hz: 30 fps 1920×1080 | |
| Power / Rate of Work | DC 12V4A 10W daytime (max) 30W nighttime (max) |
| Ambient Temperature | -30℃～+60℃ |
| Ambient Humidity | ≤90%RH (frost-free) |
| Defense Level | IP66 / TVS3000V Lightning、Surge and Surge Protection |
| Package Dimensions | 265×265×420 mm |
