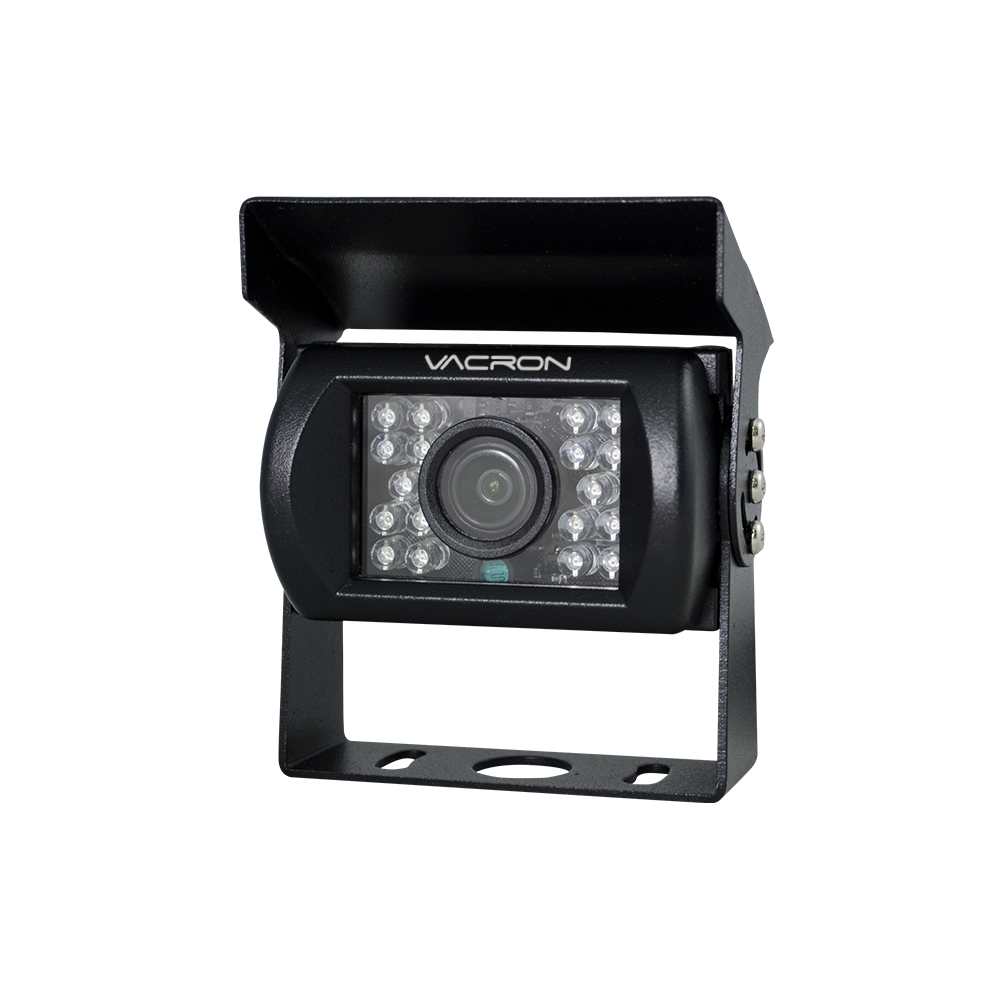

Car Cameras
Product Features
|
Video System |
NTSC / PAL |
|
Pick Up |
1/3” CMOS Image Sensor |
|
Number of Pixel |
1920 (H) × 1080 (V) |
| Effective Pixels |
2.0 Mega Pixel |
| Resolution |
1080P |
|
Sync System |
Internal |
|
Scanning system |
Progressive Scan |
| Sensitivity |
0.1 Lux |
|
S/N Ratio |
≥50dB |
|
Gain Control |
Auto |
|
Electronic Shutter |
Auto |
|
Video Output |
1 Vp-p Composite Video Output, 75 Ohms |
|
Power Supply |
DC 12.0 V |
|
Power Consumption |
120mA(IR Off)；250mA(IR On) |
|
Lens |
2.8mm |
|
View Angle |
H:95°、V53° |
|
Operating Temperature |
-10℃~+60℃ |
|
Dimensions (H×W×D) |
77mm x 54mm x 94mm |
|
LEDs |
18 PCS |
|
IR Range |
5M |
|
IR Wavelength |
850nm |
|
Waterproof |
IP66 |
| Update Date 2022/01/25 | AVM-A268C | AVM-S368C | AVM-A168C |
| Resolution | 1080P | ||
| Pick Up Element | 1/3" CMOS | 1/2.8" SONY CMOS | 1/2.9" Sony Exmor CMOS |
| Lens | 2.8mm | 3.6mm | 2.8mm/3.6mm |
| LEDs | 18 pcs | ||
| IR | ✓ | ||
| IR Range | 5M | ||
| Sensitivity | 0.1 lux | 0.01 lux | 0.01 LUX / F1.2 (IR ON) |
| View Angle | H:95° | H:85° | H95°/H85° |
| Waterproof | IP66 | ||
*If the above specifications are different, please refer to the latest date
