CCTV Surveillance System

DVR

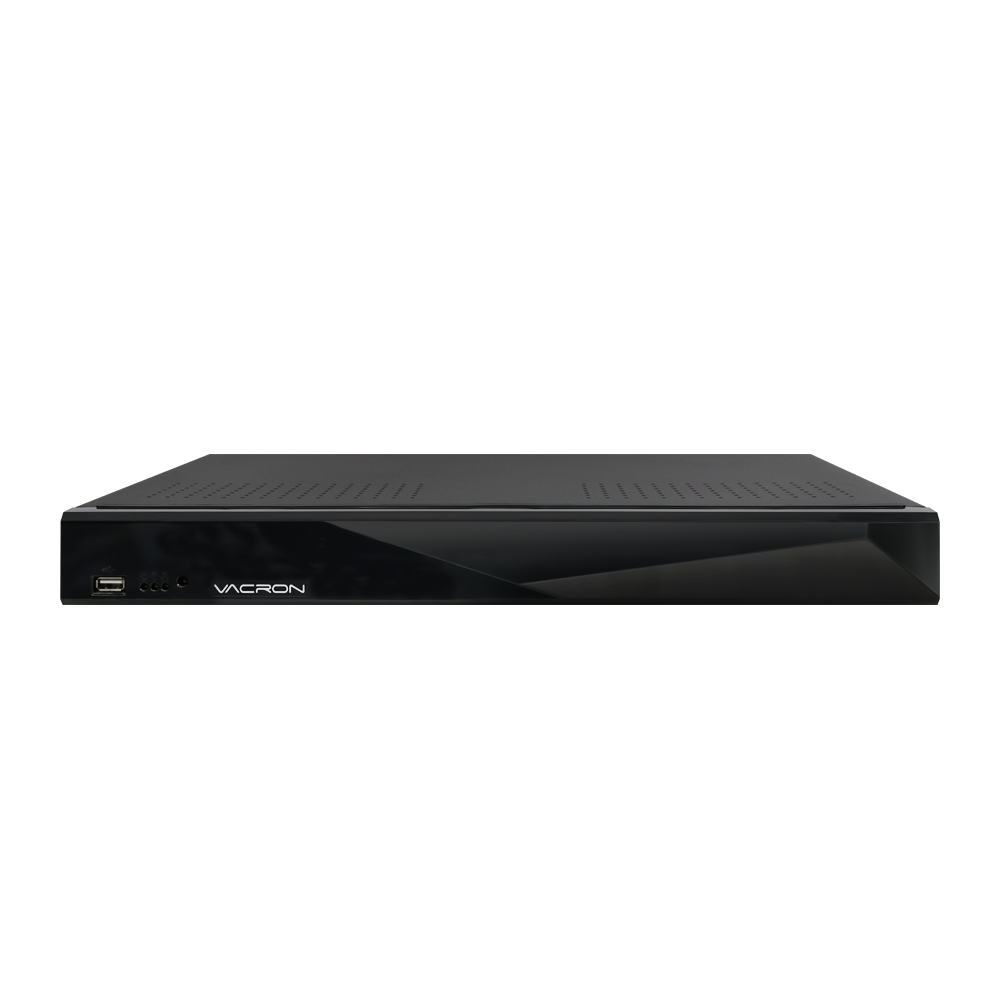

VDN-DKF608E

8CH / 5MP / H.265 / HDD

  • H.265

  • Alarm

  • Motion

  • LAN

  • USB

  • CMS

  • GUI

  • Mouse

  • Users

  • Multi function

  • SATA

Download Catalog

Product Features

  • Multitasking: which can Record / Playback / Remote Connection / Mobile phone watch and playback at the same time.
  • The maximum supporting capacity for a single hard disk is 10 TB.
  • Support HD ultra high definition output.
  • It supports remote IE browsing, monitor live footage, and playback simultaneously.
  • Provide HTTP, DHCP, DDNS, NTP, SMTP, FTP, DNS, UPNP, PPPoE, and IP authority services.
  • Support iPhone, Android, including live video monitoring, playback.
  • It supports CMS (Central Management System).
  • It can be set as a Hybrid function to connect traditional analog signals and digital IP signals simultaneously and the IP channel can be set at will.
  • With P2P function, scan QR-Code through APP for real-time monitoring and playback to increase information security.
  • Set the IP CAM mode on the host, and use FUHO IP Cam to plug and play.
  • Applicable for VACRON IP cam with no extra operation or settings other than plugging.
  • Applicable for ONVIF IP cam.
  • Applicable for RTSP IP cam.
  • Supports VACRON recording devices.
  • Support automatic update.
  • It supports AHD, TVI, CVI, CVBS, and IP signal inputs.
Video Input 8 CH of BNC input
Video Output VGA output (Max. 1920x1080)
HD OUT output (Max. 3840x2160)
Audio Input 4CH RCA input (could extend to 8CH audio)
Audio Output 1CH RCA output
Alarm input 4 inputs, normally open/normally closed (optional)
Alarm output 1 alarm output(optional)
Audio Compression G.711U
Resoluation 1080P
Digital Zoom Yes
Sequence Yes
Video Compression
 H.264/H.265
Recording Frame 8CH 5MP @6FP S/CH；
8CH 1080P @15FP S/CH
Recording Mode- Continuous, Scheduled, Displacement
Motion Detection Zones: 192(16×12 grid)
Playback Video playback up to 1 channel 5MP@6 FPS/sec,
or 1 channel 1080P@15 FPS/sec
or 8 channel VGA
Display Mode  Single Screen/ 4-Split/ 9-Split/ Sequence
Backup File Format MP4/self-defined format
Backup File Method USB/WEB
Network Services HTTP, DHCP, DDNS, NTP, SMTP, FTP, DNS,
UPNP, PPPoE, IP authority
Network Connection Live View, Search/Playback, Backup, and Update
Browser IE, WEB-Client
HDD Storage Interface  SATA x2
Maximum Supported Capacity 10TB per unit
Network Socket RJ-45 x1, 10/100/1000 Base-T
USB Front plate USB2.0x1 / black plate USB2.0x1
File System Stable and reliable self-developed file system
S.M.A.R.T HDD error detecting
Port
 RS-485 (Pelco-D / Pelco-P)
Operation menu Graphical User Interface (GUI);
Supports simultaneous display on VGA, HD out, and CVBS
Input Method Mouse
Internal Buzzer Start-up Beep
Languages  English / Simple Chinese/ Traditional Chinese/ Japanese
Firmware Update USB update or Network Update(OTA)
APP Monitoring iPhone, Android, Mobile App supports Live view& audio,
playback and back-up
Mobile Phone iPhone, Android, Mobile App supports Live video
& audio, and playback.
Central Management Software(CMS) Supports
Hybrid(Digital & Analogue) Supports
Operating Environment Temperature 0~46ºC, Humidity: 20~80%
Power Supply DC 12V / 4A(AC100V~240V 50/60HZ)
Net Weight About 2.7 kg (without HDD and Power Adapter)
Dimension 430mm x 314mm x 53mm (L×W×H)
