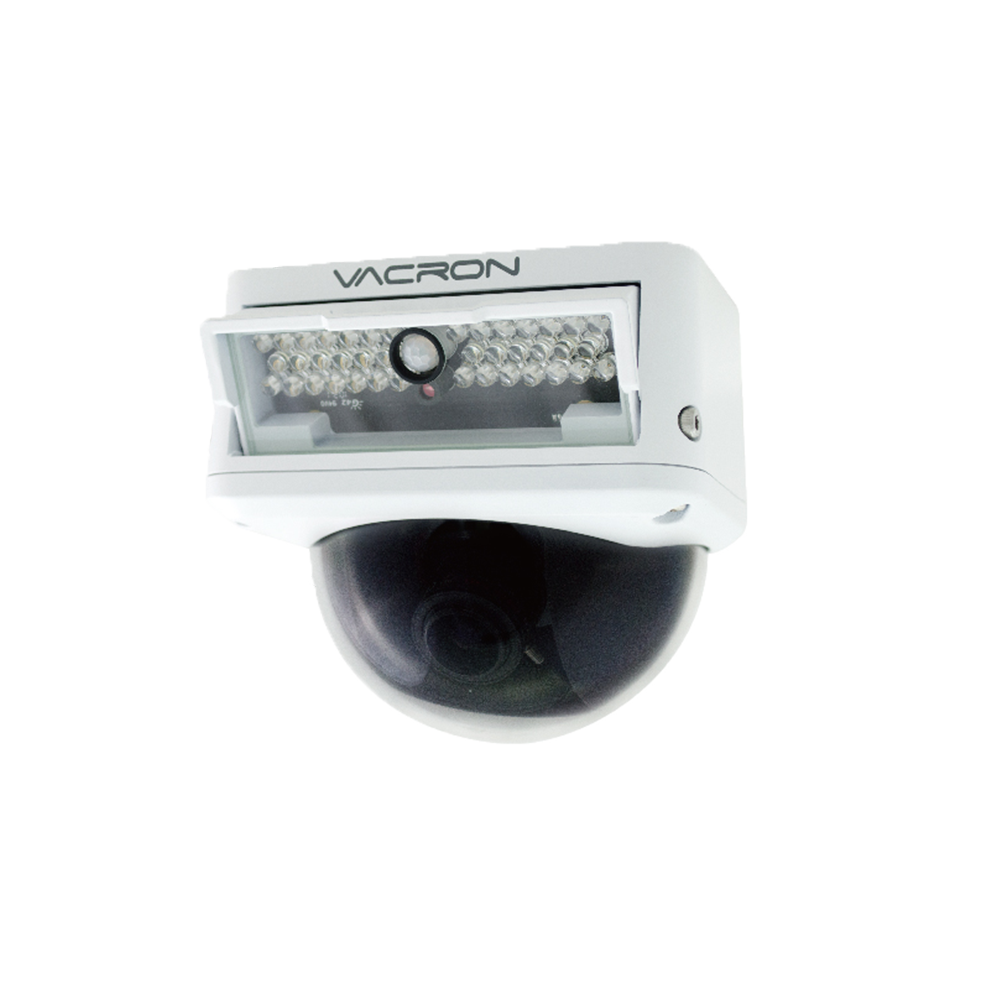

CCTV Camera
1080P / Dome / IP66 / IR
DC12V
30M
0.1 LUX
41dB
LENS2.8~12MM
28+12LEDs
1/2.8"CMOS
Product Features
Pick Up Element |
1/2.8" Sony Exmor CMOS sensor |
Video System |
NTSC / PAL |
Image Signal Process |
Digital Signal Processor |
Lens |
2.8-12mm |
Number Of Pixel |
1920 (Horizontal) x 1080(Vertical) |
Horizontal Resolution |
1080P@30fps |
Power Supply |
DC 12 ± 1V |
Power Consumption |
120mA (IR Off);500mA (IR On) |
ICR |
Support |
Electronic Shutter |
AUTO/1/50(1/60)sec至1/50,000sec |
White Balance |
Auto |
Gain Control |
Auto |
S/N Ratio |
≥41dB |
Day Night Auto Switch |
Support |
LEDs |
5Ø 28 PCS IR LED ; 5Ø 12PCSWhite |
IR Range |
30M |
IR Wavelength |
850nm |
Minimum Illumination |
0.1 LUX / F1.2 |
OUTPUT |
AHD or CVBS or TVI or CVI (Default setting: AHD Mode) |
Language |
English / Simplified Chinese / Traditional Chinese / German / French / Italian / Spanish /Polish / Russian / Portuguese / Dutch / Turkish |
Operating Temperature |
-20℃~50℃ |
Dimensions (H×W×D) |
133 x 128 x 166mm |
Weight |
About 900g |
Simliar Product
Update Date 2021/12/07 | VCF-5MLS42HD | VCN-S59LS42HD |
Resolution | 5MP | 1080P |
Pick Up Element | 1/2.8" CMOS | |
LENS | 2.8-12mm | |
LEDS | 5Ø 28 PCS IR LED 5Ø 12PCS White | |
IR | ✓ | |
IR Wavelength | 850nm | |
IR Range | 30M | |
Sensitivity | 0.1Lux | |
OUTPUT | AHD、TVI、CVI、CVBS | |
Waterproof | IP66 |
*If the above specifications are different, please refer to the latest date
