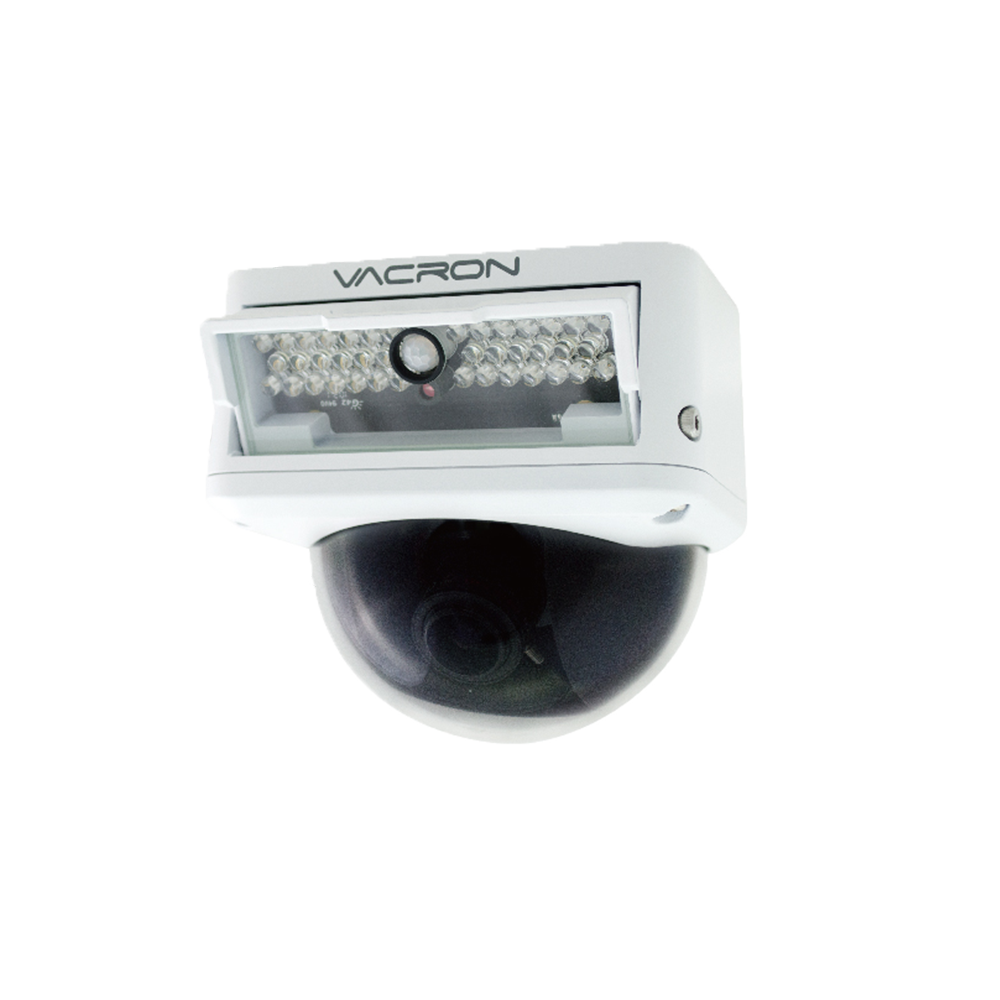

DTV Camera | VCM-69LS42D

Product Features

HD digital image sensor, resolution of 1080p @ 30 fps
Megapixel CS mount: 4mm / 6mm / 8mm / 2.8~12mm.
5Ø 28PCS IR LED ; 5Ø 12PCS White LED, effective distance of 30M.
The White LED will activate when the motion is triggered until motion deactivate.
IR cut filter, accurate color performance.
Wide dynamic range.
Compatible with DVB‐T (ETSI EN300 744) digital TV standard transfer protocol.
Transmission distance up to 1000 meters without repeaters.
Delivering clear color images during day and night time.
Vandal-Resistant Case Design.
3-Axis camera lens to freely pan, tilt, and rotate to every angle.

items	Specifications
Pick Up Element	H.264, MPEG2-TS
Image Signal Process	Image Sensor
Lens	Megapixel CS mount- 4mm、6mm、8mm / 2.8~12mm
Number Of Pixels	1920 (H) × 1080 (V)
Horizontal Resolution	1080P/30fps
Power Supply	DC12V
Power Consumption	650 mA
Consumption	>7.8W
Imaging	AGC、AWB、AES、BLC、WDR、2D/3D、Slow Frame Rate
Camera Synchronization	brightness、contrast、saturation、bitrate、framerate、frequency、set utc time、NTSC/PAL、MOTION
Mechanical IR Cut Filter(ICR)	5V IR-Cut
Minimum Illumination	Max. 65dB
Sensitivity	0.001 Lux ; 0 Lux ( IR On )
LED	5Ø 28PCS IR LED ; 5Ø 12PCS White
IR Range	30M
IR Wavelength	850nm
Frequency	Adjustable：5 MHz ~ 8MHz
Frequency Range	141~923Mhz Default : 177 MHz
Transfer Compatibility	DVB-T (ETSI EN 300 744)
Video Signal Output	Compatible with DVB-T (ETSI EN 300 744)
Dimensions(W x D x H)	133 x 128 x 116 mm
Weight	About 900 g
